Apollon® 21

Product typesConfiguration & data sheets

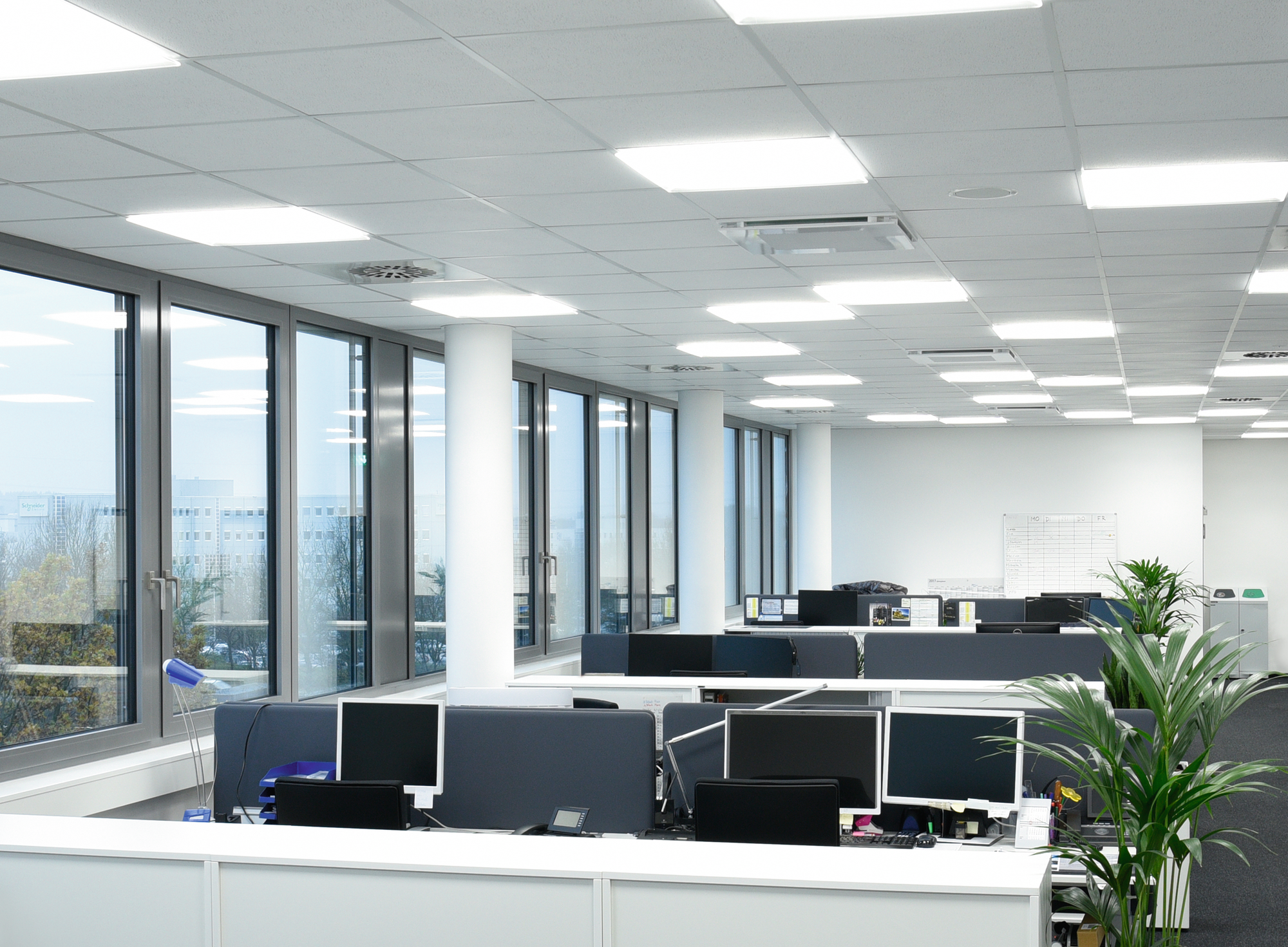

The Apollon® family impresses with its integrative design, homogeneous illumination and advanced technology. Thanks to the different geometries and installation variants, the versatile family of luminaires is perfect for the entire office building. Thanks to the optional Tunable White function, the Apollon® 21 is ideally suited for SITECO HCLlive applications. Efficient lighting technology and the availability of standard panel sizes mean that high energy savings and thus short amortization times can be achieved in the simplest way during renovations.

Our core portfolio: Apollon® 21 is our surface-mounted luminaire with the highest standards of efficiency, quality and flexibility for your project

Product types

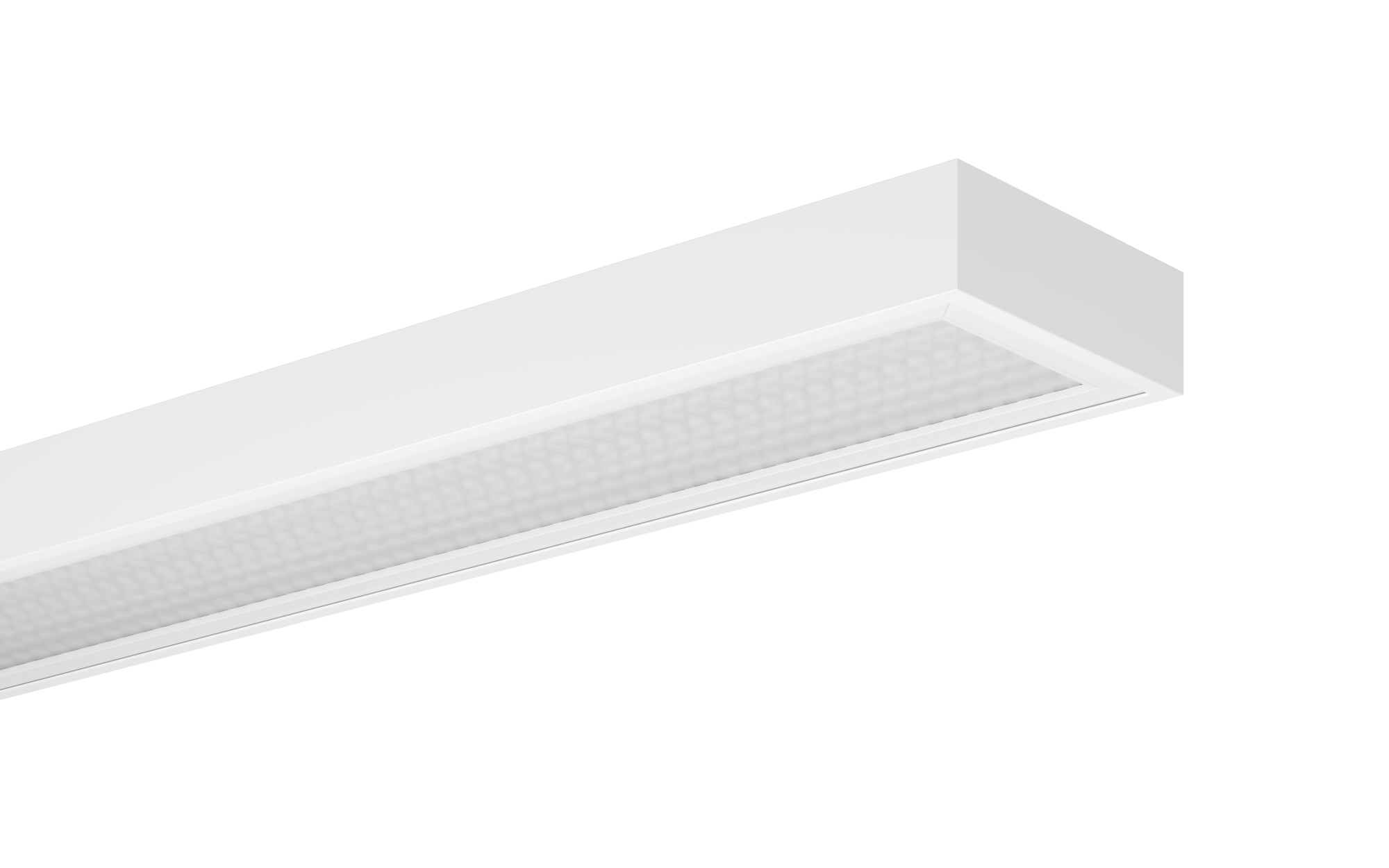

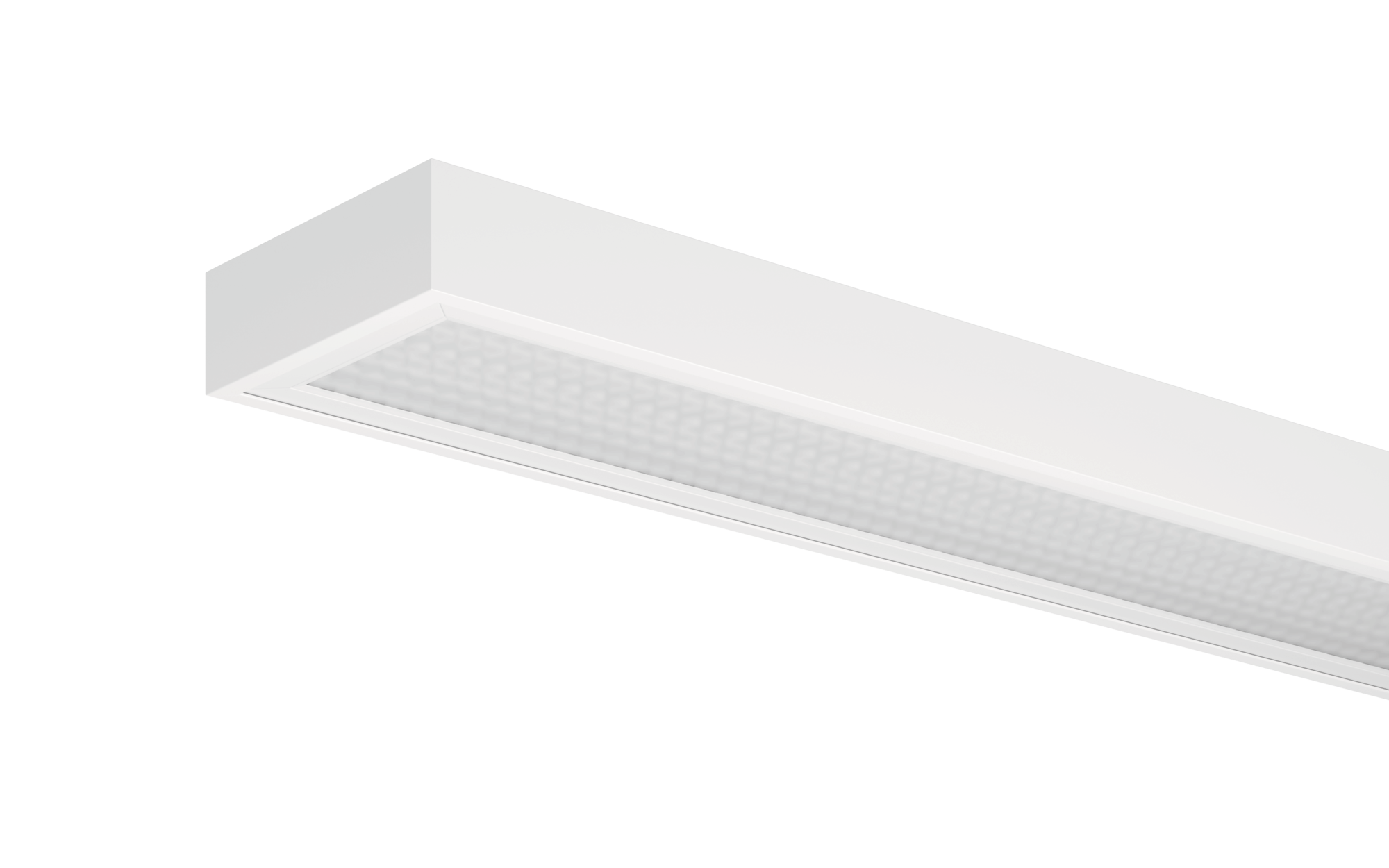

Apollon® 21 with rectangular housing (Edge LED)

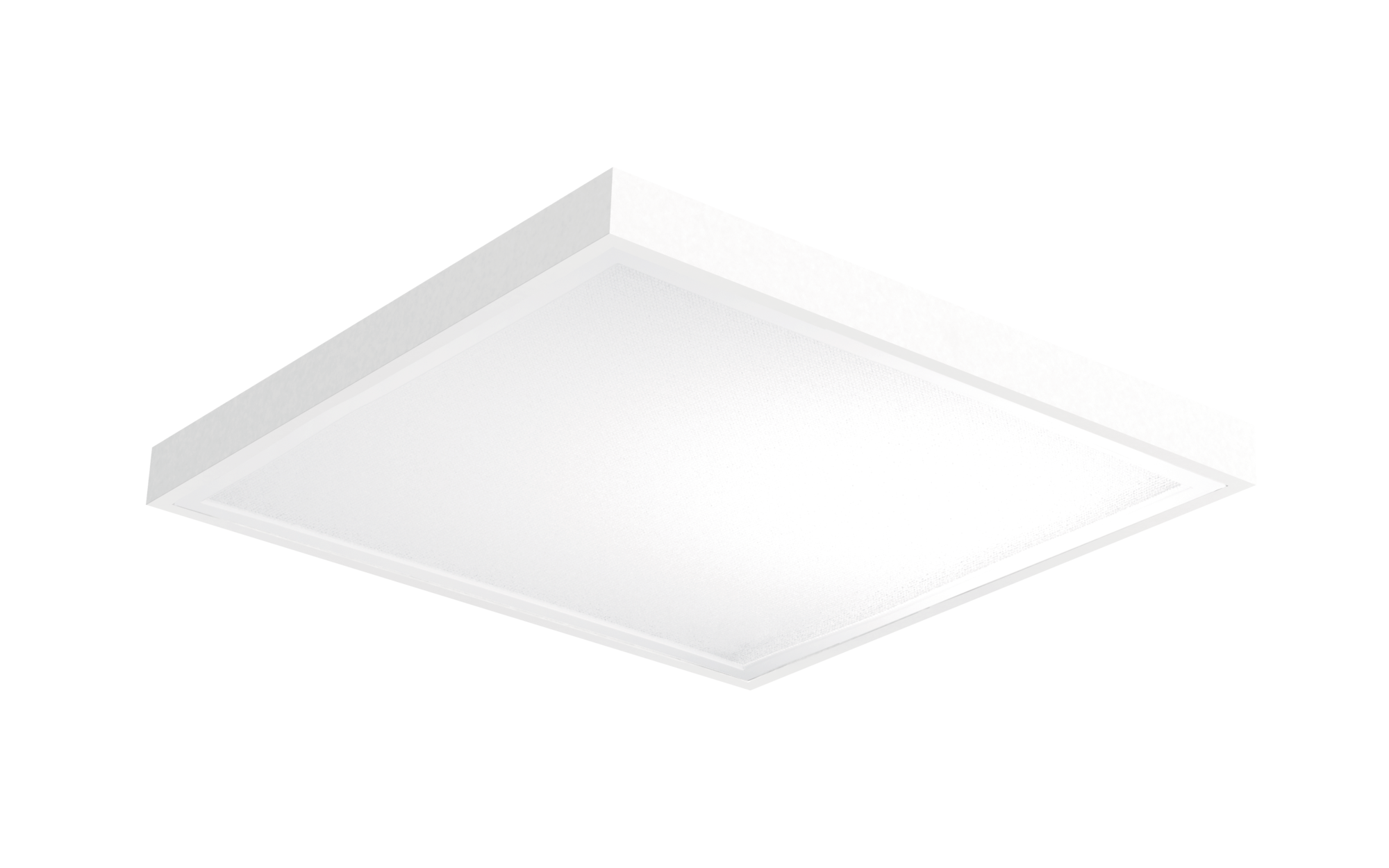

Apollon® 21 with square housing (Edge LED)

Apollon® 21 with rectangular housing (Back LED)

Apollon® 21 with square housing (Back LED)

Apollon® 21 with rectangular housing (Edge LED)

Intro product family

Key data

Article office luminaire
Lighting effect direct symmetric wide distribution, 80°; direct symmetric wide distribution, 90°
Net luminous flux 4000lm to 6900lm
Colour temperature 2700…6500K; 3000K; 4000K; 6500K
Control DALI; DALI DT8; DALI 2
Protection rating IP20/IP50
Service life 50000h (L85/B50) at AT = 25°C; 50000h (L90/B50) at AT = 25°C; 100000h (L80/B50) at AT = 25°C

Special features

Highly efficient for low energy consumption – with refurbishment projects (T5/T8), feasible energy savings are up to 55 %
Durability in application due to high protection ratings of up to IP54 – also suitable for more adverse environments and clean rooms
Available with tunable white function as an ideal basis for HCLlive applications – for more well-being and motivation

Configuration & data sheets

Lighting effect

Beam angle

Colour temperature

Light colour

UGR

Rated luminous flux (lm)

Control

Ceiling system

Dimension (mm)

Insulation class

  • for ceiling surface-mounting: please order luminaire and surface-mount housing individually in the matching size
  • push button interface and multi-sensor only usable in combination with controller

Results

Apollon 21 linear, direct distribution, 2700..6500K, DALI DT8

Order No.: 51MQ14WD2T12 GTIN (EAN): 4058352390610
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)Wt. (kg)
2700..6500KCRI > 804200lm44W96lm/WDALI DT8insulation class I (protective earthing)IP20/IP501245x3073.9
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ18WD2412 GTIN (EAN): 4058352490815
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804000lm33W121lm/WDALIinsulation class II (safety insulation)IP20/IP501195x2952.9
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

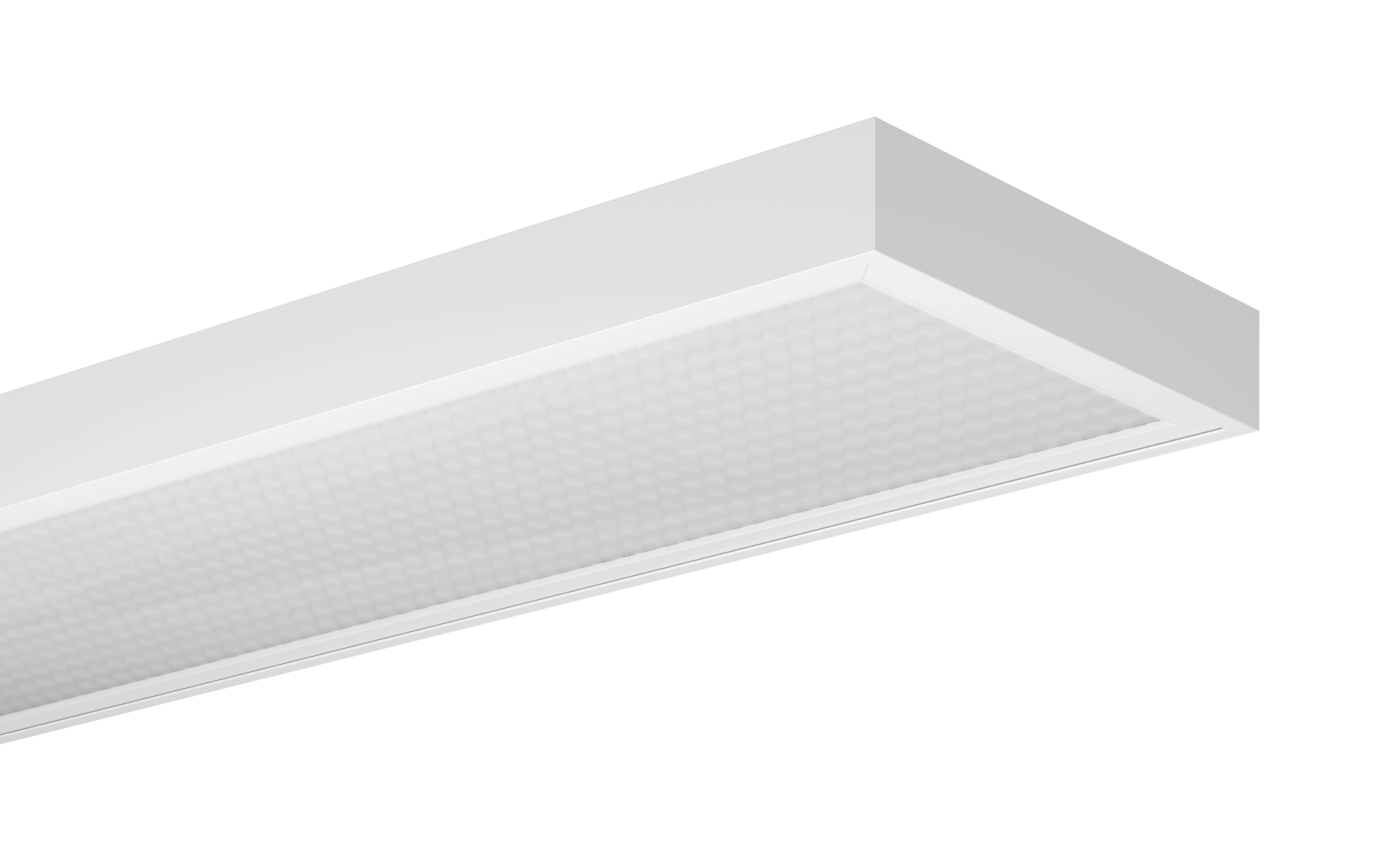

Apollon 21 linear, direct distribution, Light colour 830, DALI 2

Order No.: 51MQ17WD2312 GTIN (EAN): 4058352490723
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)Wt. (kg)
3000KCRI > 806900lm60W115lm/WDALI 2insulation class II (safety insulation)IP20/IP501545x3073.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, DALI 2

Order No.: 51MQ17WD2612 GTIN (EAN): 4058352528013
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)Wt. (kg)
6500KCRI > 806900lm60W115lm/WDALI 2insulation class II (safety insulation)IP20/IP501545x3073.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon 21 linear, direct distribution, DALI

Order No.: 51MQ16WD2612 GTIN (EAN): 4058352714973
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlInsulation classProtection ratingDimension (mm)Wt. (kg)
6500KCRI > 804000lm33W121lm/WDALIinsulation class II (safety insulation)IP20/IP501545x1792.5
Show all details
Tender textData sheet (PDF, full)Complete download list

Apollon 21 linear, direct distribution, 2700..6500K, DALI DT8

Order No.: 51MQ14WD2T12GTIN (EAN): 4058352390610

Colour temperature2700..6500K
Colour renderingCRI > 80
Luminous flux4200lm
Connected load44W
Luminous efficacy96lm/W
ControlDALI DT8
Insulation classinsulation class I (protective earthing)
Protection ratingIP20/IP50
Dimension (mm)1245x307
Wt. (kg)3.9
Show all details

Apollon 21 linear, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ18WD2412GTIN (EAN): 4058352490815

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load33W
Luminous efficacy121lm/W
ControlDALI
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1195x295
Wt. (kg)2.9
Show all details

Apollon 21 linear, direct distribution, Light colour 830, DALI 2

Order No.: 51MQ17WD2312GTIN (EAN): 4058352490723

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux6900lm
Connected load60W
Luminous efficacy115lm/W
ControlDALI 2
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x307
Wt. (kg)3.7
Show all details

Apollon 21 linear, direct distribution, DALI 2

Order No.: 51MQ17WD2612GTIN (EAN): 4058352528013

Colour temperature6500K
Colour renderingCRI > 80
Luminous flux6900lm
Connected load60W
Luminous efficacy115lm/W
ControlDALI 2
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x307
Wt. (kg)3.7
Show all details

Apollon 21 linear, direct distribution, DALI

Order No.: 51MQ16WD2612GTIN (EAN): 4058352714973

Colour temperature6500K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load33W
Luminous efficacy121lm/W
ControlDALI
Insulation classinsulation class II (safety insulation)
Protection ratingIP20/IP50
Dimension (mm)1545x179
Wt. (kg)2.5
Show all details

Mandatory accessories

Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1245 x 310mmPU1 pc.Wt. (kg)1.7Order No.: 59MQ24005021GTIN (EAN): 4058352465455Show all details
Articlesurface-mounted housing (premounted frame), white, for luminaire Lx B= 1545 x 310mmPU1 pc.Wt. (kg)2.0Order No.: 59MQ27005021GTIN (EAN): 4058352465493Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1245 x 181mmPU1 pc.Wt. (kg)1.1Order No.: 59MQ25004021GTIN (EAN): 4058352465462Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1545 x 181mmPU1 pc.Wt. (kg)1.4Order No.: 59MQ26004021GTIN (EAN): 4058352465479Show all details
Articlesurface-mounted housing (unmounted frame), white, for luminaire Lx B= 1545 x 310mmPU1 pc.Wt. (kg)1.5Order No.: 59MQ27004021GTIN (EAN): 4058352465486Show all details

Optional accessories

Articlepresence detector, multi-sensor PS2, master, DALI, recessedPU1 pc.Wt. (kg)0.1Order No.: 5LZ925600GTIN (EAN): 4058352364048Show all details
Articlemulti-sensor PS2, h= 2.5..10m, recessed in the ceilingPU1 pc.Wt. (kg)0.2Order No.: 5LZ925601GTIN (EAN): 4058352362020Show all details
Articlesurface-mounted housingPU1 pc.Wt. (kg)0.1Order No.: 5LZ925APGTIN (EAN): 4050737767505Show all details
Articlepresence detector, multi-sensor PS2, master, DALI, surface-mountedPU1 pc.Wt. (kg)0.3Order No.: 5LZ925602GTIN (EAN): 4058352364062Show all details
Articlecontroller, master, DALI, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.4Order No.: 5LZ904712GTIN (EAN): 4008321710871Show all details
ArticleSmart RemotePU1 pc.Wt. (kg)0.1Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show all details
Articlerotary dimmer, local control - self-sufficient standalone sensors, recessed in the switch boxPU1 pc.Wt. (kg)0.1Order No.: 5LZ902050TWGTIN (EAN): 4058352145807Show all details
