51FR127A441A

Order No.: 51FR127A441A
Remember articleRemember article

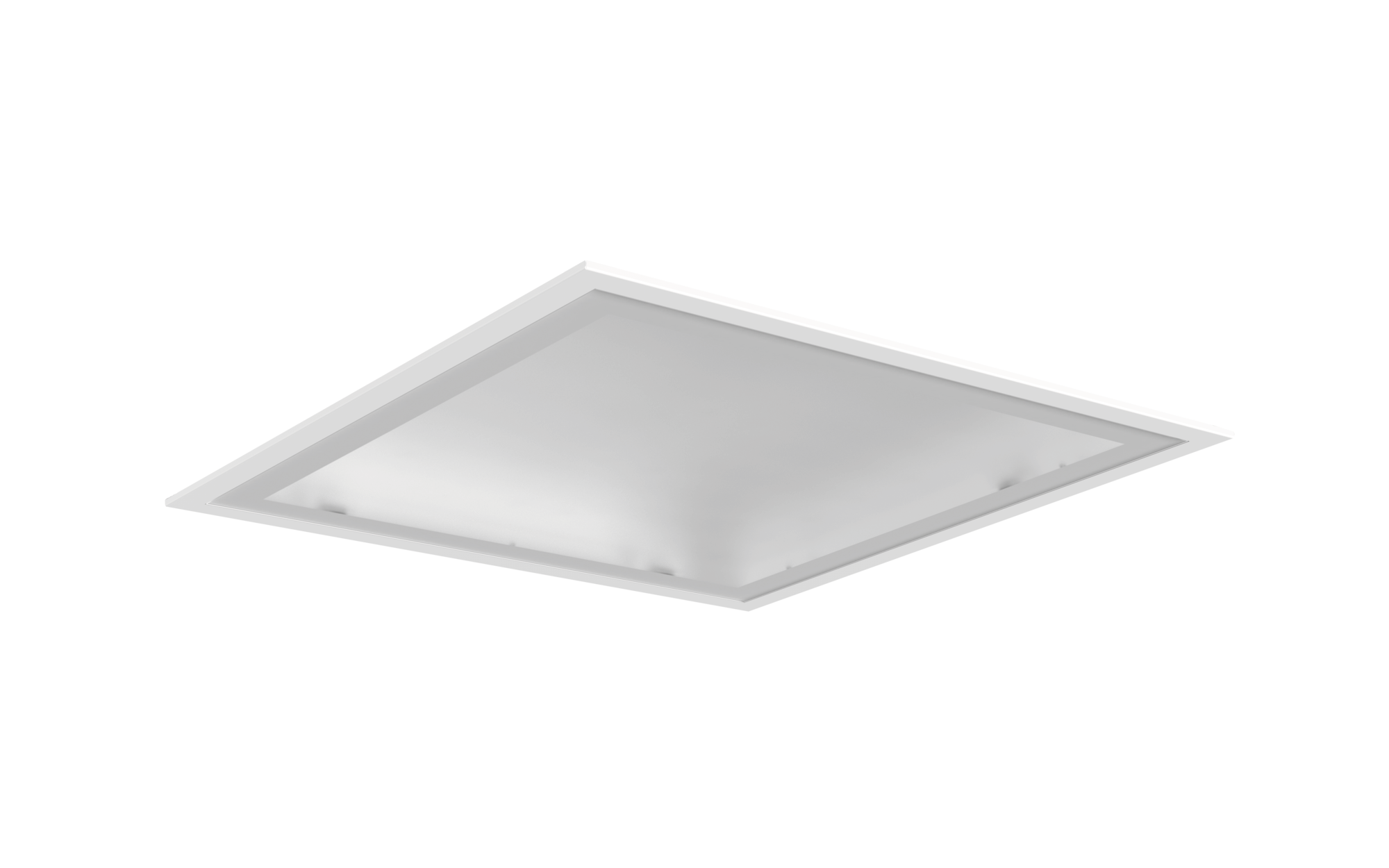

Article clean room luminaire
Product name Mira 11
Lamp LED
Rated luminous flux 4610lm
Luminous efficacy 125lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 37W
Service life 75000h (L80/B10) at AT = 25°C
Protection rating IP65
Impact resistance ??
Weight 13.0kg

Mira 11, clean room luminaire, primary light control with reflector, primary optical cover: cover, of toughened safety glass, light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, LED, rated luminous flux: 4.610lm, luminous efficacy: 125lm/W, light colour: 840, colour temperature: 4000K, control gear: ON/OFF, with terminal, 3-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, rated input power: 37W, luminaire housing, of sheet steel, coated, pure white (RAL 9010), with concealed magnets, module: M625, length: 623mm, width: 623mm, height: 90mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, permissible operating ambient temperature: -5..+40°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type clean room luminaire
Product name Mira 11
Order No. 51FR127A441A

Lighting technology

Light control reflector
Cover cover
Beam angle wide distribution
Symmetry symmetric

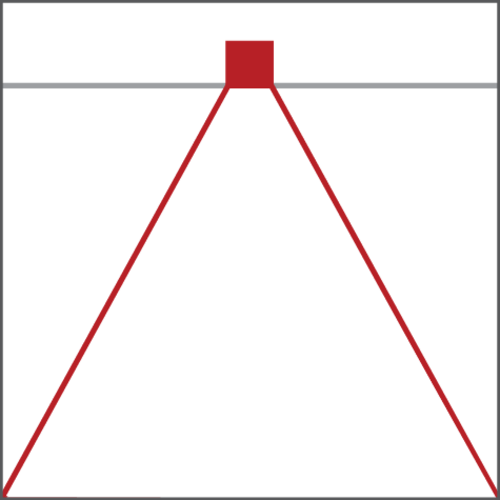

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 4610lm
Luminous efficacy 125lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 37W

Operating device

Control gear ECG
Control ON/OFF

Certificates, Standards

Protection rating IP65
Insulation class insulation class I (protective earthing)
Temperature range (operation) -5..+40°C
Standard EN 50419
Certification, designation CE, UKCA

Material, Colour

luminaire housing sheet steel, coated, pure white (RAL 9010), with concealed magnets
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location recessed, in the ceiling
Arrangement single arrangement
Supplement only suitable for use in indoor areas, for flush recessing into metal cassettes, inspection from below

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 230V, 230..240V, 50/60Hz, AC

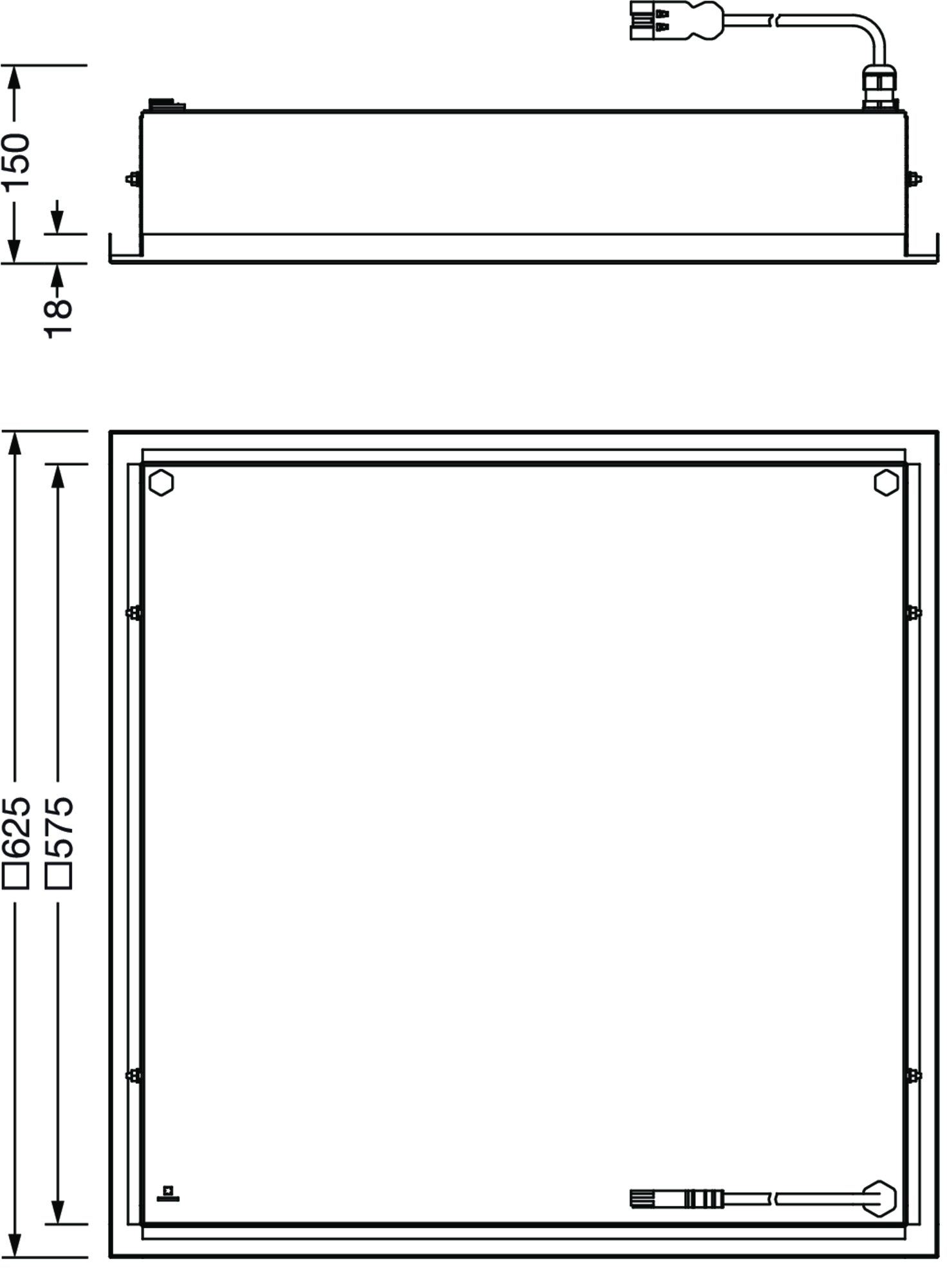

Dimensions, Weight

Length 623mm
Width 623mm
Height 90mm
Weight 13.0kg

Service life

Rated service life 75000h (L80/B10) at AT = 25°C

Product type
clean room luminaire

Product name
Mira 11

Order No.
51FR127A441A

Light control
reflector

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
4610lm

Luminous efficacy
125lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
37W

Control gear
ECG

Control
ON/OFF

Protection rating
IP65

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-5..+40°C

Standard
EN 50419

Certification, designation
CE, UKCA

luminaire housing
sheet steel, coated, pure white (RAL 9010), with concealed magnets

Cover
cover of toughened safety glass

Mounting method, mounting location
recessed, in the ceiling

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas, for flush recessing into metal cassettes, inspection from below

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
230V, 230..240V, 50/60Hz, AC

Length
623mm

Width
623mm

Height
90mm

Weight
13.0kg

Rated service life
75000h (L80/B10) at AT = 25°C

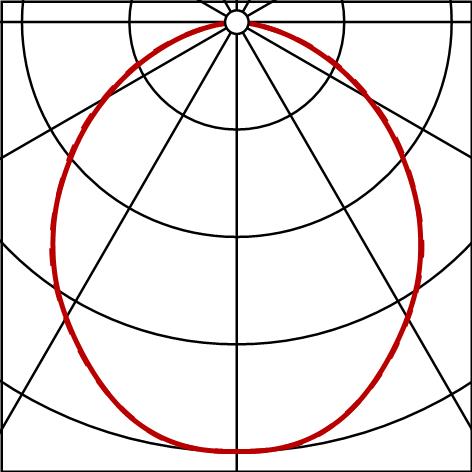

Photometric report / planning data

Mira11CRL
LED,4610lm840,ECG,TSG,dir,rec
Lamps: LED 4000K / CRI >= 80
Order No.: 51FR127A441A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
