Order No.: 51LN12NNM70A

Article wall and ceiling luminaire

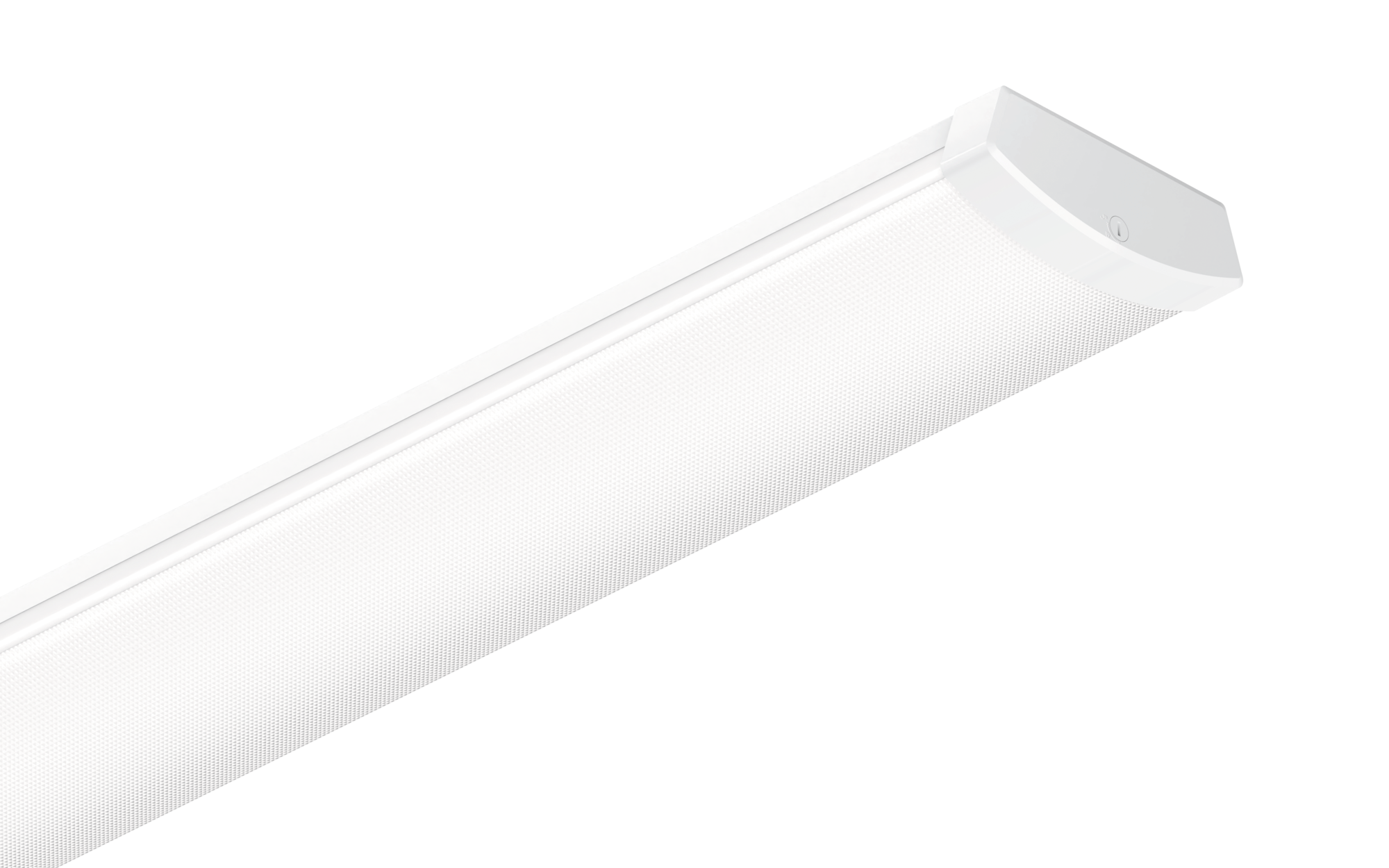

Product name Siluette 21
Lamp LED
Rated luminous flux 7150lm
Luminous efficacy 143lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 50W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP44
Impact resistance IK04
Weight 3.5kg

Siluette 21, wall and ceiling luminaire, primary optical cover: enclosure, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 7.150lm, luminous efficacy: 143lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: DALI 2, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 50W, housing, of sheet steel, white, length: 1.500mm, width: 152mm, height: 53mm, end cap, of PMMA, white, protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -20..+40°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

Product type wall and ceiling luminaire
Product name Siluette 21
Order No. 51LN12NNM70A


Lighting technology

Cover enclosure, frosted
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution


Lamps

Lamps with LED
Rated luminous flux 7150lm
Luminous efficacy 143lm/W
Colour temperature 3000/4000/5000K
Colour rendering index CRI > 80
Light colour 830/840/850
Rated input power 50W
Supplement luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)


Operating device

Control DALI 2, Multilumen


Certificates, Standards

Protection rating IP44
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) -20..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity
Certification, designation CE, UKCA


Material, Colour

housing sheet steel, white
end cap PMMA, white
Quantity 2 piece
Cover enclosure of PC


Mounting

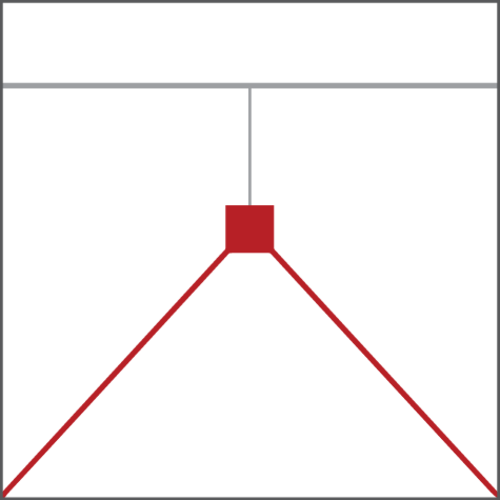

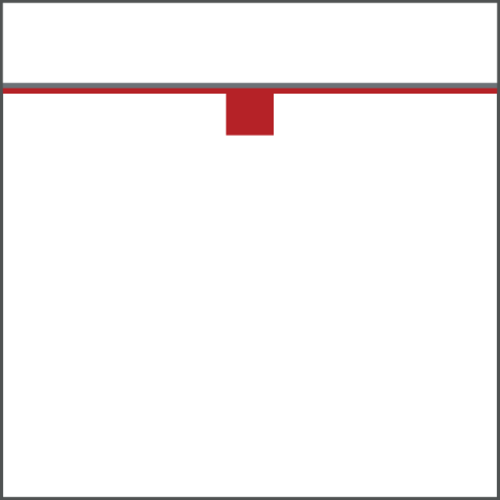

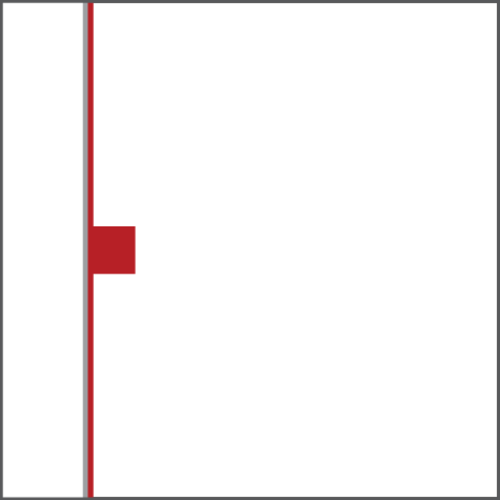

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall
Arrangement single arrangement
Supplement only suitable for use in indoor areas


Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC


Dimensions, Weight

Length 1500mm
Width 152mm
Height 53mm
Weight 3.5kg


Service life

Rated service life 100000h (L80/B50) at AT = 25°C

Product type
wall and ceiling luminaire

Product name
Siluette 21

Order No.
51LN12NNM70A

Cover
enclosure, frosted

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
7150lm

Luminous efficacy
143lm/W

Colour temperature
3000/4000/5000K

Colour rendering index
CRI > 80

Light colour
830/840/850

Rated input power
50W

Supplement
luminous flux adjustable on luminaire in four steps (3800/4800/5900/7000lm), connected load according to luminous flux setting (27/34/42/50W)

Control
DALI 2, Multilumen

Protection rating
IP44

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
-20..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity

Certification, designation
CE, UKCA

housing
sheet steel, white

end cap
PMMA, white

Quantity
2 piece

Cover
enclosure of PC

Mounting method, mounting location
suspended mounting, surface-mounted, to wire, to the ceiling, to the wall

Arrangement
single arrangement

Supplement
only suitable for use in indoor areas

Connection
terminal, 5-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
152mm

Height
53mm

Weight
3.5kg

Rated service life
100000h (L80/B50) at AT = 25°C
