51MQ14HM2M15

Order No.: 51MQ14HM2M15
Remember articleRemember article

Article office luminaire

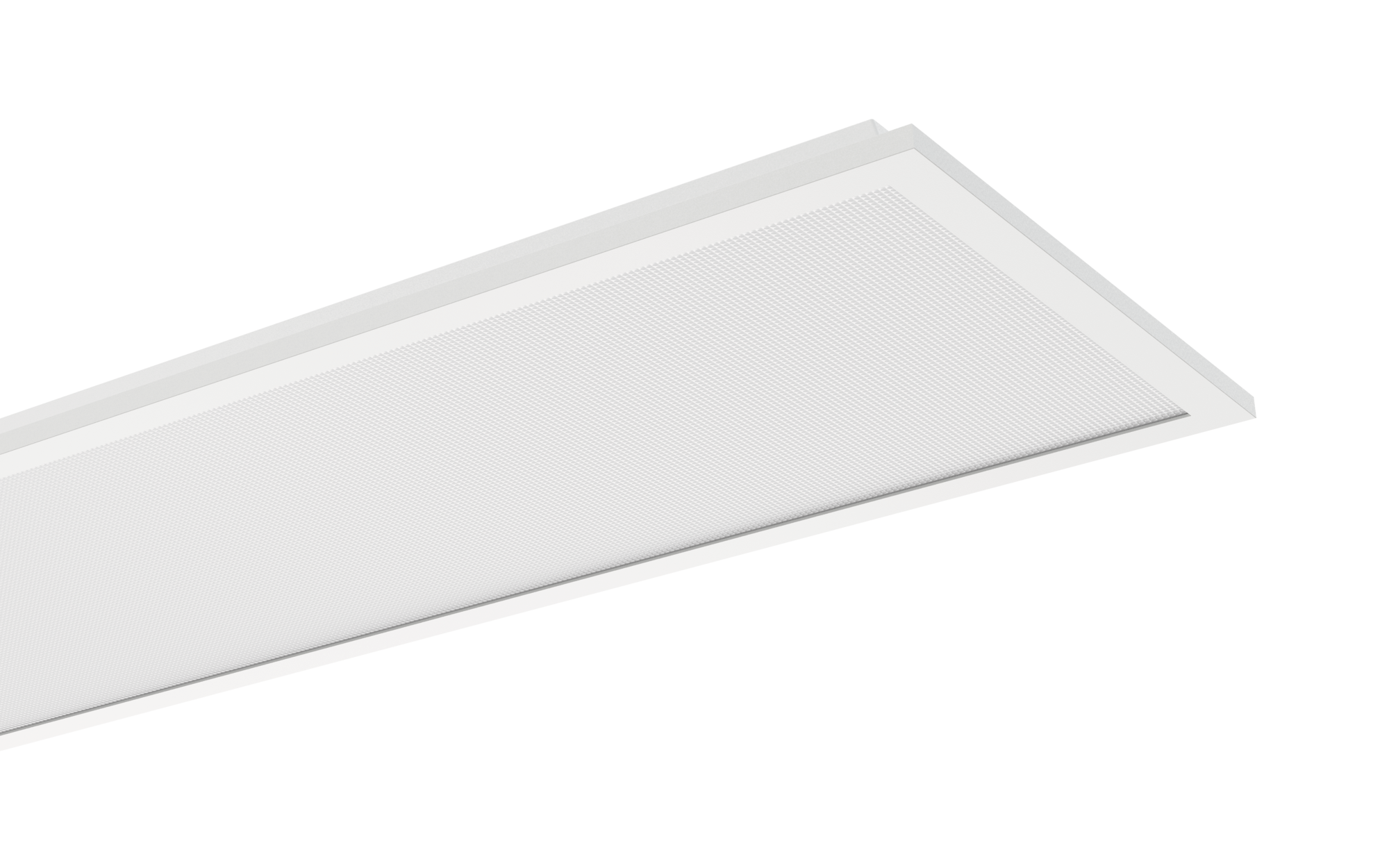

Product name Apollon 21 linear
Lamp LED
Rated luminous flux 7100lm
Luminous efficacy 165lm/W
Colour temperature 3000/4000K
Colour rendering CRI > 80
Rated input power 43W
Service life 100000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 3.8kg

Apollon 21 linear, office luminaire, primary light control with lens, of PMMA, primary optical cover: micro prismatic cover, of PS, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, recessed, LED, rated luminous flux: 7.100lm, luminous efficacy: 165lm/W, light colour: 830/840, colour temperature: 3000/4000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 43W, suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22, housing, of aluminium, coated, traffic white (RAL 9016), module: M625, length: 1.245mm, width: 307mm, height: 34mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, UKCA, impact resistance: IK03, permissible operating ambient temperature: -20..+45°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type office luminaire
Product name Apollon 21 linear
Order No. 51MQ14HM2M15

Component 1

Lighting technology
Light control lens of PMMA
Cover micro prismatic cover
Beam angle wide distribution, 90°
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps
Lamps with LED
Rated luminous flux 7100lm
Luminous efficacy 165lm/W
Colour temperature 3000/4000K
Colour rendering index CRI > 80
Light colour 830/840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 43W
Supplement with through-wiring, luminous flux adjustable on control gear in 8 steps (4800/.../7100lm), connected load according to luminous flux setting (28.5/.../43.0W), for UGR 19 values see dimming table in mounting instruction

Operating device
Control ON/OFF Multilumen

Component 2

Operating device
Switching method suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class II (safety insulation)
Impact resistance IK03
Temperature range (operation) -20..+45°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Standard EN 60598-2-22
Certification, designation CE, ENEC, UKCA

Material, Colour

housing aluminium, coated, traffic white (RAL 9016)
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PS

Mounting

Mounting method, mounting location recessed, lay-in mounting, in the ceiling
Arrangement single arrangement
Supplement please order the required mounting accessories for ceiling recessing separately

Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 1245mm
Width 307mm
Height 34mm
Weight 3.8kg

Service life

Rated service life 100000h (L80) at AT = 25°C

Product type
office luminaire

Product name
Apollon 21 linear

Order No.
51MQ14HM2M15

Lighting technology

Light control
lens of PMMA

Cover
micro prismatic cover

Beam angle
wide distribution, 90°

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps

Lamps
with LED

Rated luminous flux
7100lm

Luminous efficacy
165lm/W

Colour temperature
3000/4000K

Colour rendering index
CRI > 80

Light colour
830/840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
43W

Supplement
with through-wiring, luminous flux adjustable on control gear in 8 steps (4800/.../7100lm), connected load according to luminous flux setting (28.5/.../43.0W), for UGR 19 values see dimming table in mounting instruction

Operating device

Control
ON/OFF Multilumen

Operating device

Switching method
suitable for self-contained emergency lighting element 58DB00B013A with integrated self-test function according to EN 60598-2-22

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP50

Insulation class
insulation class II (safety insulation)

Impact resistance
IK03

Temperature range (operation)
-20..+45°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, UKCA

housing
aluminium, coated, traffic white (RAL 9016)

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PS

Mounting method, mounting location
recessed, lay-in mounting, in the ceiling

Arrangement
single arrangement

Supplement
please order the required mounting accessories for ceiling recessing separately

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1245mm

Width
307mm

Height
34mm

Weight
3.8kg

Rated service life
100000h (L80) at AT = 25°C

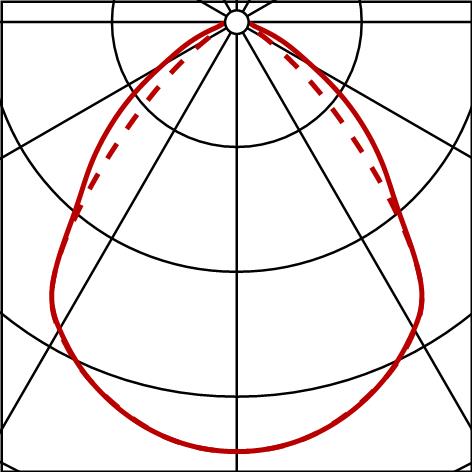

Photometric report / planning data

Apollon 21 linear
office luminaire, traffic white (RAL 9016), ON/OFF Multilumen, 7100lm, 830/840, 1245x307mm, for M625 and for cut ceiling aperture, Connection: terminal
Lamps: LED 4000K / CRI >= 80, factory setting: colour temperature 4000K
Order No.: 51MQ14HM2M15

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
Product versions/accessory

Apollon 21 linear
Lamps: LED 3000K / CRI >= 80, individual setting: colour temperature 3000K
Order No.: 51MQ14HM2M15

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
IES
2D symbol (DXF)
