51TP12TNT85X
Article luminaire insert

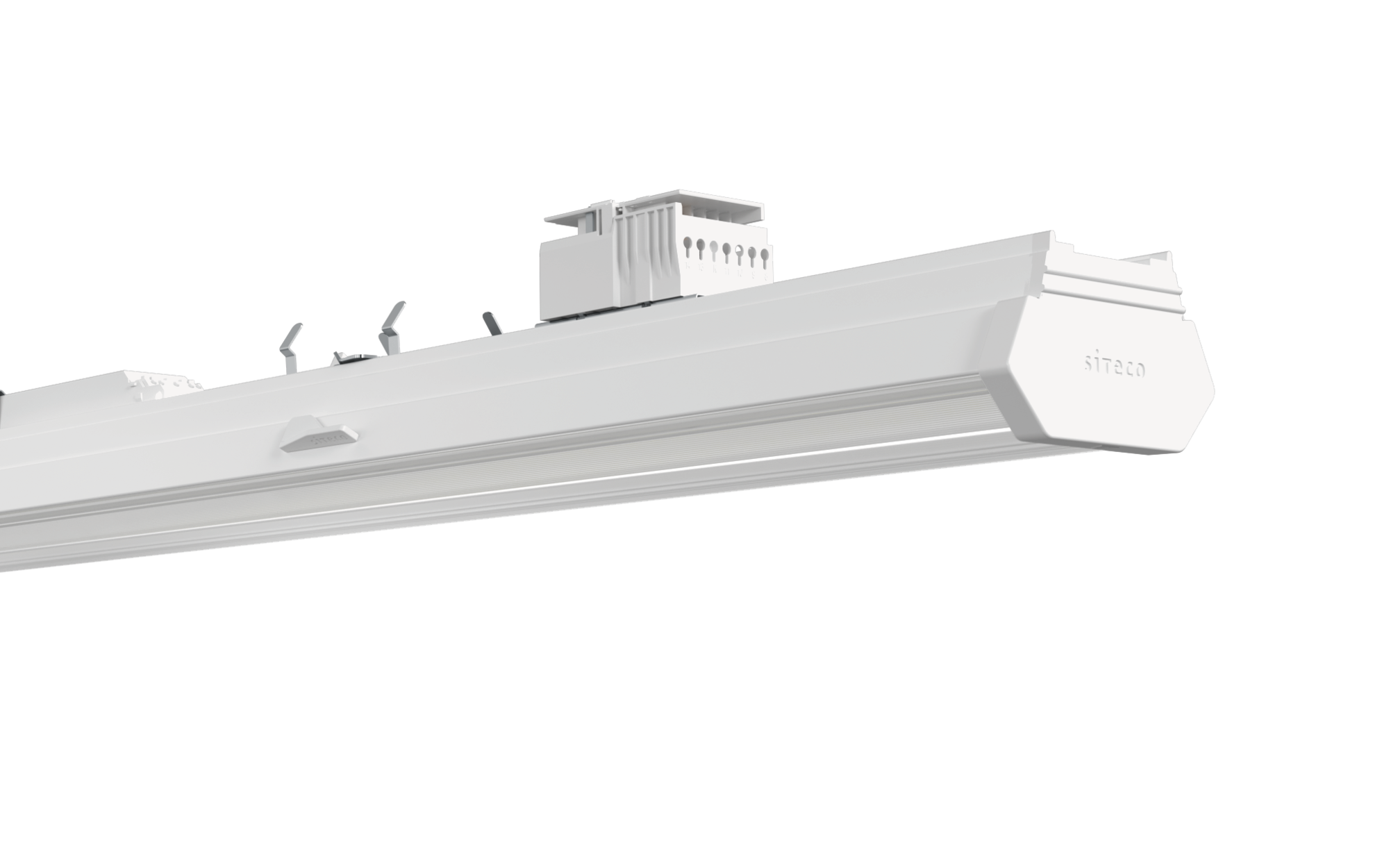

Product name Licross 11 Protected TW
Lamp LED
Rated luminous flux 8840lm
Luminous efficacy 159lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 56W
Service life 100000h (L95) at AT = 25°C
Protection rating IP64
Impact resistance IK06
Weight 2.9kg

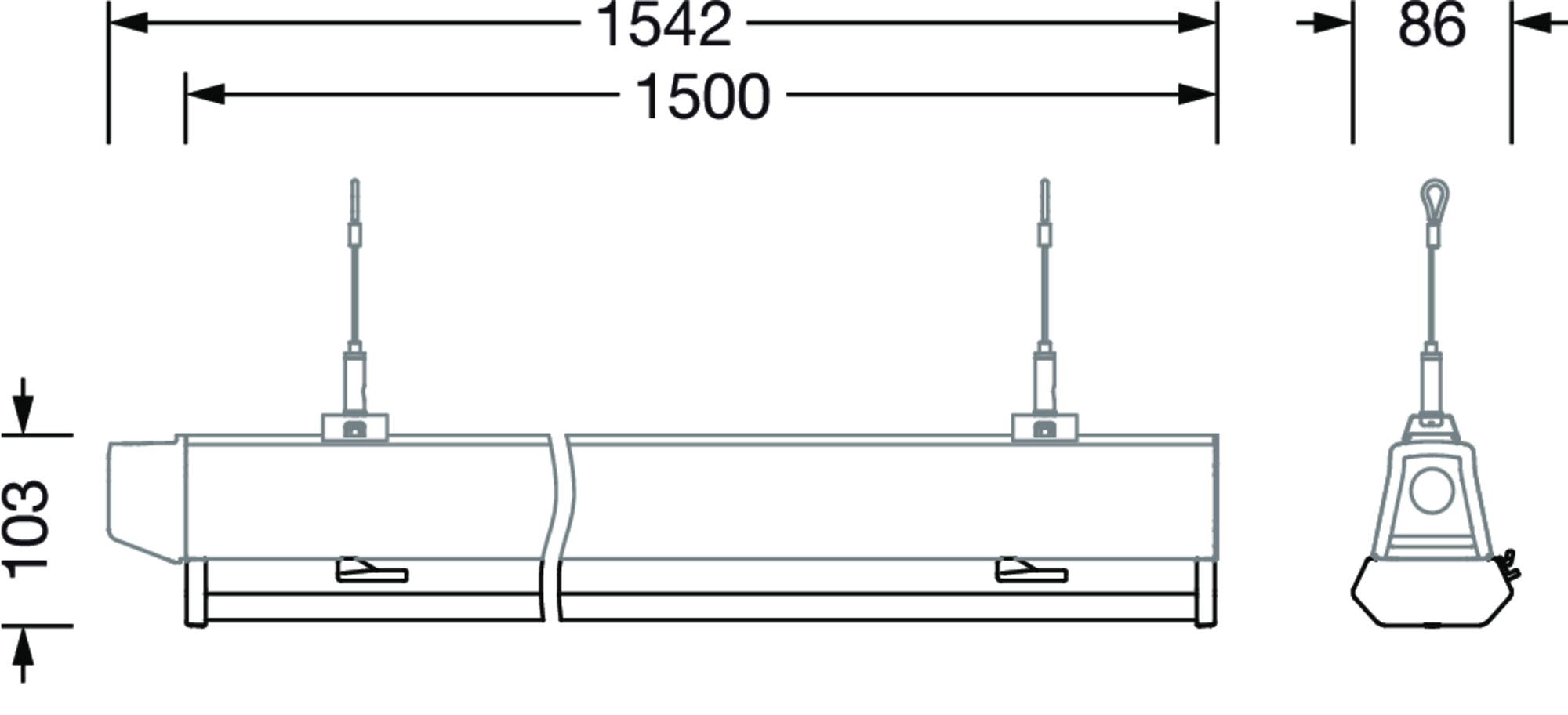

Licross 11 Protected TW, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 8.840lm, light colour: 8tw, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 2 SDCM (initial), control gear: DALI DT8, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 56W, internal wiring halogen-free, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+35°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
Lic11Pr
wd,8840lm8tw,DT8,IP64,L1500,wh
Lamps: LED 2700K / CRI >= 80, individual setting
Order No.: 51TP12TNT85X
