53BD812MV485C2
Article luminaire insert
Product name DUS 31 Gen.2
Lamp LED
Rated luminous flux 8950lm
Luminous efficacy 186lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 48W
Service life 70000h (L80) at AT = ta max, 70000h (L80) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.8kg

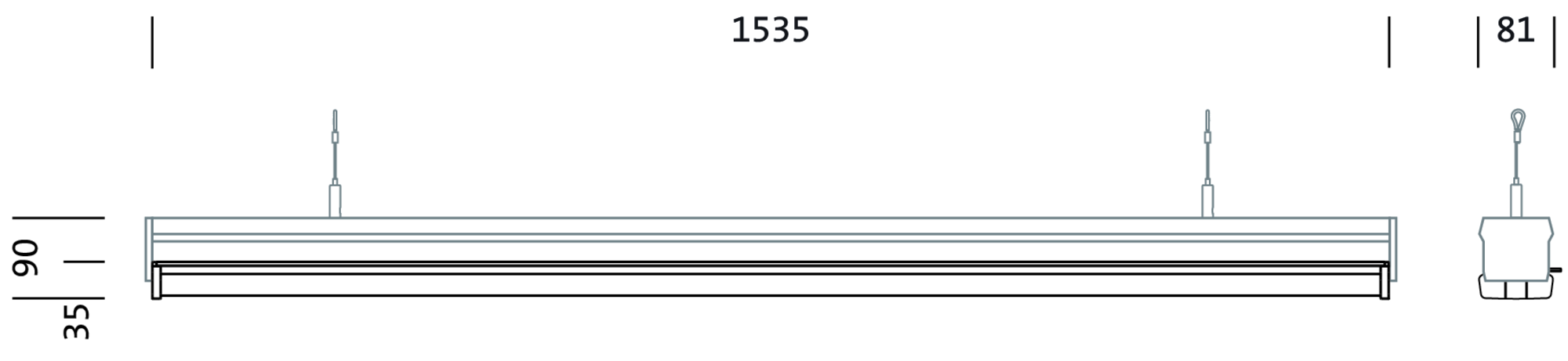

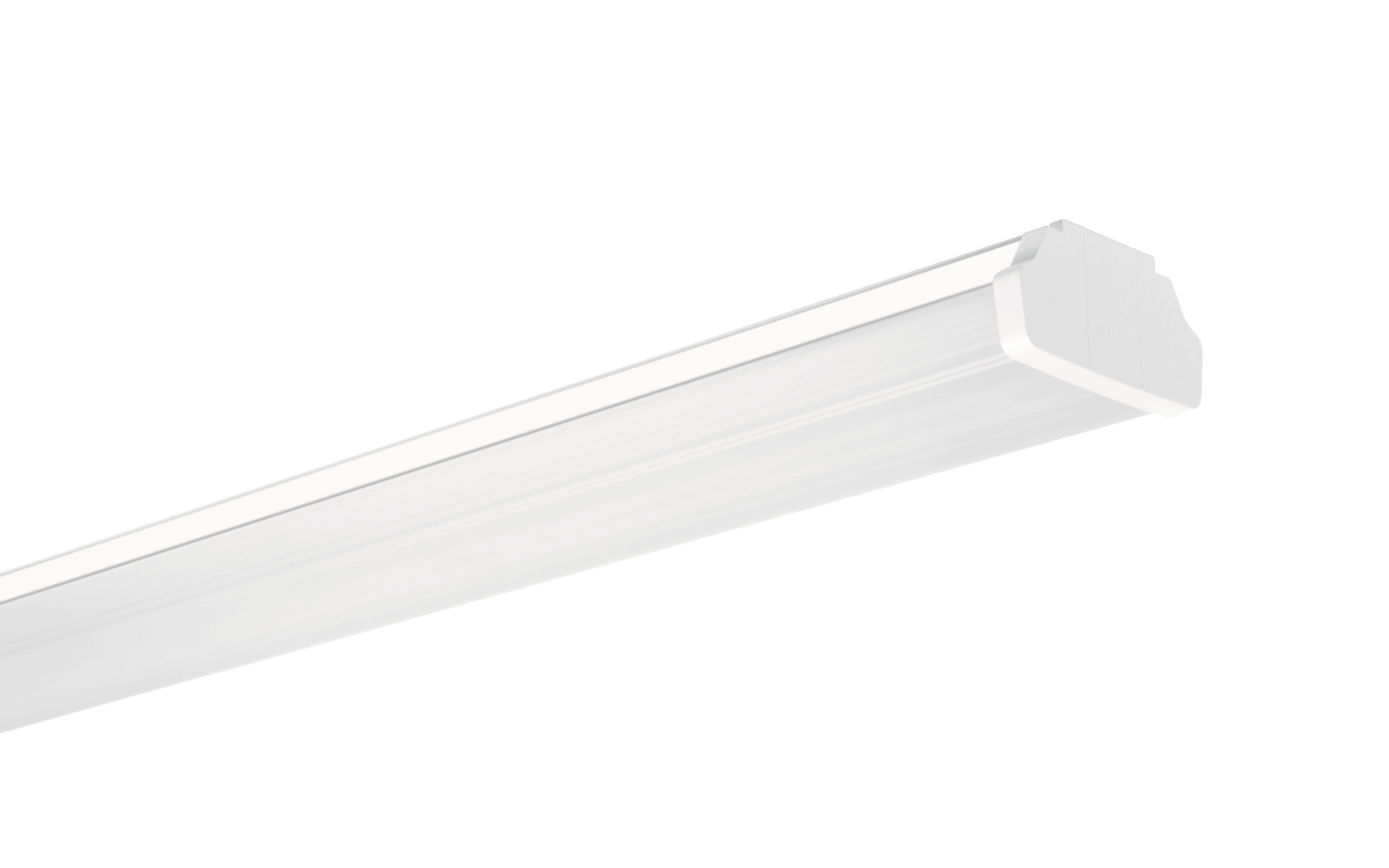

DUS 31 Gen.2, luminaire insert, of sheet steel, coil coated, white, length: 1.535mm, width: 81mm, height: 90mm, 5x system unit, system units: 307mm, LED rated luminous flux: 8.950lm, light colour: 840, SDCM (Standard Deviation of Colour Matching)MacAdam ≤ 3 SDCM (initial), control gear: ON/OFF Multilumen, control gear: ECG, with plug, 3-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 48W, through-wiring accessed according to module size, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -35..+50°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, The light source and the operating device comply with the requirements of the Ecodesign Regulation (EU) 2019/2020 and are replaceable in accordance with this regulation, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

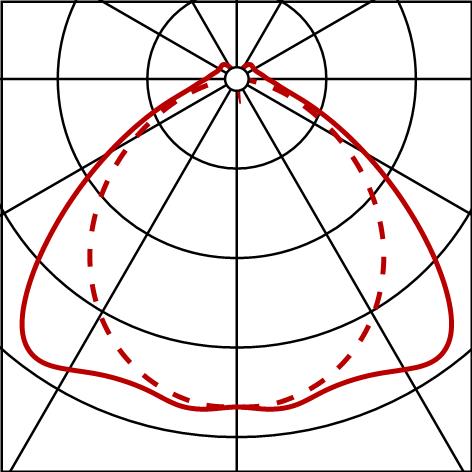

Photometric report / planning data
DUS31G2
LI,wd,8950lm840,ML,wh,5su
Lamps: 1x LED
Order No.: 53BD812MV485C2
