Key data

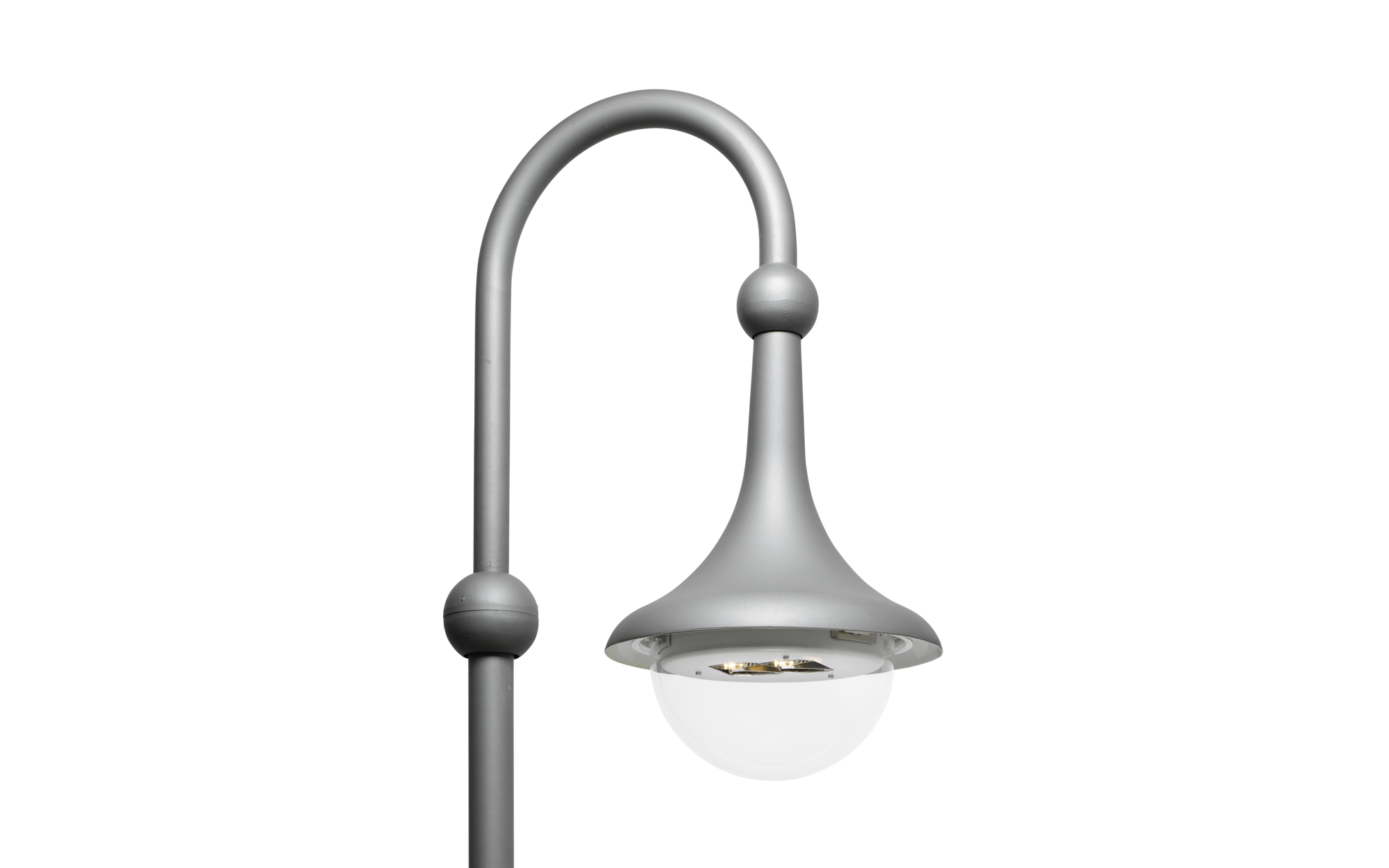

Product type mast luminaire
Product name Large Bell iQ
Order No. 5XA1565A1F108

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated
Cover enclosure, transparent

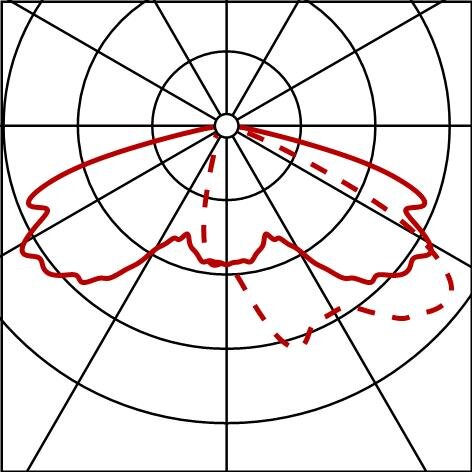

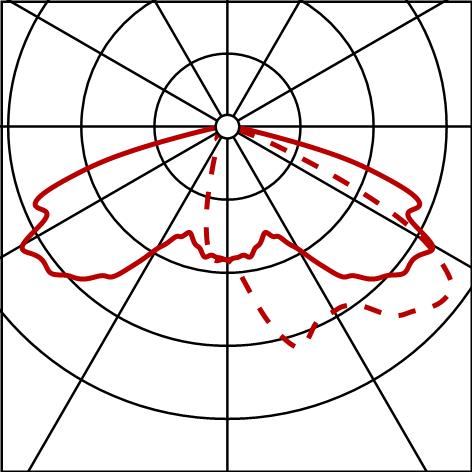

Light distribution S120009
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Rated values 4180lm | 34.3W | 121.9lm/W (begin service life);
end service life: 4180lm | 37.7W;
at 50% lumin. flux: 2090lm | 15.5W | 134.8lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 4180lm | 34.3W | 121.9lm/W | 2200K
end service life
LS 1: 37.7W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing glass-fibre reinforced polyester, coated, SITECO metallic grey (DB 702S), bell-shaped, please order curved mast extension separately
Cover enclosure of PMMA

Mounting

Mounting method, mounting location suspended mounting, to curve

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

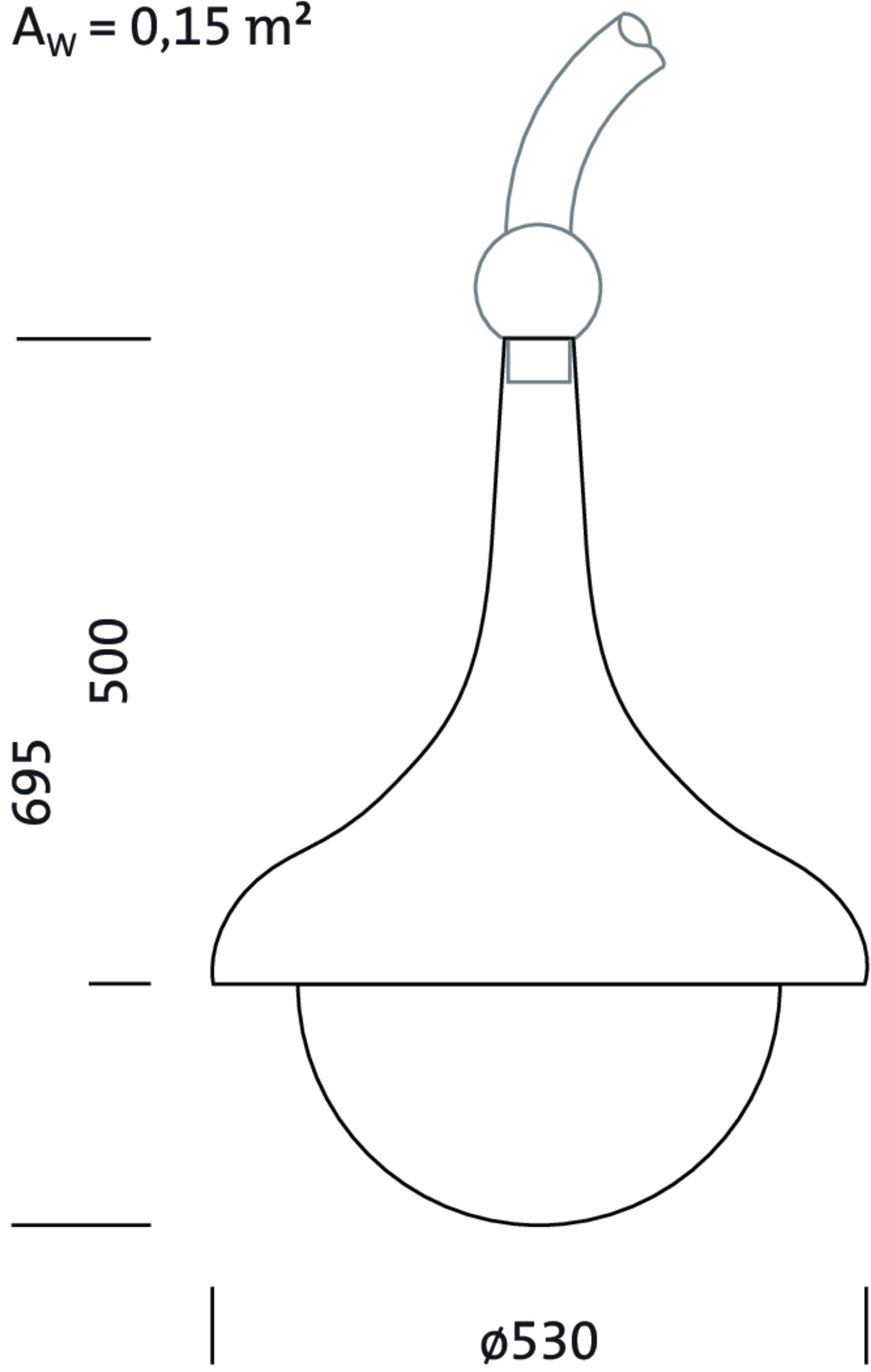

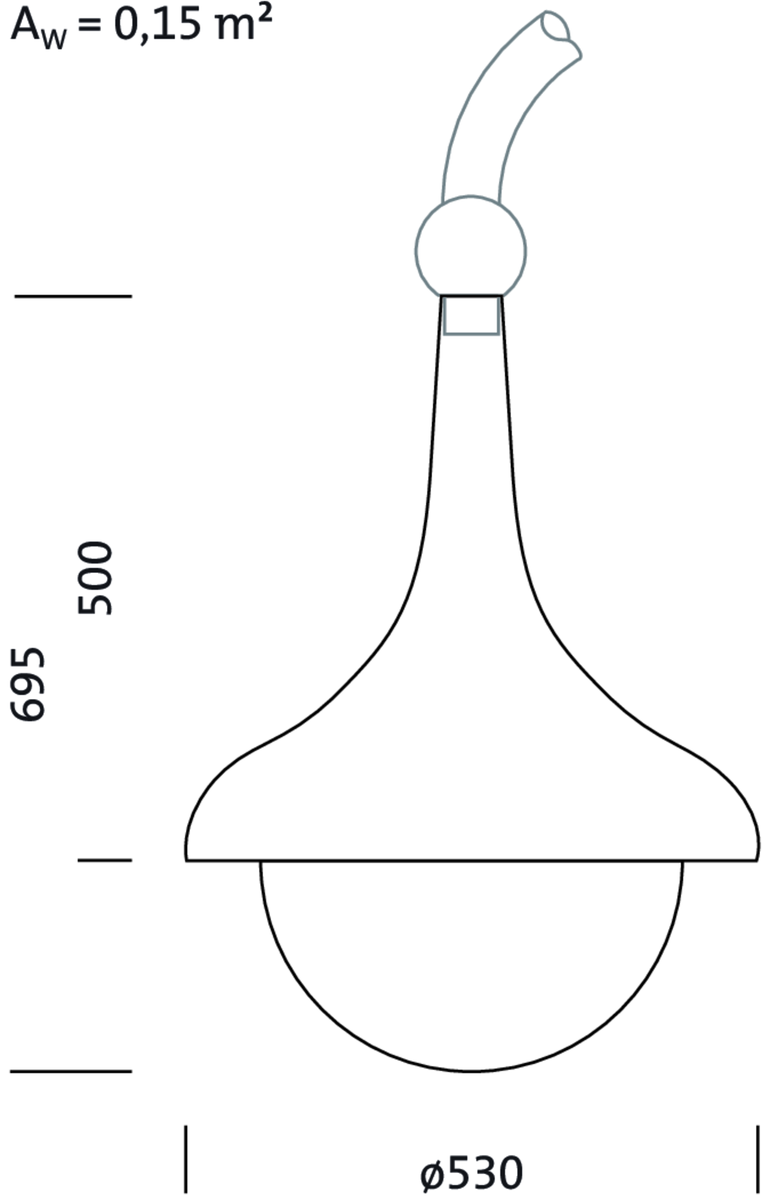

Dimensions, Weight

Diameter 530mm
Height 695mm
Weight 7.8kg

Light emission

Light emission < 3%

Service life

Rated service life 80000h (L96/B10) at AT = 25°C
