Key data

Product type catenary luminaire
Product name DL 50 iQ mini
Order No. 5XA248W21F08HE

Lighting technology

Light control lens of PMMA
Cover cover, transparent

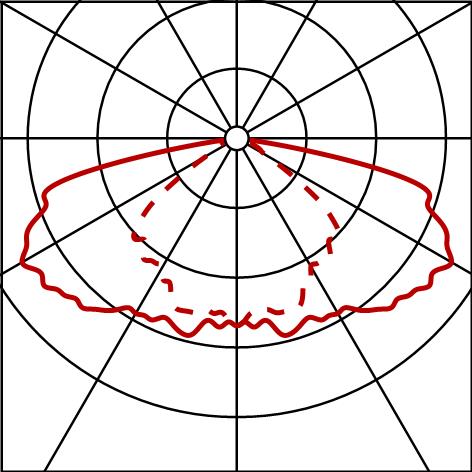

Light distribution S100004
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 7840lm | 69.3W | 113.1lm/W (begin service life);
end service life: 7840lm | 73.4W;
at 50% lumin. flux: 3920lm | 29.9W | 131.1lm/W
Colour temperature 2200K
Colour rendering index CRI > 70
Light colour 722
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 7840lm | 69.3W | 113.1lm/W | 2200K
end service life
LS 1: 73.4W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+40°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location suspended mounting, to wire
Supplement wire suspension required as accessory

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

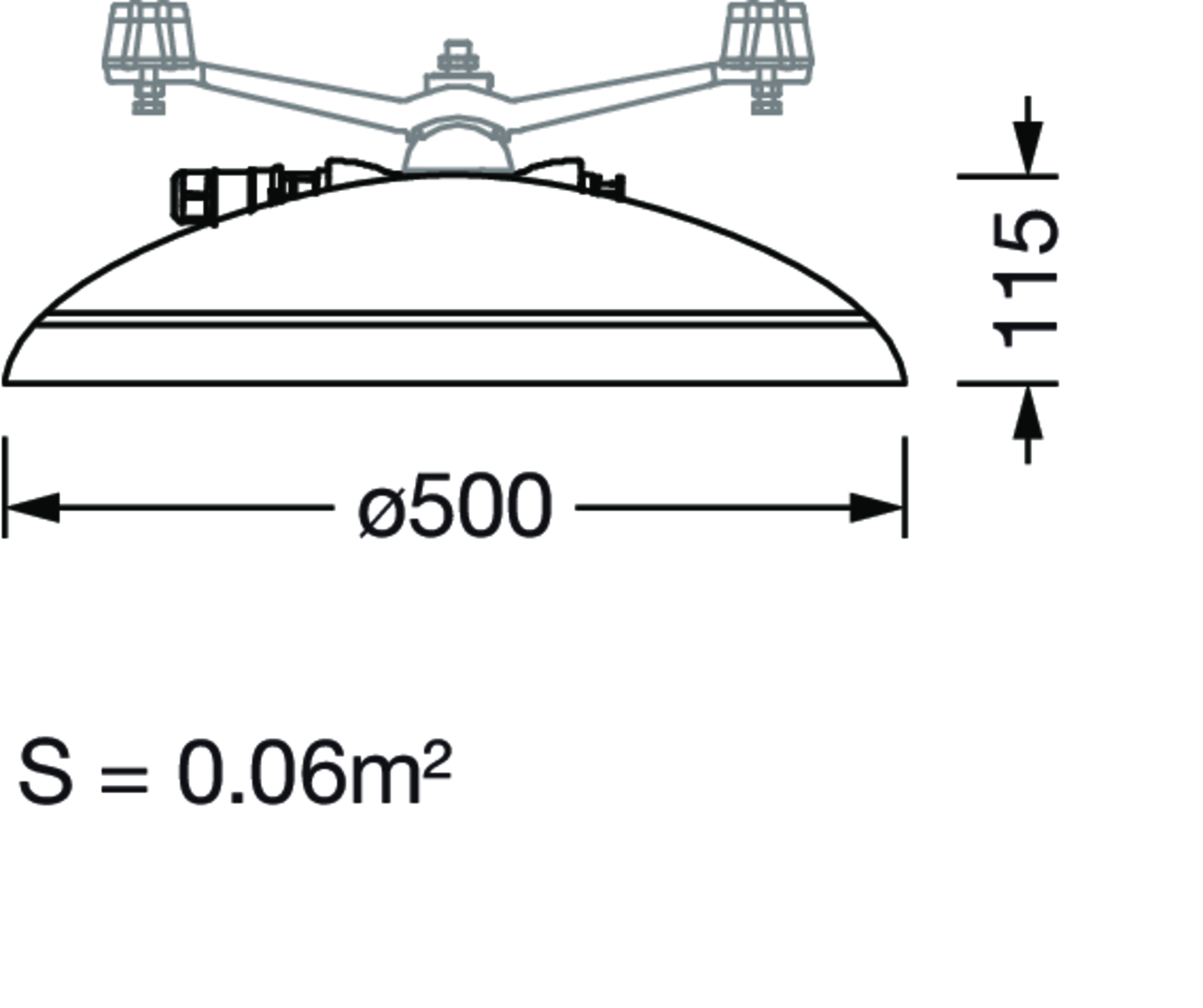

Dimensions, Weight

Diameter 500mm
Height 115mm
Weight 9.1kg

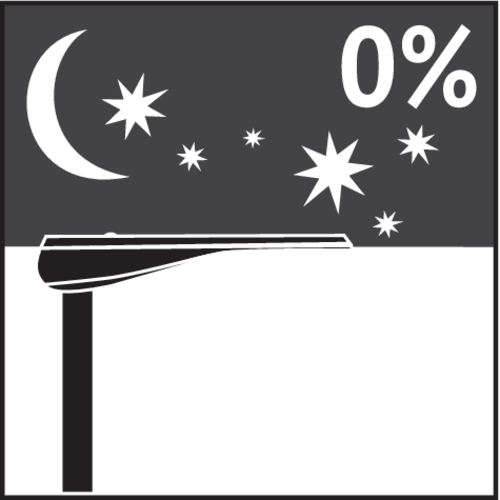

Light emission

Light emission 0%

Service life

Rated service life 100000h (L90/B10) at AT = 25°C
