5XA5132J1B08A4

Order No.: 5XA5132J1B08A4
Remember articleRemember article

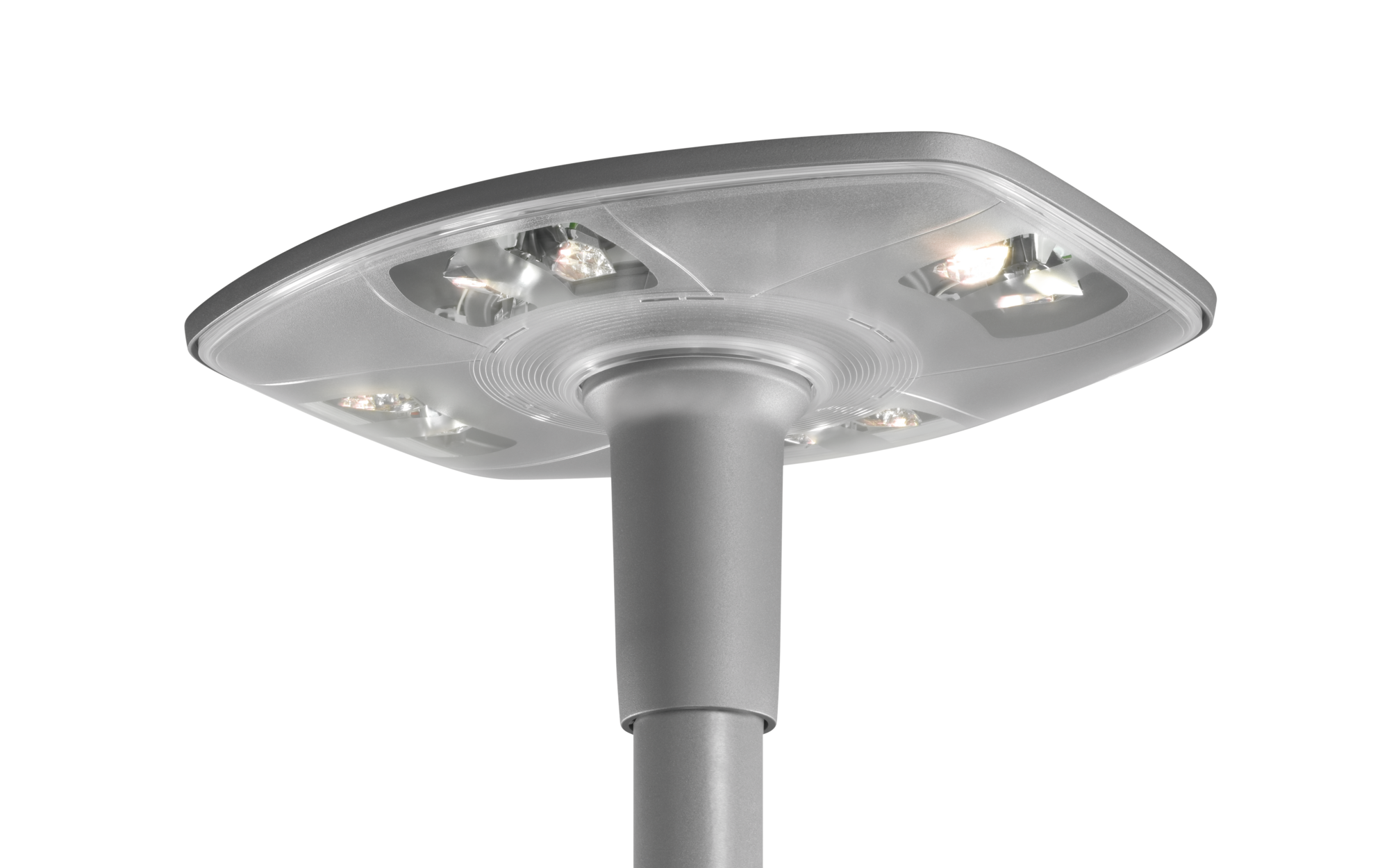

Article mast luminaire
Product name DL 30 LED
Lamp LED
Rated luminous flux 3100lm
Luminous efficacy 106lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Pnom begin service life 29
Pnom end service life 30
Pred at 50% lumin. flux 14
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.8kg

DL 30 LED, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, aluminium vaporised, highly specular, primary optical cover: cover, of PMMA, structured, transparent, light distribution: C120002, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, lamps: LED, rated values: 3.100lm | 29,3W | 105,8lm/W (begin service life); end service life: 3.100lm | 29,9W; at 50% lumin. flux: 1.550lm | 14,2W | 109,2lm/W, colour temperature: 3000K, colour rendering: CRI > 80, light colour: 830, light setting 1 (further light settings possible): 100% | 3.100lm | 29,3W | 105,8lm/W | 3.000K (begin service life); end service life: 29,9W, control gear: Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: 6kV 1.2/50µs, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), length: 600mm, width: 510mm, height: 290mm, spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -25..+35°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name DL 30 LED
Order No. 5XA5132J1B08A4

Lighting technology

Light control 3 zone facetted reflector of plastic, aluminium vaporised, highly specular
Cover cover, transparent, structured
Light distribution PL1.2s
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 3100lm
Luminous efficacy 106lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 29
Rated input power end service life 30
Rated input power at 50% lumin. flux 14

Operating device

Control gear ECG Plus
Control Plus
Equipment power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation
Switching method electronic power reduction

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+35°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of PMMA

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance 6kV 1.2/50µs

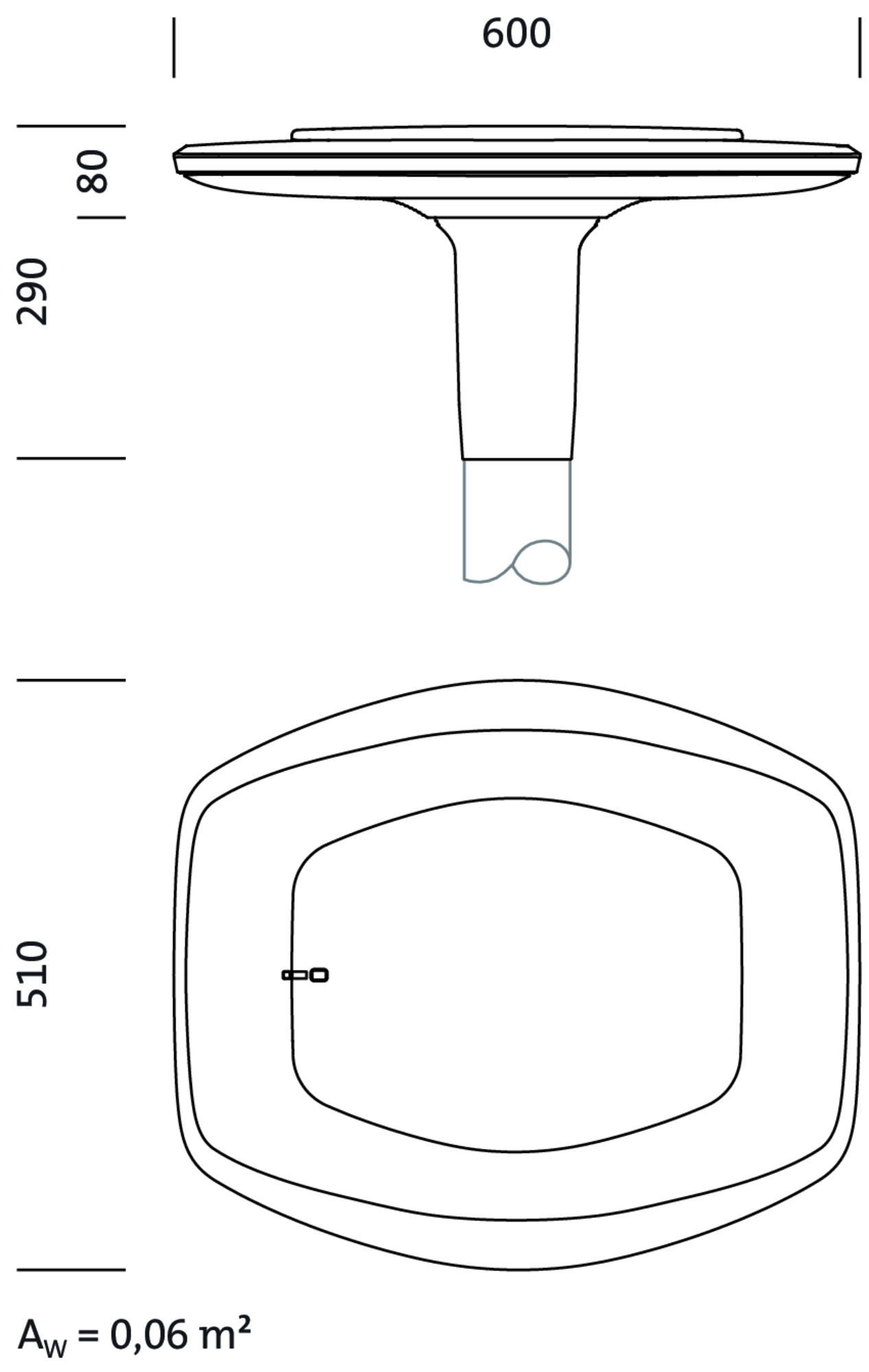

Dimensions, Weight

Length 600mm
Width 510mm
Height 290mm
Weight 7.8kg
Mast spigot spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm

Light emission

Light emission 0%

Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
mast luminaire

Product name
DL 30 LED

Order No.
5XA5132J1B08A4

Light control
3 zone facetted reflector of plastic, aluminium vaporised, highly specular

Cover
cover, transparent, structured

Light distribution
PL1.2s

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
3100lm

Luminous efficacy
106lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
29

Rated input power end service life
30

Rated input power at 50% lumin. flux
14

Control gear
ECG Plus

Control
Plus

Equipment
power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation

Switching method
electronic power reduction

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-25..+35°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)

Cover
cover of PMMA

Mounting method, mounting location
post-top, on mast

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
6kV 1.2/50µs

Length
600mm

Width
510mm

Height
290mm

Weight
7.8kg

Mast spigot
spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm

Light emission
0%

Rated service life
100000h (L97/B10) at AT = 25°C

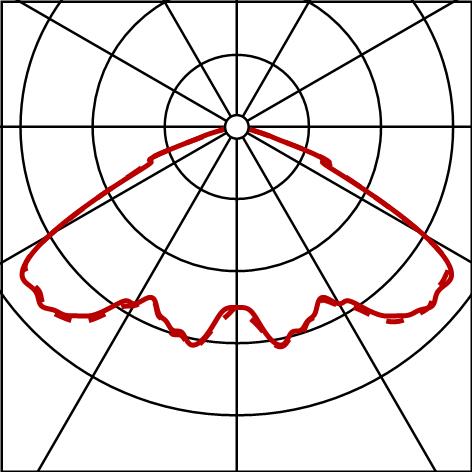

Photometric report / planning data

DL30
C120002,3100lm830,Plus
Lamps: LED 3000K / CRI >= 80
Order No.: 5XA5132J1B08A4

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
