5XA5132J1ZS00095XX
Article mast luminaire
Product name DL 30 LED
Lamp LED
Rated luminous flux 2940lm
Luminous efficacy 129lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Pnom begin service life 23
Pnom end service life 24
Pred at 50% lumin. flux 11
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 8.0kg

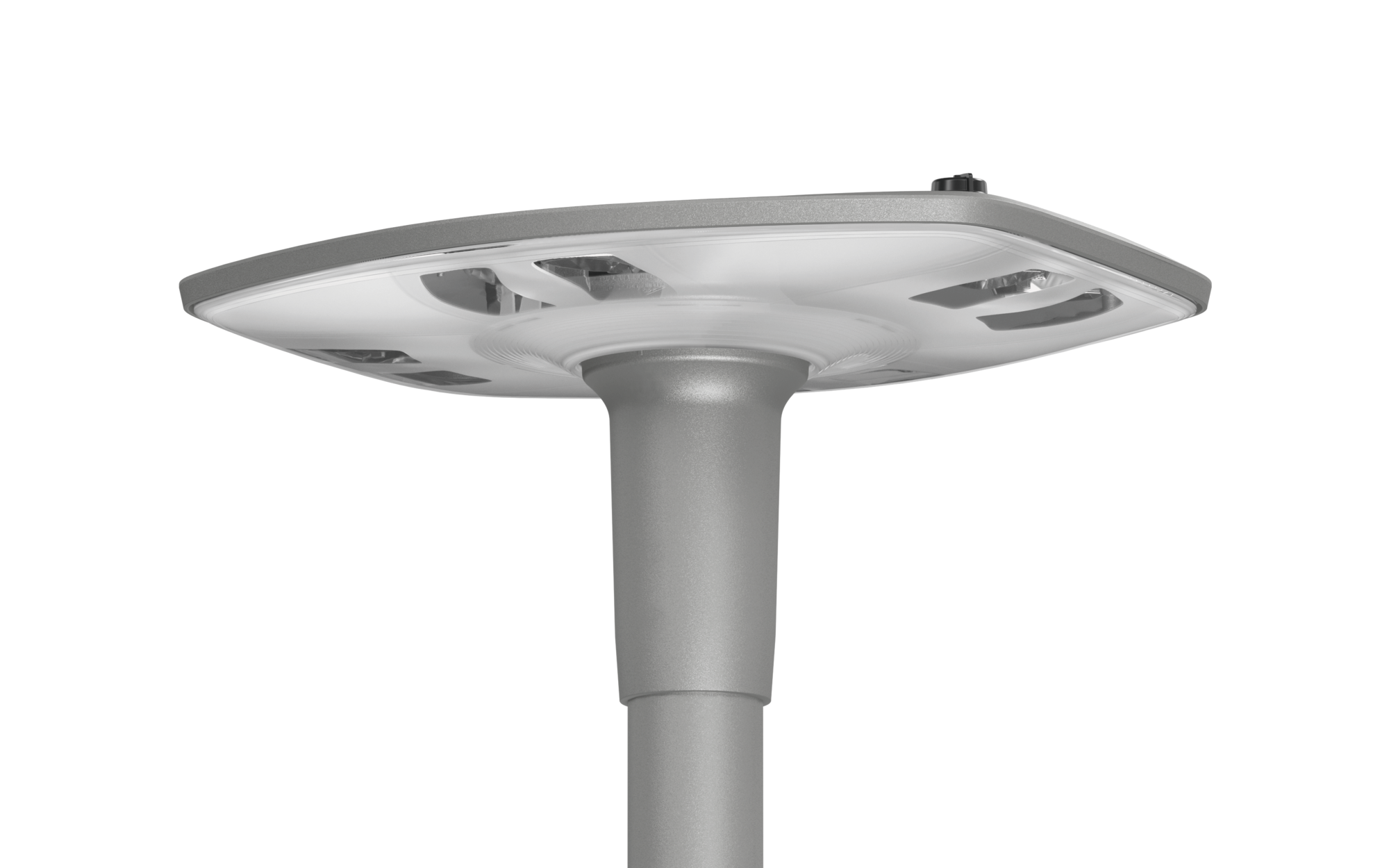

DL 30 LED, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, aluminium vaporised, highly specular, primary optical cover: cover, of PMMA, transparent, structured, light distribution: C120002, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, lamps: LED, rated values: 2.940lm | 22,8W | 128,9lm/W (begin service life); end service life: 2.940lm | 23,5W; at 50% lumin. flux: 1.470lm | 11,3W | 130,1lm/W, colour temperature: 3000K, colour rendering: CRI > 80, light colour: 830, light setting 1 (further light settings possible): 100% | 2.940lm | 22,8W | 128,9lm/W | 3.000K (begin service life); end service life: 23,5W, control gear: D4i, control: overheat protection, digital communication interface, time-dependent luminous flux control, flexible luminous flux parameterisation, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 10kV 1.2/50µs, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), length: 600mm, width: 510mm, height: 290mm, spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm, luminaire with Smart Interface (Zhaga standard) for optional use of light management components, Smart Interface above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK08, permissible operating ambient temperature: -25..+40°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
