Key data

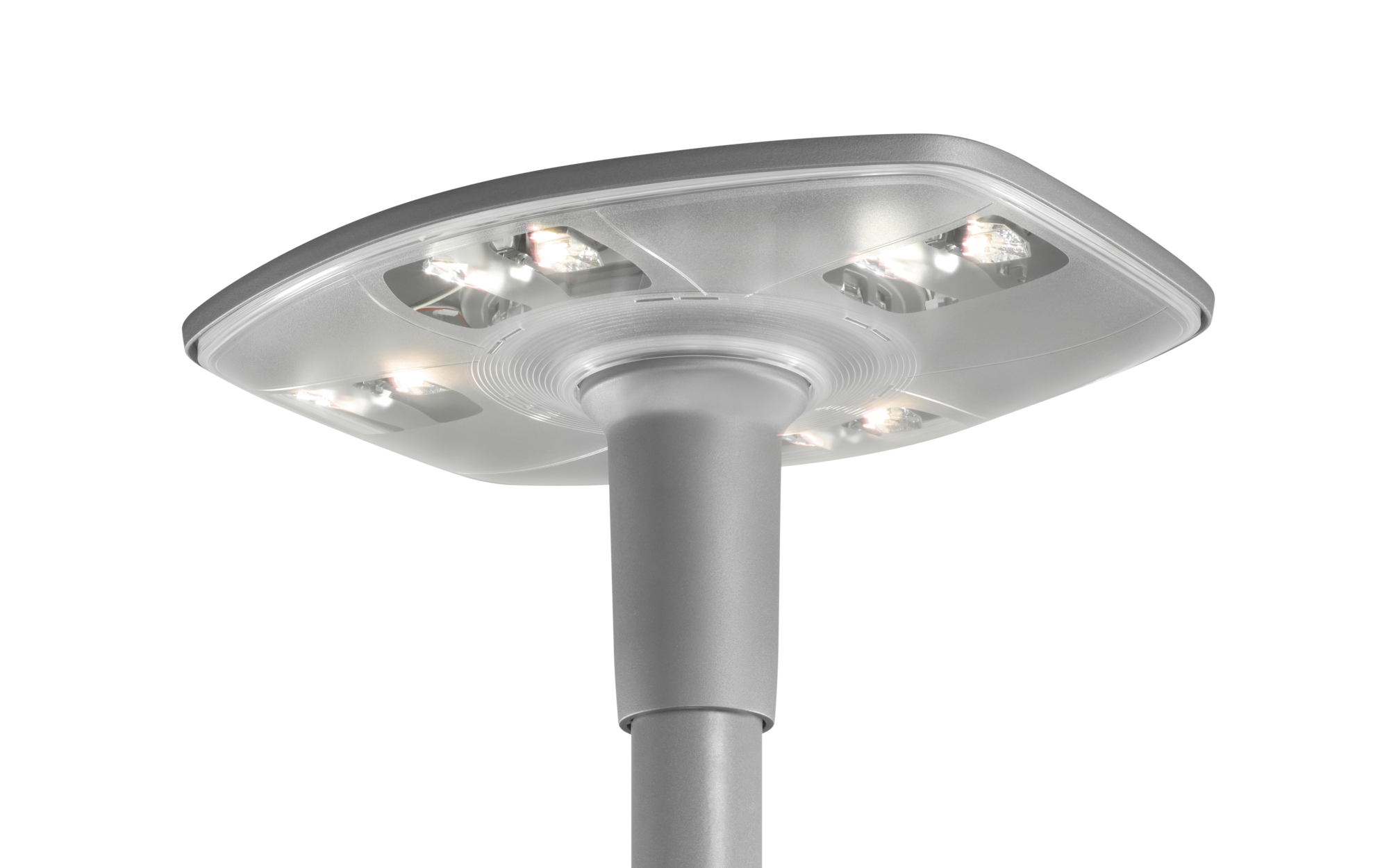

Product type mast luminaire
Product name DL 30 LED
Order No. 5XA5132S1B08A3

Lighting technology

Light control 3 zone facetted reflector of plastic, aluminium vaporised, highly specular
Cover cover, transparent, structured

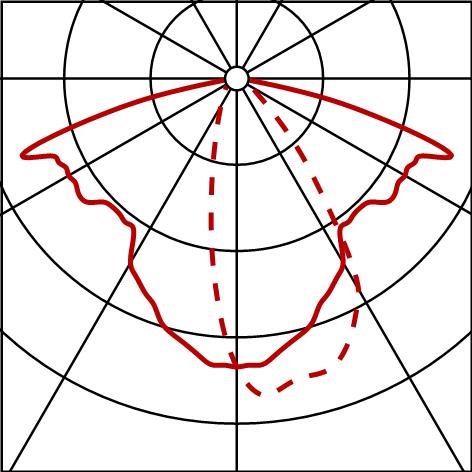

Light distribution P1.0a
Beam angle extremely wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 2720lm
Luminous efficacy 136lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 20
Rated input power end service life 20
Rated input power at 50% lumin. flux 11

Operating device

Control gear ECG Plus
Control Plus
Equipment power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation
Switching method electronic power reduction

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+40°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S)
Cover cover of PMMA

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance 6kV 1.2/50µs

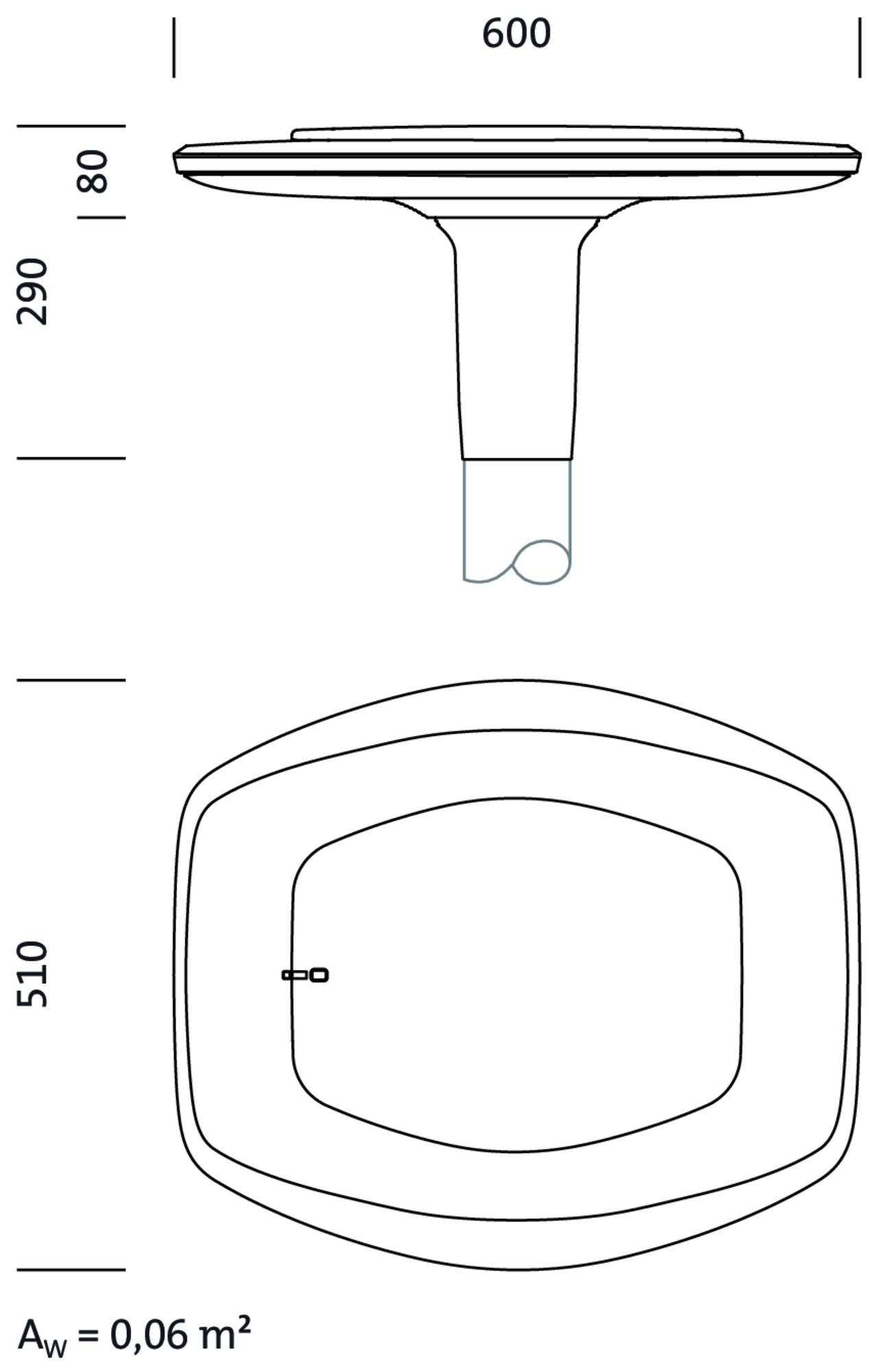

Dimensions, Weight

Length 600mm
Width 510mm
Height 290mm
Weight 7.8kg
Mast spigot spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm

Light emission

Light emission 0%

Service life

Rated service life 100000h (L98/B10) at AT = 25°C
