5XA5565EF14HP00022
Article mast luminaire
Product name DL 11 iQ
Lamp LED
Rated luminous flux 4840lm
Luminous efficacy 144lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 33.6W
Pnom end service life 35.9W
Pred at 50% lumin. flux 15.2W
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 8.6kg
DL 11 iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: S120014, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, lamps: LED, rated values: 4.840lm | 33,6W | 144lm/W (begin service life); end service life: 4.840lm | 35,9W; at 50% lumin. flux: 2.420lm | 15,2W | 159,2lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.840lm | 33,6W | 144lm/W | 3.000K (begin service life); end service life: 35,9W, control gear: iQ Street-Remote, control: Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), electrical connection: terminal, 6-pole, max. 2.5mm², solid wire, fine wire, connection cable: pre-assembled, cable length: 5,5m, wiring characteristics: H07RN-F, 5x 1,5mm², luminaire housing, upper part, of diecast aluminium, coated, SITECO metallic grey (DB 702S), spigot size: 60mm (post-top), post-top mast mounting element, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Module 540 iQ-SR, matt traffic white (RAL 9016), equipment: Power, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK07, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

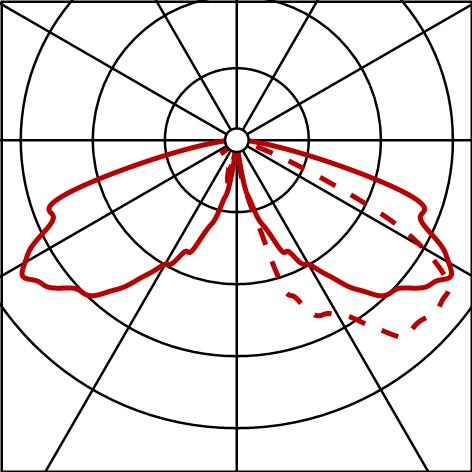

Photometric report / planning data
DL11iQ
S120014,4840lm730,SR
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022

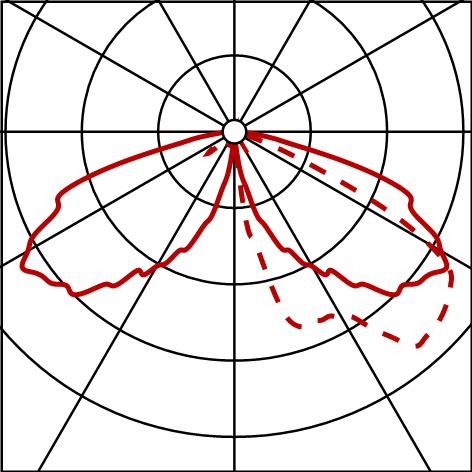

shield
Order No.: 5XA54000XBL
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022
shield
Order No.: 5XA54000XBS
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022

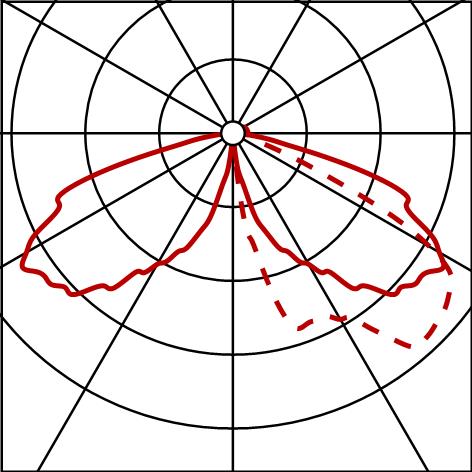

shield
Order No.: 5XA54000XBXL
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022

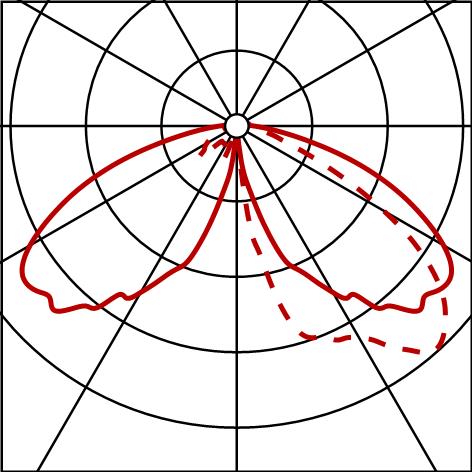

spreader element
Order No.: 5XA54000XS
DL11iQ
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA5565EF14HP00022

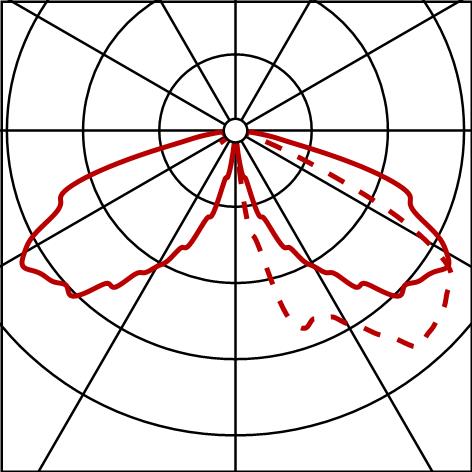

decorative ring
Order No.: 5XA54001XS
