5XA7561A1K23
Article floodlight
Product name SiCompact 31 micro
Lamp LED
Rated luminous flux 4400lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 30W
Service life 73000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 1.9kg

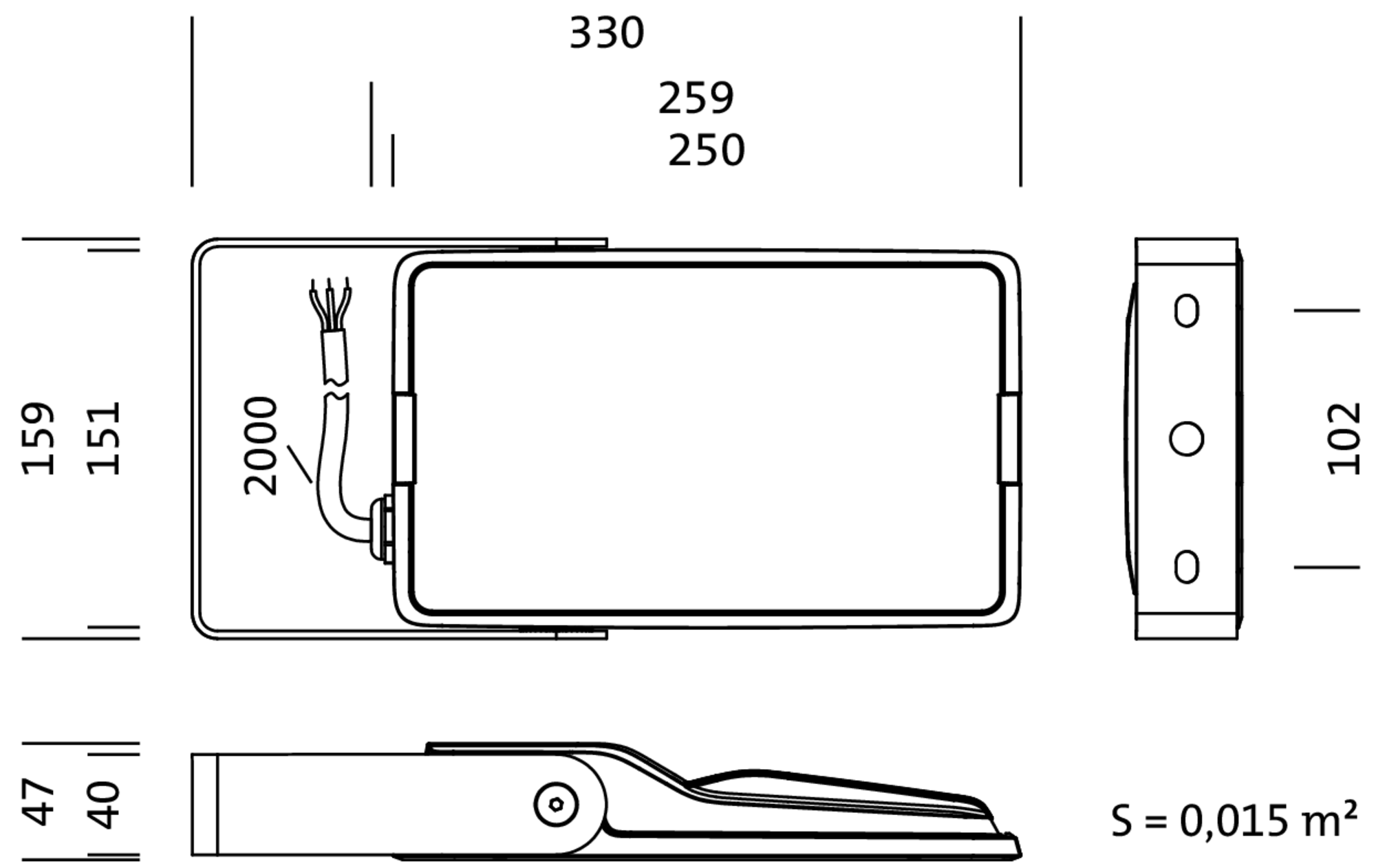

SiCompact 31 micro, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: A320002, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, lamps: LED, rated values: 4.400lm | 30W | 146,7lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.400lm | 30W | 146,7lm/W | 3.000Kcontrol gear: ON/OFF, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: 6kV 1.2/50µs, of diecast aluminium, specular, metallic grey (RAL 9006), length: 330mm, width: 159mm, height: 47mm, bracket, of sheet steel, coated, metallic grey (RAL 9006), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK08, permissible operating ambient temperature: -40..+45°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

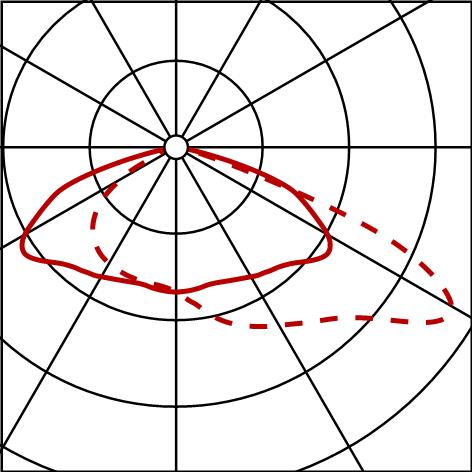

Photometric report / planning data
SiCompact 31 micro

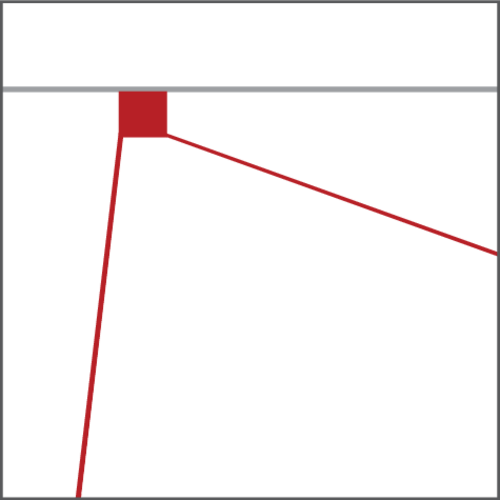

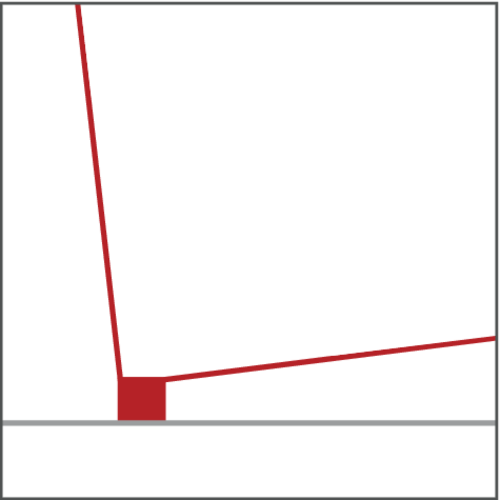

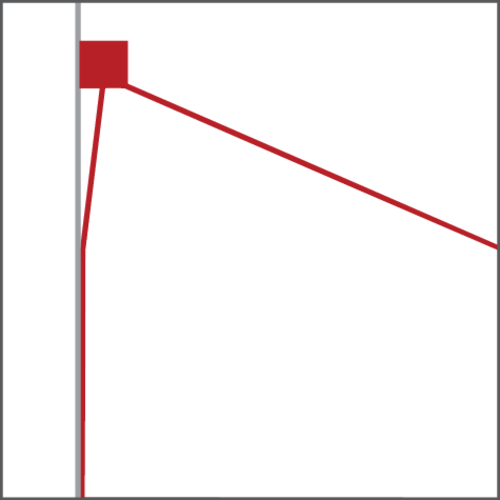

LED, ECG, direct asymmetric distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
Lamps: LED 3000K / CRI >= 70
Order No.: 5XA7561A1K23
