5XE5H37N08DB

Order No.: 5XE5H37N08DB
Remember articleRemember article

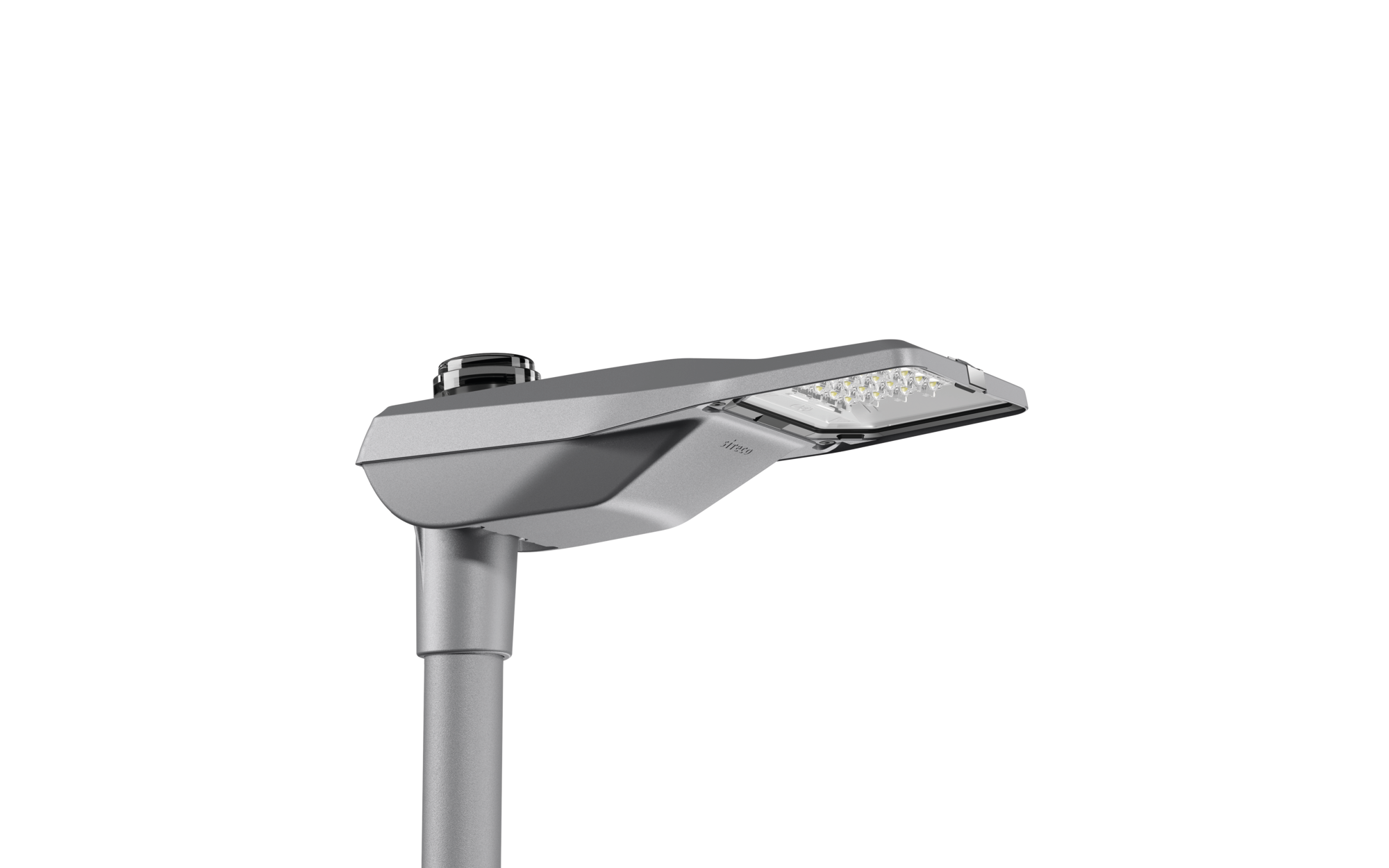

Article mast luminaire
Product name Streetlight SL 21 micro
Lamp LED
Rated luminous flux 5020lm
Luminous efficacy 128.4lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 39.1W
Pnom end service life 40.8W
Pred at 50% lumin. flux 17.7W
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.9kg

Streetlight SL 21 micro, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: A520002, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, lamps: LED, rated values: 5.020lm | 39,1W | 128,4lm/W (begin service life); end service life: 5.020lm | 40,8W; at 50% lumin. flux: 2.517lm | 17,7W | 142,2lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 5.020lm | 39,1W | 128,4lm/W | 3.000K (begin service life); end service life: 40,8W, control gear: NEMA (7pin), control: overheat protection, pre-setting: linear dimming characteristic, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, mains connection: 230..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 6,5m, wiring characteristics: H07RN-F, 3G 1,5mm², configuration: L/N/PE, luminaire housing, of diecast aluminium (EN AC-44300), powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, multi-level sealing system, sealing non-destructively replaceable, inclination adjustable: 0°, 5°, 10°, 15°, length: 528mm, width: 235mm, height: 110mm, spigot size: 76/60mm (post-top), Smart Interface above: NEMA (7pin), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 21 micro
Order No. 5XE5H37N08DB

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution A520002
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated values 5020lm | 39.1W | 128.4lm/W (begin service life);
end service life: 5020lm | 40.8W;
at 50% lumin. flux: 2517lm | 17.7W | 142.2lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730

Factory light settings (LS)

begin service life
LS 1: 100% | 5020lm | 39.1W | 128.4lm/W | 3000K
end service life
LS 1: 40.8W
further light settings possible

Operating device

Control NEMA (7pin)
Smart Interface above NEMA (7pin)
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: linear dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK10
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE

Material, Colour

luminaire housing diecast aluminium (EN AC-44300), powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location post-top, on mast
Supplement with pre-assembled mast flange

Electrical connection

Connection cable pre-assembled, L= 6.5m, H07RN-F, 3G 1.5mm², L/N/PE
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

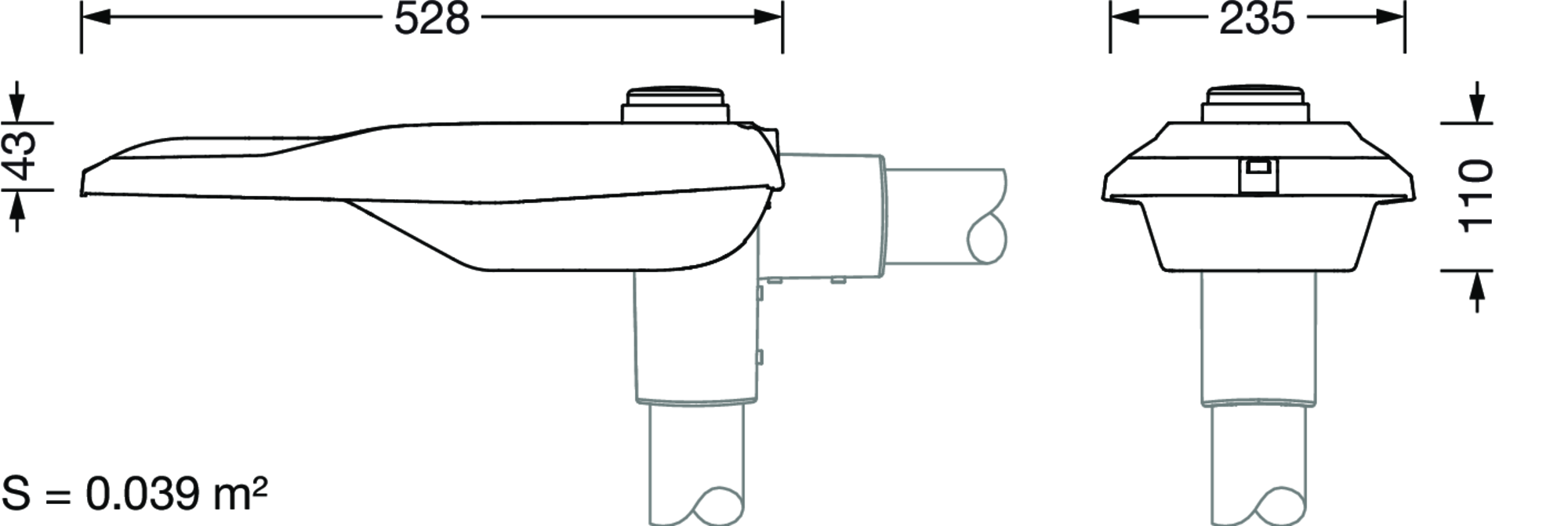

Dimensions, Weight

Length 528mm
Width 235mm
Height 110mm
Weight 5.9kg
Mast spigot spigot size: 76/60mm (post-top)

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 21 micro

Order No.
5XE5H37N08DB

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
A520002

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated values
5020lm | 39.1W | 128.4lm/W (begin service life);
end service life: 5020lm | 40.8W;
at 50% lumin. flux: 2517lm | 17.7W | 142.2lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

begin service life

LS 1: 100% | 5020lm | 39.1W | 128.4lm/W | 3000K

end service life

LS 1: 40.8W


further light settings possible

Control
NEMA (7pin)

Smart Interface above
NEMA (7pin)

Equipment
overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: linear dimming characteristic

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK10

Temperature range (operation)
-40..+50°C

Supplement
standard-compliant lighting for roads and squares

Corrosion protection
corrosivity category C5 high according to DIN EN ISO 12944

Certification, designation
CE, ENEC, ENEC+, VDE

luminaire housing
diecast aluminium (EN AC-44300), powder-coated, SITECO metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10°, 15°, sealing non-destructively replaceable, multi-level sealing system

Cover
cover of toughened safety glass

Mounting method, mounting location
post-top, on mast

Supplement
with pre-assembled mast flange

Connection cable
pre-assembled, L= 6.5m, H07RN-F, 3G 1.5mm², L/N/PE

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Length
528mm

Width
235mm

Height
110mm

Weight
5.9kg

Mast spigot
spigot size: 76/60mm (post-top)

Light emission
0% at 0° inclination

Rated service life
100000h (L97/B10) at AT = 25°C

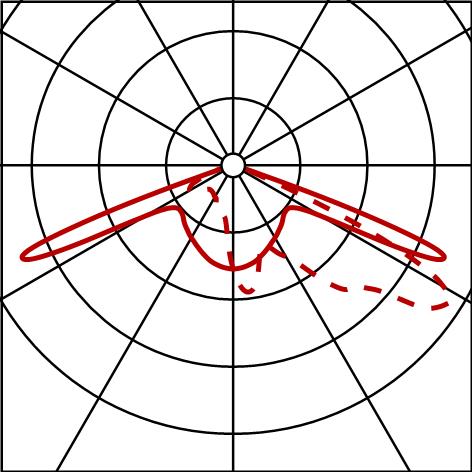

Photometric report / planning data

SL21mc
A520002,5020lm730,NEMA7,N7a
Lamps: LED 3000K / CRI >= 70
Order No.: 5XE5H37N08DB

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
