5XH1D3AA08DA

Order No.: 5XH1D3AA08DA

Remember article Remember article

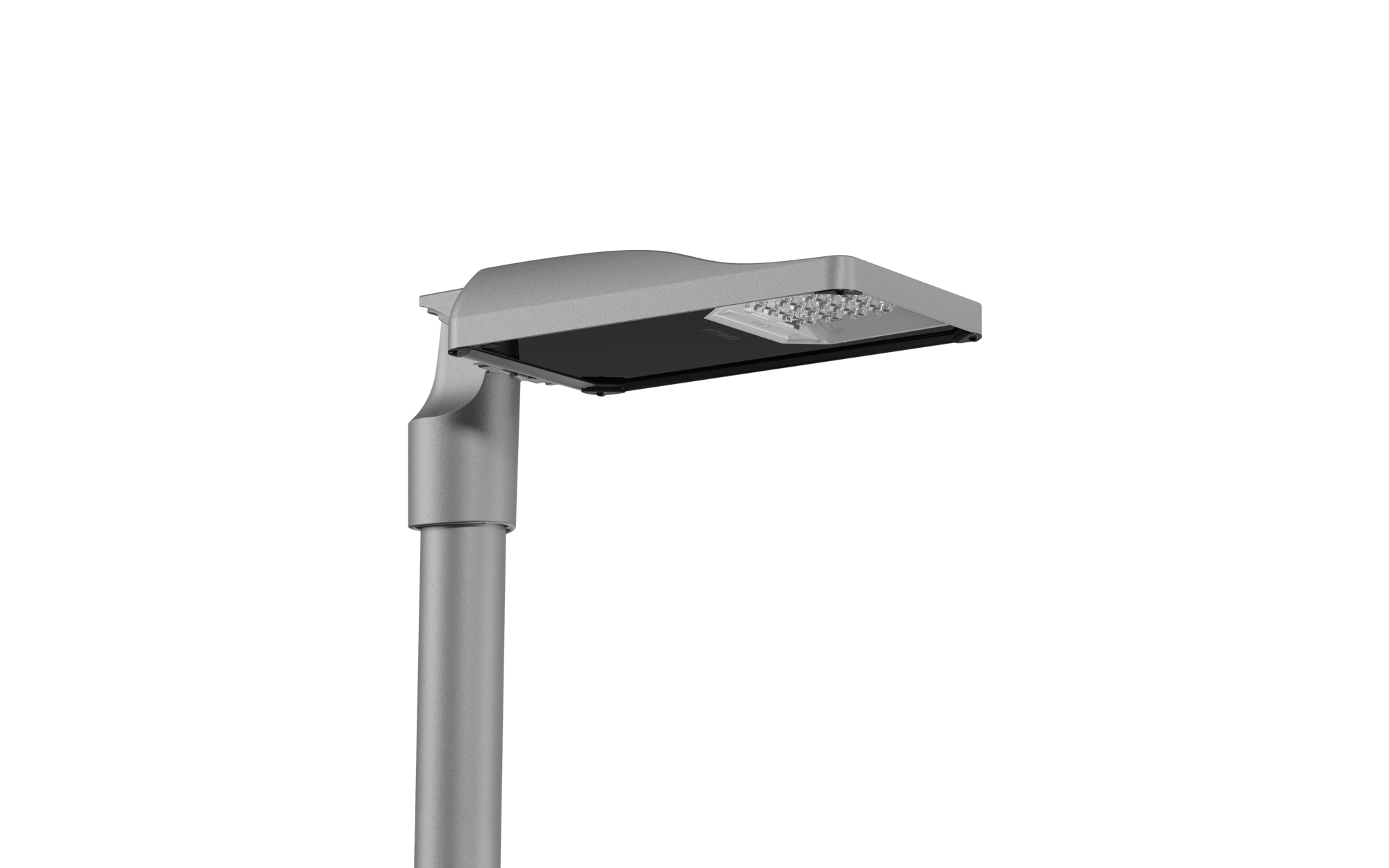

Article mast luminaire
Product name Streetlight SL 31 micro
Lamp LED
Rated luminous flux 4710lm
Luminous efficacy 132.7lm/W
Colour temperature 3000K
Colour rendering CRI > 70
P_nom 35.5W
P_nom end service life 37.5W
P_red at 50% lumin. flux 15.4W
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.5kg

Streetlight SL 31 micro, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100003, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 4.710lm | 35,5W | 132,7lm/W (begin service life); end service life: 4.710lm | 37,5W; at 50% lumin. flux: 2.347lm | 15,4W | 152,4lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 4.710lm | 35,5W | 132,7lm/W | 3.000K (begin service life); end service life: 37,5W, control gear: Easy, control: overheat protection, intelligent temperature release in ECG and LED module, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: linear dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 6,5m, wiring characteristics: H07RN-F, 2X 1,5mm², configuration: L/N, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, no sealing on luminaire upper side, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, multi-level sealing system, sealing non-destructively replaceable, mast flange for spigot size: 60/48mm (side-entry/post-top): 5XH10108XM2, 76/32mm (side-entry/post-top): 5XH10108XM3, mast flange, of diecast aluminium, coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, UKCA, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
