5XH1D3BM08EA
Article mast luminaire

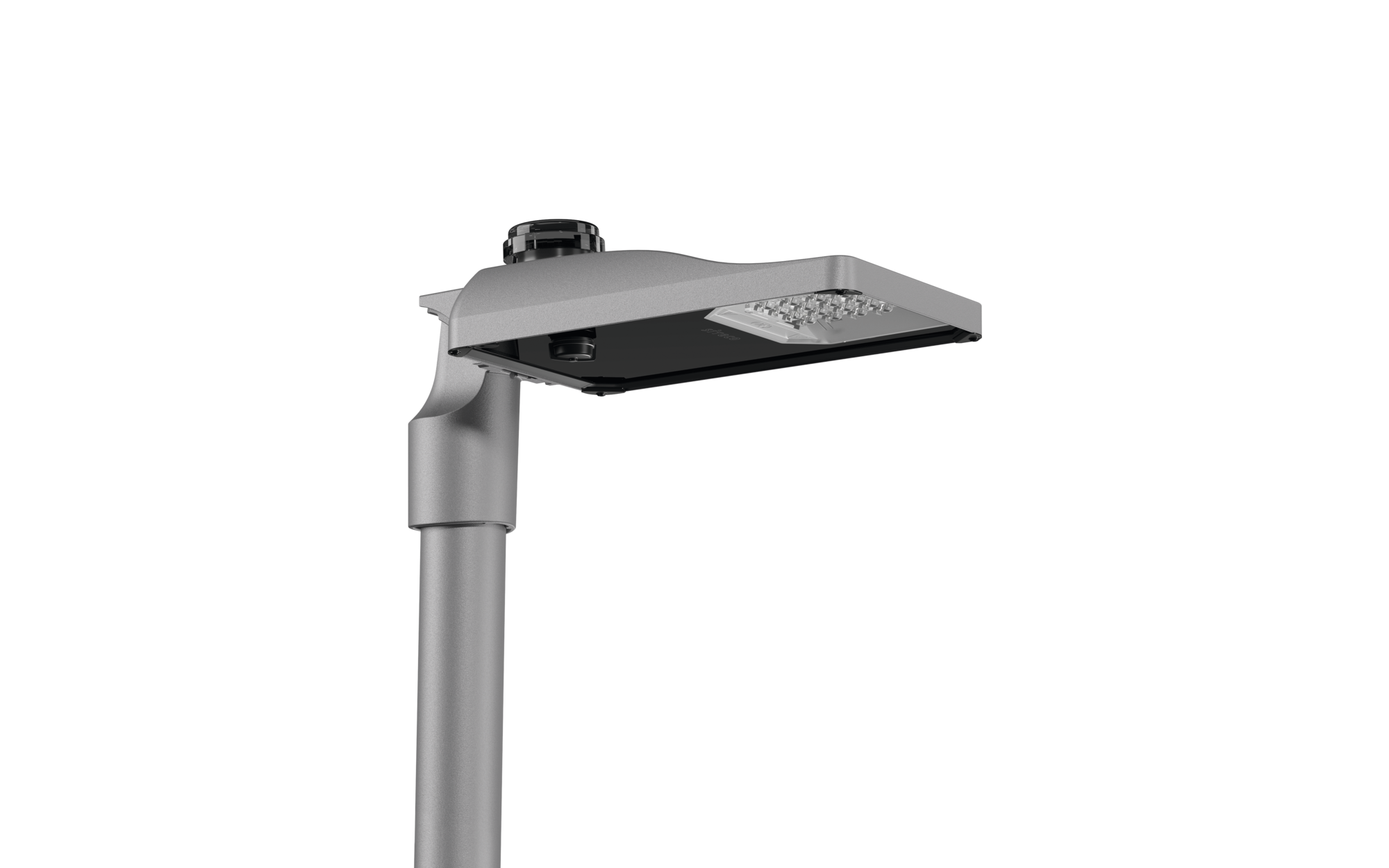

Product name Streetlight SL 31 micro
Lamp LED
Rated luminous flux 5600lm
Luminous efficacy 147.4lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom 38W
Pnom end service life 39.7W
Pred at 50% lumin. flux 17.3W
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.7kg
Streetlight SL 31 micro, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: S100003, primary beam angle: wide distribution, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, lamps: LED, rated values: 5.600lm | 38W | 147,4lm/W (begin service life); end service life: 5.600lm | 39,7W; at 50% lumin. flux: 2.799lm | 17,3W | 161,8lm/W, colour temperature: 3000K, colour rendering: CRI > 70, light colour: 730, light setting 1 (further light settings possible): 100% | 5.600lm | 38W | 147,4lm/W | 3.000K (begin service life); end service life: 39,7W, control gear: D4i, control: pre-setting: linear dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, intelligent temperature release in ECG and LED module, overheat protection, pre-setting: logarithmic dimming characteristic, mains connection: 220..240V, AC, 50/60Hz, surge voltage resistance: surge voltage resistance: 10kV (common mode); 6kV (differential mode), connection cable: pre-assembled, cable length: 6,5m, wiring characteristics: H07RN-F, 3G 1,5mm², configuration: L/N/PE, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944, no sealing on luminaire upper side, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, multi-level sealing system, sealing non-destructively replaceable, mast flange for spigot size: 60/48mm (side-entry/post-top): 5XH10108XM2, 76/32mm (side-entry/post-top): 5XH10108XM3, mast flange, of diecast aluminium, coated, SITECO metallic grey (DB 702S), Smart Interface above: NEMA (7pin), Smart Interface below: Zhaga, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, ENEC+, VDE, UKCA, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

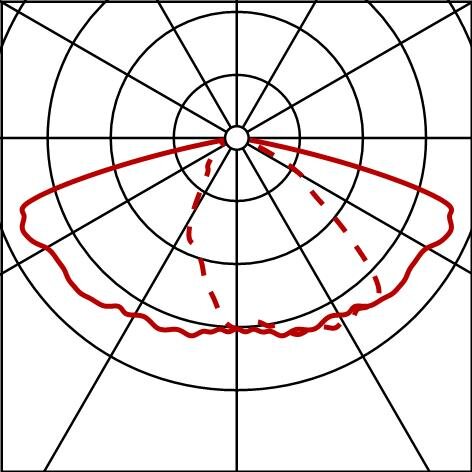

Photometric report / planning data
SL31mc
S100003,5600lm730,D4i,N7aZb
Lamps: LED 3000K / CRI >= 70
Order No.: 5XH1D3BM08EA
