Ordercode: 5XA7762A4C2A

Article floodlight

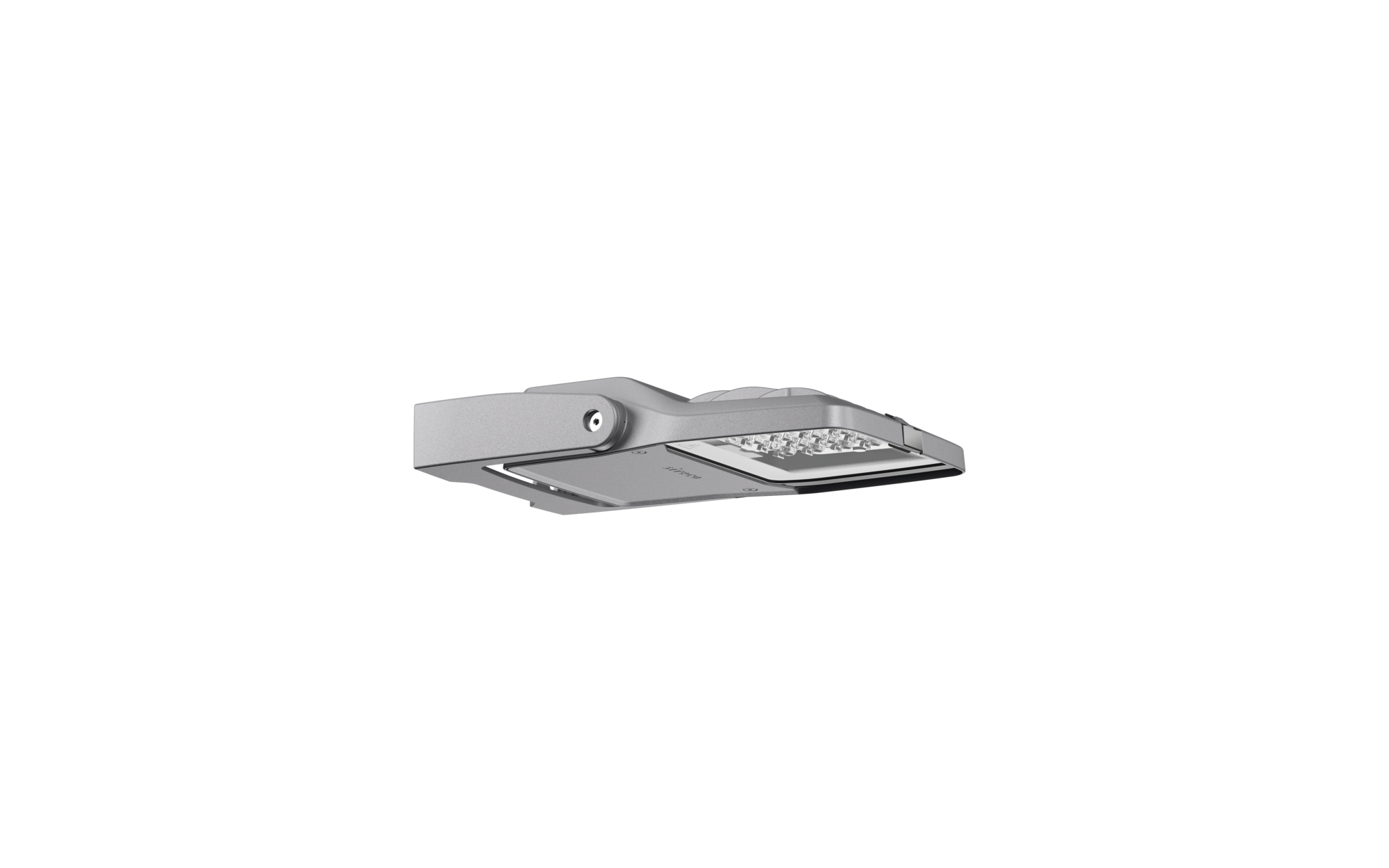

Product name Floodlight FL 21 iQ micro
Lamp LED
Rated luminous flux 3030lm
Luminous efficacy 131lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 23
Pnom end service life 24
Pred at 50% lumin. flux 11
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.1kg

Floodlight FL 21 iQ micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL61, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 3.030lm, luminous efficacy: 131lm/W, light colour: 740, colour temperature: 4000K, control: Auto-Match, Temp-Guard, Night-Set, Smart-Wire, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), Street-Remote, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 23W, end of service life: 24W, reduction: 11W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 according to DIN EN ISO 12944, sealing non-destructively replaceable, design bracket, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name Floodlight FL 21 iQ micro
Order No. 5XA7762A4C2A


Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL61
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 3030lm
Luminous efficacy 131lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Rated input power begin service life 23
Rated input power end service life 24
Rated input power at 50% lumin. flux 11


Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote


Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK07
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 according to DIN EN ISO 12944
Certification, designation CE, ENEC, VDE


Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable
Colour specification Siteco® metallic grey (DB 702S)
design bracket diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover protective disc of toughened safety glass


Mounting

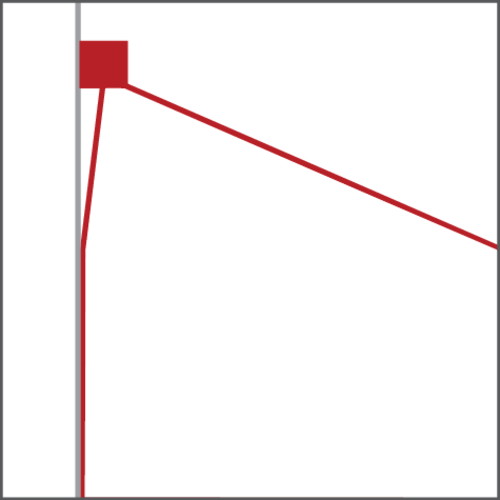

Mounting method, mounting location surface-mounted, to the wall
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

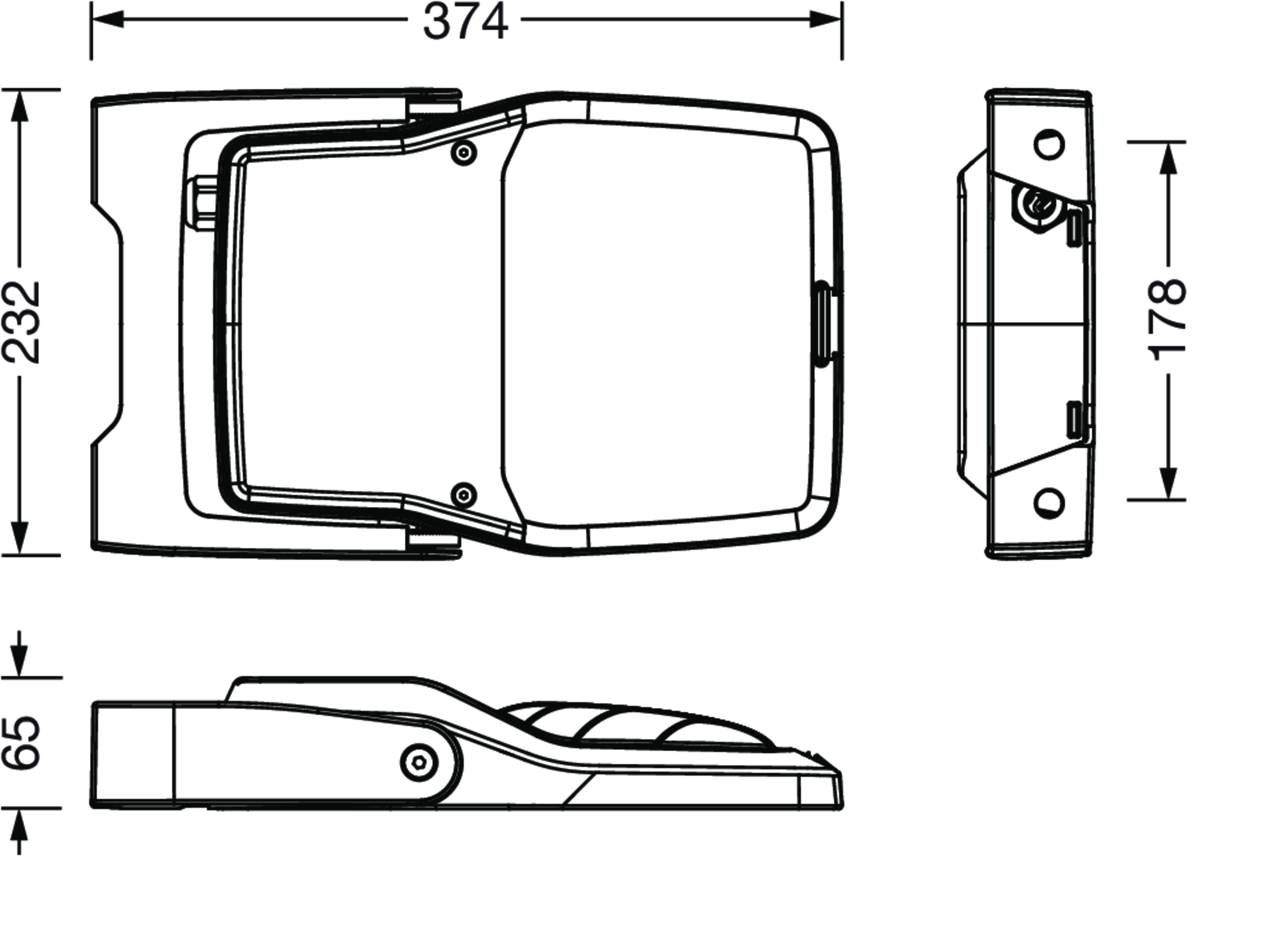

Dimensions, Weight

Weight 3.1kg


Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 iQ micro

Order No.
5XA7762A4C2A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL61

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
3030lm

Luminous efficacy
131lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

Rated input power begin service life
23

Rated input power end service life
24

Rated input power at 50% lumin. flux
11

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK07

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 according to DIN EN ISO 12944

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable

Colour specification
Siteco® metallic grey (DB 702S)

design bracket
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to the wall

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
3.1kg

Rated service life
100000h (L97/B10) at AT = 25°C

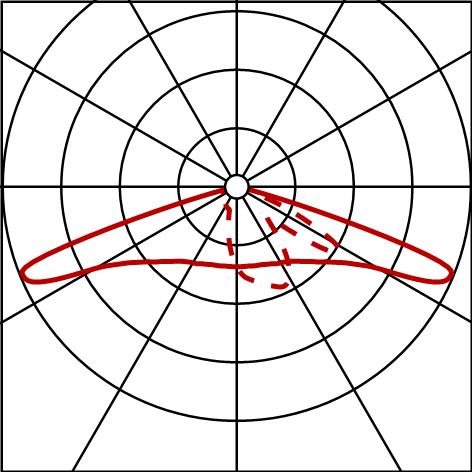

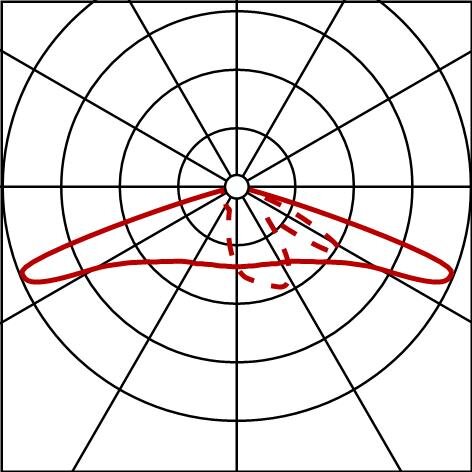

Photometric report / planning data

Photometric report / planning data

Floodlight FL 21 iQ micro
LED, direct distribution, surface-mounted, to the wall
Ordercode: 5XA7762A4C2A
