Floodlight FL 21
Flexibility without limits: Whether in park areas, industrial areas, sports halls or smaller outdoor sports areas - Floodlight FL 21, the latest generation of our well-known floodlight family, gets to work reliably. More flexible, smart and environmentally conscious than ever before.
This is ensured by three construction sizes, different connection variants, adjustments to the product design and brand new control options with SITECO iQ. The result is intelligent light that gets the most out of it for you: Floodlight FL 21 – your groundbreaking all-rounder, also with iQ!
Our core portfolio: Floodlight FL 21 iQ is our floodlight with the highest standards of efficiency, quality and flexibility for your project
Producttypes

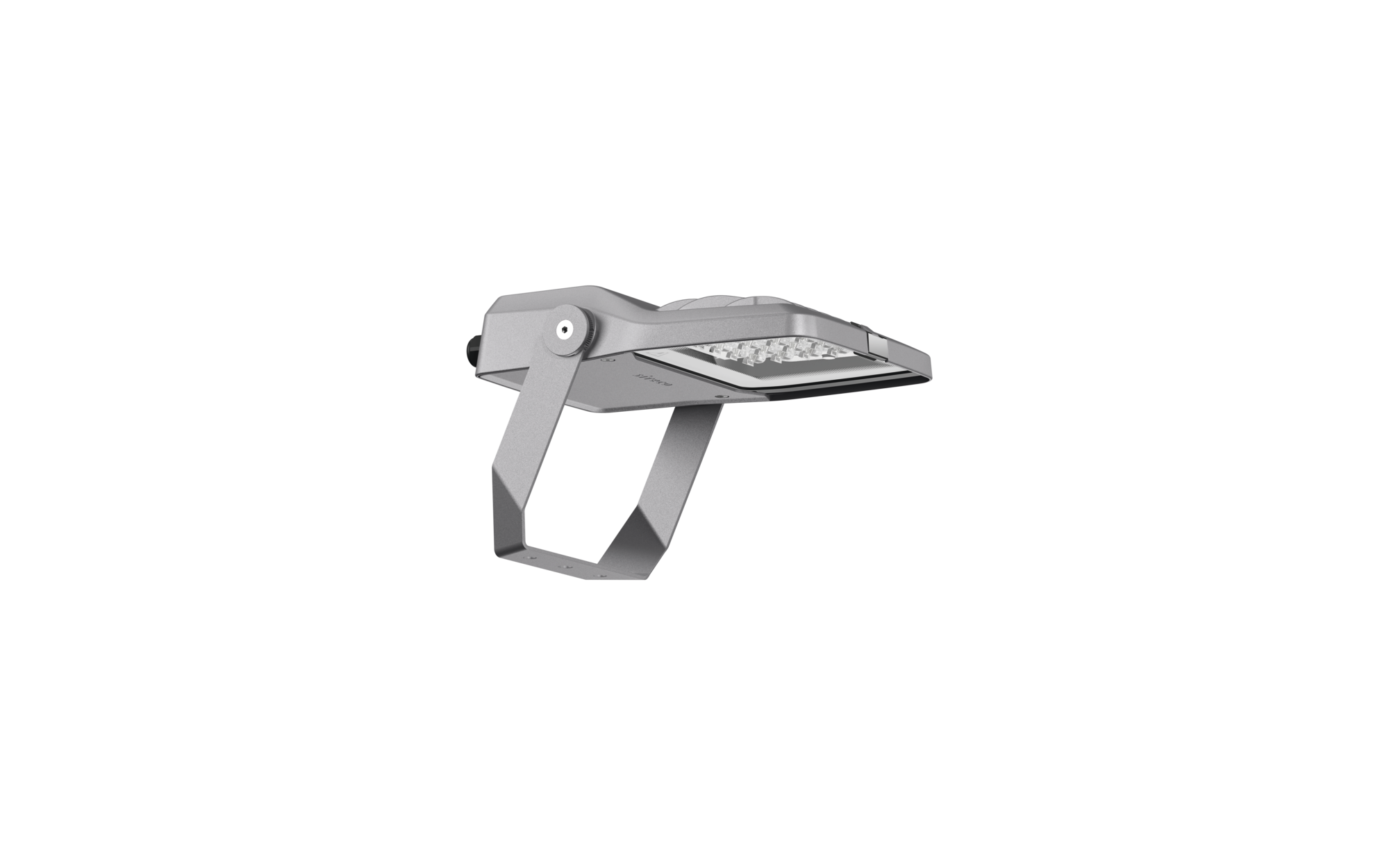

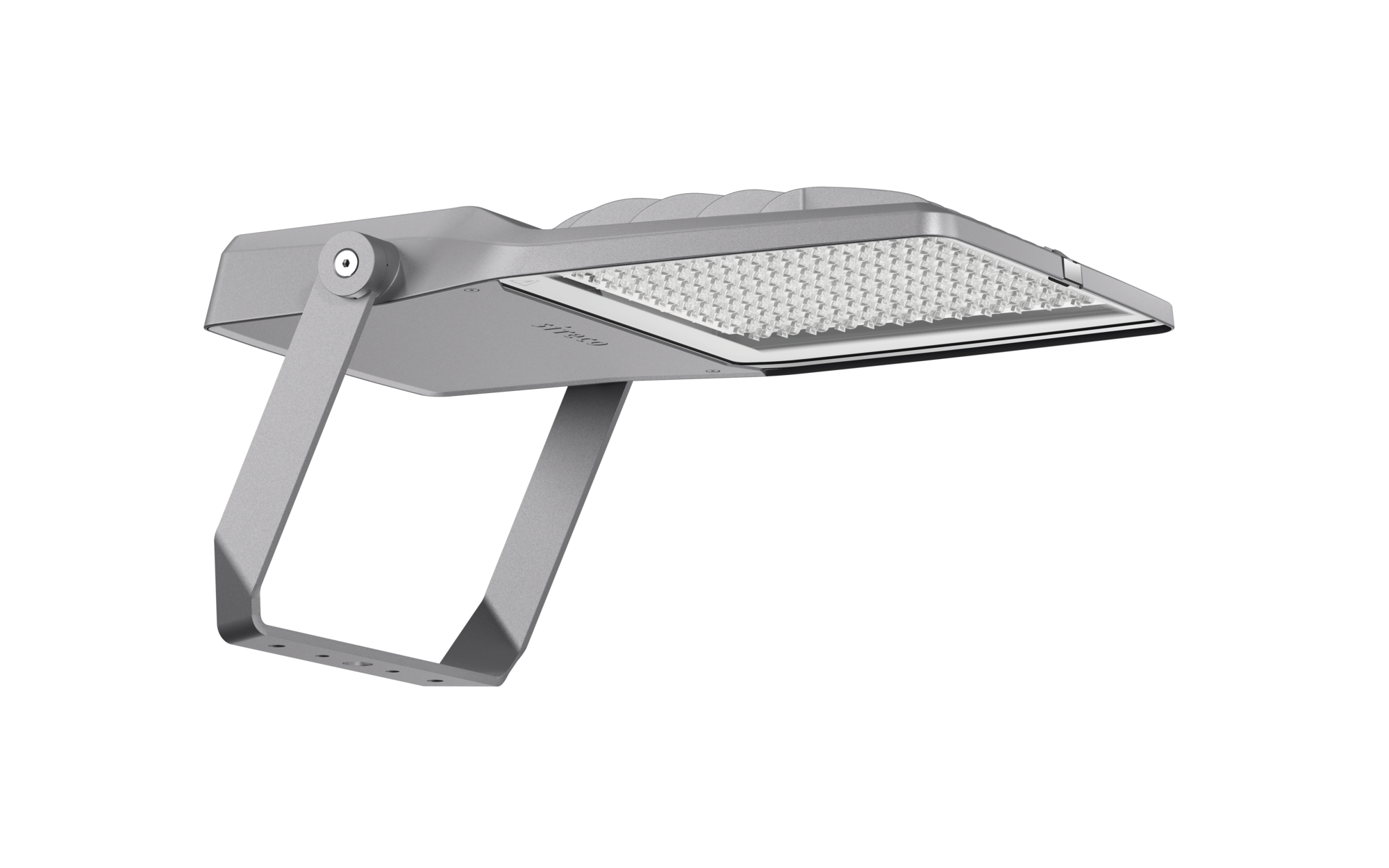

Floodlight FL 21 micro with mounting bracket

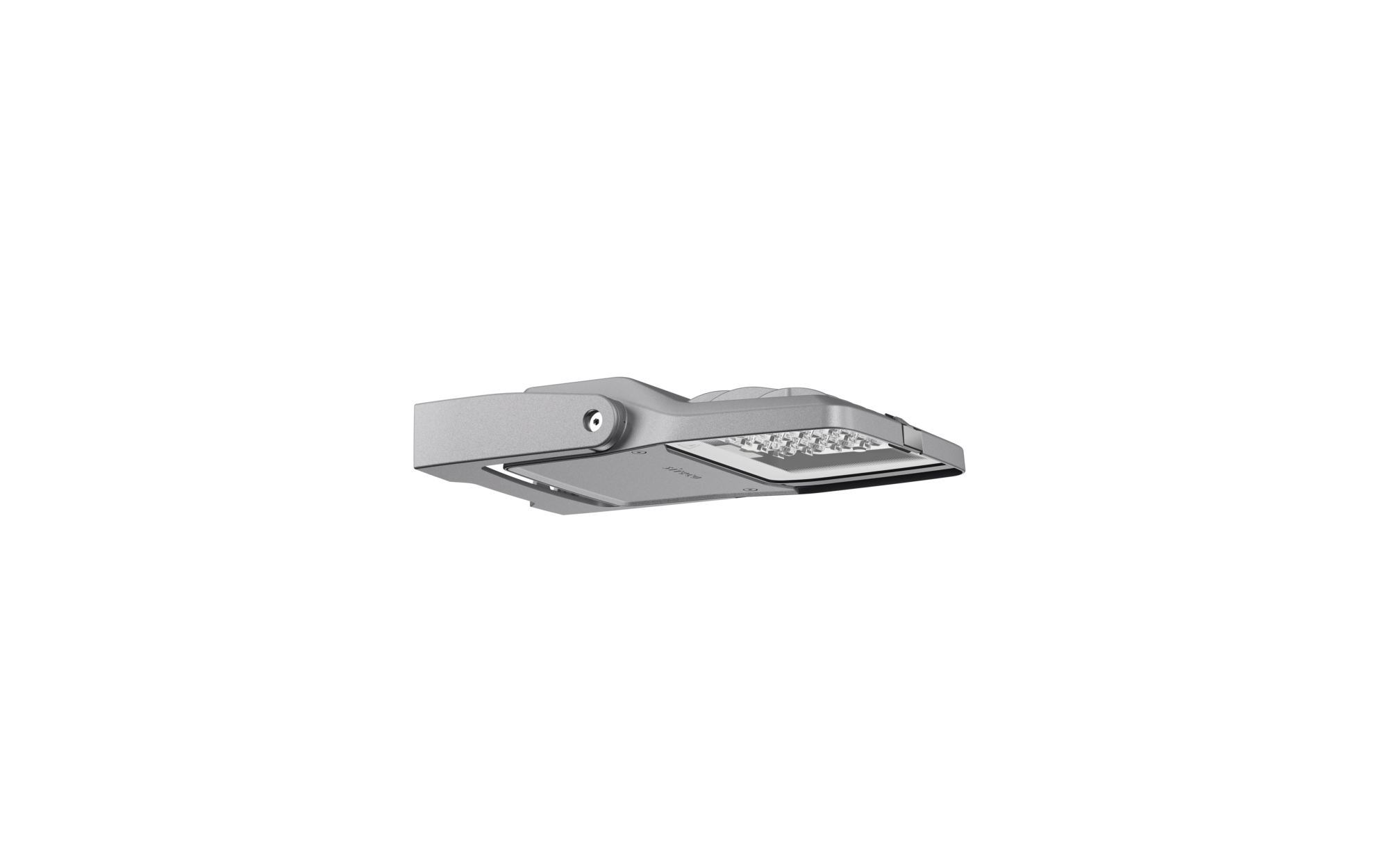

Floodlight FL 21 micro with design bracket

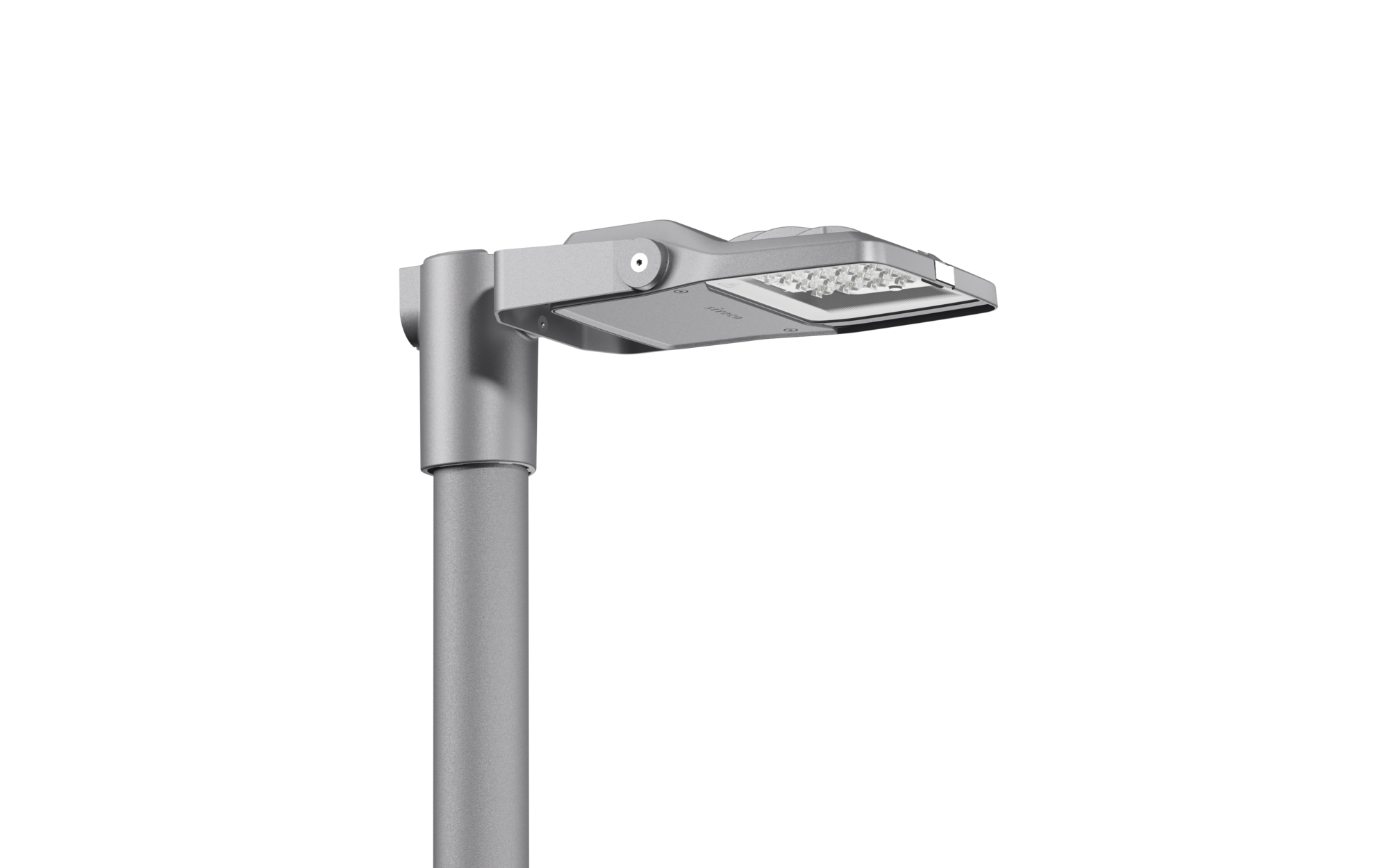

Floodlight FL 21 micro with mast bracket
Floodlight FL 21 mini with mounting bracket

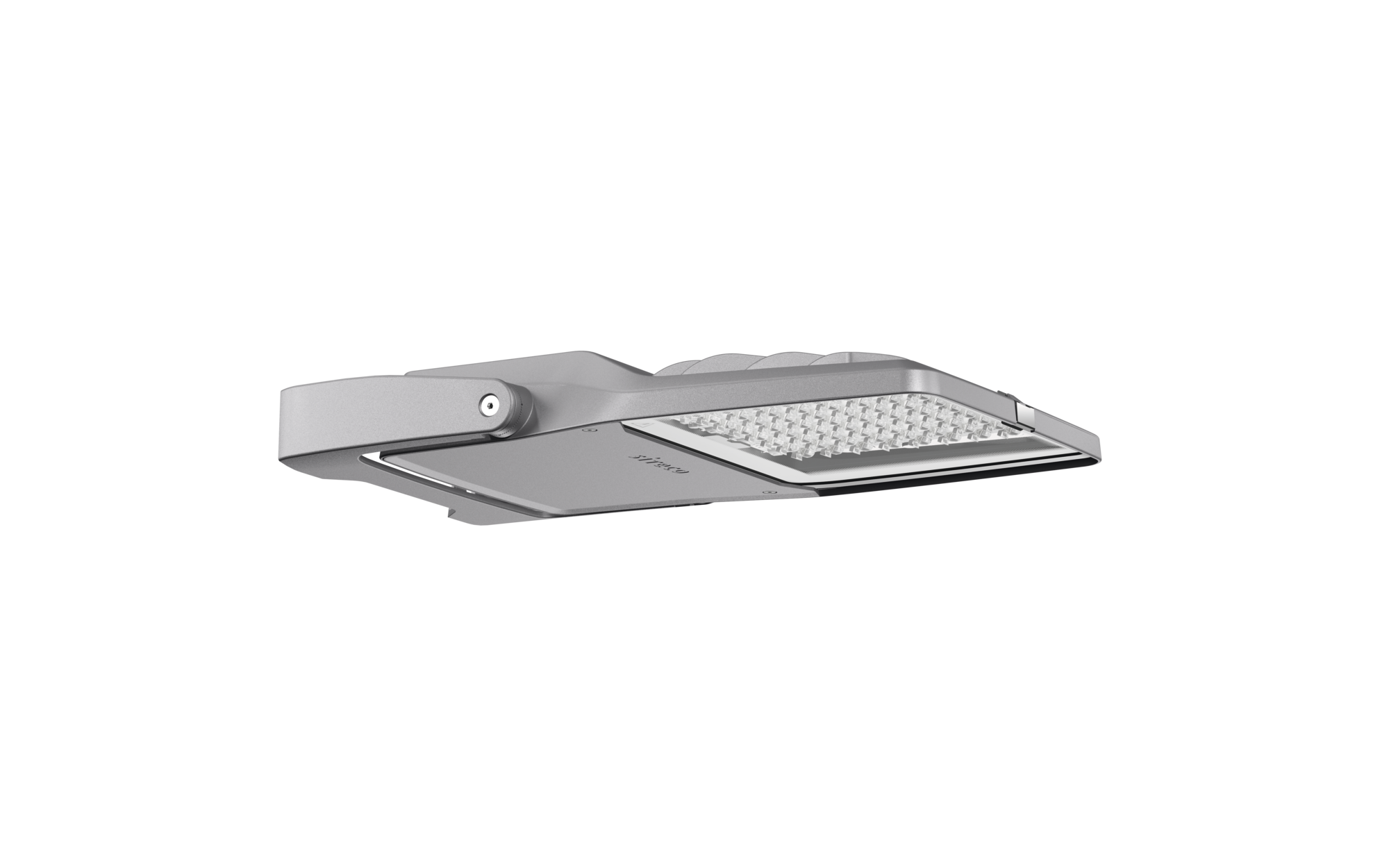

Floodlight FL 21 mini with design bracket

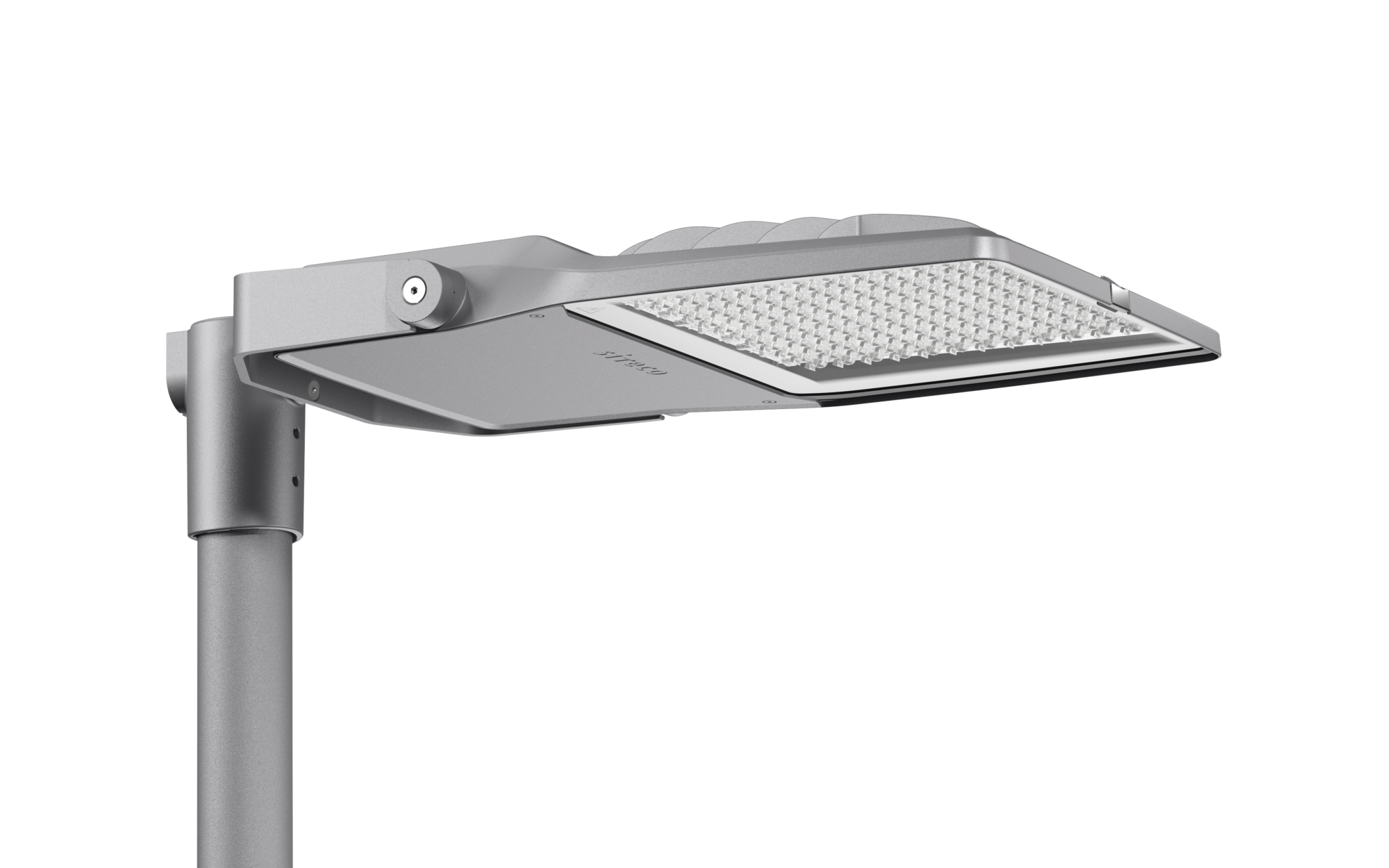

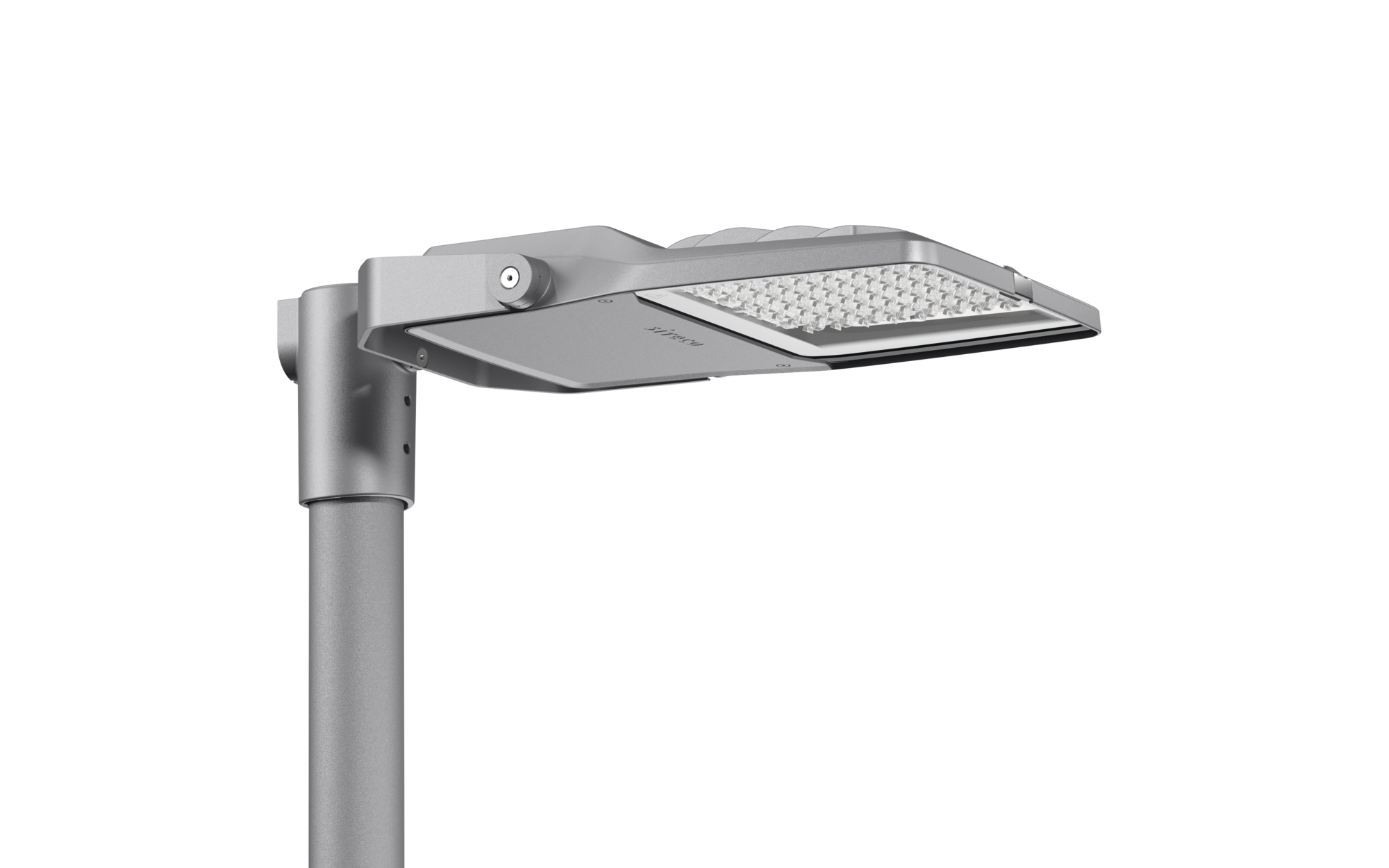

Floodlight FL 21 mini with mast bracket

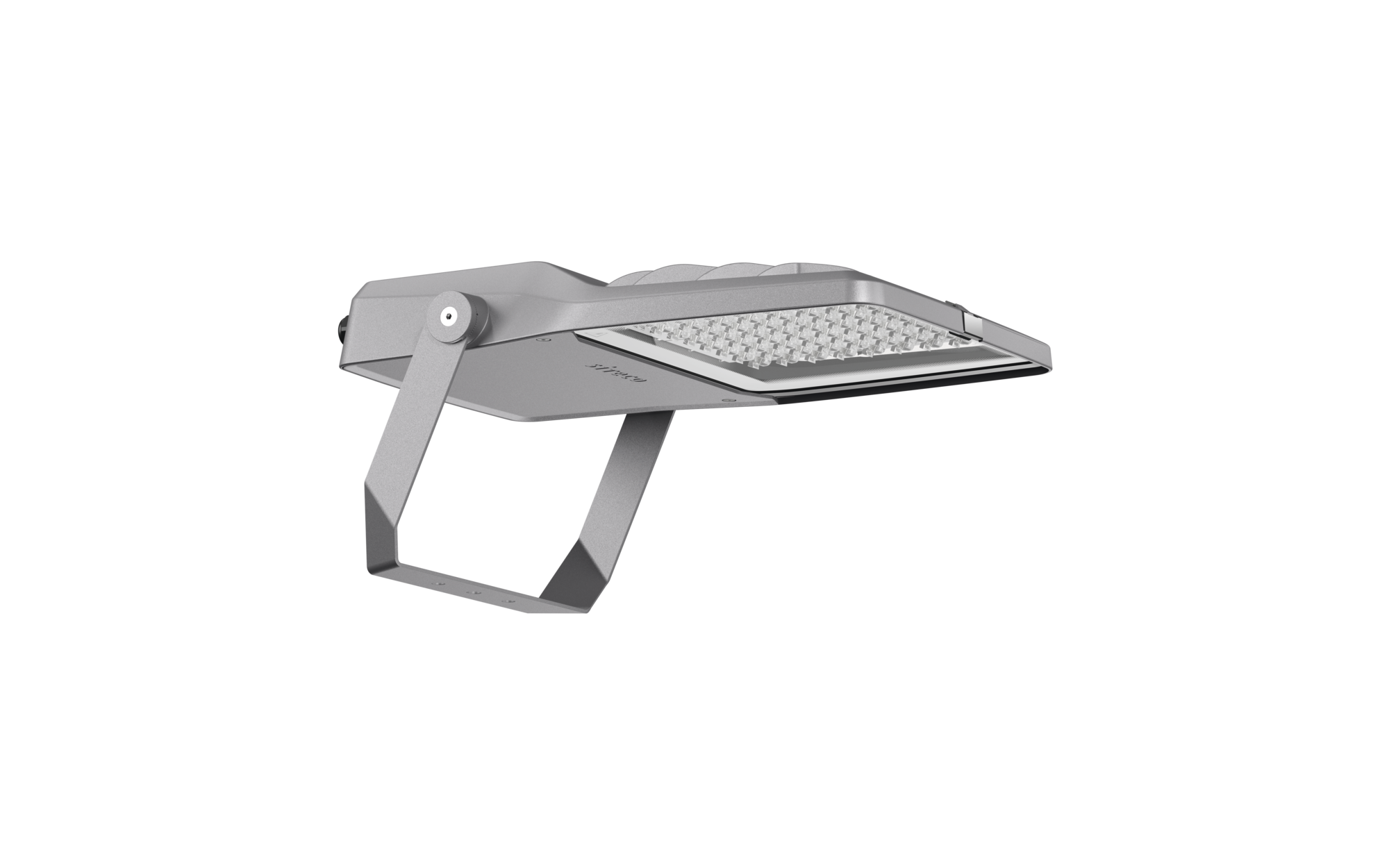

Floodlight FL 21 midi with mounting bracket
Floodlight FL 21 midi with mast bracket
Floodlight FL 21 micro with design bracket
Intro to Productfamily
Data
Article floodlight
Net luminous flux 2870lm to 3170lm
Colour temperature 3000K; 4000K
Lighting effect direct distribution
Light distribution PL43; PL52; PL61; PL64; PL33T
Protection rating IP66
Insulation class insulation class II (safety insulation)
Specials
Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Very robust thanks to protection rating IP66 and corrosion-resistant die-cast aluminum housing
Sustainability: ECG and LED module can be replaced, as well as a plastic-free packaging concept
Multilumen: the light level can be adjusted in eight steps using a dip switch
Siteco iQ Comfort: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data; Desk Remote: voltage-free transmission of data to the luminaire via RFID, even through the packaging; Smart Wire: activation of preset dimming values or dimming profiles and many other functions
Siteco iQ Street-Remote (iQ-SR): Transmission of all parameters without tools or cable connection via a stable Bluetooth connection
Configuration & Datasheets
Results
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7761A2A2A GTIN (EAN): 4058352668887
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 3040lm | PL43 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7761A2D2A GTIN (EAN): 4058352669020
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2890lm | PL52 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7761A2C2A GTIN (EAN): 4058352668962
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2910lm | PL61 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7761A2E2A GTIN (EAN): 4058352669082
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2870lm | PL64 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7761A2F2A GTIN (EAN): 4058352669143
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2930lm | PL33T | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7761A4A2A GTIN (EAN): 4058352669198
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3170lm | PL43 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7761A4D2A GTIN (EAN): 4058352669327
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3010lm | PL52 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7761A4C2A GTIN (EAN): 4058352669266
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3030lm | PL61 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7761A4E2A GTIN (EAN): 4058352669396
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2980lm | PL64 | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7761A4F2A GTIN (EAN): 4058352669440
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3050lm | PL33T | 23 | 24 | iQ Comfort/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7762A2A2A GTIN (EAN): 4058352631096
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 3040lm | PL43 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7762A2D2A GTIN (EAN): 4058352669686
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2890lm | PL52 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7762A2C2A GTIN (EAN): 4058352669624
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2910lm | PL61 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7762A2E2A GTIN (EAN): 4058352669747
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2870lm | PL64 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7762A2F2A GTIN (EAN): 4058352669808
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2930lm | PL33T | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7762A4A2A GTIN (EAN): 4058352669846
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3170lm | PL43 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7762A4D2A GTIN (EAN): 4058352669990
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3010lm | PL52 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7762A4C2A GTIN (EAN): 4058352669921
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3030lm | PL61 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7762A4E2A GTIN (EAN): 4058352670040
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2980lm | PL64 | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7762A4F2A GTIN (EAN): 4058352670101
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Pnom (W) begin service life | Pnom (W) end service life | Control | Insulation class | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3050lm | PL33T | 23 | 24 | iQ Street-Remote/DALI | insulation class II (safety insulation) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7761A2A2AGTIN (EAN): 4058352668887
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3040lm |
| Light distribution | PL43 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7761A2D2AGTIN (EAN): 4058352669020
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2890lm |
| Light distribution | PL52 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7761A2C2AGTIN (EAN): 4058352668962
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2910lm |
| Light distribution | PL61 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7761A2E2AGTIN (EAN): 4058352669082
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2870lm |
| Light distribution | PL64 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7761A2F2AGTIN (EAN): 4058352669143
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2930lm |
| Light distribution | PL33T |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7761A4A2AGTIN (EAN): 4058352669198
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3170lm |
| Light distribution | PL43 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7761A4D2AGTIN (EAN): 4058352669327
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3010lm |
| Light distribution | PL52 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7761A4C2AGTIN (EAN): 4058352669266
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3030lm |
| Light distribution | PL61 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7761A4E2AGTIN (EAN): 4058352669396
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2980lm |
| Light distribution | PL64 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7761A4F2AGTIN (EAN): 4058352669440
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3050lm |
| Light distribution | PL33T |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Comfort/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7762A2A2AGTIN (EAN): 4058352631096
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3040lm |
| Light distribution | PL43 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7762A2D2AGTIN (EAN): 4058352669686
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2890lm |
| Light distribution | PL52 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7762A2C2AGTIN (EAN): 4058352669624
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2910lm |
| Light distribution | PL61 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7762A2E2AGTIN (EAN): 4058352669747
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2870lm |
| Light distribution | PL64 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7762A2F2AGTIN (EAN): 4058352669808
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2930lm |
| Light distribution | PL33T |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL43, direct distribution
Order No.: 5XA7762A4A2AGTIN (EAN): 4058352669846
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3170lm |
| Light distribution | PL43 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL52, direct distribution
Order No.: 5XA7762A4D2AGTIN (EAN): 4058352669990
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3010lm |
| Light distribution | PL52 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL61, direct distribution
Order No.: 5XA7762A4C2AGTIN (EAN): 4058352669921
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3030lm |
| Light distribution | PL61 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL64, direct distribution
Order No.: 5XA7762A4E2AGTIN (EAN): 4058352670040
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2980lm |
| Light distribution | PL64 |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Floodlight FL 21 iQ micro, PL33T, direct distribution
Order No.: 5XA7762A4F2AGTIN (EAN): 4058352670101
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3050lm |
| Light distribution | PL33T |
| Pnom (W) begin service life | 23 |
| Pnom (W) end service life | 24 |
| Control | iQ Street-Remote/DALI |
| Insulation class | insulation class II (safety insulation) |
| Wt. (kg) | 3.1 |
Optional accessory
| Order No.: 5EA6HBR02GTIN (EAN): 4058352881224 | Show details |
| Order No.: 5XA77XBR04XAGTIN (EAN): 4069025011718 | Show details |
| Order No.: 5XA77XBR06XAGTIN (EAN): 4069025011695 | Show details |
| Order No.: 5XA77XBR01XAGTIN (EAN): 4069025011749 | Show details |
