Floodlight FL 21

ProducttypesConfiguration & Datasheets

Flexibility without limits: Whether in park areas, industrial areas, sports halls or smaller outdoor sports areas - Floodlight FL 21, the latest generation of our well-known floodlight family, gets to work reliably. More flexible, smart and environmentally conscious than ever before.

This is ensured by three construction sizes, different connection variants, adjustments to the product design and brand new control options with SITECO iQ. The result is intelligent light that gets the most out of it for you: Floodlight FL 21 – your groundbreaking all-rounder, also with iQ!

Our core portfolio: Floodlight FL 21 iQ is our floodlight with the highest standards of efficiency, quality and flexibility for your project

Producttypes

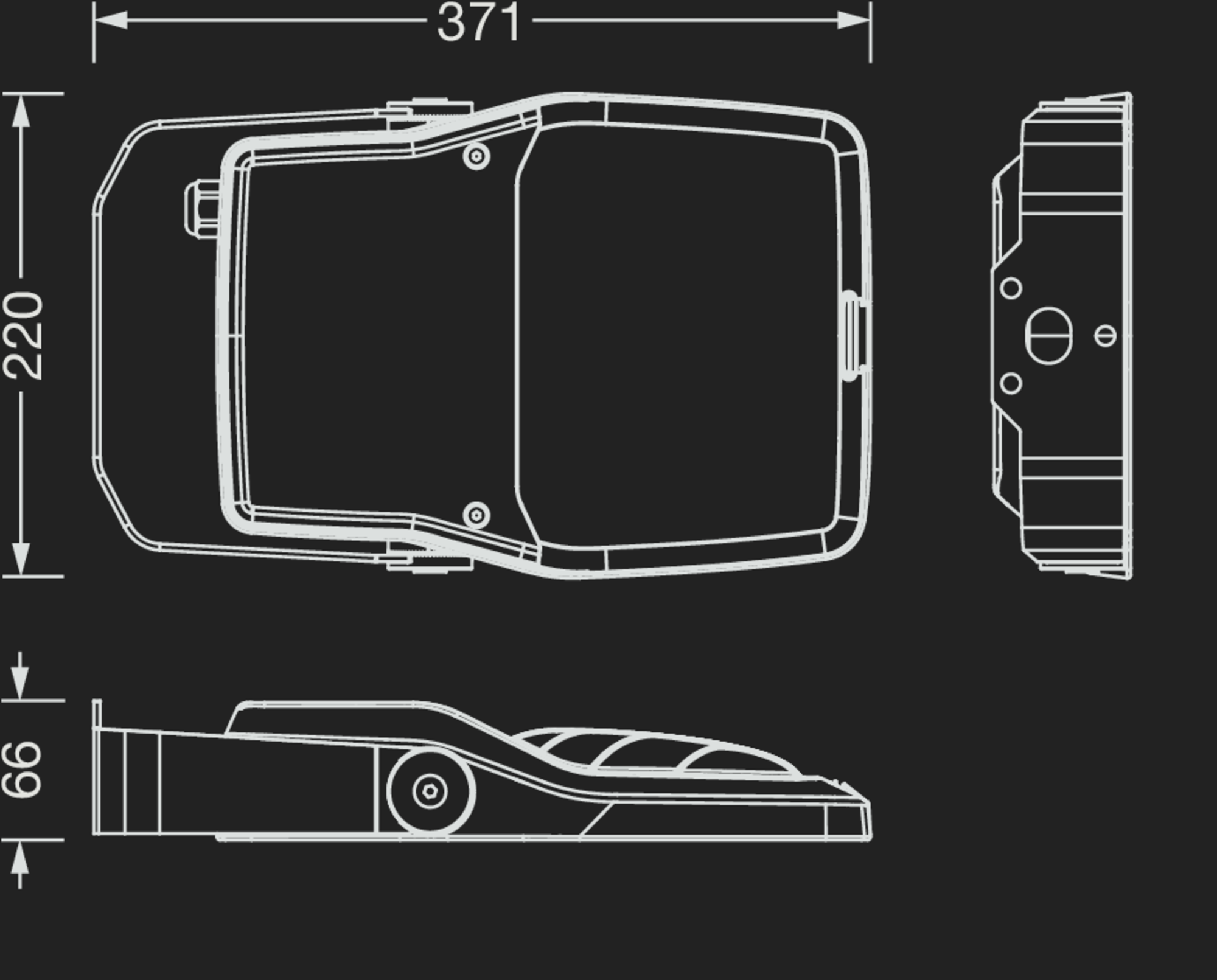

Floodlight FL 21 micro with mounting bracket

Floodlight FL 21 micro with design bracket

Floodlight FL 21 micro with mast bracket

Floodlight FL 21 mini with mounting bracket

Floodlight FL 21 mini with design bracket

Floodlight FL 21 mini with mast bracket

Floodlight FL 21 midi with mounting bracket

Floodlight FL 21 midi with mast bracket

Floodlight FL 21 micro with mast bracket

Intro to Productfamily

Data

Article floodlight
Net luminous flux 2870lm to 3170lm
Colour temperature 3000K; 4000K
Lighting effect direct distribution
Light distribution PL43; PL52; PL61; PL64; PL33T
Protection rating IP66
Insulation class insulation class II (safety insulation)

Specials

Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Very robust thanks to protection rating IP66 and corrosion-resistant die-cast aluminum housing
Sustainability: ECG and LED module can be replaced, as well as a plastic-free packaging concept
Multilumen: the light level can be adjusted in eight steps using a dip switch
Siteco iQ Comfort: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data; Desk Remote: voltage-free transmission of data to the luminaire via RFID, even through the packaging; Smart Wire: activation of preset dimming values or dimming profiles and many other functions
Siteco iQ Street-Remote (iQ-SR): Transmission of all parameters without tools or cable connection via a stable Bluetooth connection

Configuration & Datasheets

Light distribution

Colour temperature

Rated luminous flux (lm)

Control

  • please order mast flange according to spigot diameter separately

Results

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7761A2A3A GTIN (EAN): 4058352668900
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 703040lmPL432324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7761A2D3A GTIN (EAN): 4058352669044
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702890lmPL522324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7761A2C3A GTIN (EAN): 4058352668993
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702910lmPL612324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7761A2E3A GTIN (EAN): 4058352669105
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702870lmPL642324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7761A2F3A GTIN (EAN): 4058352669167
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702930lmPL33T2324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7761A4A3A GTIN (EAN): 4058352669204
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703170lmPL432324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7761A4D3A GTIN (EAN): 4058352669341
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703010lmPL522324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7761A4C3A GTIN (EAN): 4058352669280
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703030lmPL612324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7761A4E3A GTIN (EAN): 4058352669402
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 702980lmPL642324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7761A4F3A GTIN (EAN): 4058352669464
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703050lmPL33T2324iQ Comfort/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7762A2A3A GTIN (EAN): 4058352631119
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 703040lmPL432324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7762A2D3A GTIN (EAN): 4058352669709
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702890lmPL522324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7762A2C3A GTIN (EAN): 4058352669648
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702910lmPL612324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7762A2E3A GTIN (EAN): 4058352669761
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702870lmPL642324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7762A2F3A GTIN (EAN): 4058352669822
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 702930lmPL33T2324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7762A4A3A GTIN (EAN): 4058352669860
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703170lmPL432324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7762A4D3A GTIN (EAN): 4058352670002
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703010lmPL522324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7762A4C3A GTIN (EAN): 4058352669945
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703030lmPL612324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7762A4E3A GTIN (EAN): 4058352670064
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 702980lmPL642324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7762A4F3A GTIN (EAN): 4058352670125
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 703050lmPL33T2324iQ Street-Remote/DALIinsulation class II (safety insulation)3.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7761A2A3AGTIN (EAN): 4058352668900

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3040lm
Light distributionPL43
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7761A2D3AGTIN (EAN): 4058352669044

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2890lm
Light distributionPL52
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7761A2C3AGTIN (EAN): 4058352668993

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2910lm
Light distributionPL61
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7761A2E3AGTIN (EAN): 4058352669105

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2870lm
Light distributionPL64
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7761A2F3AGTIN (EAN): 4058352669167

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2930lm
Light distributionPL33T
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7761A4A3AGTIN (EAN): 4058352669204

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3170lm
Light distributionPL43
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7761A4D3AGTIN (EAN): 4058352669341

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3010lm
Light distributionPL52
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7761A4C3AGTIN (EAN): 4058352669280

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3030lm
Light distributionPL61
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7761A4E3AGTIN (EAN): 4058352669402

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2980lm
Light distributionPL64
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7761A4F3AGTIN (EAN): 4058352669464

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3050lm
Light distributionPL33T
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Comfort/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7762A2A3AGTIN (EAN): 4058352631119

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3040lm
Light distributionPL43
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7762A2D3AGTIN (EAN): 4058352669709

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2890lm
Light distributionPL52
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7762A2C3AGTIN (EAN): 4058352669648

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2910lm
Light distributionPL61
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7762A2E3AGTIN (EAN): 4058352669761

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2870lm
Light distributionPL64
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7762A2F3AGTIN (EAN): 4058352669822

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2930lm
Light distributionPL33T
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL43, direct distribution

Order No.: 5XA7762A4A3AGTIN (EAN): 4058352669860

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3170lm
Light distributionPL43
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL52, direct distribution

Order No.: 5XA7762A4D3AGTIN (EAN): 4058352670002

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3010lm
Light distributionPL52
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL61, direct distribution

Order No.: 5XA7762A4C3AGTIN (EAN): 4058352669945

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3030lm
Light distributionPL61
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL64, direct distribution

Order No.: 5XA7762A4E3AGTIN (EAN): 4058352670064

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2980lm
Light distributionPL64
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Floodlight FL 21 iQ micro, PL33T, direct distribution

Order No.: 5XA7762A4F3AGTIN (EAN): 4058352670125

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3050lm
Light distributionPL33T
Pnom (W) begin service life23
Pnom (W) end service life24
ControliQ Street-Remote/DALI
Insulation classinsulation class II (safety insulation)
Wt. (kg)3.3
Show details

Mandatory accessory

Articlemast flange, post-top, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, 1-armPU1 pc.Wt. (kg)1.2Order No.: 5XA77X7660AU1GTIN (EAN): 4058352615911Show details
Articlemast flange, side-entry, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, 1-armPU1 pc.Wt. (kg)1.1Order No.: 5XA77X7660AN1GTIN (EAN): 4058352615898Show details
Articlemast flange, post-top, Siteco® metallic grey (DB 702S), spigot size: 42mm, 1-armPU1 pc.Wt. (kg)0.5Order No.: 5XA77X42AU1GTIN (EAN): 4058352615881Show details
Articlemast flange, side-entry, Siteco® metallic grey (DB 702S), spigot size: 42mm, 1-armPU1 pc.Wt. (kg)0.5Order No.: 5XA77X42AN1GTIN (EAN): 4058352615850Show details
Articlemast flange, post-top, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, 2-armPU1 pc.Wt. (kg)0.5Order No.: 5XA77X7660AU2GTIN (EAN): 4058352705094Show details
Articlemast flange, post-top, Siteco® metallic grey (DB 702S), spigot size: 42mm, 2-armPU1 pc.Wt. (kg)0.5Order No.: 5XA77X42AU2GTIN (EAN): 4058352705087Show details

Optional accessory

ArticleSITECO iQ handheldPU1 pc.Wt. (kg)0.3Order No.: 5EA6HBR02GTIN (EAN): 4058352881224Show details
Articlereducer, spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5XC1008XR12GTIN (EAN): 4058352462508Show details
Articlemast bracketPU1 pc.Wt. (kg)1.0Order No.: 5XA77XBR06XAGTIN (EAN): 4069025011695Show details
Articledesign bracketPU1 pc.Wt. (kg)1.0Order No.: 5XA77XBR04XAGTIN (EAN): 4069025011718Show details
Articlemounting bracketPU1 pc.Wt. (kg)0.8Order No.: 5XA77XBR01XAGTIN (EAN): 4069025011749Show details
