Floodlight FL 21

ProducttypesConfiguration & Datasheets

Flexibility without limits: Whether in park areas, industrial areas, sports halls or smaller outdoor sports areas - Floodlight FL 21, the latest generation of our well-known floodlight family, gets to work reliably. More flexible, smart and environmentally conscious than ever before.

This is ensured by three construction sizes, different connection variants, adjustments to the product design and brand new control options with SITECO iQ. The result is intelligent light that gets the most out of it for you: Floodlight FL 21 – your groundbreaking all-rounder, also with iQ!

Our core portfolio: Floodlight FL 21 iQ is our floodlight with the highest standards of efficiency, quality and flexibility for your project

Floodlight FL 21 mini with mast bracket

Intro to Productfamily

Data

Article floodlight
Net luminous flux 6020lm to 19090lm
Colour temperature 3000K; 4000K
Lighting effect direct distribution
Light distribution PL43; PL52; PL61; PL64; PL33T
Protection rating IP66
Insulation class insulation class II (safety insulation)

Specials

Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Very robust thanks to protection rating IP66 and corrosion-resistant die-cast aluminum housing
Sustainability: ECG and LED module can be replaced, as well as a plastic-free packaging concept
Multilumen: the light level can be adjusted in eight steps using a dip switch
Siteco iQ Comfort: Auto-Match: Replacement of spare parts with automatic data exchange without manually reading out and transferring the data; Desk Remote: voltage-free transmission of data to the luminaire via RFID, even through the packaging; Smart Wire: activation of preset dimming values or dimming profiles and many other functions
Siteco iQ Street-Remote (iQ-SR): Transmission of all parameters without tools or cable connection via a stable Bluetooth connection
Smart Interface (Zhaga & D4i) for smart city applications with a simultaneous modular design for component upgrades

Configuration & Datasheets

Light distribution

Colour temperature

Rated luminous flux (lm)

Control

  • please order mast flange according to spigot diameter separately

Results

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771C2A3A GTIN (EAN): 4058352652572
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012520lmPL438792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771C2D3A GTIN (EAN): 4058352652718
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012210lmPL528792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771C2C3A GTIN (EAN): 4058352652657
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011980lmPL618792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771C2E3A GTIN (EAN): 4058352652787
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011790lmPL648792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771C2F3A GTIN (EAN): 4058352652831
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012060lmPL33T8792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771C4A3A GTIN (EAN): 4058352652909
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7013050lmPL438792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771C4D3A GTIN (EAN): 4058352653036
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012720lmPL528792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771C4C3A GTIN (EAN): 4058352652978
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012490lmPL618792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771C4E3A GTIN (EAN): 4058352653098
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012280lmPL648792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771C4F3A GTIN (EAN): 4058352653159
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012570lmPL33T8792iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772C2A3A GTIN (EAN): 4058352654941
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012520lmPL438792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772C2D3A GTIN (EAN): 4058352655078
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012210lmPL528792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772C2C3A GTIN (EAN): 4058352655016
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011980lmPL618792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772C2E3A GTIN (EAN): 4058352655139
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011790lmPL648792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772C2F3A GTIN (EAN): 4058352655191
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012060lmPL33T8792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772C4A3A GTIN (EAN): 4058352655375
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7013050lmPL438792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772C4D3A GTIN (EAN): 4058352655511
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012720lmPL528792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772C4C3A GTIN (EAN): 4058352655450
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012490lmPL618792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772C4E3A GTIN (EAN): 4058352655580
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012280lmPL648792iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772C4F3A GTIN (EAN): 4058352655634
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7012570lmPL33T8792iQ Street-Remoteinsulation class II (safety insulation)7.4

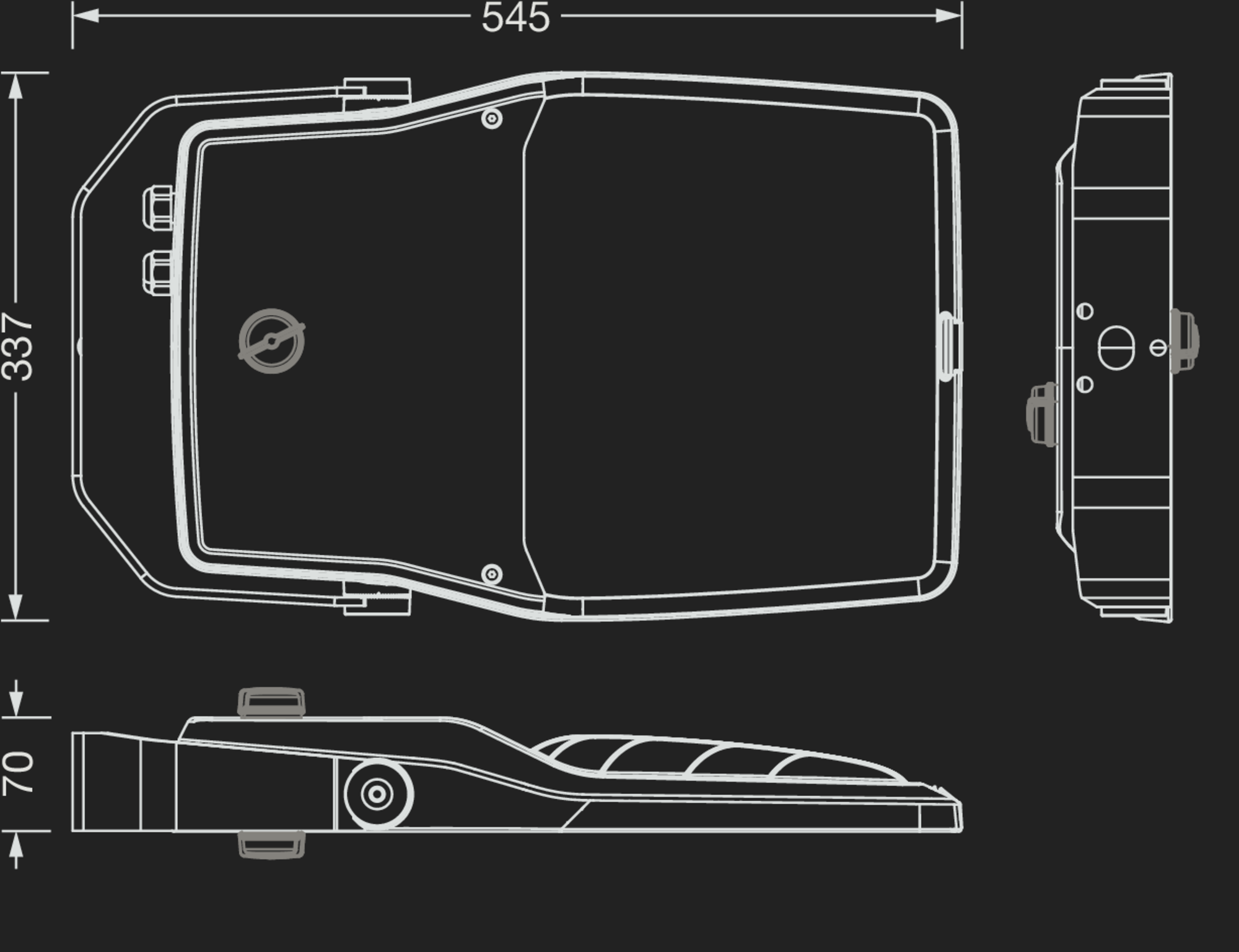

Floodlight FL 21 mini, PL43, direct distribution, with Smart Interface above

Order No.: 5XA7775C2A3A GTIN (EAN): 4058352657058
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012500lmPL438994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL52, direct distribution, with Smart Interface above

Order No.: 5XA7775C2D3A GTIN (EAN): 4058352657133
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012190lmPL528994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL61, direct distribution, with Smart Interface above

Order No.: 5XA7775C2C3A GTIN (EAN): 4058352657102
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011960lmPL618994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL64, direct distribution, with Smart Interface above

Order No.: 5XA7775C2E3A GTIN (EAN): 4058352657171
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011770lmPL648994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL33T, direct distribution, with Smart Interface above

Order No.: 5XA7775C2F3A GTIN (EAN): 4058352657225
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012050lmPL33T8994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL43, direct distribution, with Smart Interface below and above

Order No.: 5XA7776C2A3A GTIN (EAN): 4058352657638
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012500lmPL438994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL52, direct distribution, with Smart Interface below and above

Order No.: 5XA7776C2D3A GTIN (EAN): 4058352657713
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012190lmPL528994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL61, direct distribution, with Smart Interface below and above

Order No.: 5XA7776C2C3A GTIN (EAN): 4058352657676
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011960lmPL618994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL64, direct distribution, with Smart Interface below and above

Order No.: 5XA7776C2E3A GTIN (EAN): 4058352657768
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7011770lmPL648994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL33T, direct distribution, with Smart Interface below and above

Order No.: 5XA7776C2F3A GTIN (EAN): 4058352657799
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7012050lmPL33T8994Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771D2A3A GTIN (EAN): 4058352653197
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7018290lmPL43143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771D2D3A GTIN (EAN): 4058352653340
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017830lmPL52143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771D2C3A GTIN (EAN): 4058352653272
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017500lmPL61143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771D2E3A GTIN (EAN): 4058352653395
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017220lmPL64143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771D2F3A GTIN (EAN): 4058352653456
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017620lmPL33T143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771D4A3A GTIN (EAN): 4058352653517
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7019090lmPL43143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771D4D3A GTIN (EAN): 4058352653654
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018610lmPL52143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771D4C3A GTIN (EAN): 4058352653593
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018260lmPL61143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771D4E3A GTIN (EAN): 4058352653715
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7017970lmPL64143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771D4F3A GTIN (EAN): 4058352653777
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018390lmPL33T143152iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772D2A3A GTIN (EAN): 4058352655924
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7018290lmPL43143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772D2D3A GTIN (EAN): 4058352656068
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017830lmPL52143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772D2C3A GTIN (EAN): 4058352655993
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017500lmPL61143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772D2E3A GTIN (EAN): 4058352656112
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017220lmPL64143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772D2F3A GTIN (EAN): 4058352656174
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017620lmPL33T143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772D4A3A GTIN (EAN): 4058352656334
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7019090lmPL43143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772D4D3A GTIN (EAN): 4058352656471
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018610lmPL52143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772D4C3A GTIN (EAN): 4058352656419
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018260lmPL61143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772D4E3A GTIN (EAN): 4058352656532
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7017970lmPL64143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772D4F3A GTIN (EAN): 4058352656594
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 7018390lmPL33T143152iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL43, direct distribution, with Smart Interface above

Order No.: 5XA7775D2A3A GTIN (EAN): 4058352657256
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7018300lmPL43143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL52, direct distribution, with Smart Interface above

Order No.: 5XA7775D2D3A GTIN (EAN): 4058352657331
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017840lmPL52143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL61, direct distribution, with Smart Interface above

Order No.: 5XA7775D2C3A GTIN (EAN): 4058352657294
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017510lmPL61143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL64, direct distribution, with Smart Interface above

Order No.: 5XA7775D2E3A GTIN (EAN): 4058352657379
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017220lmPL64143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL33T, direct distribution, with Smart Interface above

Order No.: 5XA7775D2F3A GTIN (EAN): 4058352657416
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017630lmPL33T143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL43, direct distribution, with Smart Interface below and above

Order No.: 5XA7776D2A3A GTIN (EAN): 4058352657812
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7018300lmPL43143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL52, direct distribution, with Smart Interface below and above

Order No.: 5XA7776D2D3A GTIN (EAN): 4058352657898
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017840lmPL52143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL61, direct distribution, with Smart Interface below and above

Order No.: 5XA7776D2C3A GTIN (EAN): 4058352657850
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017510lmPL61143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL64, direct distribution, with Smart Interface below and above

Order No.: 5XA7776D2E3A GTIN (EAN): 4058352657935
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017220lmPL64143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 mini, PL33T, direct distribution, with Smart Interface below and above

Order No.: 5XA7776D2F3A GTIN (EAN): 4058352657980
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 7017630lmPL33T143151Smart Interface (Zhaga)insulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771B2A3A GTIN (EAN): 4058352651933
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706400lmPL434648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771B2D3A GTIN (EAN): 4058352652077
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706240lmPL524648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771B2C3A GTIN (EAN): 4058352652015
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706120lmPL614648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771B2E3A GTIN (EAN): 4058352652145
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706020lmPL644648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771B2F3A GTIN (EAN): 4058352652206
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706170lmPL33T4648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771B4A3A GTIN (EAN): 4058352652268
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706660lmPL434648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771B4D3A GTIN (EAN): 4058352652398
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706490lmPL524648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771B4C3A GTIN (EAN): 4058352652336
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706370lmPL614648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771B4E3A GTIN (EAN): 4058352652459
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706270lmPL644648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771B4F3A GTIN (EAN): 4058352652510
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706420lmPL33T4648iQ-Comfortinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772B2A3A GTIN (EAN): 4058352653937
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706400lmPL434648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772B2D3A GTIN (EAN): 4058352654088
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706240lmPL524648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772B2C3A GTIN (EAN): 4058352654019
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706120lmPL614648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772B2E3A GTIN (EAN): 4058352654132
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706020lmPL644648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772B2F3A GTIN (EAN): 4058352654200
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
3000KCRI > 706170lmPL33T4648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772B4A3A GTIN (EAN): 4058352654378
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706660lmPL434648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772B4D3A GTIN (EAN): 4058352654514
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706490lmPL524648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772B4C3A GTIN (EAN): 4058352654453
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706370lmPL614648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772B4E3A GTIN (EAN): 4058352654576
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706270lmPL644648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772B4F3A GTIN (EAN): 4058352654637
Colour temperatureColour renderingLuminous fluxLight distributionPnom (W) begin service lifePnom (W) end service lifeControlInsulation classWt. (kg)
4000KCRI > 706420lmPL33T4648iQ Street-Remoteinsulation class II (safety insulation)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771C2A3AGTIN (EAN): 4058352652572

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12520lm
Light distributionPL43
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771C2D3AGTIN (EAN): 4058352652718

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12210lm
Light distributionPL52
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771C2C3AGTIN (EAN): 4058352652657

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux11980lm
Light distributionPL61
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771C2E3AGTIN (EAN): 4058352652787

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux11790lm
Light distributionPL64
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771C2F3AGTIN (EAN): 4058352652831

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12060lm
Light distributionPL33T
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7771C4A3AGTIN (EAN): 4058352652909

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux13050lm
Light distributionPL43
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7771C4D3AGTIN (EAN): 4058352653036

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux12720lm
Light distributionPL52
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7771C4C3AGTIN (EAN): 4058352652978

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux12490lm
Light distributionPL61
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7771C4E3AGTIN (EAN): 4058352653098

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux12280lm
Light distributionPL64
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7771C4F3AGTIN (EAN): 4058352653159

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux12570lm
Light distributionPL33T
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ-Comfort
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL43, direct distribution

Order No.: 5XA7772C2A3AGTIN (EAN): 4058352654941

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12520lm
Light distributionPL43
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ Street-Remote
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL52, direct distribution

Order No.: 5XA7772C2D3AGTIN (EAN): 4058352655078

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12210lm
Light distributionPL52
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ Street-Remote
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL61, direct distribution

Order No.: 5XA7772C2C3AGTIN (EAN): 4058352655016

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux11980lm
Light distributionPL61
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ Street-Remote
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL64, direct distribution

Order No.: 5XA7772C2E3AGTIN (EAN): 4058352655139

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux11790lm
Light distributionPL64
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ Street-Remote
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4

Floodlight FL 21 iQ mini, PL33T, direct distribution

Order No.: 5XA7772C2F3AGTIN (EAN): 4058352655191

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux12060lm
Light distributionPL33T
Pnom (W) begin service life87
Pnom (W) end service life92
ControliQ Street-Remote
Insulation classinsulation class II (safety insulation)
Wt. (kg)7.4
