Ordercode: 5XA7772D4C3A

Article floodlight

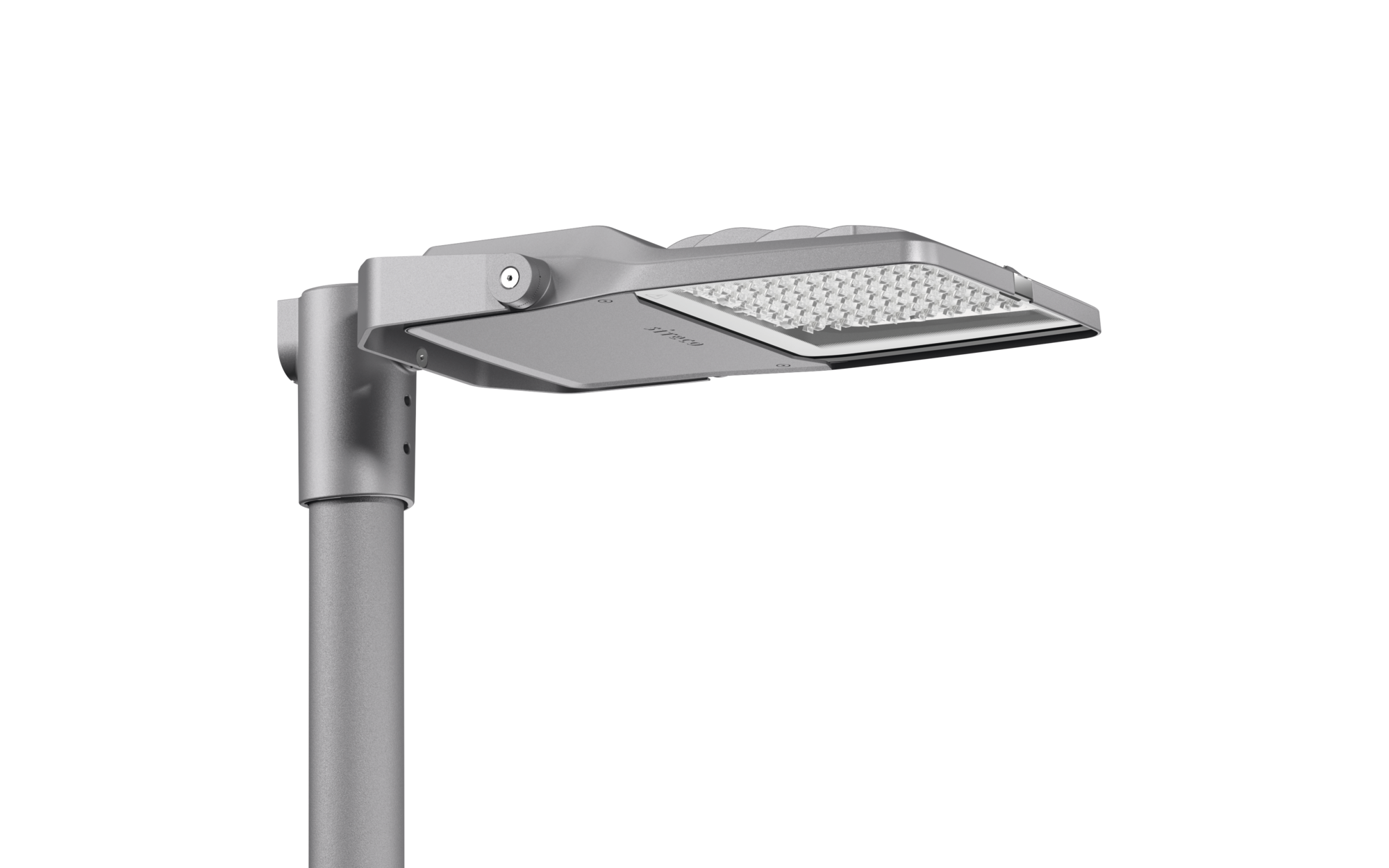

Product name Floodlight FL 21 iQ mini
Lamp LED
Rated luminous flux 18260lm
Luminous efficacy 128lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 143
Pnom end service life 152
Pred at 50% lumin. flux 61
Service life 50000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.4kg

Floodlight FL 21 iQ mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL61, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 18.260lm, luminous efficacy: 128lm/W, light colour: 740, colour temperature: 4000K, control gear: iQ Street-Remote/DALI, control: Auto-Match, Temp-Guard, Night-Set, Smart-Wire, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), Light-Fading, Lumen-Switch, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 143W, end of service life: 152W, reduction: 61W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name Floodlight FL 21 iQ mini
Order No. 5XA7772D4C3A


Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL61
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 18260lm
Luminous efficacy 128lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
Rated input power begin service life 143
Rated input power end service life 152
Rated input power at 50% lumin. flux 61
Supplement prepared for through-wiring


Operating device

Control iQ Street-Remote/DALI
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match


Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944
Certification, designation CE, ENEC, VDE


Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately
Colour specification Siteco® metallic grey (DB 702S)
mast bracket steel, galvanised, powder-coated
Cover protective disc of toughened safety glass


Mounting

Mounting method, mounting location surface-mounted, to mast
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

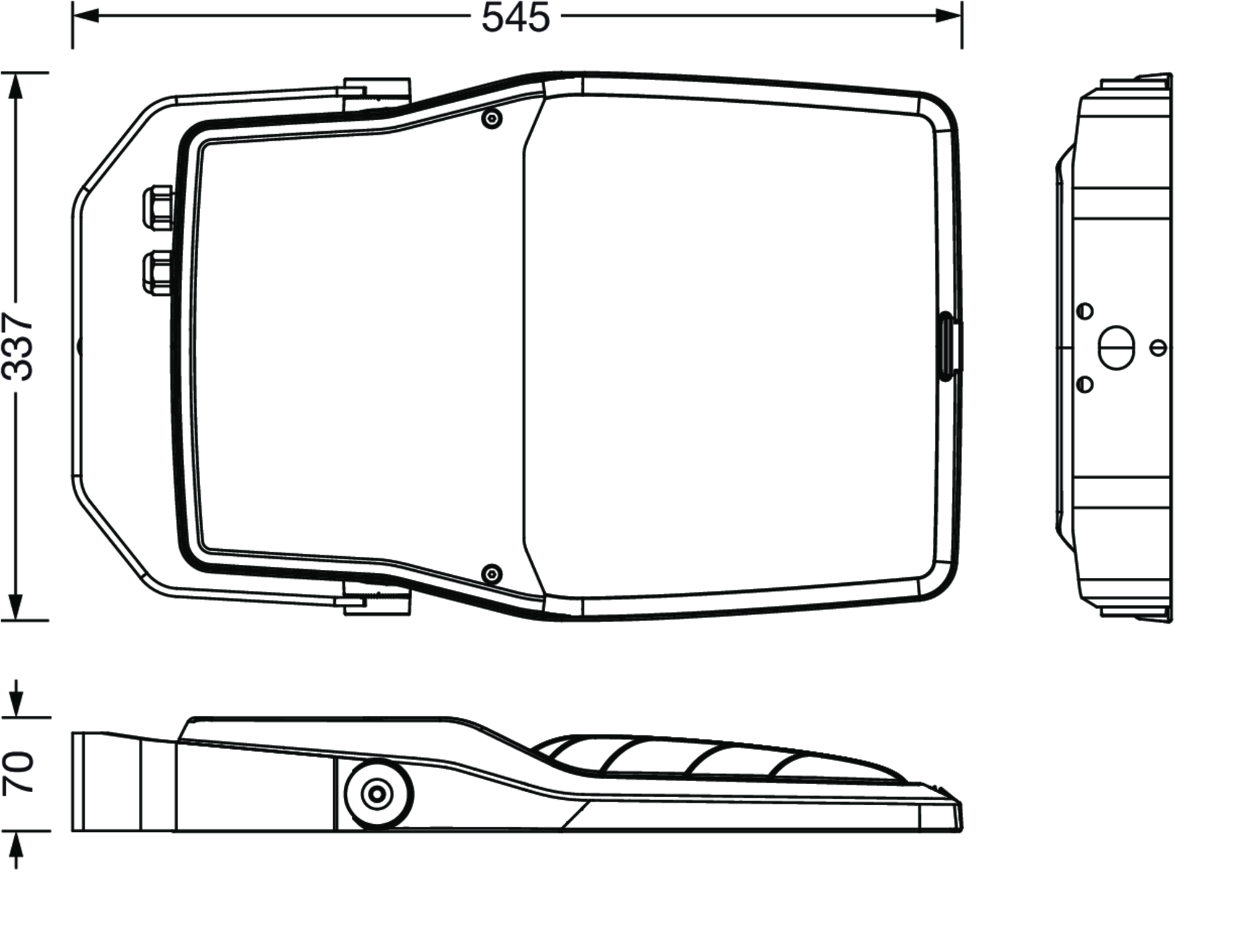

Dimensions, Weight

Weight 7.4kg


Service life

Rated service life 50000h (L95/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 iQ mini

Order No.
5XA7772D4C3A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL61

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
18260lm

Luminous efficacy
128lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

Rated input power begin service life
143

Rated input power end service life
152

Rated input power at 50% lumin. flux
61

Supplement
prepared for through-wiring

Control
iQ Street-Remote/DALI

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately

Colour specification
Siteco® metallic grey (DB 702S)

mast bracket
steel, galvanised, powder-coated

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to mast

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
7.4kg

Rated service life
50000h (L95/B10) at AT = 25°C

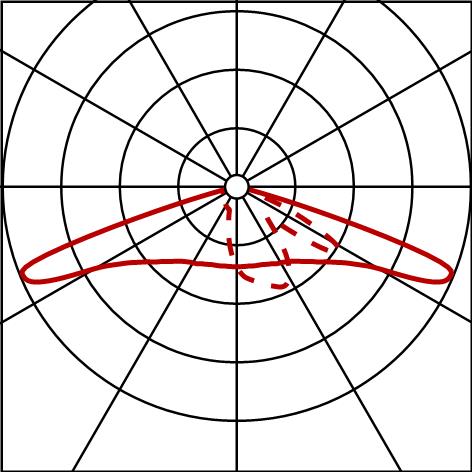

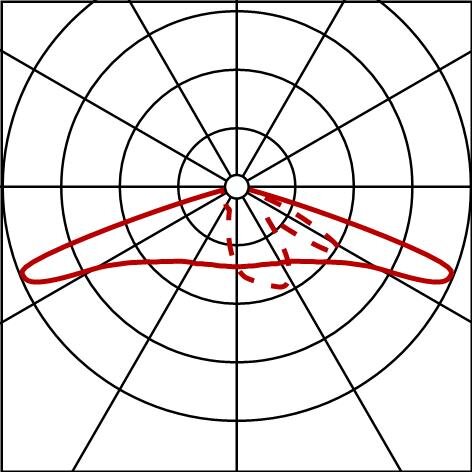

Photometric report / planning data

Floodlight FL 21 iQ mini
LED, direct distribution, surface-mounted, to mast
Lamps: 1x LED
Ordercode: 5XA7772D4C3A
