Ordercode: 5XA7776C2F3A

Article floodlight

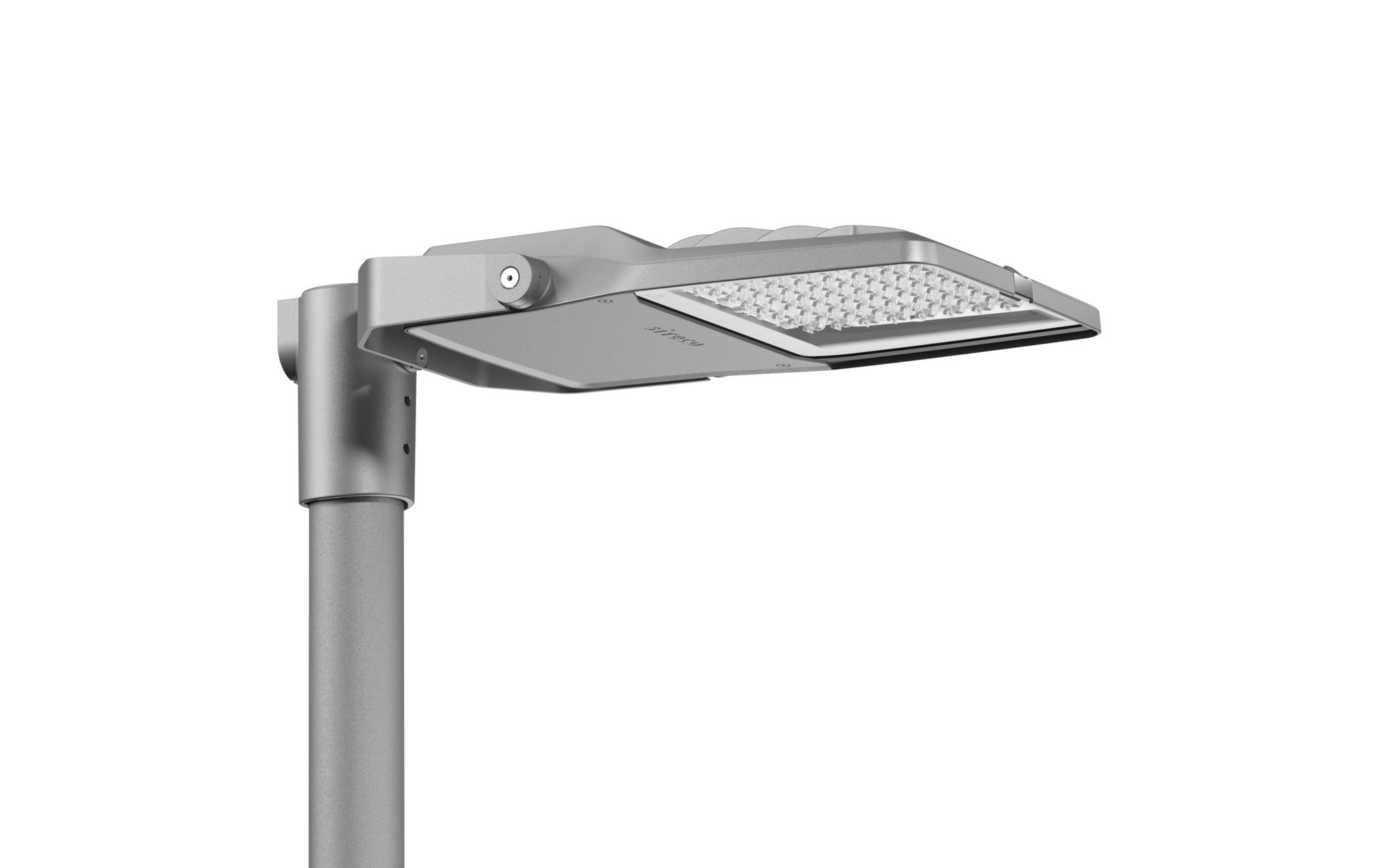

Product name Floodlight FL 21 mini
Lamp LED
Rated luminous flux 12050lm
Luminous efficacy 135lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 89
Pnom end service life 94
Pred at 50% lumin. flux 43
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.4kg

Floodlight FL 21 mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL33T, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 12.050lm, luminous efficacy: 135lm/W, light colour: 730, colour temperature: 3000K, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, overheat protection, presetting dimming logarithmic, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 89W, end of service life: 94W, reduction: 43W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name Floodlight FL 21 mini
Order No. 5XA7776C2F3A


Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL33T
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 12050lm
Luminous efficacy 135lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 89
Rated input power end service life 94
Rated input power at 50% lumin. flux 43
Supplement prepared for through-wiring


Operating device

Control Smart Interface (Zhaga), Smart Interface below and above
Equipment overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, presetting dimming logarithmic


Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944
Certification, designation CE, ENEC, VDE


Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately
Colour specification Siteco® metallic grey (DB 702S)
mast bracket steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover protective disc of toughened safety glass


Mounting

Mounting method, mounting location surface-mounted, to mast
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

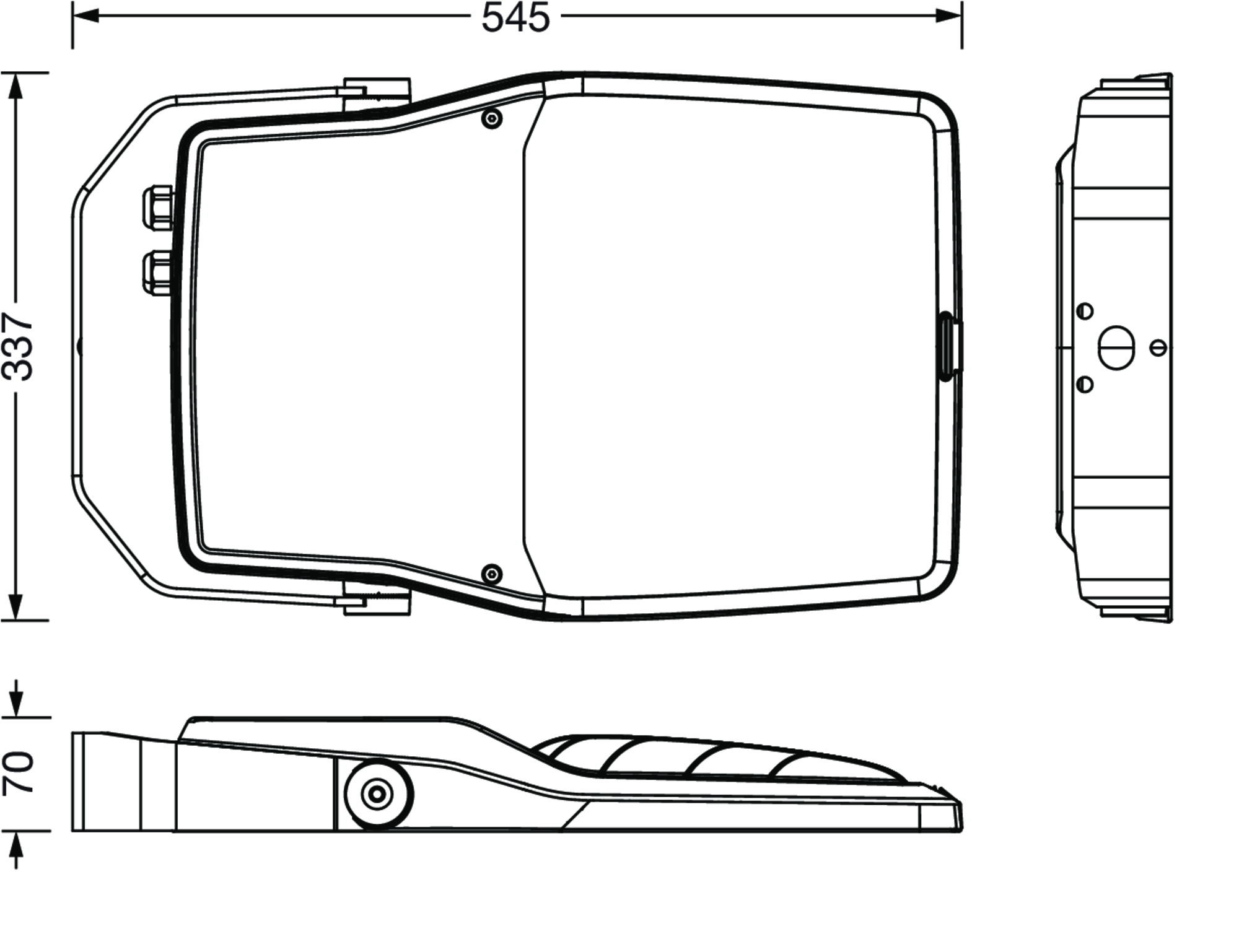

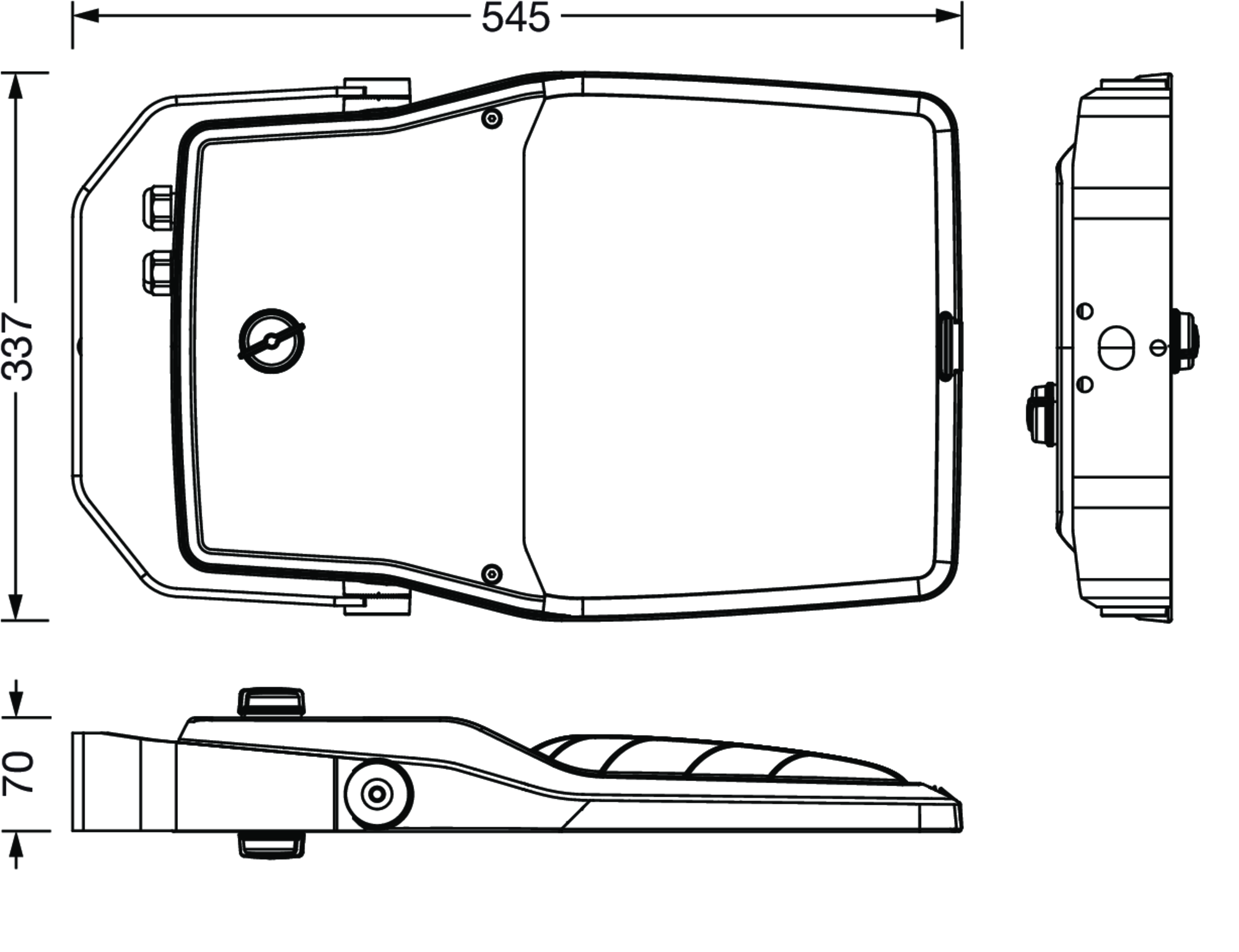

Dimensions, Weight

Weight 7.4kg


Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
floodlight

Product name
Floodlight FL 21 mini

Order No.
5XA7776C2F3A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL33T

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
12050lm

Luminous efficacy
135lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
89

Rated input power end service life
94

Rated input power at 50% lumin. flux
43

Supplement
prepared for through-wiring

Control
Smart Interface (Zhaga), Smart Interface below and above

Equipment
overheat protection, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, presetting dimming logarithmic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately

Colour specification
Siteco® metallic grey (DB 702S)

mast bracket
steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to mast

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
7.4kg

Rated service life
100000h (L97/B10) at AT = 25°C

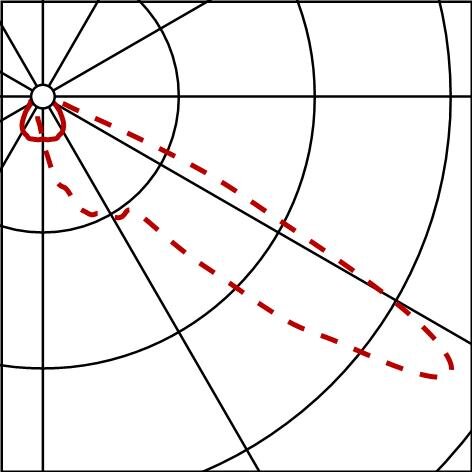

Photometric report / planning data

Photometric report / planning data

Floodlight FL 21 mini
LED, direct distribution, surface-mounted, to mast
Ordercode: 5XA7776C2F3A
