5XA7771B4A3A
Article floodlight
Product name Floodlight FL 21 iQ mini
Lamp LED
Rated luminous flux 6660lm
Luminous efficacy 146lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 46
Pnom end service life 48
Pred at 50% lumin. flux 22
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.4kg
Floodlight FL 21 iQ mini, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL43, light emission: direct distribution, installation type: surface-mounted, lamps: LED, High Power LED, rated values: 6.660lm | 45,5W | 146,4lm/W (begin service life); end service life: 6.660lm | 48W; at 50% lumin. flux: 3.330lm | 21,5W | 154,9lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 begin service life: 100% | 6.660lm | 45,5W | 146,4lm/W | 4.000K, light setting 1 end service life: 48W, further light settings possible, control: Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: linear dimming characteristic, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944suitable for swimming poolschlorine-resistant, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, SITECO metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

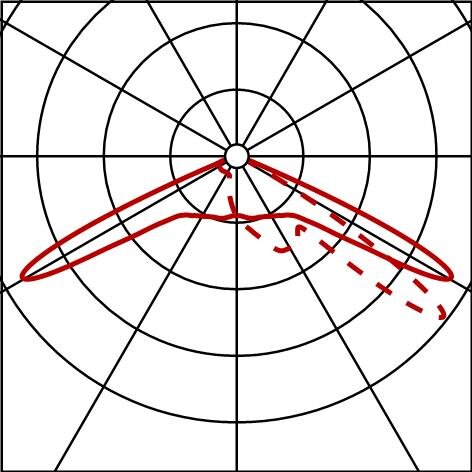

Photometric report / planning data
Floodlight FL 21 iQ mini
LED, direct distribution, surface-mounted, to mast
Lamps: 1x LED
Order No.: 5XA7771B4A3A
