Highbay 11, 1x 2x LED
Close
Article LED high bay luminaire
Product name Highbay 11
Lamp LED
Rated luminous flux 16190lm
Luminous efficacy 171lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 95W
Service life 100000h (L85/B50) at AT = 25°C, 70000h (L80/B50) at AT = 45°C
Protection rating IP64
Impact resistance IK08 with glass or PC cover
Weight 5.0kg

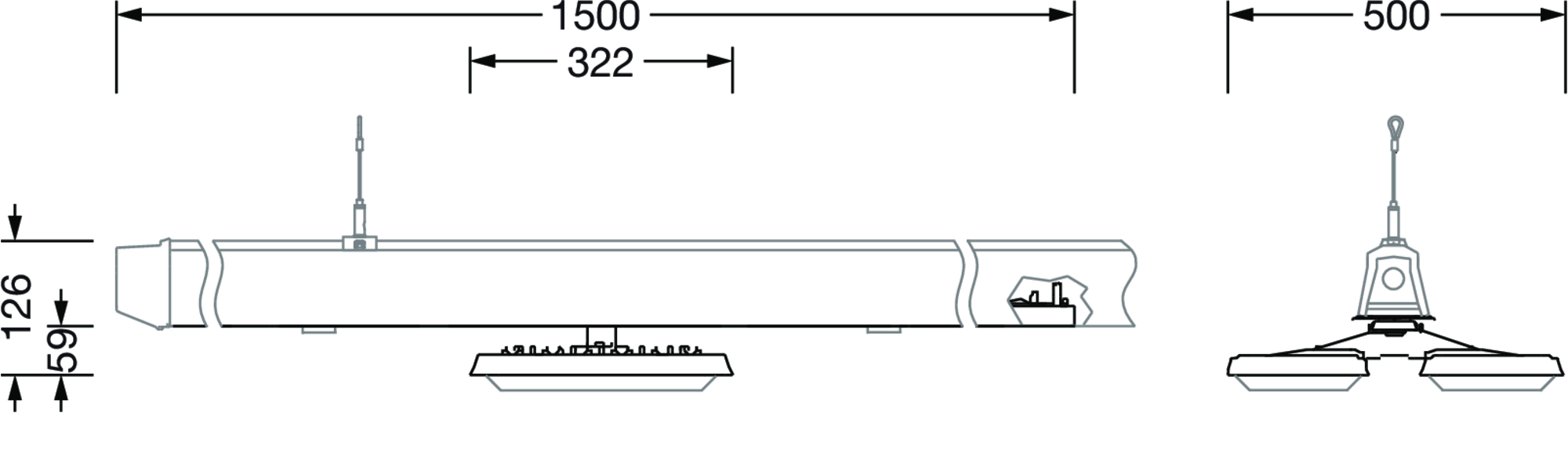

Highbay 11, LED high bay luminaire, end cap, primary light control with lens, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: recessed, for 1x 2x LED, rated luminous flux: 16.190lm, luminous efficacy: 171lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG DALI, with system connector, mains connection: 230..240V, AC, 50/60Hz, rated input power: 95W, LED unit, of diecast aluminium, bead blasted, unplated, silver, length: 1.500mm, width: 500mm, height: 65mm, housing, of diecast aluminium, uncoated, bead blasted, silver, fixing on rail side, of aluminium, anodised, metallic grey, end cap, of PC, grey, protection rating (complete): IP64, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK08 with glass or PC cover, permissible operating ambient temperature: -35..+45°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
HB11
symnrrw,16190lm840,DA
Ordercode: 51HLA1D14GLA
