45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 209lm/W or low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.

Our performance solution: Licross® 11 is our innovative trunking system with maximum efficiency (up to 209lm/W), service life (up to 100,000h) and flexibility

Producttypes

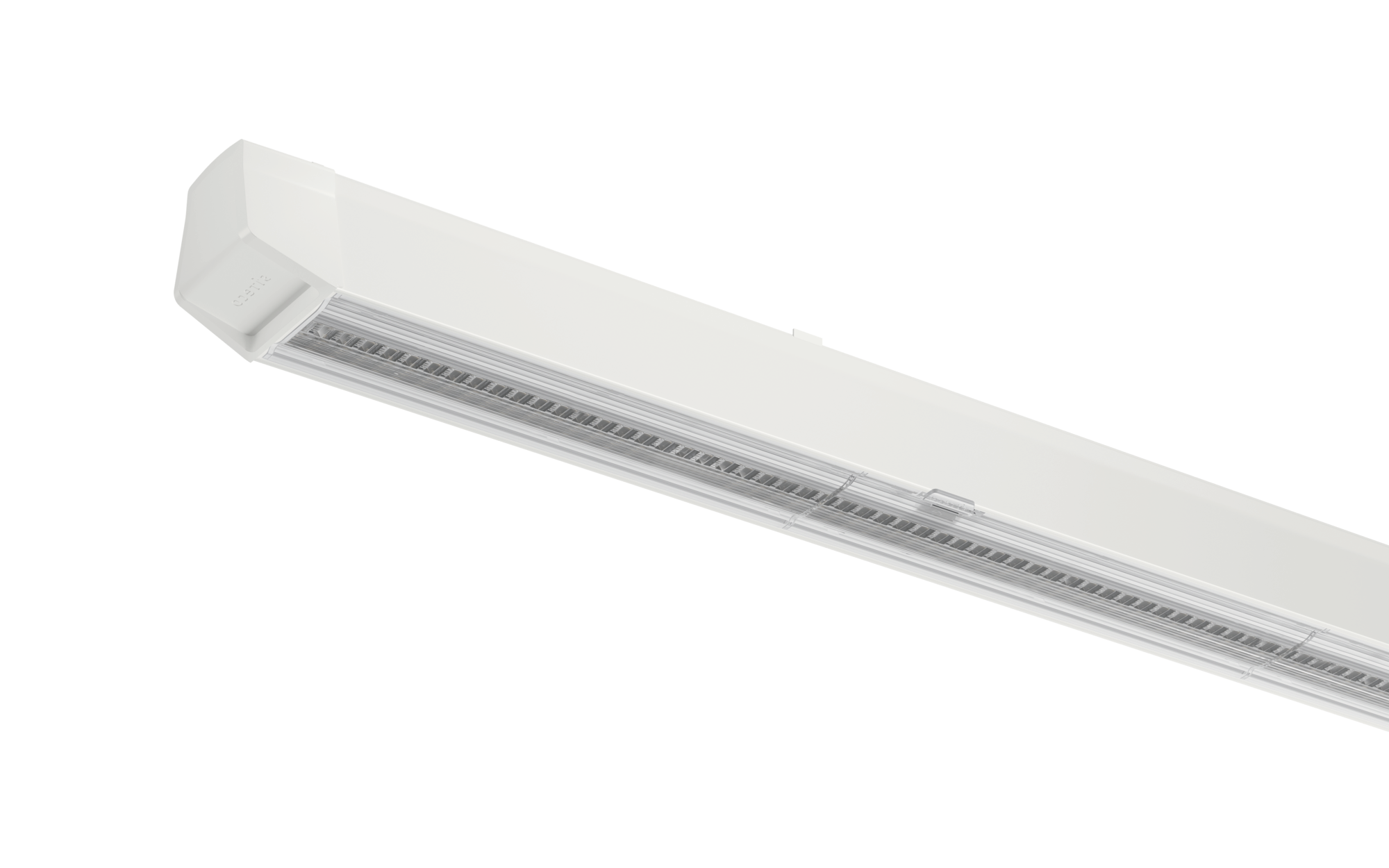

trunking rail

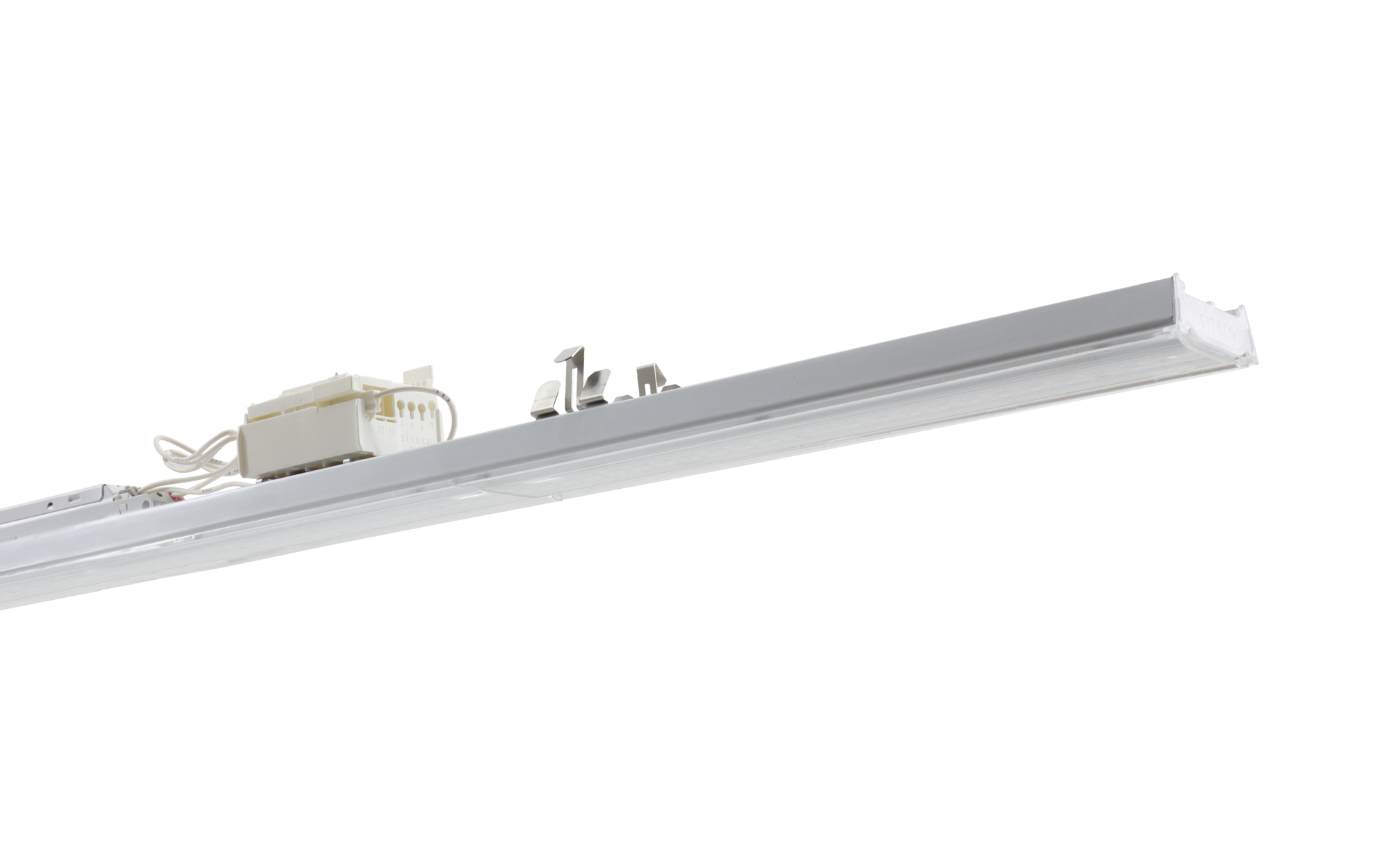

Recessed luminaire insert IP40/IP54

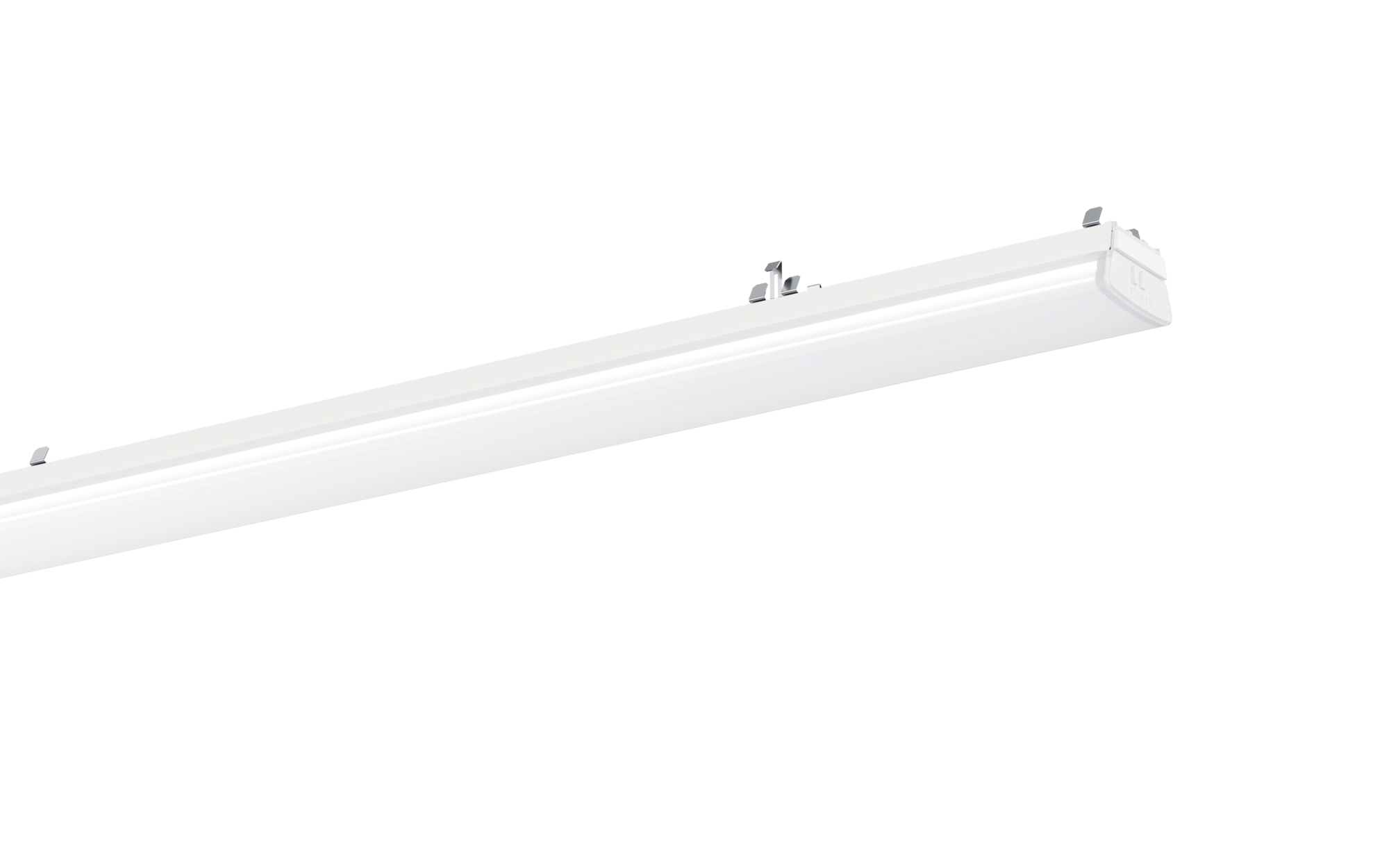

Opal luminaire insert IP40/IP54

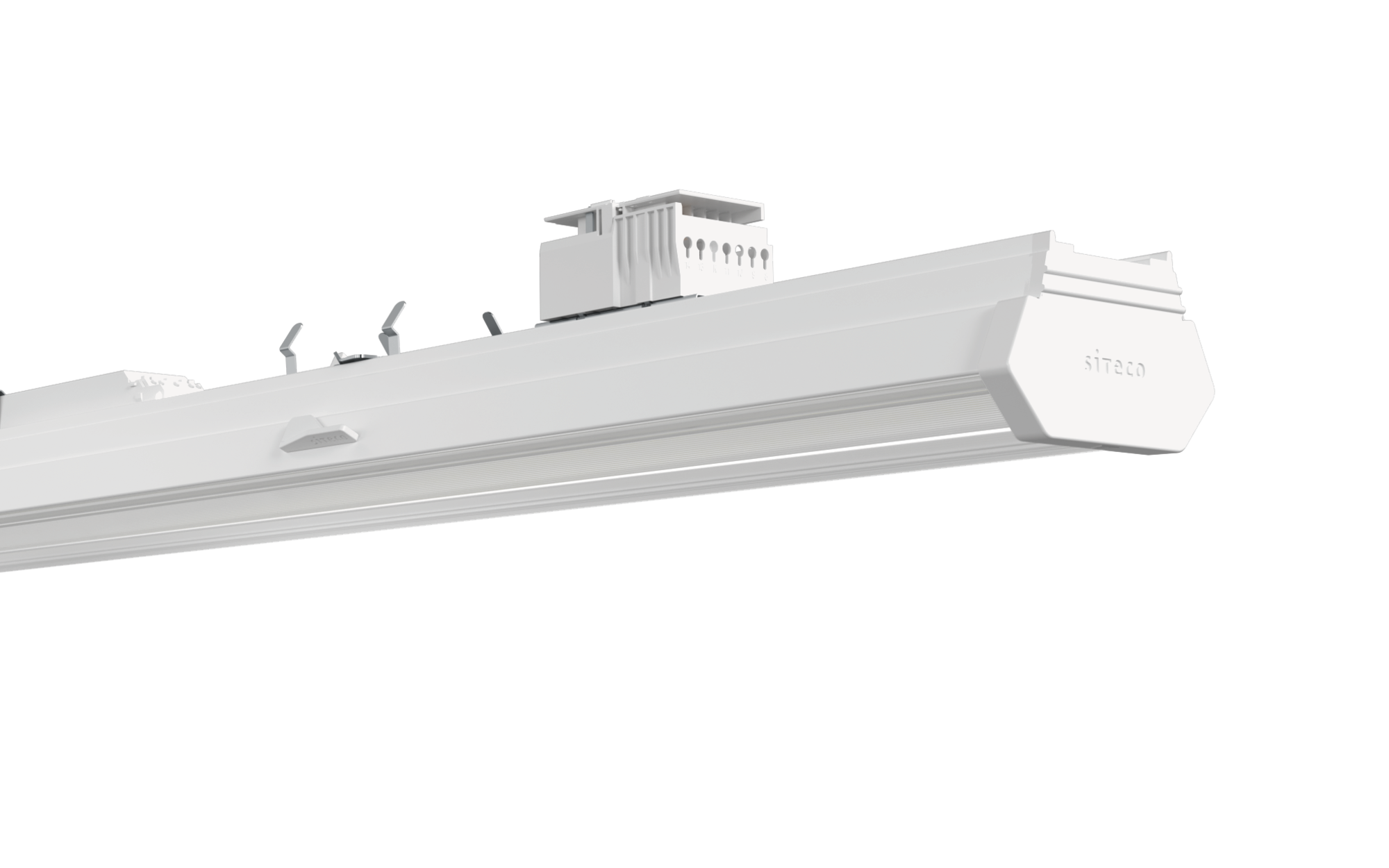

Protected luminaire insert IP54/IP64

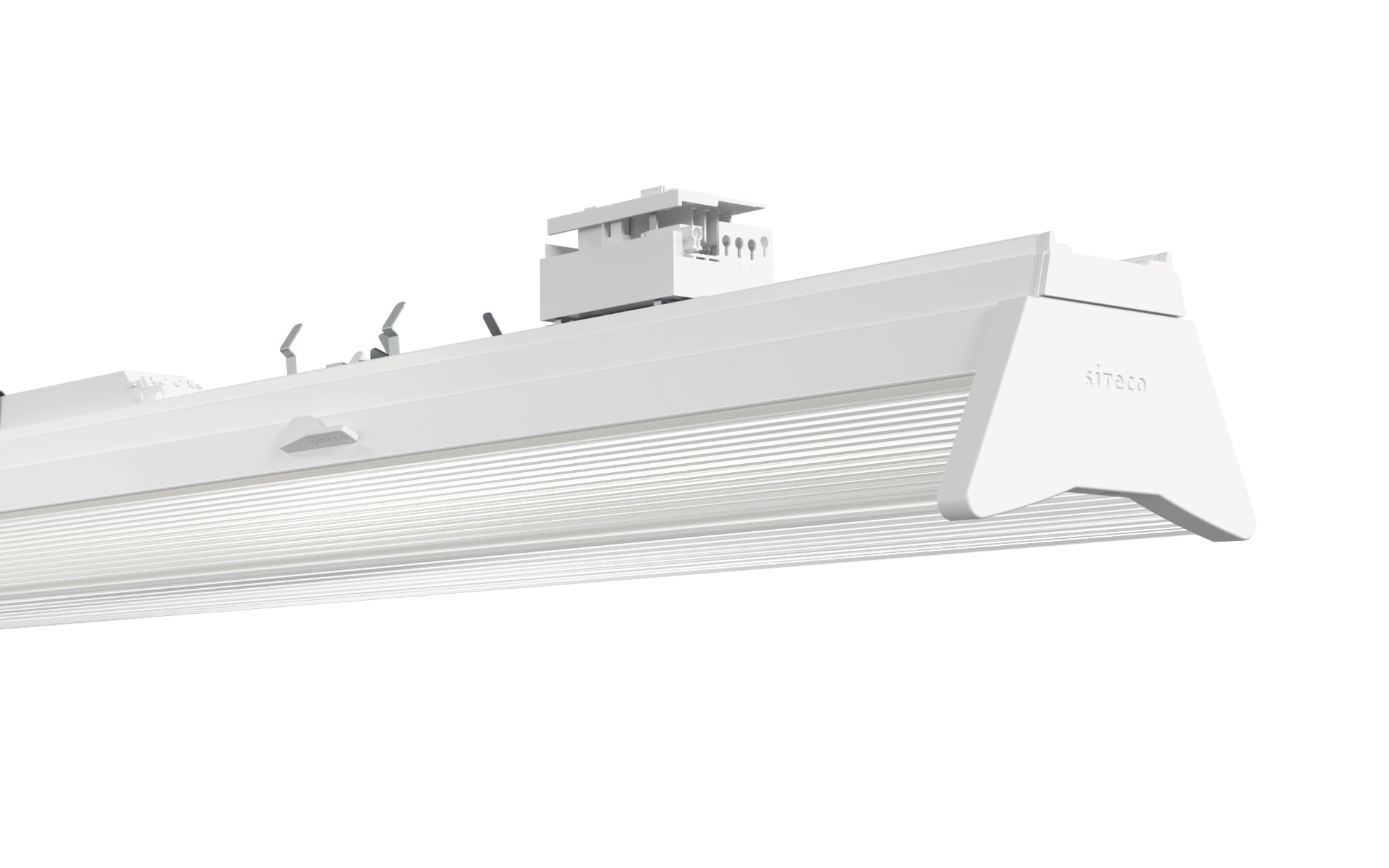

Performance luminaire insert IP40/IP54

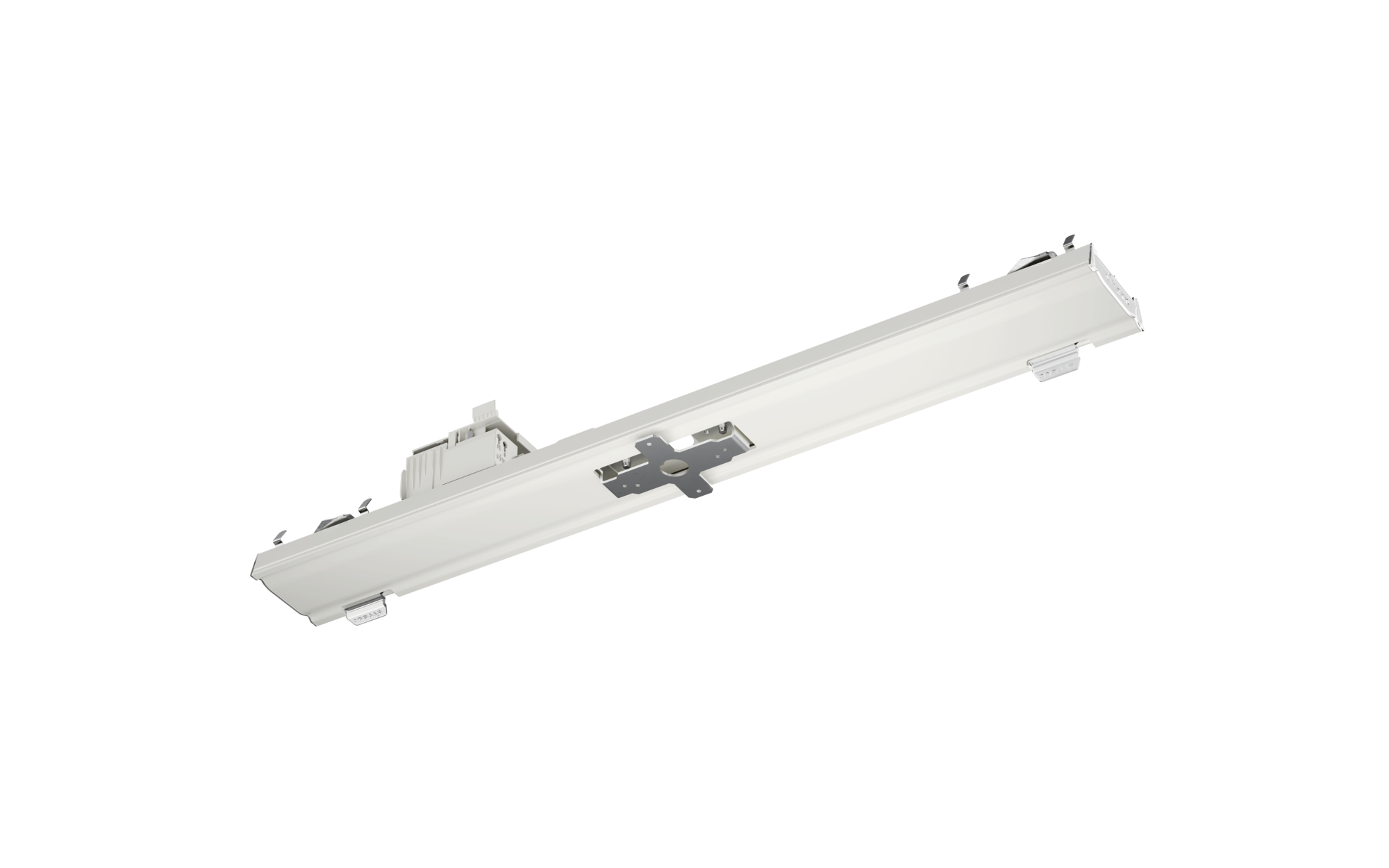

functional insert

emergency lighting luminaire insert IP40

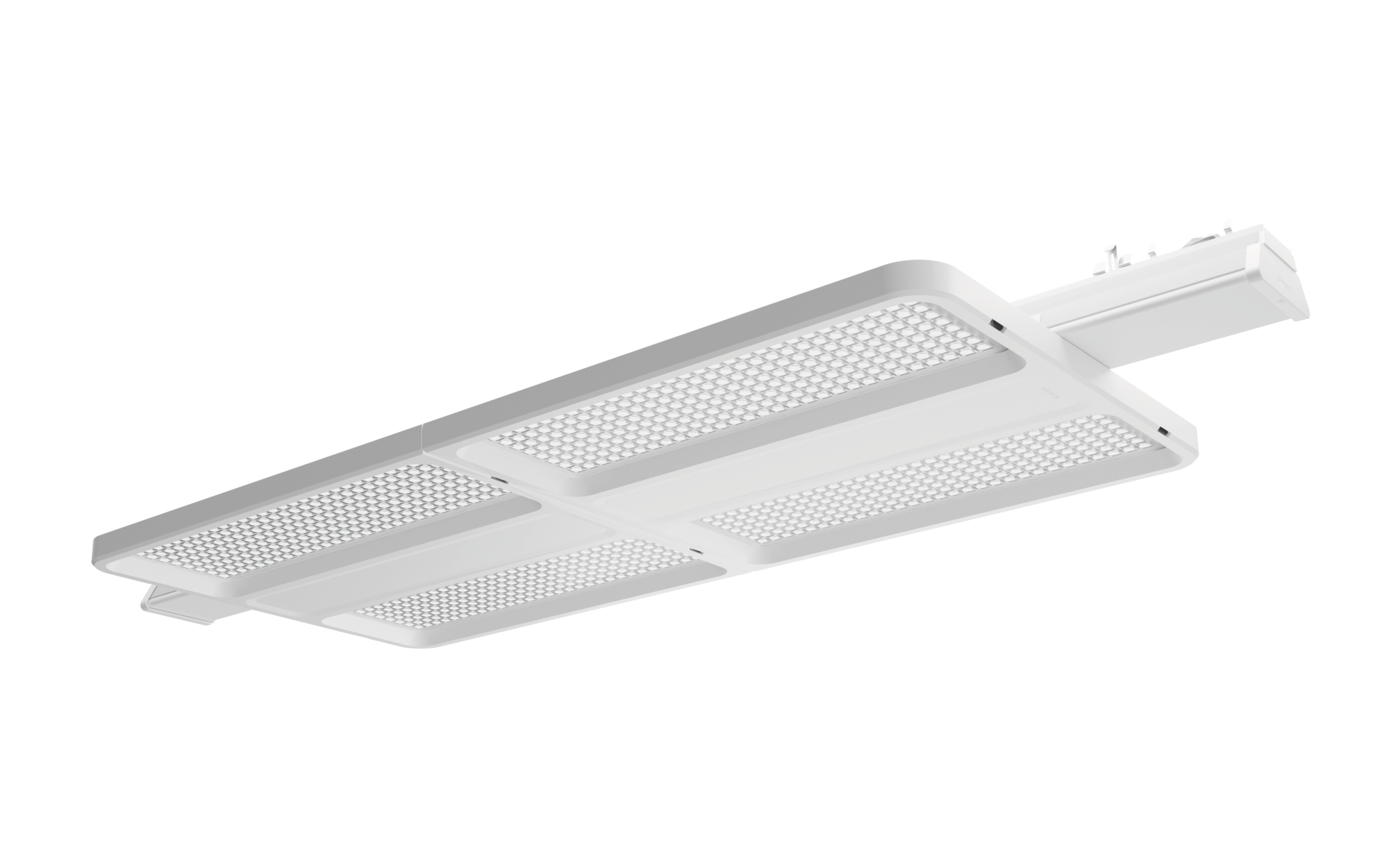

Highbay 11 for rail IP64

Highbay 11 for rail IP64

Intro to Productfamily

Data

Article LED high bay luminaire
Net luminous flux 16190lm to 33150lm
Colour temperature 4000K
Lighting effect direct symmetric narrow distribution; direct symmetric wide distribution

Specials

Luminaire in differing construction size with 2 or 4 luminaire heads
Defined light packages for different ambient temperatures in the range -35°C…+45°C
Scope for design via various light packages and diverse light colours (standard 4000K, optionally 3000K, 5000K or 6500K)
Highly efficient lens optic in narrow and wide distribution design
Optional prismatic supplementary optic for special light distributions and light pressure reduction
For mounting to trunking rail of Licross® trunking system; in further versions also for ceiling surface or suspended mounting
Complies with IFS demands for foodstuff applications
Meets the high demands of the automotive industry

Configuration & Datasheets

Lighting effect

Control

Rated luminous flux (lm)

  • please order Licross® trunking rail or trunking rail accessories separately
  • please order prismatic cover for elliptical or diffuse light distribution separately if required
  • Please order transparent cover separately if required
  • versions with colour temperature 3000K, 5000K or 6500K on request

Results

Highbay 11, 1x 2x LED

Order No.: 51HLA2D14GLA GTIN (EAN): 4058352361467
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)Price (EUR)
4000KCRI > 801658095W175lm/WDALI-35..+45°CIP6415005.0517.70
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 11, 1x 2x LED

Order No.: 51HLA1D14GLA GTIN (EAN): 4058352361429
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)Price (EUR)
4000KCRI > 801619095W171lm/WDALI-35..+45°CIP6415005.0517.70
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 11, 2x 2x LED

Order No.: 51HLA1D24NLA GTIN (EAN): 4058352361443
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)Price (EUR)
4000KCRI > 8032370190W171lm/WDALI (2 addresses)-35..+45°CIP6415006.51028.70
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 11, 2x 2x LED

Order No.: 51HLA2D24NLA GTIN (EAN): 4058352361481
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)Price (EUR)
4000KCRI > 8033150190W175lm/WDALI (2 addresses)-35..+45°CIP6415006.51028.70
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 11, 1x 2x LED

Order No.: 51HLA2D14GLAGTIN (EAN): 4058352361467

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)16580
Connected load95W
Luminous efficacy175lm/W
ControlDALI
ta-35..+45°C
Protection ratingIP64
L (mm)1500
Wt. (kg)5.0
Price (EUR)517.70
Show details

Highbay 11, 1x 2x LED

Order No.: 51HLA1D14GLAGTIN (EAN): 4058352361429

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)16190
Connected load95W
Luminous efficacy171lm/W
ControlDALI
ta-35..+45°C
Protection ratingIP64
L (mm)1500
Wt. (kg)5.0
Price (EUR)517.70
Show details

Highbay 11, 2x 2x LED

Order No.: 51HLA1D24NLAGTIN (EAN): 4058352361443

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)32370
Connected load190W
Luminous efficacy171lm/W
ControlDALI (2 addresses)
ta-35..+45°C
Protection ratingIP64
L (mm)1500
Wt. (kg)6.5
Price (EUR)1028.70
Show details

Highbay 11, 2x 2x LED

Order No.: 51HLA2D24NLAGTIN (EAN): 4058352361481

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)33150
Connected load190W
Luminous efficacy175lm/W
ControlDALI (2 addresses)
ta-35..+45°C
Protection ratingIP64
L (mm)1500
Wt. (kg)6.5
Price (EUR)1028.70
Show details

Optional accessory

Articlecover, ellipsoid distribution, PC, UV-stabilised, L= 313mm, B= 174mmPU2 pcs.Wt. (kg)0.5Price (EUR)72.80Order No.: 59HL91003GTIN (EAN): 4058352341667Show details
Articlecover, diffuse distribution, PC, UV-stabilised, L= 313mm, B= 174mmPU2 pcs.Wt. (kg)0.5Price (EUR)72.80Order No.: 59HL91004GTIN (EAN): 4058352341674Show details
Articlecover, glass, L= 313mm, B= 174mmPU2 pcs.Wt. (kg)0.6Price (EUR)114.50Order No.: 59HL91001GTIN (EAN): 4058352323519Show details
Articlecover, PC, UV-stabilised, L= 313mm, B= 174mmPU2 pcs.Wt. (kg)0.5Price (EUR)72.80Order No.: 59HL91002GTIN (EAN): 4058352341650Show details
