Licross® 11

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

14 cores and full flexibility are a must-have for tomorrow.

Data

Article trunking components group (TS)
Colour metallic grey (RAL 9006); white; matt jet black (RAL 9005)
Through-wiring 5x 2.5mm²; 7x 2.5mm²; 9x 2.5mm²; 11x 2.5mm²; 14x 2.5mm²

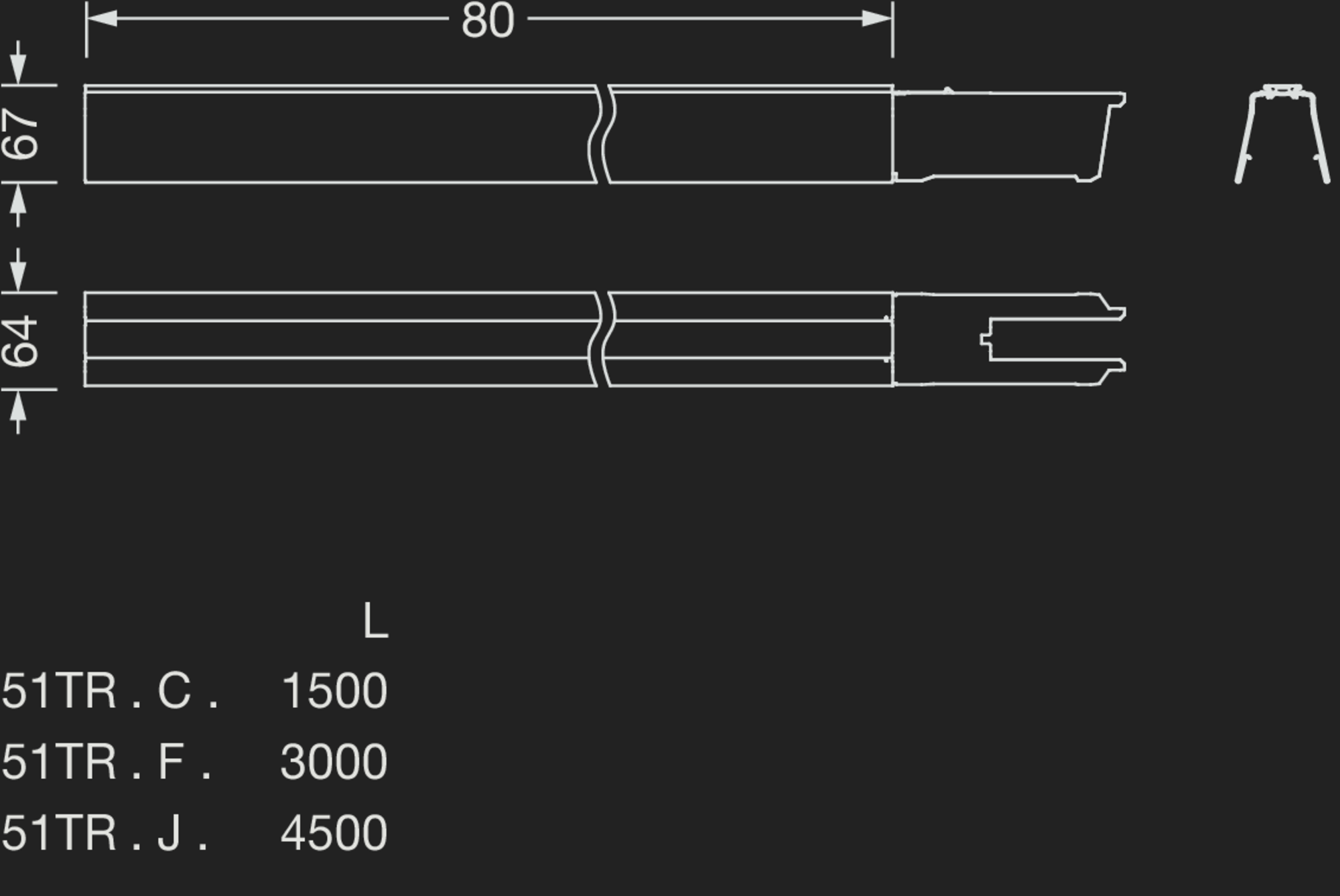

L (mm) 1500; 3000; 4500

Specials

14 cores for optimal networking, diverse enhancements and integrated emergency lighting – and easy to install with click system
System service life up to 100,000 hours for sustainable and plannable investments
Maximum photometric efficiency of up to 200lm/W for low operating costs and quick payback times
Optimum glare control up to UGR ≤ 19 and high illuminances for safety and high visual comfort
One-for-all concept with diverse luminaire inserts and a unique combination of multi-lumen capability and CLOi for maximum adaptability

Configuration & Datasheets

Colour

Through-wiring

Length (mm)

  • without or with halogen-free through-wiring 5x, 7x, 9, 11x or 14x 2.5mm² (approvals DIN EN 61984 type CoC, VDE 16A)
  • through-wiring to next trunking rail via serial plug and socket connection
  • cable routing for additional on-site installation (e.g. for multiple circuits or emergency lighting infeed) is possible on the trunking rail with optionally available cable duct
  • please order end cap sets separately
  • please order mounting accessories separately
  • it is mandatory that the assembly instructions must be observed when planning and installing the electrical installation

Results

Licross®, trunking rail, white

Order No.: 51TR1C0GTIN (EAN): 4058352241752
L (mm)Wt. (kg)Price (EUR)
15001.931.90

Licross®, trunking rail, white

Order No.: 51TR1F0GTIN (EAN): 4058352241936
L (mm)Wt. (kg)Price (EUR)
30003.648.10

Licross®, trunking rail, white

Order No.: 51TR1J0GTIN (EAN): 4058352242117
L (mm)Wt. (kg)Price (EUR)
45005.259.30

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3C0GTIN (EAN): 4058352446263
L (mm)Wt. (kg)Price (EUR)
15001.931.90

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3F0GTIN (EAN): 4058352446294
L (mm)Wt. (kg)Price (EUR)
30003.648.10

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3J0GTIN (EAN): 4058352446324
L (mm)Wt. (kg)Price (EUR)
45005.259.40

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6C0GTIN (EAN): 4058352446379
L (mm)Wt. (kg)Price (EUR)
15001.931.90

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6F0GTIN (EAN): 4058352446386
L (mm)Wt. (kg)Price (EUR)
30003.648.10

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6J0GTIN (EAN): 4058352446416
L (mm)Wt. (kg)Price (EUR)
45005.259.40

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1C5GTIN (EAN): 4058352241806
L (mm)Wt. (kg)Price (EUR)
15002.542.40

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1F5GTIN (EAN): 4058352241981
L (mm)Wt. (kg)Price (EUR)
30004.656.50

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1J5GTIN (EAN): 4058352242162
L (mm)Wt. (kg)Price (EUR)
45006.770.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1C7GTIN (EAN): 4058352241813
L (mm)Wt. (kg)Price (EUR)
15002.545.20

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1F7GTIN (EAN): 4058352241998
L (mm)Wt. (kg)Price (EUR)
30004.759.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1J7GTIN (EAN): 4058352242179
L (mm)Wt. (kg)Price (EUR)
45006.979.10

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1C9GTIN (EAN): 4058352241844
L (mm)Wt. (kg)Price (EUR)
15002.648.10

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1F9GTIN (EAN): 4058352242025
L (mm)Wt. (kg)Price (EUR)
30004.963.60

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1J9GTIN (EAN): 4058352242209
L (mm)Wt. (kg)Price (EUR)
45007.184.80

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1CBGTIN (EAN): 4058352241875
L (mm)Wt. (kg)Price (EUR)
15002.750.80

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1FBGTIN (EAN): 4058352242056
L (mm)Wt. (kg)Price (EUR)
30005.068.30

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1JBGTIN (EAN): 4058352242230
L (mm)Wt. (kg)Price (EUR)
45007.391.00

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1CEGTIN (EAN): 4058352241905
L (mm)Wt. (kg)Price (EUR)
15002.850.80

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1FEGTIN (EAN): 4058352242087
L (mm)Wt. (kg)Price (EUR)
30005.268.30

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1JEGTIN (EAN): 4058352242261
L (mm)Wt. (kg)Price (EUR)
45007.691.00

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C5GTIN (EAN): 4058352265291
L (mm)Wt. (kg)Price (EUR)
15002.548.20

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F5GTIN (EAN): 4058352265147
L (mm)Wt. (kg)Price (EUR)
30004.656.60

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J5GTIN (EAN): 4058352265161
L (mm)Wt. (kg)Price (EUR)
45006.770.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C7GTIN (EAN): 4058352242476
L (mm)Wt. (kg)Price (EUR)
15002.549.50

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F7GTIN (EAN): 4058352242537
L (mm)Wt. (kg)Price (EUR)
30004.764.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J7GTIN (EAN): 4058352242599
L (mm)Wt. (kg)Price (EUR)
45006.984.70

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C9GTIN (EAN): 4058352265307
L (mm)Wt. (kg)Price (EUR)
15002.649.50

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F9GTIN (EAN): 4058352265208
L (mm)Wt. (kg)Price (EUR)
30004.964.40

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J9GTIN (EAN): 4058352265178
L (mm)Wt. (kg)Price (EUR)
45007.184.70

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6CBGTIN (EAN): 4058352242520
L (mm)Wt. (kg)Price (EUR)
15002.749.50

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6FBGTIN (EAN): 4058352242568
L (mm)Wt. (kg)Price (EUR)
30005.064.40

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6JBGTIN (EAN): 4058352242629
L (mm)Wt. (kg)Price (EUR)
45007.384.70

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6CEGTIN (EAN): 4058352265314
L (mm)Wt. (kg)Price (EUR)
15002.854.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6FEGTIN (EAN): 4058352265154
L (mm)Wt. (kg)Price (EUR)
30005.273.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6JEGTIN (EAN): 4058352265185
L (mm)Wt. (kg)Price (EUR)
45007.697.30

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C5GTIN (EAN): 4058352265260
L (mm)Wt. (kg)Price (EUR)
15002.548.20

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F5GTIN (EAN): 4058352265253
L (mm)Wt. (kg)Price (EUR)
30004.656.60

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J5GTIN (EAN): 4058352265222
L (mm)Wt. (kg)Price (EUR)
45006.770.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C7GTIN (EAN): 4058352242292
L (mm)Wt. (kg)Price (EUR)
15002.549.50

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F7GTIN (EAN): 4058352242353
L (mm)Wt. (kg)Price (EUR)
30004.764.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J7GTIN (EAN): 4058352242414
L (mm)Wt. (kg)Price (EUR)
45006.984.70

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C9GTIN (EAN): 4058352265239
L (mm)Wt. (kg)Price (EUR)
15002.649.50

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F9GTIN (EAN): 4058352265277
L (mm)Wt. (kg)Price (EUR)
30004.964.40

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J9GTIN (EAN): 4058352265192
L (mm)Wt. (kg)Price (EUR)
45007.184.70

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3CBGTIN (EAN): 4058352242346
L (mm)Wt. (kg)Price (EUR)
15002.749.50

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3FBGTIN (EAN): 4058352242384
L (mm)Wt. (kg)Price (EUR)
30005.064.40

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3JBGTIN (EAN): 4058352242445
L (mm)Wt. (kg)Price (EUR)
45007.384.70

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3CEGTIN (EAN): 4058352265246
L (mm)Wt. (kg)Price (EUR)
15002.854.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3FEGTIN (EAN): 4058352265215
L (mm)Wt. (kg)Price (EUR)
30005.273.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3JEGTIN (EAN): 4058352265284
L (mm)Wt. (kg)Price (EUR)
45007.697.30

Licross®, trunking rail, white

Order No.: 51TR1C0GTIN (EAN): 4058352241752

L (mm)1500
Wt. (kg)1.9
Price (EUR)31.90

Licross®, trunking rail, white

Order No.: 51TR1F0GTIN (EAN): 4058352241936

L (mm)3000
Wt. (kg)3.6
Price (EUR)48.10

Licross®, trunking rail, white

Order No.: 51TR1J0GTIN (EAN): 4058352242117

L (mm)4500
Wt. (kg)5.2
Price (EUR)59.30

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3C0GTIN (EAN): 4058352446263

L (mm)1500
Wt. (kg)1.9
Price (EUR)31.90

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3F0GTIN (EAN): 4058352446294

L (mm)3000
Wt. (kg)3.6
Price (EUR)48.10

Licross®, trunking rail, matt jet black (RAL 9005)

Order No.: 51TR3J0GTIN (EAN): 4058352446324

L (mm)4500
Wt. (kg)5.2
Price (EUR)59.40

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6C0GTIN (EAN): 4058352446379

L (mm)1500
Wt. (kg)1.9
Price (EUR)31.90

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6F0GTIN (EAN): 4058352446386

L (mm)3000
Wt. (kg)3.6
Price (EUR)48.10

Licross®, trunking rail, metallic grey (RAL 9006)

Order No.: 51TR6J0GTIN (EAN): 4058352446416

L (mm)4500
Wt. (kg)5.2
Price (EUR)59.40

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1C5GTIN (EAN): 4058352241806

L (mm)1500
Wt. (kg)2.5
Price (EUR)42.40

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1F5GTIN (EAN): 4058352241981

L (mm)3000
Wt. (kg)4.6
Price (EUR)56.50

Licross®, trunking rail, with Through-wiring 5x 2.5mm², white

Order No.: 51TR1J5GTIN (EAN): 4058352242162

L (mm)4500
Wt. (kg)6.7
Price (EUR)70.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1C7GTIN (EAN): 4058352241813

L (mm)1500
Wt. (kg)2.5
Price (EUR)45.20

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1F7GTIN (EAN): 4058352241998

L (mm)3000
Wt. (kg)4.7
Price (EUR)59.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², white

Order No.: 51TR1J7GTIN (EAN): 4058352242179

L (mm)4500
Wt. (kg)6.9
Price (EUR)79.10

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1C9GTIN (EAN): 4058352241844

L (mm)1500
Wt. (kg)2.6
Price (EUR)48.10

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1F9GTIN (EAN): 4058352242025

L (mm)3000
Wt. (kg)4.9
Price (EUR)63.60

Licross®, trunking rail, with Through-wiring 9x 2.5mm², white

Order No.: 51TR1J9GTIN (EAN): 4058352242209

L (mm)4500
Wt. (kg)7.1
Price (EUR)84.80

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1CBGTIN (EAN): 4058352241875

L (mm)1500
Wt. (kg)2.7
Price (EUR)50.80

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1FBGTIN (EAN): 4058352242056

L (mm)3000
Wt. (kg)5.0
Price (EUR)68.30

Licross®, trunking rail, with Through-wiring 11x 2.5mm², white

Order No.: 51TR1JBGTIN (EAN): 4058352242230

L (mm)4500
Wt. (kg)7.3
Price (EUR)91.00

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1CEGTIN (EAN): 4058352241905

L (mm)1500
Wt. (kg)2.8
Price (EUR)50.80

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1FEGTIN (EAN): 4058352242087

L (mm)3000
Wt. (kg)5.2
Price (EUR)68.30

Licross®, trunking rail, with Through-wiring 14x 2.5mm², white

Order No.: 51TR1JEGTIN (EAN): 4058352242261

L (mm)4500
Wt. (kg)7.6
Price (EUR)91.00

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C5GTIN (EAN): 4058352265291

L (mm)1500
Wt. (kg)2.5
Price (EUR)48.20

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F5GTIN (EAN): 4058352265147

L (mm)3000
Wt. (kg)4.6
Price (EUR)56.60

Licross®, trunking rail, with Through-wiring 5x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J5GTIN (EAN): 4058352265161

L (mm)4500
Wt. (kg)6.7
Price (EUR)70.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C7GTIN (EAN): 4058352242476

L (mm)1500
Wt. (kg)2.5
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F7GTIN (EAN): 4058352242537

L (mm)3000
Wt. (kg)4.7
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J7GTIN (EAN): 4058352242599

L (mm)4500
Wt. (kg)6.9
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6C9GTIN (EAN): 4058352265307

L (mm)1500
Wt. (kg)2.6
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6F9GTIN (EAN): 4058352265208

L (mm)3000
Wt. (kg)4.9
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 9x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6J9GTIN (EAN): 4058352265178

L (mm)4500
Wt. (kg)7.1
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6CBGTIN (EAN): 4058352242520

L (mm)1500
Wt. (kg)2.7
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6FBGTIN (EAN): 4058352242568

L (mm)3000
Wt. (kg)5.0
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 11x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6JBGTIN (EAN): 4058352242629

L (mm)4500
Wt. (kg)7.3
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6CEGTIN (EAN): 4058352265314

L (mm)1500
Wt. (kg)2.8
Price (EUR)54.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6FEGTIN (EAN): 4058352265154

L (mm)3000
Wt. (kg)5.2
Price (EUR)73.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², metallic grey (RAL 9006)

Order No.: 51TR6JEGTIN (EAN): 4058352265185

L (mm)4500
Wt. (kg)7.6
Price (EUR)97.30

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C5GTIN (EAN): 4058352265260

L (mm)1500
Wt. (kg)2.5
Price (EUR)48.20

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F5GTIN (EAN): 4058352265253

L (mm)3000
Wt. (kg)4.6
Price (EUR)56.60

Licross®, trunking rail, with Through-wiring 5x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J5GTIN (EAN): 4058352265222

L (mm)4500
Wt. (kg)6.7
Price (EUR)70.60

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C7GTIN (EAN): 4058352242292

L (mm)1500
Wt. (kg)2.5
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F7GTIN (EAN): 4058352242353

L (mm)3000
Wt. (kg)4.7
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 7x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J7GTIN (EAN): 4058352242414

L (mm)4500
Wt. (kg)6.9
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3C9GTIN (EAN): 4058352265239

L (mm)1500
Wt. (kg)2.6
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3F9GTIN (EAN): 4058352265277

L (mm)3000
Wt. (kg)4.9
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 9x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3J9GTIN (EAN): 4058352265192

L (mm)4500
Wt. (kg)7.1
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3CBGTIN (EAN): 4058352242346

L (mm)1500
Wt. (kg)2.7
Price (EUR)49.50

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3FBGTIN (EAN): 4058352242384

L (mm)3000
Wt. (kg)5.0
Price (EUR)64.40

Licross®, trunking rail, with Through-wiring 11x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3JBGTIN (EAN): 4058352242445

L (mm)4500
Wt. (kg)7.3
Price (EUR)84.70

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3CEGTIN (EAN): 4058352265246

L (mm)1500
Wt. (kg)2.8
Price (EUR)54.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3FEGTIN (EAN): 4058352265215

L (mm)3000
Wt. (kg)5.2
Price (EUR)73.90

Licross®, trunking rail, with Through-wiring 14x 2.5mm², matt jet black (RAL 9005)

Order No.: 51TR3JEGTIN (EAN): 4058352265284

L (mm)4500
Wt. (kg)7.6
Price (EUR)97.30

Mandatory accessory

Articleend cap, white, for trunking railPU2 pcs.Wt. (kg)0.1Price (EUR)18.60Order No.: 59TL1SGTIN (EAN): 4058352272589Show details
Articleend cap, metallic grey (RAL 9006), for trunking railPU2 pcs.Wt. (kg)0.1Price (EUR)21.00Order No.: 59TL6SGTIN (EAN): 4058352272862Show details
Articleend cap, matt jet black (RAL 9005), for trunking railPU2 pcs.Wt. (kg)0.1Price (EUR)21.00Order No.: 59TL3SGTIN (EAN): 4058352272824Show details
Articleend cap, white, for trunking railPU2 pcs.Wt. (kg)0.1Price (EUR)33.50Order No.: 59TP1SGTIN (EAN): 4058352299487Show details
Articleblank cover, white, for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.2Price (EUR) 7.00Order No.: 59TL1AGTIN (EAN): 4058352272565Show details
Articleblank cover, metallic grey (RAL 9006), for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.2Price (EUR) 7.00Order No.: 59TL6AGTIN (EAN): 4058352272848Show details
Articleblank cover, matt jet black (RAL 9005), for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.2Price (EUR) 7.00Order No.: 59TL3AGTIN (EAN): 4058352272800Show details
Articleinfeed socket, black, plug, 14-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Price (EUR)15.30Order No.: 59TL3FNKGTIN (EAN): 4058352328200Show details
Articleoutput plug, pebble grey (RAL 7032), plug, 14-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Price (EUR)23.90Order No.: 59TL3FTKGTIN (EAN): 4058352328231Show details
ArticleLicross® rail connection compartment, white, L= 450mmPU1 pc.Wt. (kg)0.8Price (EUR)53.60Order No.: 59TL1FN0GTIN (EAN): 4058352500606Show details
ArticleLicross® rail connection compartment, white, L= 450mmPU1 pc.Wt. (kg)0.9Price (EUR)74.50Order No.: 59TP1FN0GTIN (EAN): 4058352500620Show details
Articlesealing, for IP50/IP64 protection ratingPU1 pc.Wt. (kg)0.1Price (EUR) 7.00Order No.: 59TP1CGTIN (EAN): 4058352299470Show details
Articleinfeed module, white, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)78.50Order No.: 59TL1FN7GTIN (EAN): 4058352339923Show details
Articleinfeed module, metallic grey (RAL 9006), socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)82.50Order No.: 59TL6FN7GTIN (EAN): 4058352340165Show details
Articleinfeed module, matt jet black (RAL 9005), socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)82.50Order No.: 59TL3FN7GTIN (EAN): 4058352340042Show details
Articleinfeed module, white, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)87.40Order No.: 59TL1FNEGTIN (EAN): 4058352339947Show details
Articleinfeed module, metallic grey (RAL 9006), socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)91.40Order No.: 59TL6FNEGTIN (EAN): 4058352340189Show details
Articleinfeed module, matt jet black (RAL 9005), socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)91.40Order No.: 59TL3FNEGTIN (EAN): 4058352340066Show details
Articlecentral feed for 2 directions, white, with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.9Price (EUR)170.30Order No.: 59TL1CN7GTIN (EAN): 4058352339480Show details
Articlecentral feed for 2 directions, metallic grey (RAL 9006), with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.9Price (EUR)176.20Order No.: 59TL6CN7GTIN (EAN): 4058352340127Show details
Articlecentral feed for 2 directions, matt jet black (RAL 9005), with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.9Price (EUR)176.20Order No.: 59TL3CN7GTIN (EAN): 4058352340004Show details
Articlecentral feed for 2 directions, white, with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.1Price (EUR)190.00Order No.: 59TL1CNEGTIN (EAN): 4058352339909Show details
Articlecentral feed for 2 directions, metallic grey (RAL 9006), with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.0Price (EUR)196.00Order No.: 59TL6CNEGTIN (EAN): 4058352340141Show details
Articlecentral feed for 2 directions, matt jet black (RAL 9005), with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.0Price (EUR)196.00Order No.: 59TL3CNEGTIN (EAN): 4058352340028Show details
Article1x feed-in, 1x feed-out, white, with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.9Price (EUR)186.30Order No.: 59TL1MN7GTIN (EAN): 4058352471685Show details
Article1x feed-in, 1x feed-out, matt jet black (RAL 9005), with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.6Price (EUR)186.30Order No.: 59TL3MN7GTIN (EAN): 4058352471722Show details
Article1x feed-in, 1x feed-out, metallic grey (RAL 9006), with connection terminal, socket, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)1.6Price (EUR)186.30Order No.: 59TL6MN7GTIN (EAN): 4058352471760Show details
Article1x feed-in, 1x feed-out, white, with connection terminal, socket, 7-pole, max. 2.5mm²PU1 pc.Wt. (kg)1.6Price (EUR)197.90Order No.: 59TP1MN7GTIN (EAN): 4058352471807Show details
Article1x feed-in, 1x feed-out, white, with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.1Price (EUR)206.10Order No.: 59TL1MNEGTIN (EAN): 4058352471708Show details
Article1x feed-in, 1x feed-out, matt jet black (RAL 9005), with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.0Price (EUR)206.10Order No.: 59TL3MNEGTIN (EAN): 4058352471746Show details
Article1x feed-in, 1x feed-out, metallic grey (RAL 9006), with connection terminal, socket, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)2.0Price (EUR)206.10Order No.: 59TL6MNEGTIN (EAN): 4058352471784Show details
Article1x feed-in, 1x feed-out, white, with connection terminal, socket, 14-pole, max. 2.5mm²PU1 pc.Wt. (kg)2.1Price (EUR)217.80Order No.: 59TP1MNEGTIN (EAN): 4058352471821Show details
Articlefixing element, spring steel V2APU1 pc.Wt. (kg)0.1Price (EUR) 2.10Order No.: 59TR9DGTIN (EAN): 4058352272886Show details
Articleceiling mounting with caddy clip, for mounting to the ceilingPU1 pc.Wt. (kg)0.1Price (EUR) 7.00Order No.: 59TR9CGTIN (EAN): 4058352293133Show details
Articlechain hanger, steel, galvanisedPU1 pc.Wt. (kg)0.1Price (EUR) 7.00Order No.: 59TR9KGTIN (EAN): 4058352293157Show details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Price (EUR) 1.00Order No.: 5LY9001GTIN (EAN): 4039806184290Show details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Price (EUR)12.30Order No.: 5LY9002GTIN (EAN): 4039806184313Show details
Articlequick-release link, stainless steel (V2A)PU1 pc.Wt. (kg)0.1Price (EUR) 2.70Order No.: 5LY9004GTIN (EAN): 4039806184368Show details
Articlesingle wire suspension, with fixing bracketPU1 pc.Wt. (kg)0.1Price (EUR)11.90Order No.: 59TR9RAGTIN (EAN): 4058352386507Show details
Articlesingle wire suspension, with wire, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)16.10Order No.: 59TR9RGTIN (EAN): 4058352293171Show details
Articlesingle wire suspension, with caddy clip, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)15.30Order No.: 59TR9RCGTIN (EAN): 4058352298664Show details
Articlesingle wire suspension, with ceiling sleeve, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)23.80Order No.: 59TR9RSGTIN (EAN): 4058352298695Show details
Articlewall fastening, inclinablePU2 pcs.Wt. (kg)0.2Price (EUR)31.50Order No.: 59TR9NGTIN (EAN): 4058352591840Show details
Articleblank cover, white, for IP50/IP64 protection rating, end cap, whitePU1 pc.Wt. (kg)0.3Price (EUR)30.70Order No.: 59TP1AGTIN (EAN): 4058352299463Show details
Articlecentral feed for 2 directions, white, with connection terminal, socket, 7-pole, max. 2.5mm²PU1 pc.Wt. (kg)1.6Price (EUR)197.90Order No.: 59TP1CN7GTIN (EAN): 4058352340240Show details
Articlecentral feed for 2 directions, white, with connection terminal, socket, 14-pole, max. 2.5mm²PU1 pc.Wt. (kg)2.1Price (EUR)217.80Order No.: 59TP1CNEGTIN (EAN): 4058352340264Show details
Articleinfeed module, white, socket, 7-pole, max. 2.5mm², for IP50/IP64 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)121.10Order No.: 59TP1FN7GTIN (EAN): 4058352340288Show details
Articleinfeed module, white, socket, 14-pole, max. 2.5mm², for IP50/IP64 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)130.00Order No.: 59TP1FNEGTIN (EAN): 4058352340301Show details
Articlefeed-out module, white, socket, 7-pole, max. 2.5mm², for IP50/IP64 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)139.70Order No.: 59TP1FT7GTIN (EAN): 4058352340325Show details
Articlefeed-out module, white, plug, 14-pole, max. 2.5mm², for IP50/IP64 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)151.40Order No.: 59TP1FTEGTIN (EAN): 4058352340349Show details
Articlefeed-out module, white, plug, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)104.80Order No.: 59TL1FT7GTIN (EAN): 4058352339961Show details
Articlefeed-out module, matt jet black (RAL 9005), plug, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)110.70Order No.: 59TL3FT7GTIN (EAN): 4058352340080Show details
Articlefeed-out module, metallic grey (RAL 9006), plug, 7-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.7Price (EUR)110.70Order No.: 59TL6FT7GTIN (EAN): 4058352340202Show details
Articlefeed-out module, white, plug, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)116.40Order No.: 59TL1FTEGTIN (EAN): 4058352339992Show details
Articlefeed-out module, matt jet black (RAL 9005), plug, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)122.20Order No.: 59TL3FTEGTIN (EAN): 4058352340110Show details
Articlefeed-out module, metallic grey (RAL 9006), plug, 14-pole, max. 2.5mm², for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.8Price (EUR)122.20Order No.: 59TL6FTEGTIN (EAN): 4058352340233Show details
ArticleL-trunking rail element, white, without through-wiringPU1 pc.Wt. (kg)1.5Price (EUR)207.20Order No.: 59TR1CLGTIN (EAN): 4058352487020Show details
ArticleT-trunking rail element, white, without through-wiringPU1 pc.Wt. (kg)2.0Price (EUR)218.90Order No.: 59TR1CTGTIN (EAN): 4058352487044Show details
ArticleX-trunking rail element, white, without through-wiringPU1 pc.Wt. (kg)3.0Price (EUR)230.50Order No.: 59TR1CXGTIN (EAN): 4058352485385Show details
ArticleL-trunking rail element, matt jet black (RAL 9005), without through-wiringPU1 pc.Wt. (kg)1.5Price (EUR)207.20Order No.: 59TR3CLGTIN (EAN): 4058352487068Show details
ArticleT-trunking rail element, matt jet black (RAL 9005), without through-wiringPU1 pc.Wt. (kg)2.0Price (EUR)218.90Order No.: 59TR3CTGTIN (EAN): 4058352487082Show details
ArticleX-trunking rail element, matt jet black (RAL 9005), without through-wiringPU1 pc.Wt. (kg)3.0Price (EUR)230.50Order No.: 59TR3CXGTIN (EAN): 4058352485415Show details
ArticleL-trunking rail element, metallic grey (RAL 9006), without through-wiringPU1 pc.Wt. (kg)1.5Price (EUR)207.20Order No.: 59TR6CLGTIN (EAN): 4058352487112Show details
ArticleT-trunking rail element, metallic grey (RAL 9006), without through-wiringPU1 pc.Wt. (kg)2.0Price (EUR)218.90Order No.: 59TR6CTGTIN (EAN): 4058352487129Show details
ArticleX-trunking rail element, metallic grey (RAL 9006), without through-wiringPU1 pc.Wt. (kg)3.0Price (EUR)230.50Order No.: 59TR6CXGTIN (EAN): 4058352485422Show details
Articlethrough-wiring set, for L-, T- and X-connectors, 0.3m, 7-corePU1 pc.Wt. (kg)0.1Price (EUR)42.00Order No.: 59TL3LX7GTIN (EAN): 4058352487600Show details
Articlethrough-wiring set, for L-, T- and X-connectors, 0.3m, 14-corePU1 pc.Wt. (kg)0.2Price (EUR)46.60Order No.: 59TL3LXEGTIN (EAN): 4058352487631Show details
Articlethrough-wiring set, for T connector, 0.2m, 7-corePU1 pc.Wt. (kg)0.2Price (EUR)65.20Order No.: 59TL3T07GTIN (EAN): 4058352487648Show details
Articlethrough-wiring set, for T connector, 0.2m, 14-corePU1 pc.Wt. (kg)0.2Price (EUR)86.10Order No.: 59TL3T0EGTIN (EAN): 4058352487662Show details
Articlesingle wire suspension, with caddy clip, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)17.40Order No.: 59TR9RC3GTIN (EAN): 4058352452462Show details
Articlesingle wire suspension, with caddy clip, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)20.00Order No.: 59TR9RC5GTIN (EAN): 4058352452493Show details
Articlesingle wire suspension, with wire, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)17.40Order No.: 59TR9R05GTIN (EAN): 4058352452431Show details
Articlesingle wire suspension, with ceiling sleeve, with fixing on rail sidePU1 pc.Wt. (kg)0.1Price (EUR)28.00Order No.: 59TR9RS5GTIN (EAN): 4058352452523Show details
Articleend cap, white, for trunking railPU Wt. (kg)1.7Price (EUR)395.90Order No.: 59TL1SMGTIN (EAN): 4058352482971Show details
Articleend cap, white, for trunking railPU Wt. (kg)2.5Price (EUR)712.60Order No.: 59TP1SMGTIN (EAN): 4058352482995Show details
Articlesingle wire suspension, with wire, with fixing on rail sidePU25 pcs.Wt. (kg)1.0Price (EUR)321.30Order No.: 59TR9RMGTIN (EAN): 4058352483015Show details
Articlesingle wire suspension, with ceiling sleeve, with fixing on rail sidePU25 pcs.Wt. (kg)1.0Price (EUR)386.10Order No.: 59TR9RSMGTIN (EAN): 4058352483039Show details
Articlesealing, for IP50/IP64 protection ratingPU25 pcs.Wt. (kg)0.2Price (EUR)87.40Order No.: 59TP1CMGTIN (EAN): 4058352483343Show details
Articleblank cover, white, for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.4Price (EUR) 9.60Order No.: 59TL1A0W0ZD00253XXGTIN (EAN): 4058352570661Show details

Optional accessory

Articlecore retainerPU10 pcs.Wt. (kg)0.1Price (EUR) 8.30Order No.: 59TL0AGTIN (EAN): 4058352535325Show details
Articlecable duct, ABS, signal white (RAL 9003), L= 3000mmPU1 pc.Wt. (kg)0.9Price (EUR)33.70Order No.: 59TR1DFGTIN (EAN): 4058352426104Show details
Articleexpansion setPU1 pc.Wt. (kg)0.3Price (EUR)10.40Order No.: 51TR0UGTIN (EAN): 4058352452837Show details
Articlecoupling, straightPU1 pc.Wt. (kg)0.1Price (EUR)12.00Order No.: 59TR0EGTIN (EAN): 4058352585900Show details
