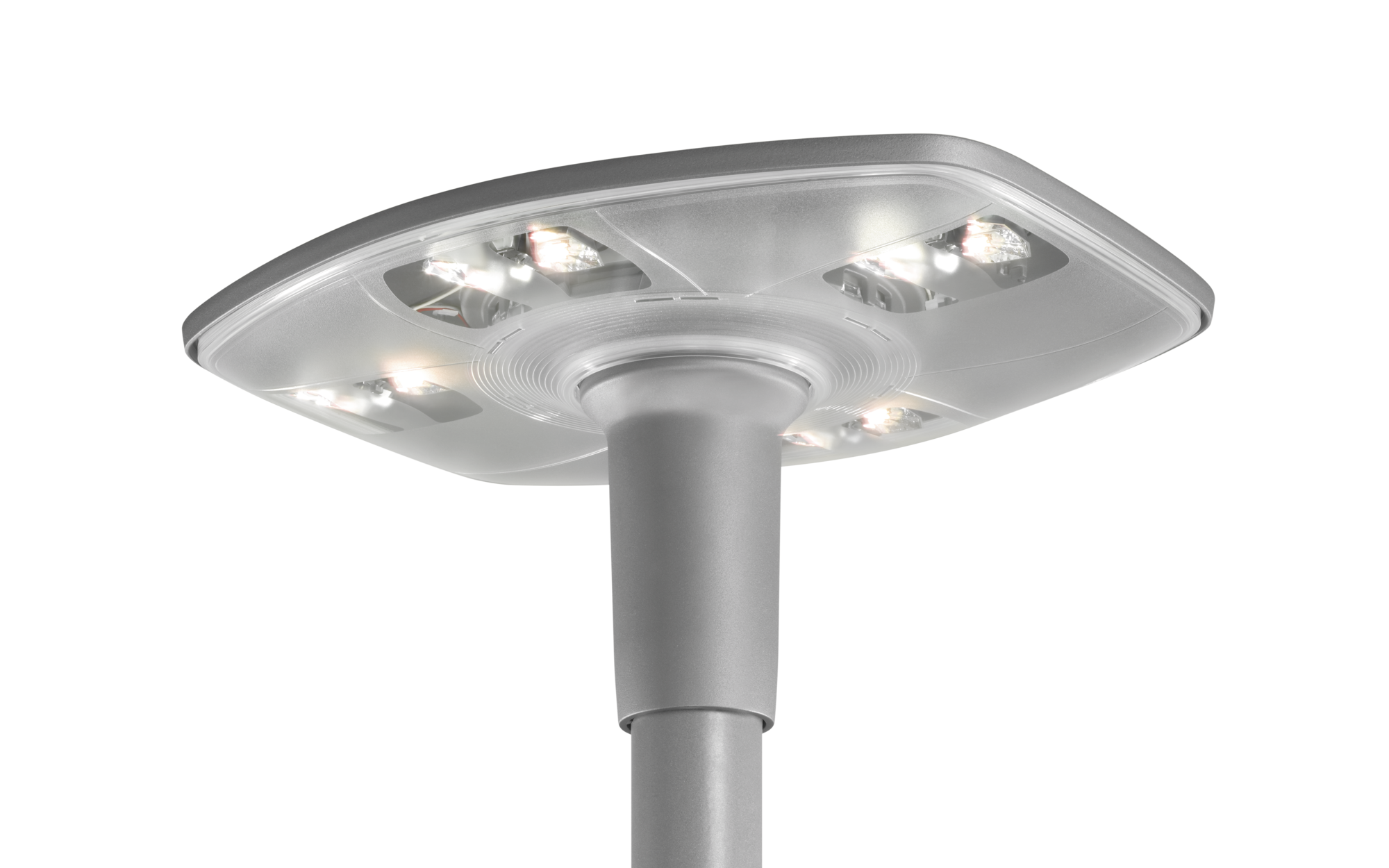

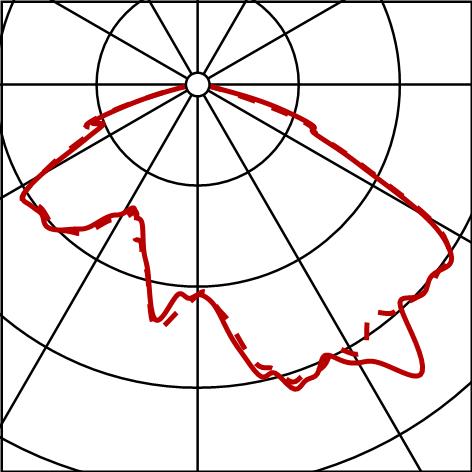

DL® 30 LED, ST1.2c, direct asymmetric wide distribution, crossroads

Ordercode: 5XA513281B08A5

Article mast luminaire
Product name DL® 30 LED
Lamp LED
Rated luminous flux 4590lm
Luminous efficacy 94lm/W
Colour temperature 3000K
Colour rendering CRI > 80
P_nom begin service life 49
P_nom end service life 51
P_red at 50% lumin. flux 22
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.8kg

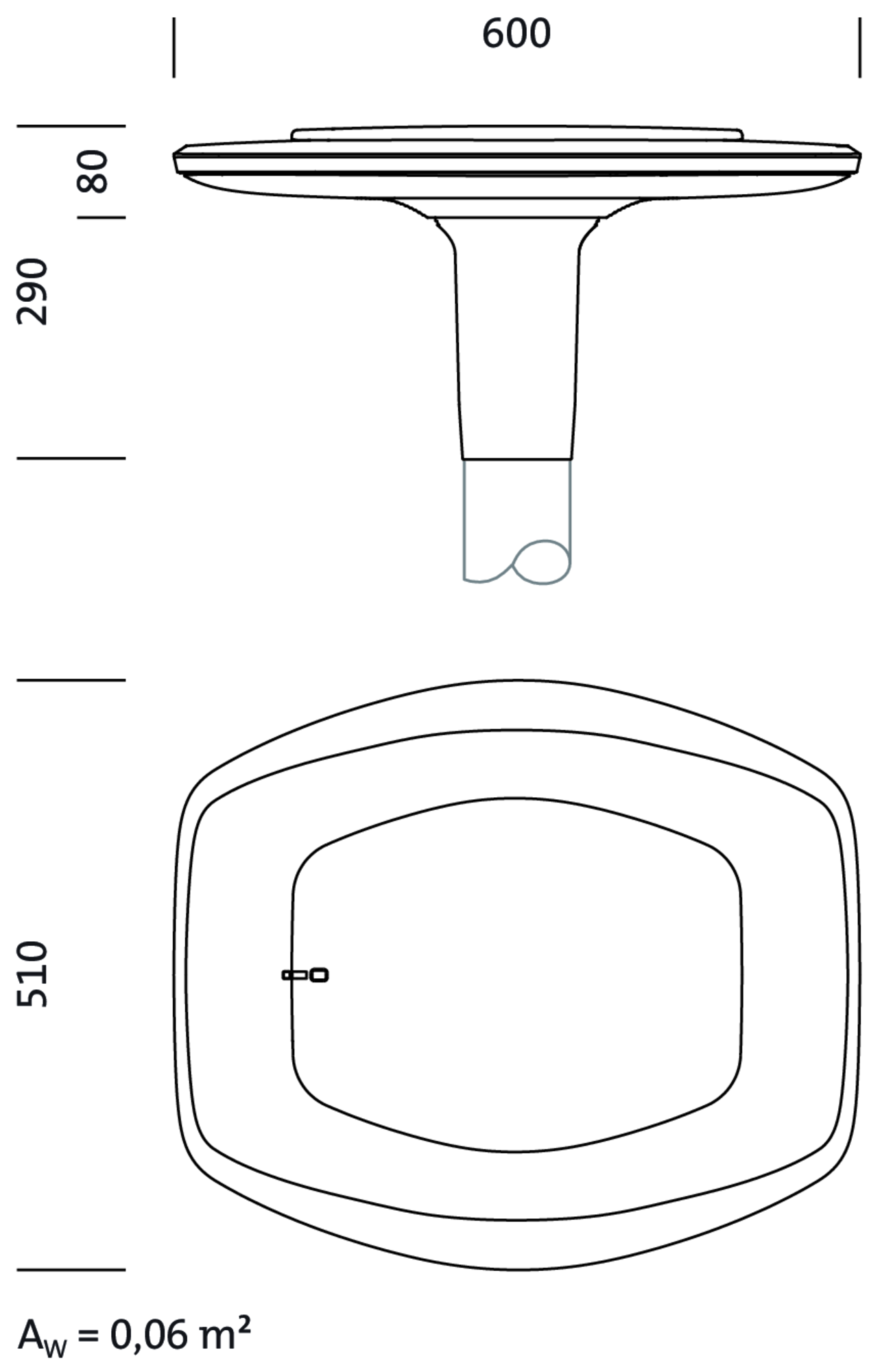

DL® 30 LED, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, aluminium vaporised, highly specular, primary optical cover: cover, of PMMA, structured, transparent, light distribution: ST1.2c, light emission: direct distribution, primary light characteristic: asymmetric, crossroads, installation type: post-top, LED, High Power LED, rated luminous flux: 4.590lm, luminous efficacy: 94lm/W, light colour: 830, colour temperature: 3000K, control gear: ECG Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, electronic power reduction, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 49W, end of lifetime: 51W, reduction: 22W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 600mm, width: 510mm, height: 290mm, spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible operating ambient temperature: -25..+30°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
