Ordercode: 5WM25CD02XN2

Article tunnel luminaire

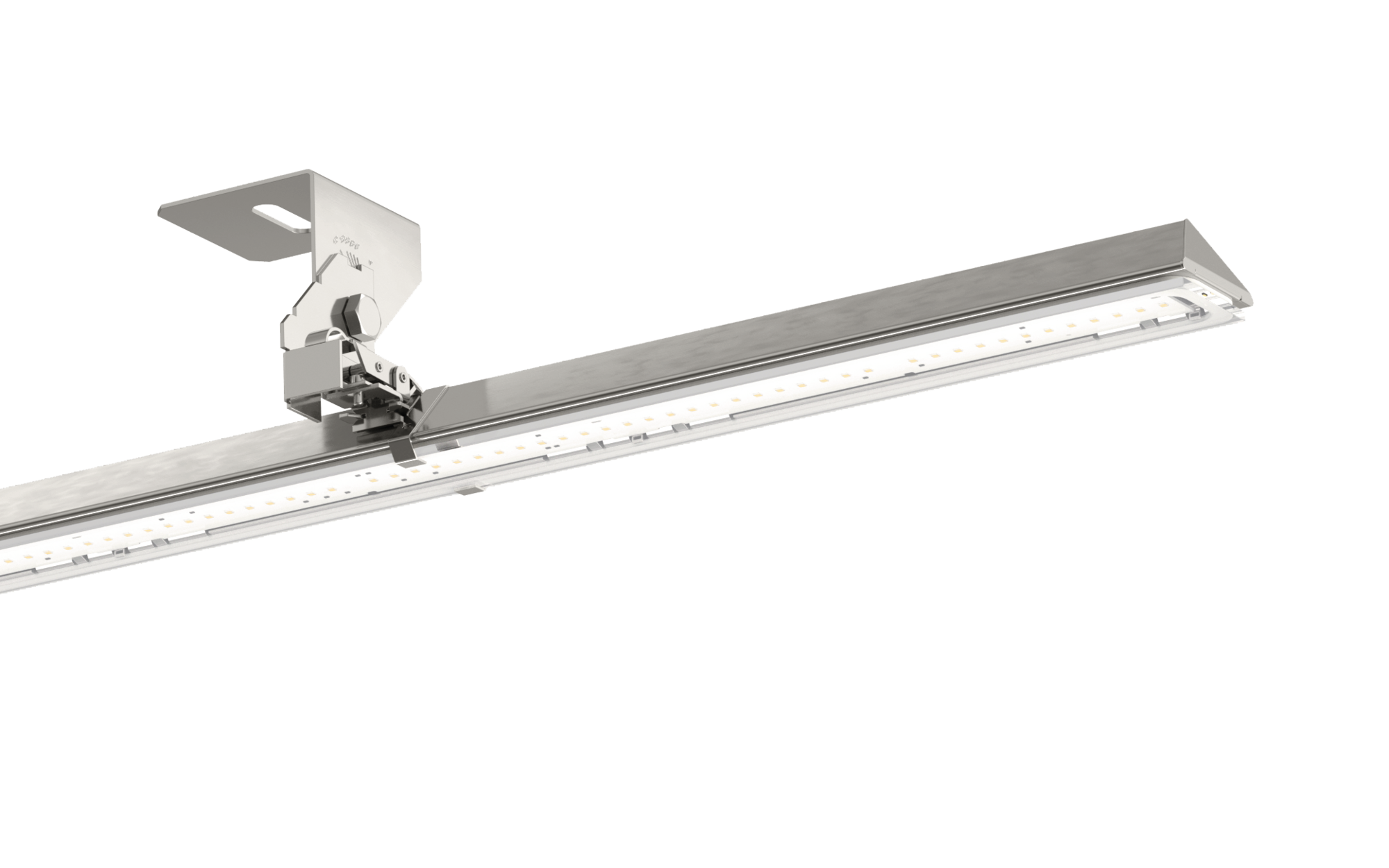

Product name TL 13
Lamp LED
Rated luminous flux 51600lm
Luminous efficacy 188lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 275W
Protection rating IP66
Weight 30.1kg

TL 13, tunnel luminaire, primary optical cover: cover panel, of toughened safety glass, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, connection on control gear side,LED Mid Power LED, rated luminous flux: 51.600 lm, light colour: 840, colour temperature: 4000K, control gear: ECG DALI, with connection cable with system connection, mains connection: 220..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 1 m, rated input power: 275W, connection on mains side,with terminal, luminaire housing, of stainless steel 1.4404 (AISI316), etched and passivated, length: 1.529 mm, width: 56 mm, height: 36mm, e-box, of stainless steel 1.4404 (AISI316), etched and passivated, length: 510 mm, width: 213 mm, height: 112mm, protection rating (complete): IP66, certification: CE, packaging unit: set of 12

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type tunnel luminaire
Product name TL 13
Order No. 5WM25CD02XN2


Component 1

Lighting technology
Cover cover panel
Symmetry symmetric distribution
Light emission direct distribution

Lamps
Lamps with Mid Power LED, LED
Rated luminous flux 51600lm
Luminous efficacy 188lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 275W
Supplement minimum bending radius: cable diameter x 10

Operating device
Control gear ECG DALI
Control DALI


Component 2

Lamps
Supplement suitable for 3-phase through-wiring on mains side


Component 3

Lamps
Supplement minimum bending radius: cable diameter x 10


Certificates, Standards

Protection rating IP66
Certification, designation CE


Material, Colour

luminaire housing stainless steel 1.4404 (AISI316), etched and passivated
Quantity 12 piece
e-box stainless steel 1.4404 (AISI316), etched and passivated
Quantity 1 piece
Cover cover panel of toughened safety glass


Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the ceiling


Electrical connection

Connection connection cable with system connection
Nominal voltage 220..240V, 50/60Hz, AC
Connection cable pre-assembled, L= 1m

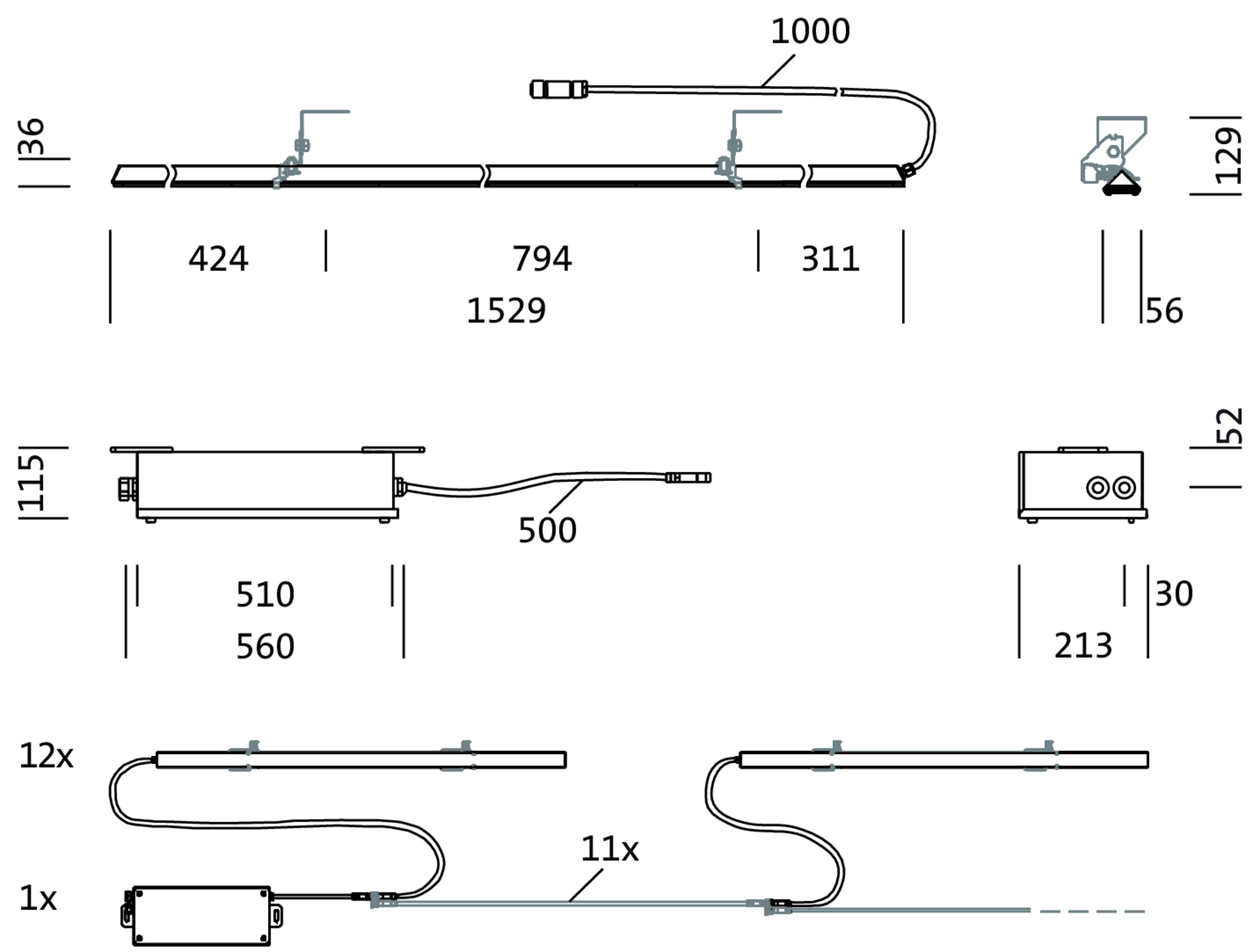

Dimensions, Weight

Length 1529mm
Width 56mm
Height 36mm
Weight 30.1kg
