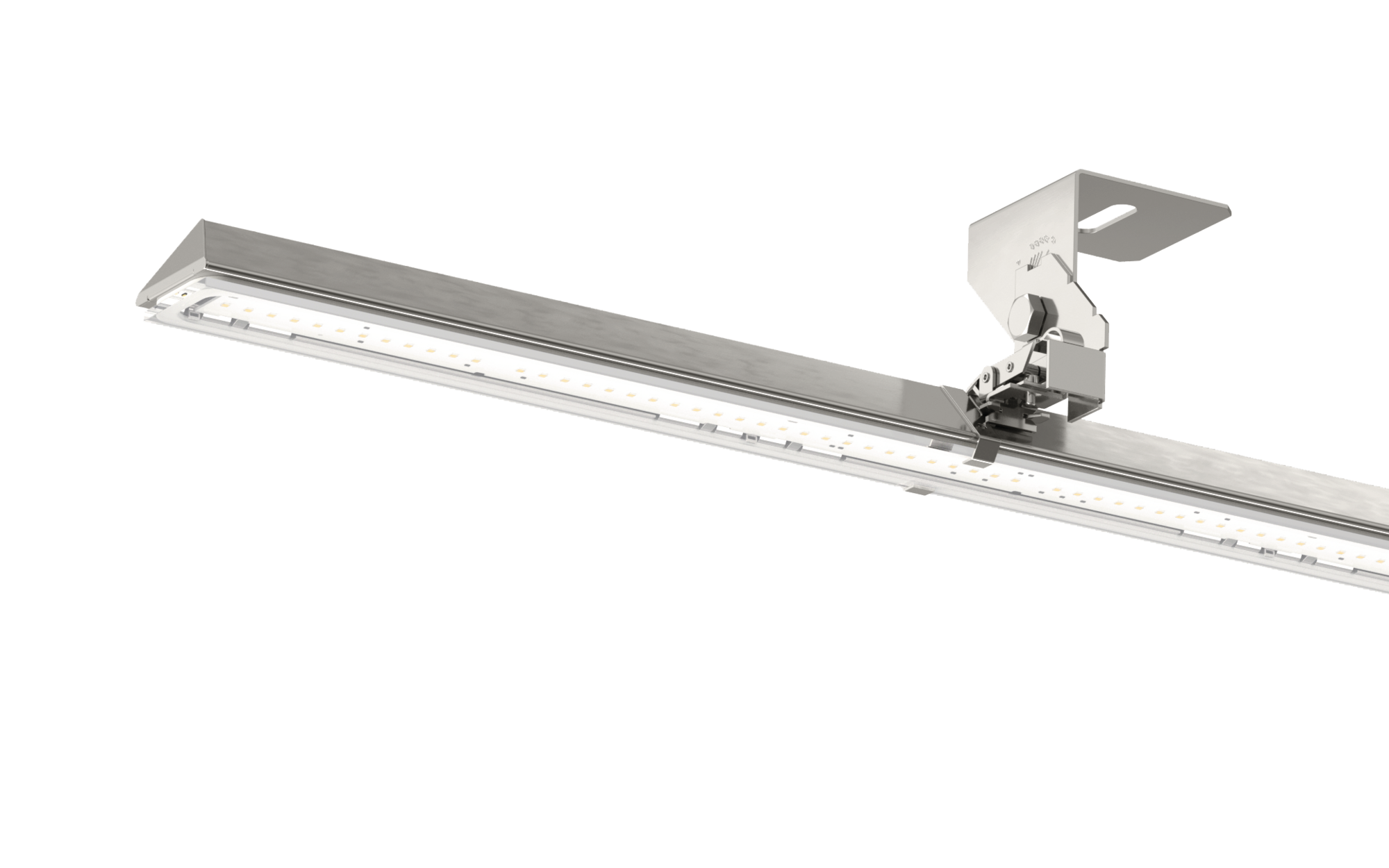

Tunnellight TL13

ProducttypesConfiguration & Datasheets

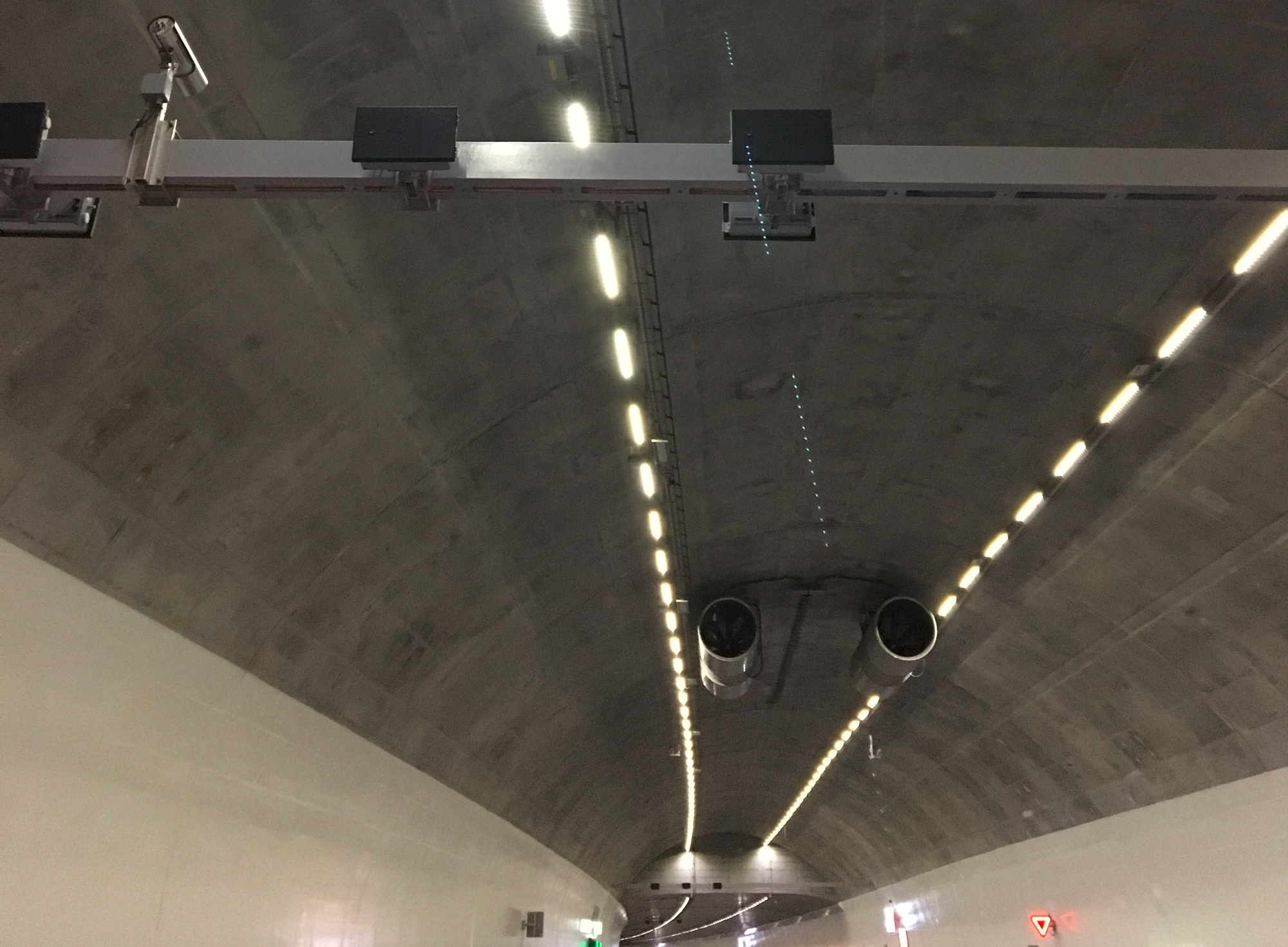

Innovative design for a continuous row with the best lighting values - the optimal solution for maximum visual comfort and traffic safety in the tunnel. Thanks to its innovative and extremely compact design, the continuous row luminaire offers uncomplicated installation even in challenging installation situations. The continuous trunking guarantees very even illumination for maximum visual comfort. The luminaire can be controlled via 10 StepDIM or DALI and is therefore highly compatible with different control systems. The outstanding efficiency of over 185lm/W ensures low energy consumption and minimal operating costs.

Our performance solution: Tunnellight TL 13 is our innovative tunnel luminaire with maximum efficiency, service life and flexibility

Producttypes

Tunnellight TL13

Intro to Productfamily

Data

Article tunnel luminaire
Lighting effect direct symmetric distribution
Net luminous flux 51600lm
Colour temperature 4000K; 5000K
Control DALI; 10StepDIM

Configuration & Datasheets

Colour temperature

Control

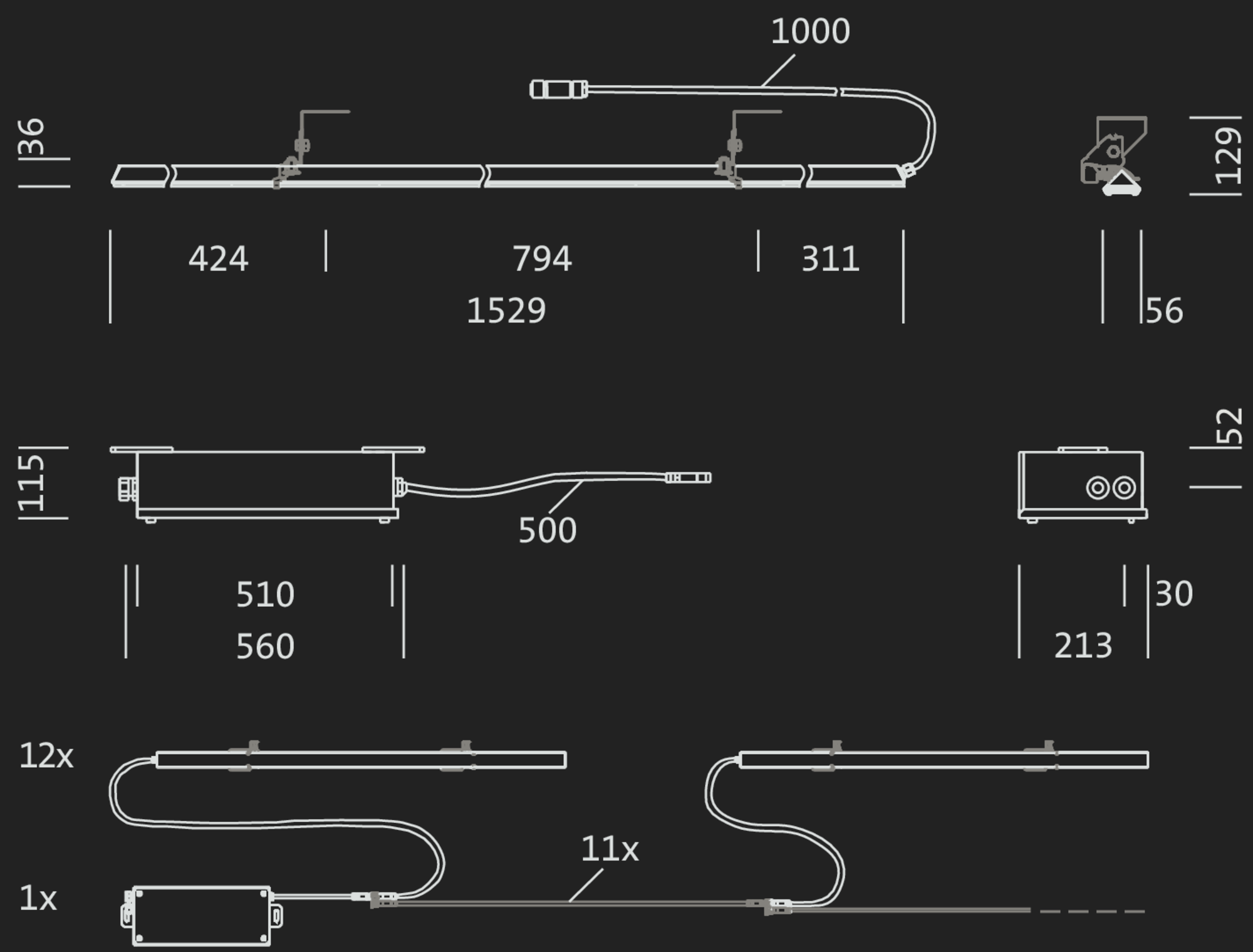

  • each order number contains a package of: 1x luminaire head + 1x e-box; different number of luminaire heads per package on request
  • please order the required number of mounting accessories for luminaire heads separately (12 sets for 12 luminaire heads); (e-box incl. mounting straps)
  • please order connecting cables for individual luminaire intervals in the respective length and required number (11x cables incl. Y connector for 12 luminaire heads) separately
  • please order additional connecting cable for individual interval between E-box and first luminaire head separately in the corresponding length

Results

TL 13, 10StepDIM

Order No.: 5WM25C802XN2GTIN (EAN): 4058352385302
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8051600lm275W188lm/W10StepDIM30.1

TL 13, DALI

Order No.: 5WM25CD02XN2GTIN (EAN): 4058352385340
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8051600lm275W188lm/WDALI30.1

TL 13, 10StepDIM

Order No.: 5WM25C803XN2GTIN (EAN): 4058352385326
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 8051600lm275W188lm/W10StepDIM30.1

TL 13, DALI

Order No.: 5WM25CD03XN2GTIN (EAN): 4058352385364
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 8051600lm275W188lm/WDALI30.1

TL 13, 10StepDIM

Order No.: 5WM25C802XN2GTIN (EAN): 4058352385302

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux51600lm
Connected load275W
Luminous efficacy188lm/W
Control10StepDIM
Wt. (kg)30.1

TL 13, DALI

Order No.: 5WM25CD02XN2GTIN (EAN): 4058352385340

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux51600lm
Connected load275W
Luminous efficacy188lm/W
ControlDALI
Wt. (kg)30.1

TL 13, 10StepDIM

Order No.: 5WM25C803XN2GTIN (EAN): 4058352385326

Colour temperature5000K
Colour renderingCRI > 80
Luminous flux51600lm
Connected load275W
Luminous efficacy188lm/W
Control10StepDIM
Wt. (kg)30.1

TL 13, DALI

Order No.: 5WM25CD03XN2GTIN (EAN): 4058352385364

Colour temperature5000K
Colour renderingCRI > 80
Luminous flux51600lm
Connected load275W
Luminous efficacy188lm/W
ControlDALI
Wt. (kg)30.1

Optional accessory

Articlecable set with plug, L= 3.2mPU1 pc.Wt. (kg)0.4Order No.: 5WM90GTIN (EAN): 4058352364086Show details
Articlecable set with plug, L= 6.4mPU1 pc.Wt. (kg)0.6Order No.: 5WM91GTIN (EAN): 4058352346181Show details
