Ordercode: 5XA7581E1K23

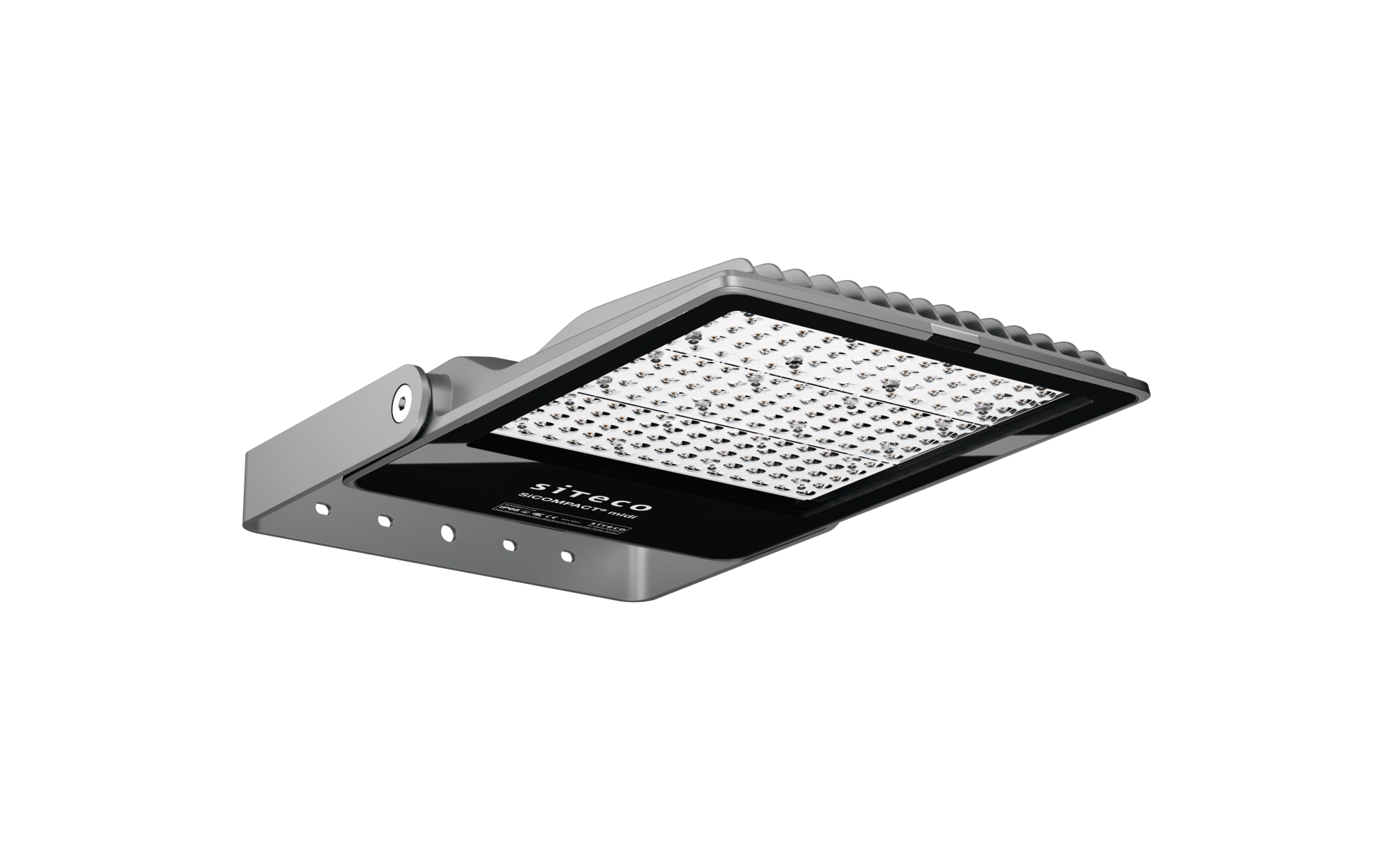

Article floodlight
Product name SiCompact® 31 midi
Lamp LED
Rated luminous flux 37000lm
Luminous efficacy 148lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 250W
Service life 73000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 8.5kg

SiCompact® 31 midi, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: PL32, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED High Power LED, rated luminous flux: 37.000 lm, light colour: 730, colour temperature: 3000K, control gear: ECG, with cable, 3x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 2 m, rated input power: 250W, of diecast aluminium, specular, metallic grey (RAL 9006), length: 560 mm, width: 330 mm, height: 62mm, bracket, of sheet steel, coated, metallic grey (RAL 9006), ON/OFFprotection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK08, permissible ambient temperature for indoor applications: -40..+45°C, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name SiCompact® 31 midi
Order No. 5XA7581E1K23


Lighting technology

Light control lens of plastic
Light distribution PL32
Symmetry asymmetric distribution
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 37000lm
Luminous efficacy 148lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power 250W


Operating device

Control gear ECG
Control ON/OFF


Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Temperature range (operation) -40..+45°C
Certification, designation CE


Material, Colour

Colour specification metallic grey (RAL 9006)
bracket sheet steel, coated, metallic grey (RAL 9006)
Colour specification metallic grey (RAL 9006)


Mounting

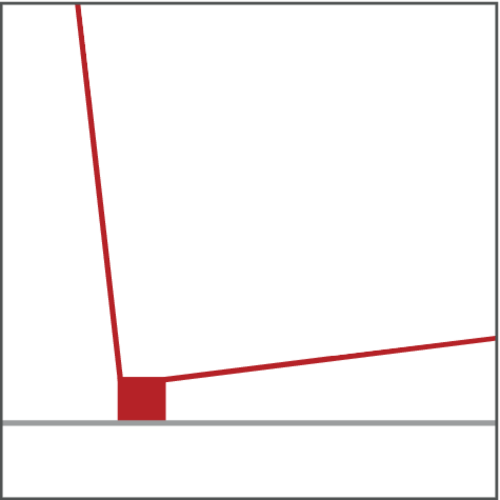

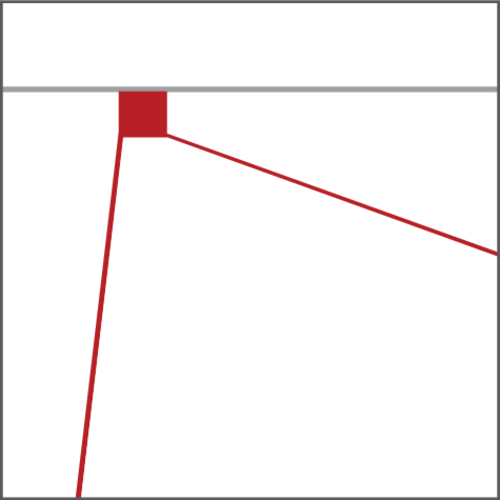

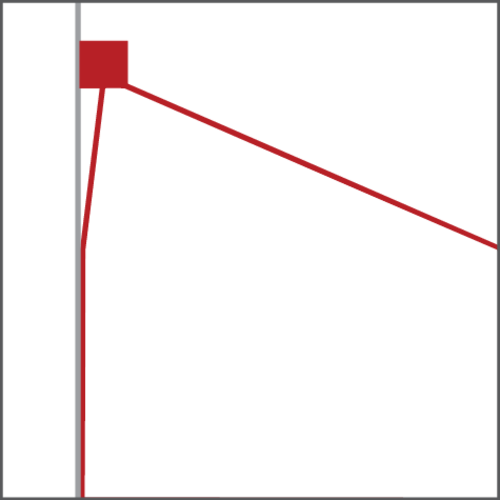

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm, to the wall
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection cable, 3x 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs
Connection cable pre-assembled, L= 2m

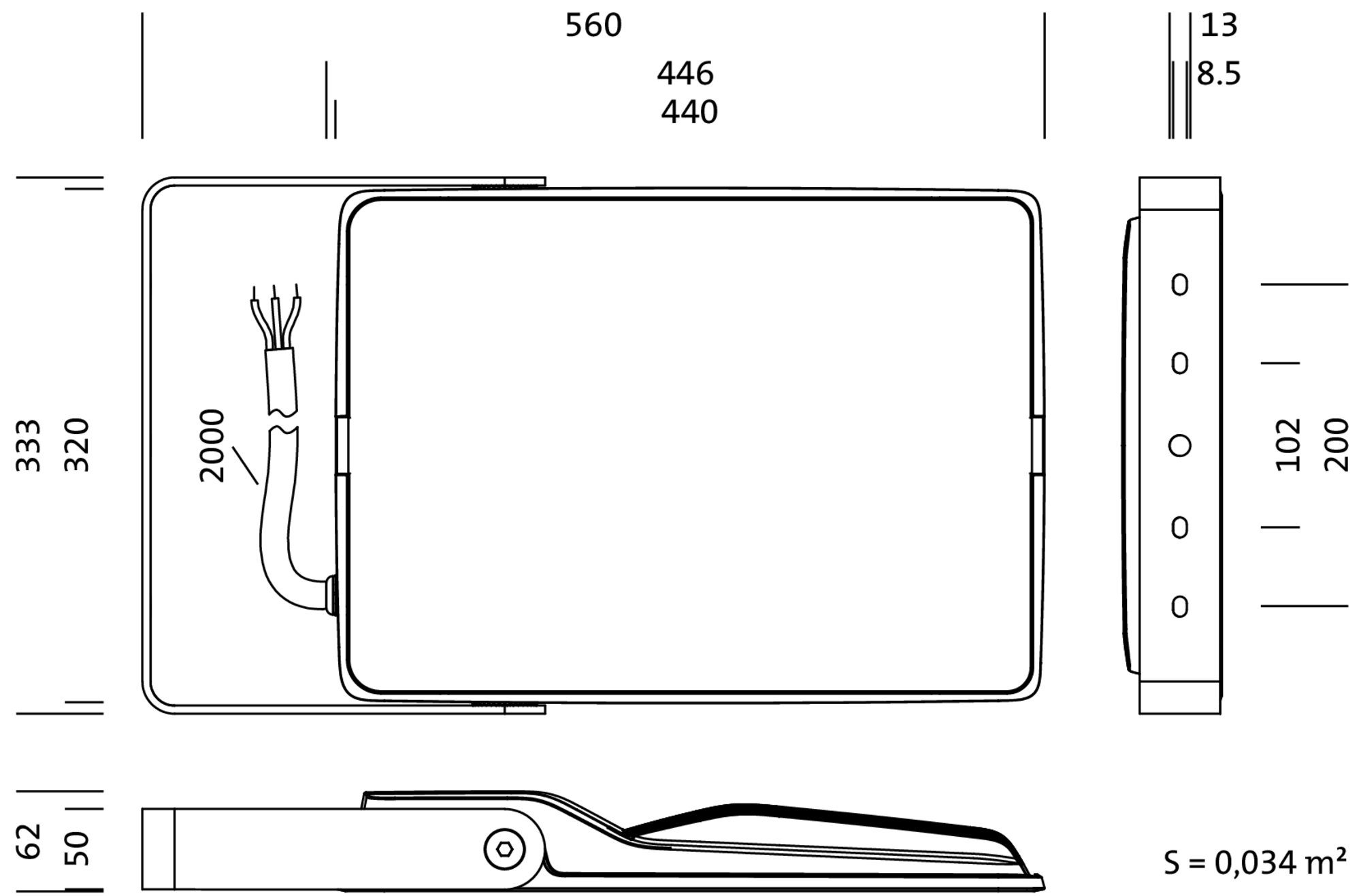

Dimensions, Weight

Length 560mm
Width 330mm
Height 62mm
Weight 8.5kg


Light emission

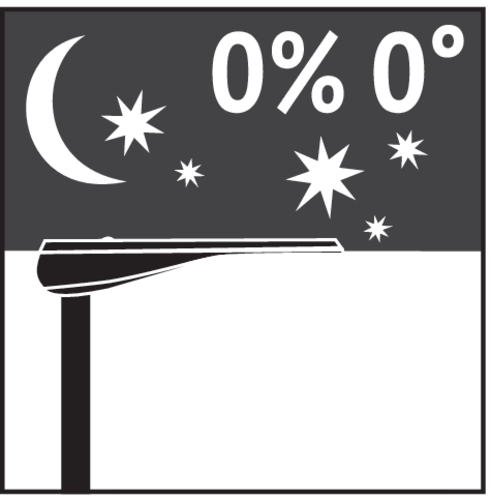

Light emission 0% at 0° inclination


Service life

Rated service life 73000h (L80/B50) at AT = 25°C

Product type
floodlight

Product name
SiCompact® 31 midi

Order No.
5XA7581E1K23

Light control
lens of plastic

Light distribution
PL32

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
37000lm

Luminous efficacy
148lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power
250W

Control gear
ECG

Control
ON/OFF

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Temperature range (operation)
-40..+45°C

Certification, designation
CE

Colour specification
metallic grey (RAL 9006)

bracket
sheet steel, coated, metallic grey (RAL 9006)

Colour specification
metallic grey (RAL 9006)

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm, to the wall

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
cable, 3x 1.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Connection cable
pre-assembled, L= 2m

Length
560mm

Width
330mm

Height
62mm

Weight
8.5kg

Light emission
0% at 0° inclination

Rated service life
73000h (L80/B50) at AT = 25°C

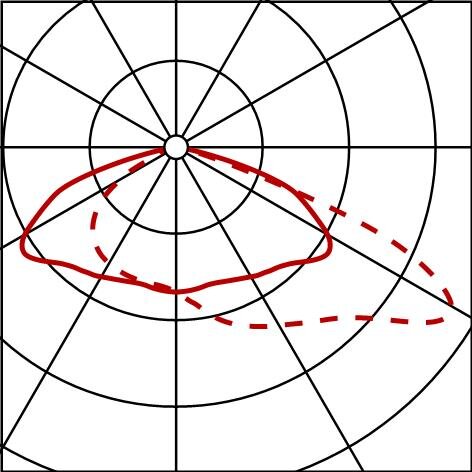

Photometric report / planning data

Photometric report / planning data

SiCompact® 31 midi
LED, ECG, direct asymmetric distribution, surface-mounted, to the wall, to the cross arm, to supporting structure
Ordercode: 5XA7581E1K23
