SiCompact® 31 maxi, PL32, asymmetric distribution
Close
Article floodlight

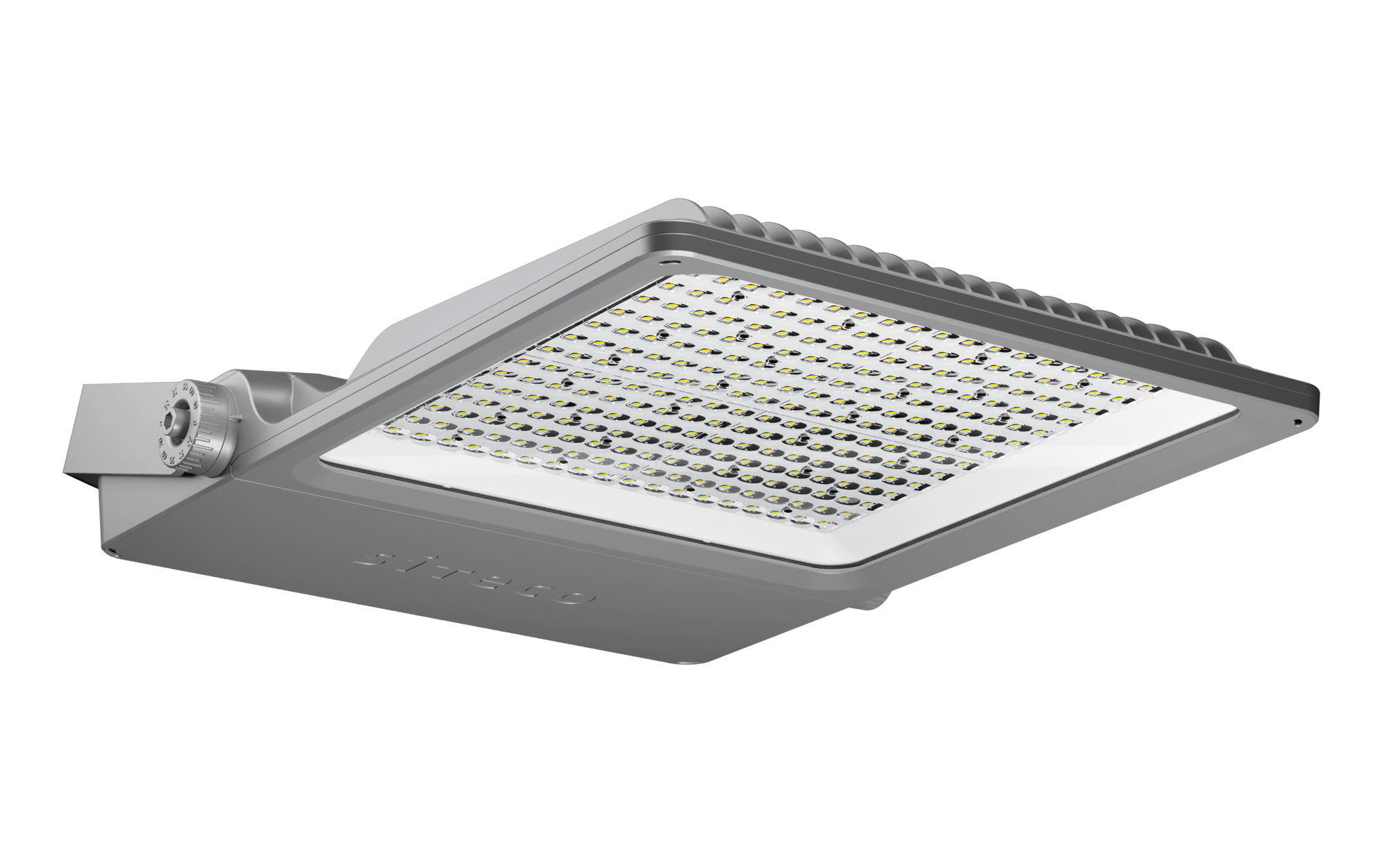

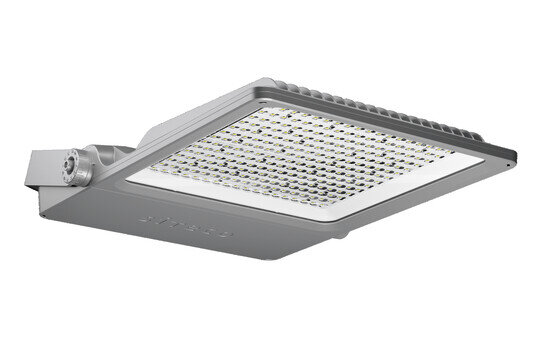

Product name SiCompact® 31 maxi
Lamp LED
Rated luminous flux 65000lm
Luminous efficacy 133lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 490W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 17.0kg

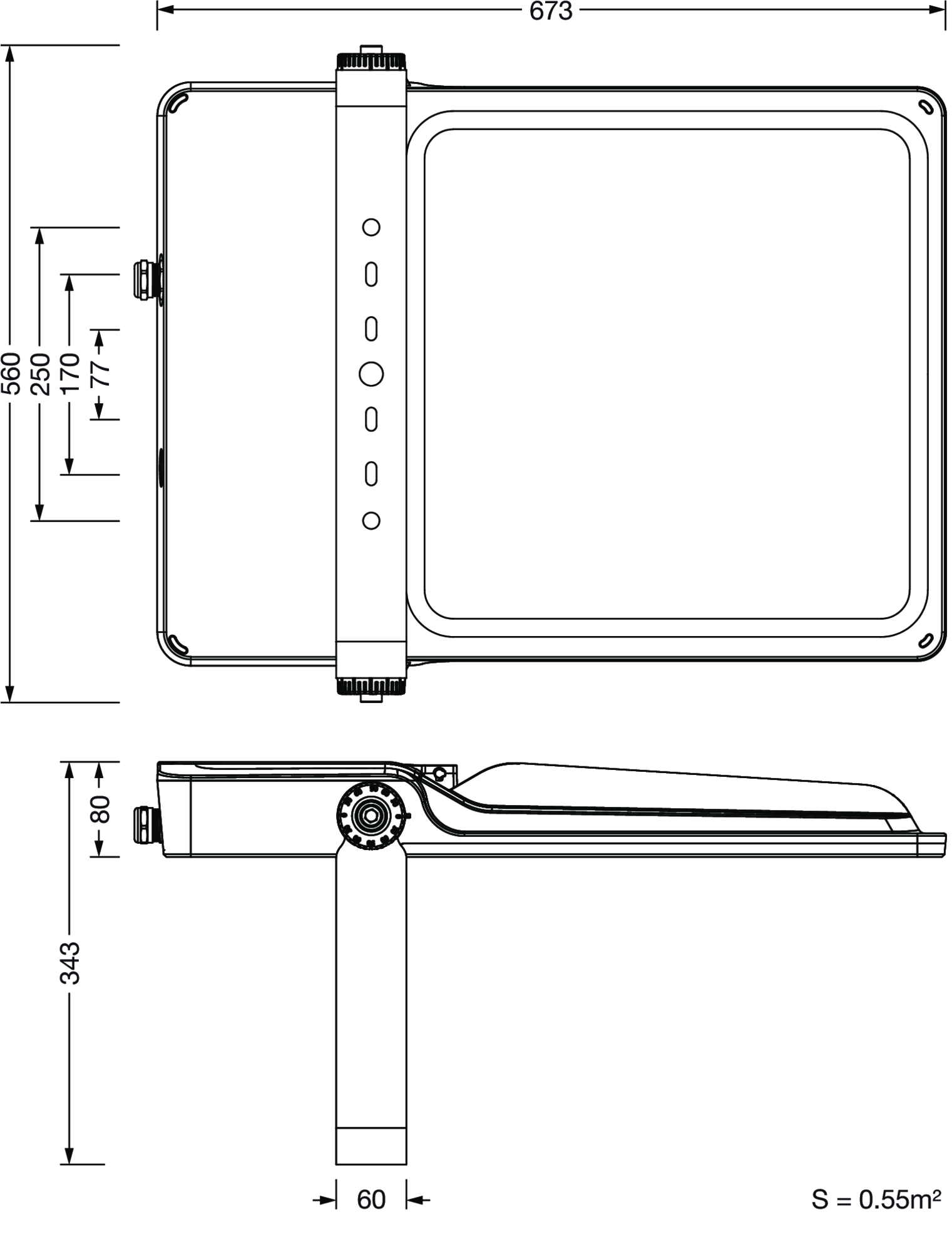

SiCompact® 31 maxi, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: PL32, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 65.000lm, luminous efficacy: 133lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG DALI, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 490W, of diecast aluminium, powder-coated, metallic grey (RAL 9006), length: 790mm, width: 560mm, height: 85mm, bracket, of sheet steel, powder-coated, metallic grey (RAL 9006), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK08, permissible operating ambient temperature: -30..+35°C, permissible operating ambient temperature for outdoor applications: -30..+45°C, permissible storage temperature: -30..+65°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

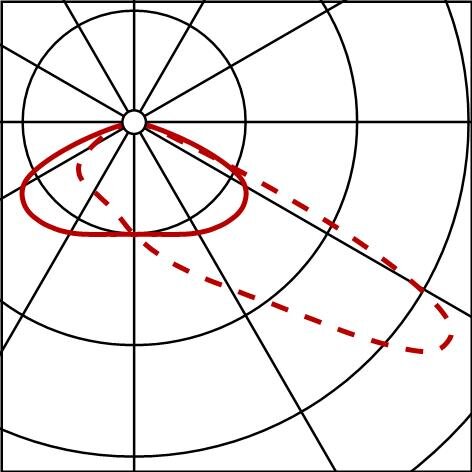

Photometric report / planning data
SiCompact® 31 maxi

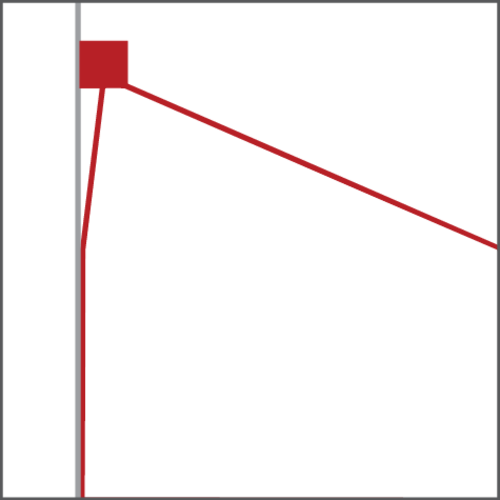

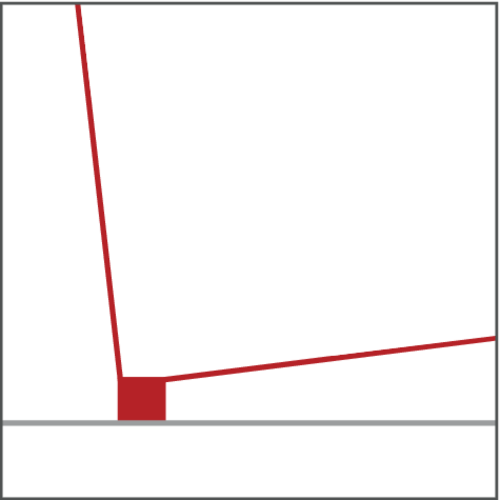

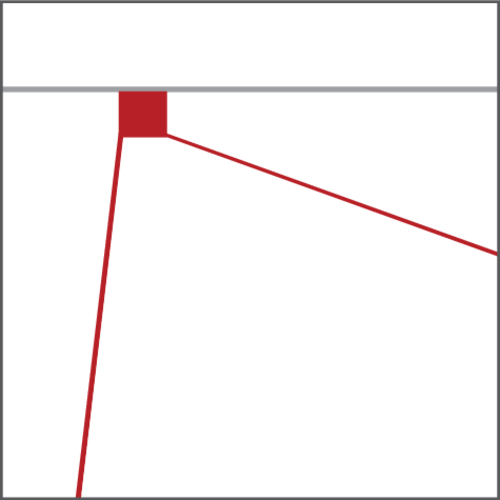

LED, ECG DALI, direct asymmetric distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
Ordercode: 5XA7592E1K22
