SiCompact® 31
SiCompact® stands for high reliability, robustness, ease of assembly and quality. High-quality workmanship, modern lighting technology and the high degree of protection IP66 make the floodlight family the first choice for standard outdoor lighting tasks and present it as an economical, low-maintenance, energy-efficient lighting solution.
Industrial-look design meets state of the art technology
SiCompact® 31 maxi
Intro to Productfamily
Data
Article floodlight
Lighting effect direct asymmetric distribution
Net luminous flux 65000lm to 70000lm
Colour temperature 3000K; 4000K
Control DALI
Specials
Easy and quick installation thanks to mounting bracket and preassembled connection cable (2m)
High efficient operation with up to 170lm/W and asymmetric narrow light distribution (PL32)
Robust housing and ESD-protected LED module, IP66, IK08, dustproof, vibration stability tested with 250,000 strokes, ENEC certified
High flexibility for all requirements with four construction sizes and rated luminous fluxes of 4,400–70,000lm
Configuration & Datasheets
Results

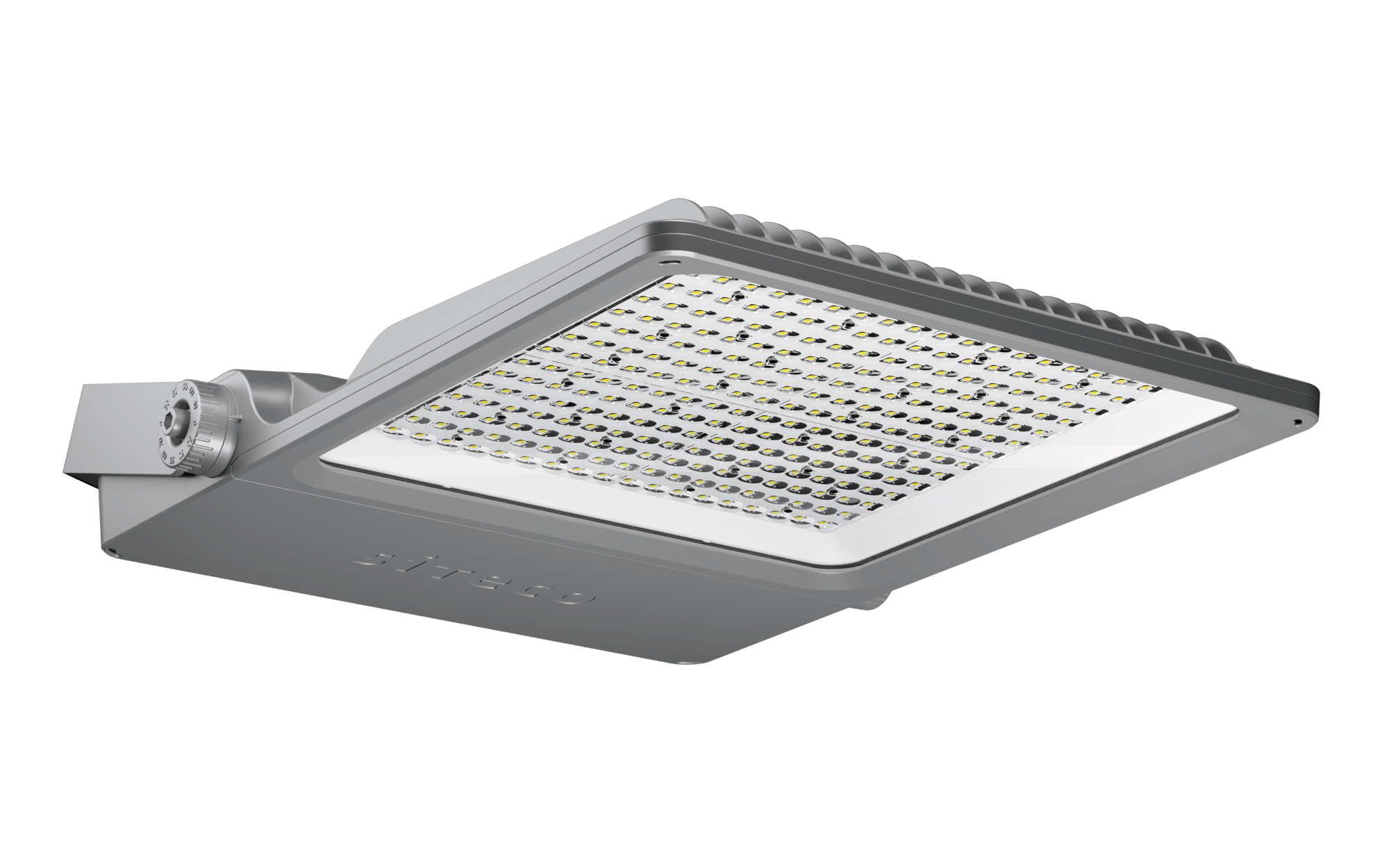

SiCompact® 31 maxi, PL32, asymmetric distribution
Order No.: 5XA7592E2K22GTIN (EAN): 4058352490082
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 70000lm | PL32 | 490W | 143lm/W | DALI | 17.0 |
SiCompact® 31 maxi, PL32, asymmetric distribution
Order No.: 5XA7592E1K22GTIN (EAN): 4058352501344
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 65000lm | PL32 | 490W | 133lm/W | DALI | 17.0 |
SiCompact® 31 maxi, PL32, asymmetric distribution
Order No.: 5XA7592E2K22GTIN (EAN): 4058352490082
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 70000lm |
| Light distribution | PL32 |
| Connected load | 490W |
| Luminous efficacy | 143lm/W |
| Control | DALI |
| Wt. (kg) | 17.0 |
SiCompact® 31 maxi, PL32, asymmetric distribution
Order No.: 5XA7592E1K22GTIN (EAN): 4058352501344
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 65000lm |
| Light distribution | PL32 |
| Connected load | 490W |
| Luminous efficacy | 133lm/W |
| Control | DALI |
| Wt. (kg) | 17.0 |
Optional accessory
| Order No.: 5NY74802XA11GTIN (EAN): 4039806199447 | Show details |
| Order No.: 5NY74802XA21GTIN (EAN): 4039806199454 | Show details |
| Order No.: 5NY74802XA1108GTIN (EAN): 4050737956183 | Show details |
| Order No.: 5NY74802XA2108GTIN (EAN): 4050737956206 | Show details |
