5MZ214D0TWA

Ordercode: 5MZ214D0TWA

Article office luminaire

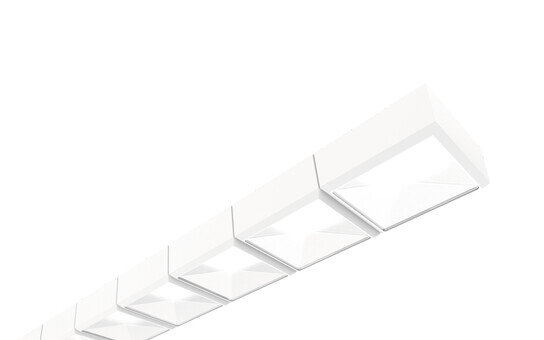

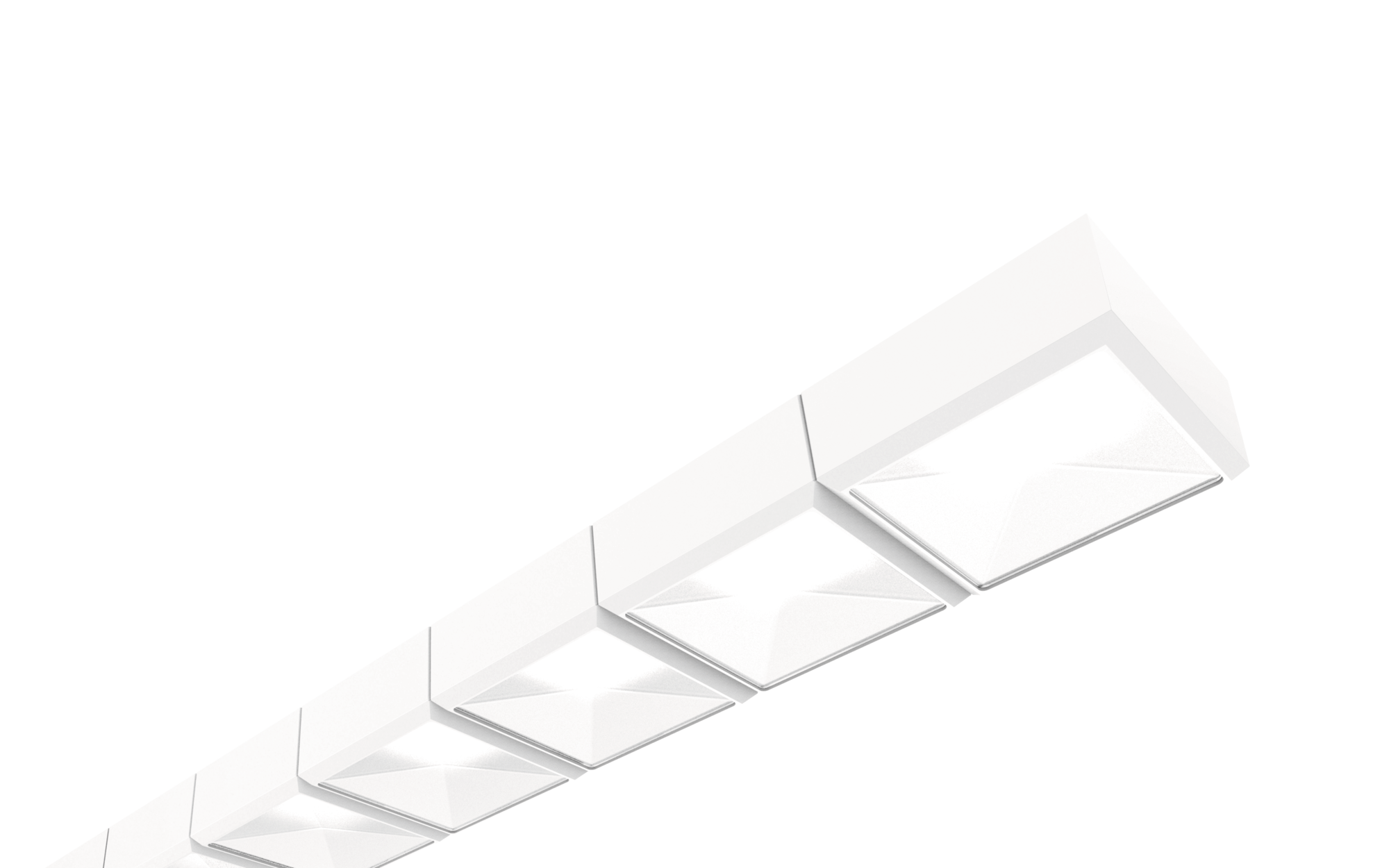

Product name Scriptus® 11
Lamp LED
Rated luminous flux 7190lm
Luminous efficacy 137lm/W
Colour temperature 3000..6500K
Colour rendering CRI > 80
Rated input power 53W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 9.8kg

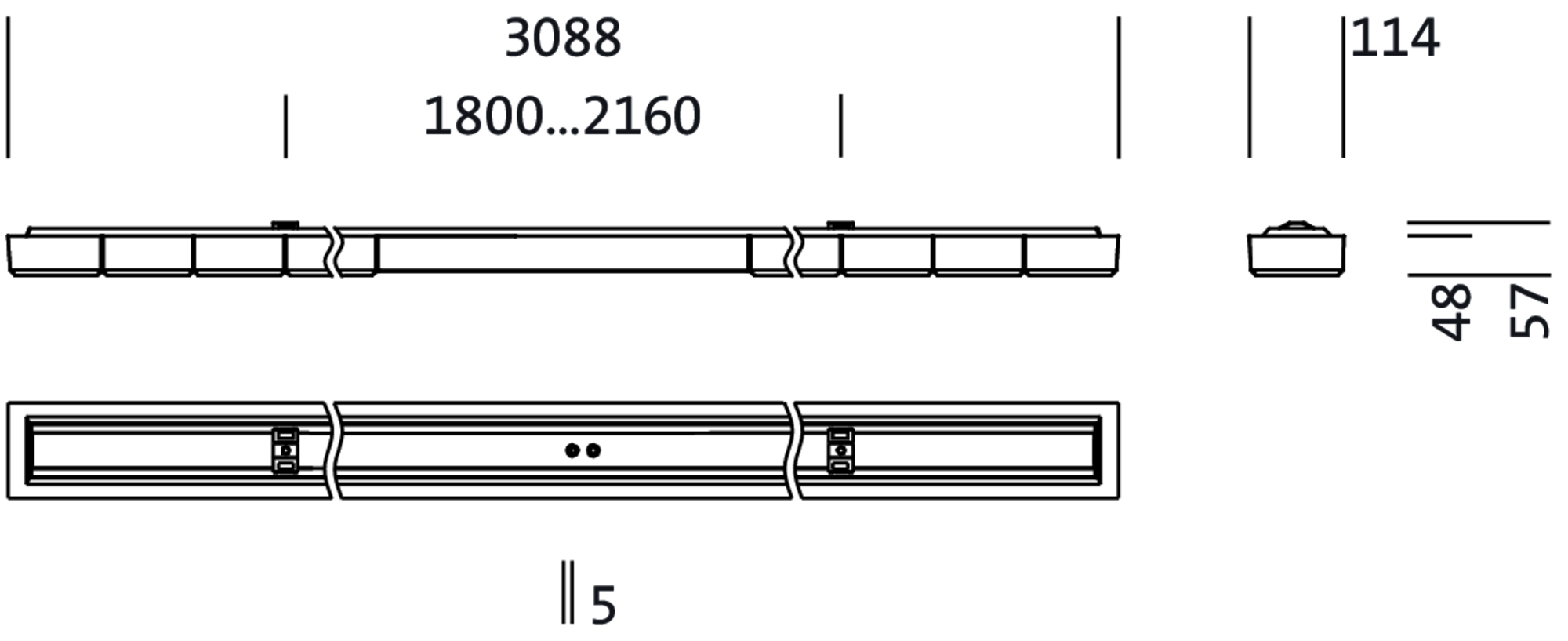

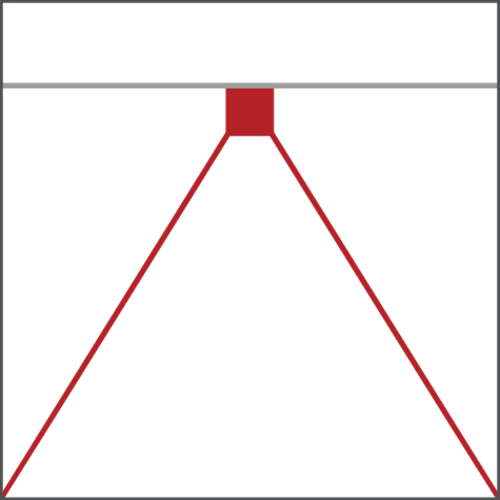

Scriptus® 11, office luminaire, primary optical cover: lenses, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 7.190lm, luminous efficacy: 137lm/W, light colour: 8tw, colour temperature: 3000..6500K, control gear: DALI, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 53W, housing, luminaire housing, of aluminium, traffic white (RAL 9016), length: 3.088mm, width: 114mm, height: 57mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, protection symbol: F, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

show moreshow less

Downloads

Technical product information

Data for application programs

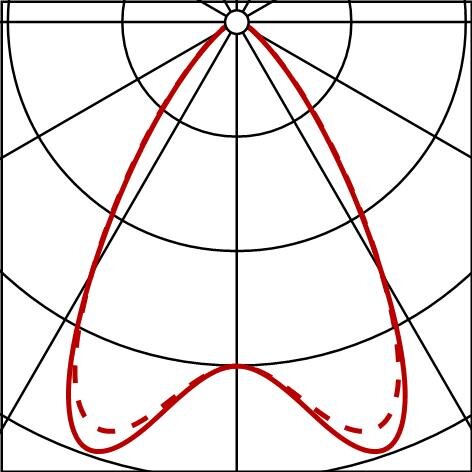

Photometric report / planning data

Scriptus® 11
office luminaire, traffic white (RAL 9016), DALI, 7190lm, 8tw, 3088x114mm, Connection: terminal
Lamps: 1x LED 3000K+6500K / CRI >= 80, individual setting: colour temperature 6500K
Ordercode: 5MZ214D0TWA

Photometric report (PDF)

Produktvariants/Accessoires
