Article office luminaire

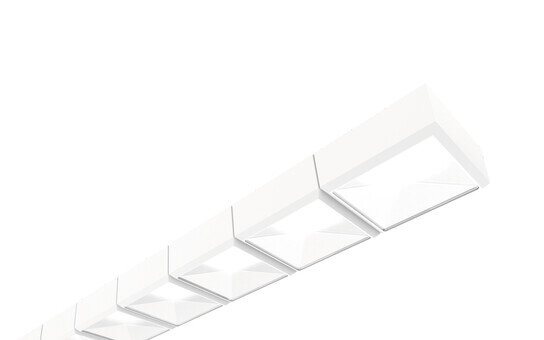

Product name Scriptus® 11
Lamp LED
Rated luminous flux 7230lm
Luminous efficacy 143lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 51W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 7.6kg

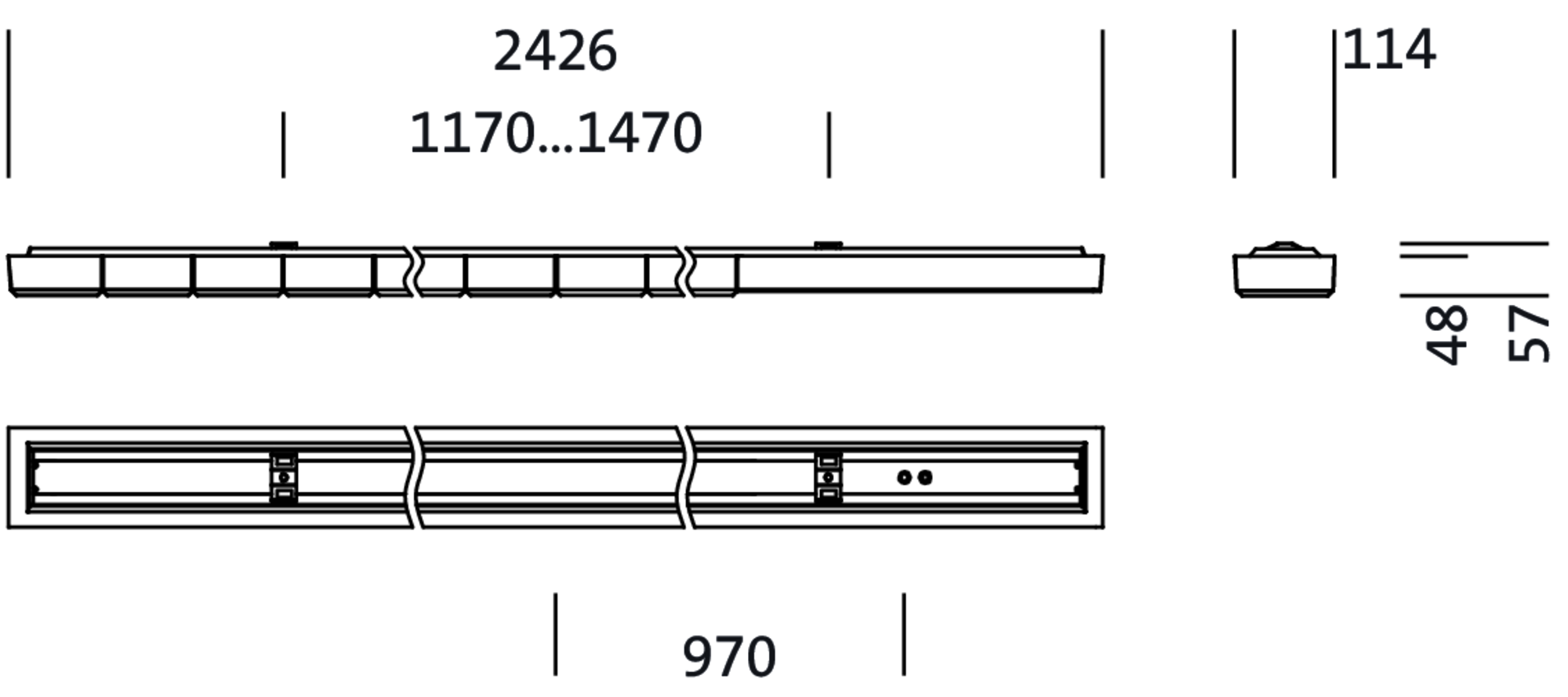

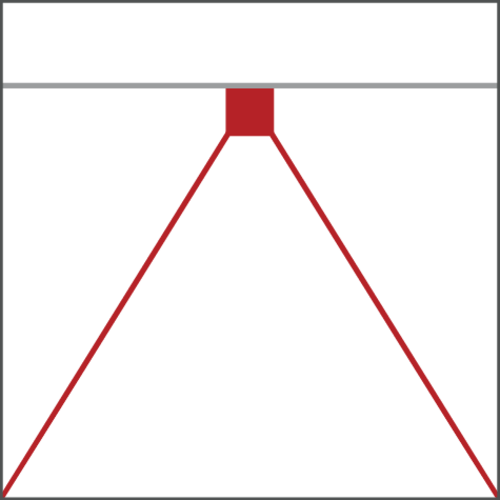

Scriptus® 11, office luminaire, primary optical cover: lenses, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 7.230lm, luminous efficacy: 143lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 51W, housing, luminaire housing, of aluminium, traffic white (RAL 9016), length: 2.426mm, width: 114mm, height: 57mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: F, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

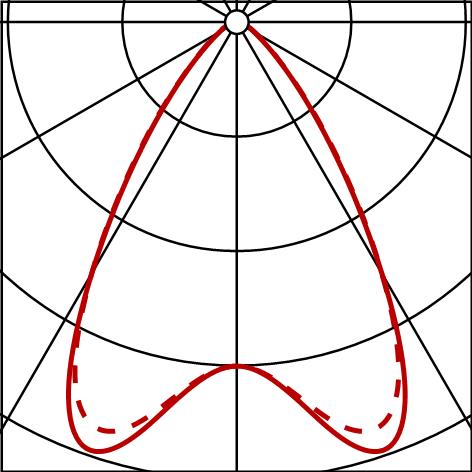

Photometric report / planning data
Scriptus® 11
office luminaire, traffic white (RAL 9016), DALI, 7230lm, 840, 2426x114mm, Connection: terminal
Lamps: 1x LED 4000K / CRI >= 80
Ordercode: 5MZ223D04WA
