Apollon 21 linear, direct distribution, 2700..6500K, DALI DT8
Close
Article office luminaire

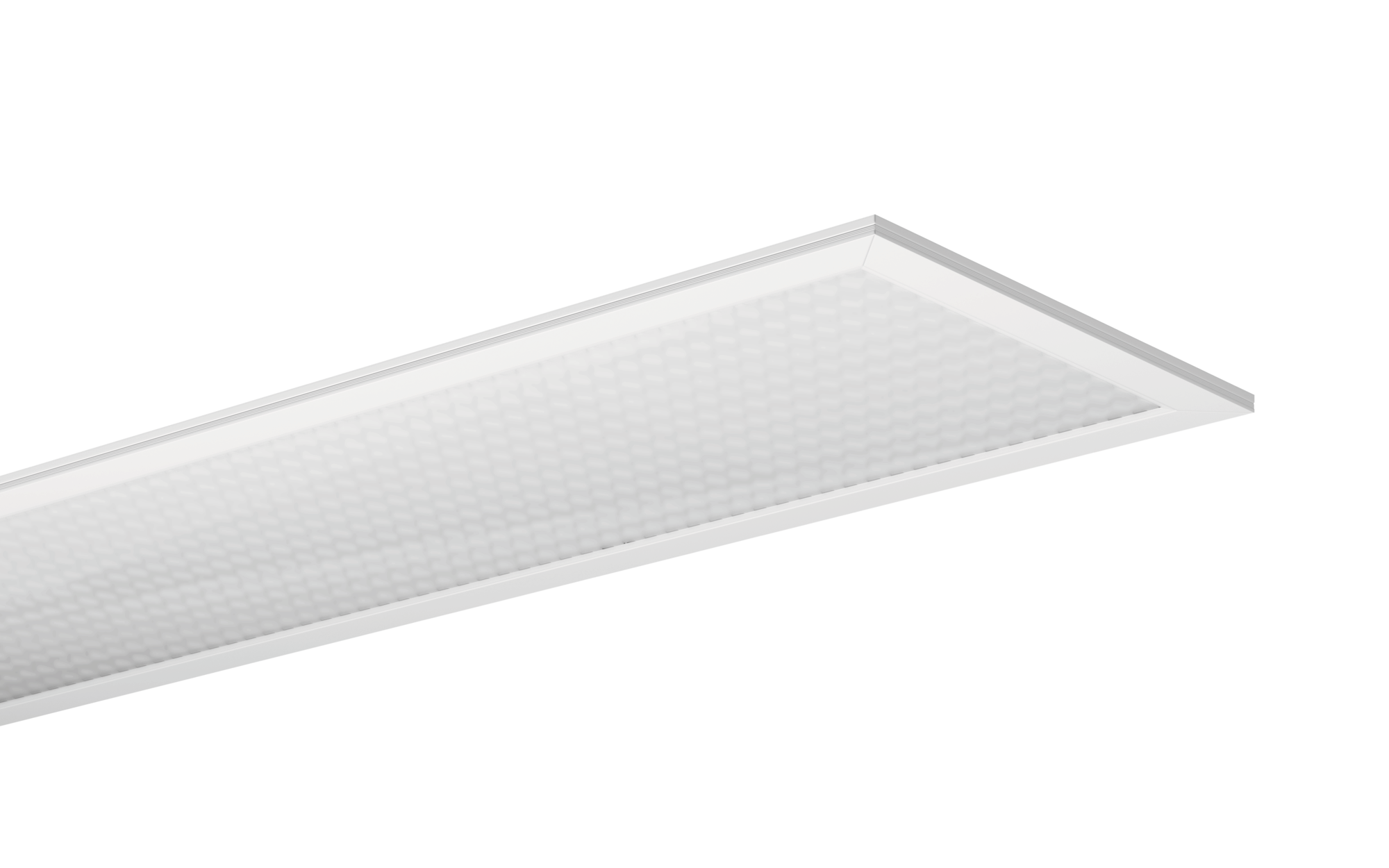

Product name Apollon 21 linear
Lamp LED
Rated luminous flux 4200lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 44W
Service life 50000h (L90/B50) at AT = 25°C, 100000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 3.9kg

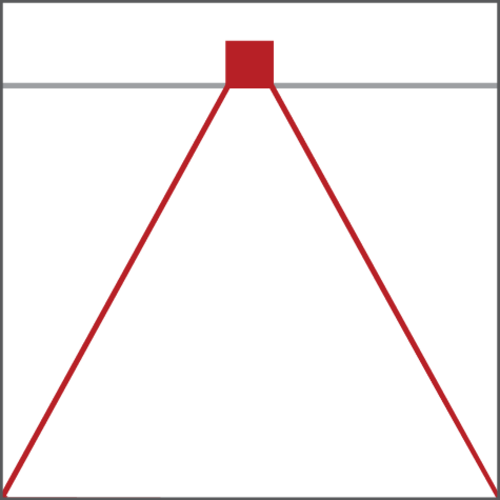

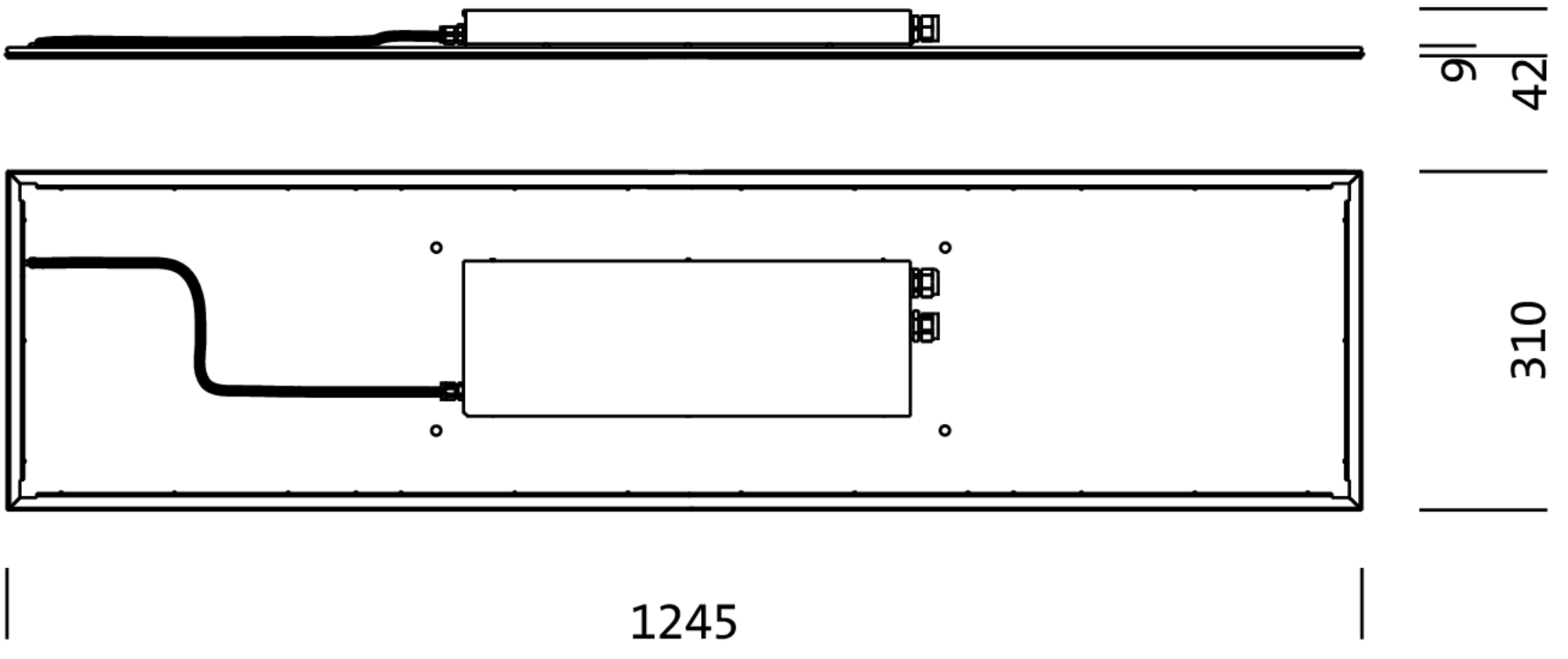

Apollon 21 linear, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.200lm, luminous efficacy: 96lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 44W, housing, of aluminium, coated, pure white, length: 1.245mm, width: 307mm, height: 30mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

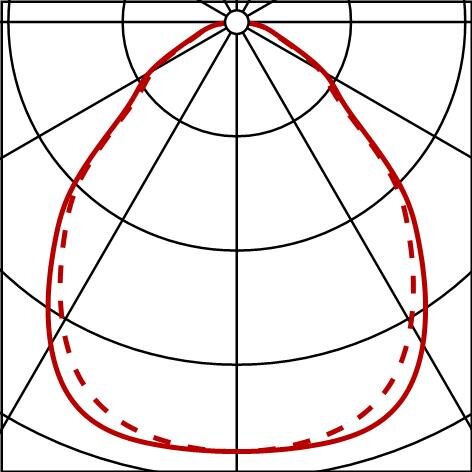

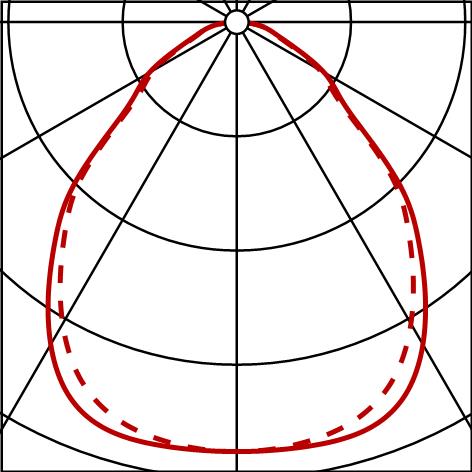

Photometric report / planning data
Apollon 21 linear
office luminaire, pure white, DALI DT8, 4200lm, 8tw, 1245x307mm, Connection: terminal
Lamps: 1x LED, individual setting: colour temperature 2700K
Ordercode: 51MQ14WD2T12
Apollon 21 linear
Lamps: 1x LED, individual setting: colour temperature 6500K
Ordercode: 51MQ14WD2T12
