Ordercode: 51MQ14WD2T12

Article office luminaire
Product name Apollon® 21 linear
Lamp LED
Rated luminous flux 4200lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 44W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 5.4kg

Apollon® 21, office luminaire, primary optical cover: micro prismatic cover, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED rated luminous flux: 4.200 lm, light colour: 8tw, colour temperature: 2700..6500K, control gear: ECG DALI, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 44W, housing, of aluminium, coated, pure white, module: M625, length: 1.245 mm, width: 307 mm, height: 40mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, packaging unit: 1 piece

Product details


Key data

Product type office luminaire
Product name Apollon® 21 linear
Order No. 51MQ14WD2T12


Lighting technology

Cover micro prismatic cover
Beam angle wide distribution, 80°
Symmetry symmetric distribution
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19


Lamps

Lamps with LED
Rated luminous flux 4200lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering index CRI > 80
Light colour 8tw
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 4 SDCM (initial)
Rated input power 44W


Operating device

Control gear ECG DALI
Control DALI DT8


Certificates, Standards

Protection rating IP20
Protection rating (lamp compartment, on room side) IP50
Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC


Material, Colour

housing aluminium, coated, pure white
Colour specification pure white
housing upper side sheet steel, galvanised
Cover micro prismatic cover of PMMA


Mounting

Mounting method, mounting location lay-in mounting, in the ceiling
Arrangement single arrangement


Electrical connection

Connection terminal, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC

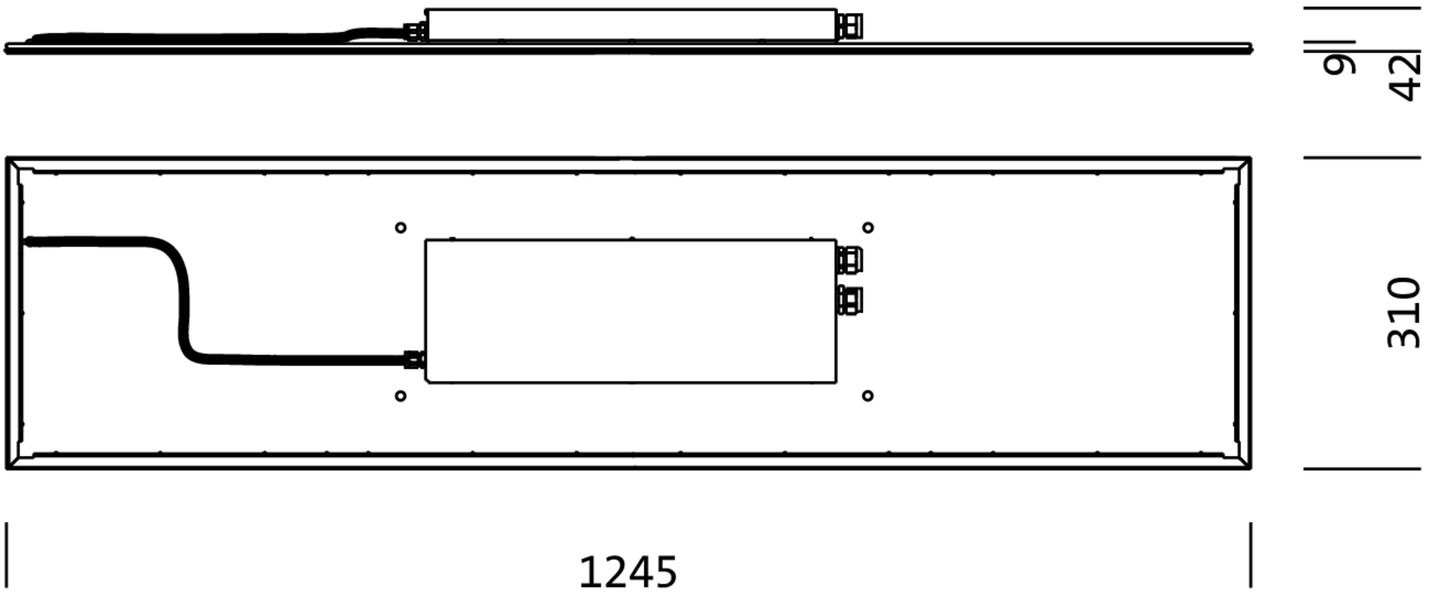

Dimensions, Weight

Length 1245mm
Width 307mm
Height 40mm
Weight 5.4kg


Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Apollon® 21 linear

Order No.
51MQ14WD2T12

Cover
micro prismatic cover

Beam angle
wide distribution, 80°

Symmetry
symmetric distribution

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4200lm

Luminous efficacy
96lm/W

Colour temperature
2700..6500K

Colour rendering index
CRI > 80

Light colour
8tw

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 4 SDCM (initial)

Rated input power
44W

Control gear
ECG DALI

Control
DALI DT8

Protection rating
IP20

Protection rating (lamp compartment, on room side)
IP50

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC

housing
aluminium, coated, pure white

Colour specification
pure white

housing upper side
sheet steel, galvanised

Cover
micro prismatic cover of PMMA

Mounting method, mounting location
lay-in mounting, in the ceiling

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1245mm

Width
307mm

Height
40mm

Weight
5.4kg

Rated service life
50000h (L85/B50) at AT = 25°C

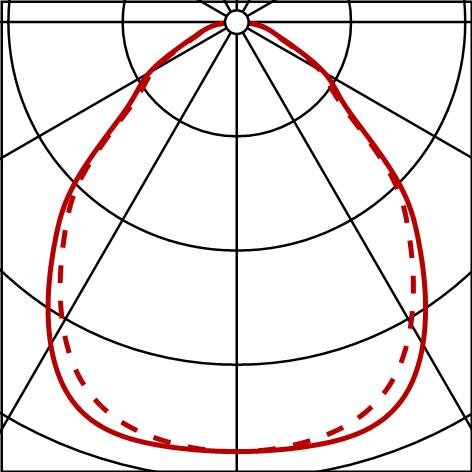

Photometric report / planning data

Photometric report / planning data

Apollon® 21 linear
office luminaire, pure white, DALI DT8, 4200lm, 8tw, 1245x307mm, for M625, Connection: terminal
Ordercode: 51MQ14WD2T12
