Siteco Mirrortec®

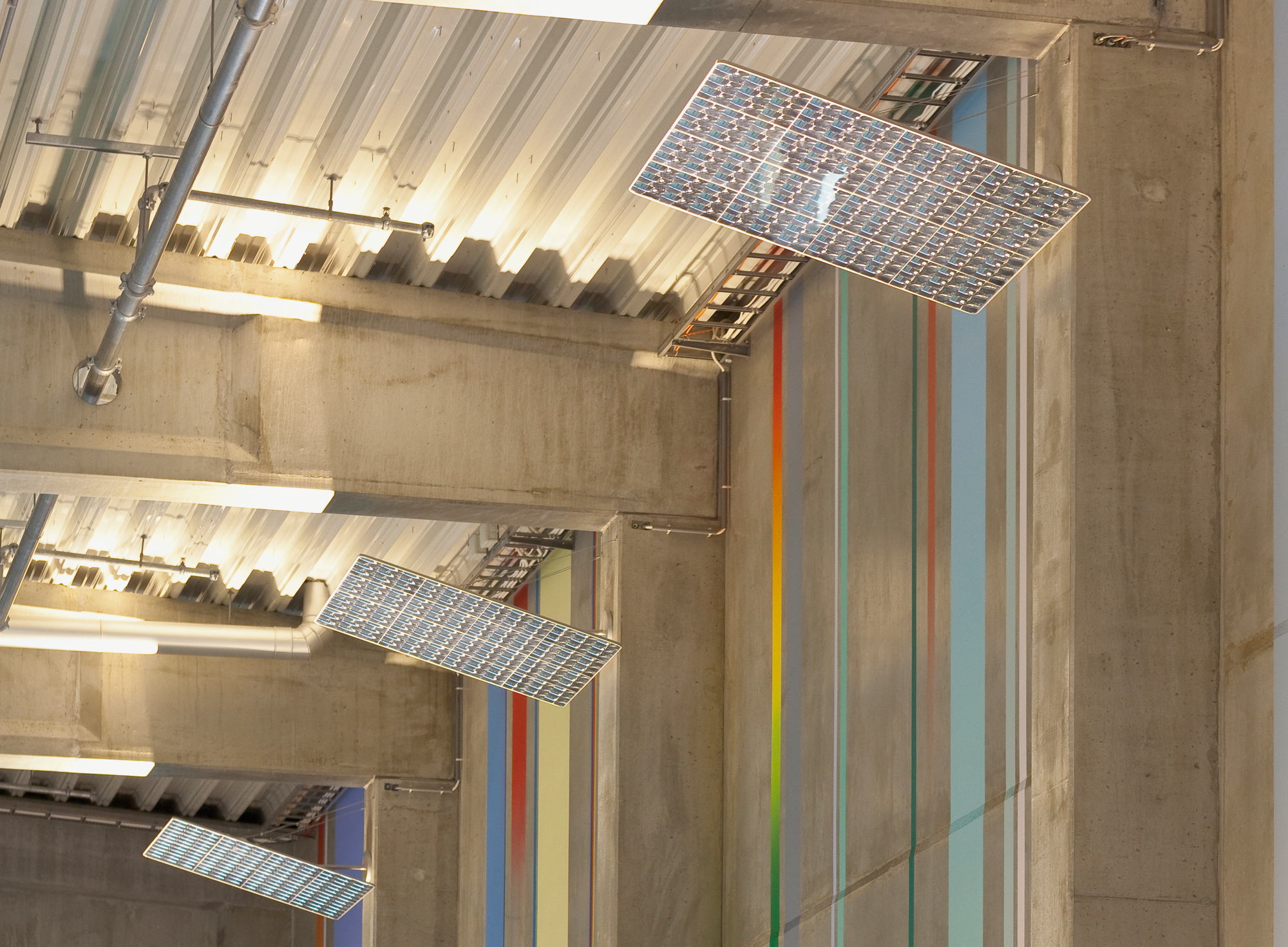

The ultra-flat faceted reflector with Fresnel technology combines high-quality design with minimal height. The projector-reflector system unobtrusively accentuates the architecture in representative areas such as entrance areas, counter halls, sales rooms or swimming pools. The low weight of the models makes assembly much easier.
Pinpoint architectural lighting
Producttypes
Siteco Mirrortec® Reflector 100
Intro to ProductfamilyData
Article secondary reflector
Lighting effect asymmetric wide distribution; symmetric narrow distribution
Surface structure fresnel structure
Form square; circular
Specials
Ultra-flat facetted reflector with Fresnel technology
Very good optical characteristics: brilliant appearance with superior light point resolution; defined beam area with good uniformity
The light source is still not visible even from greater distances
High quality design, minimal construction height
Depth effect of facets
Low installation effort , low weight
Easy cleaning with washable, flat front
Configuration & Datasheets
- incl. wire or pendant suspension
Results
Siteco Mirrortec® Indoor, symmetric narrow distribution, circular, Ø900, with pendant suspension
Order No.: 5NW13991KB GTIN (EAN): 4039806449627
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | circular | Ø900 | 9.6 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 600x600, with pendant suspension
Order No.: 5NW13991QA GTIN (EAN): 4039806449641
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 600x600 | 6.0 |

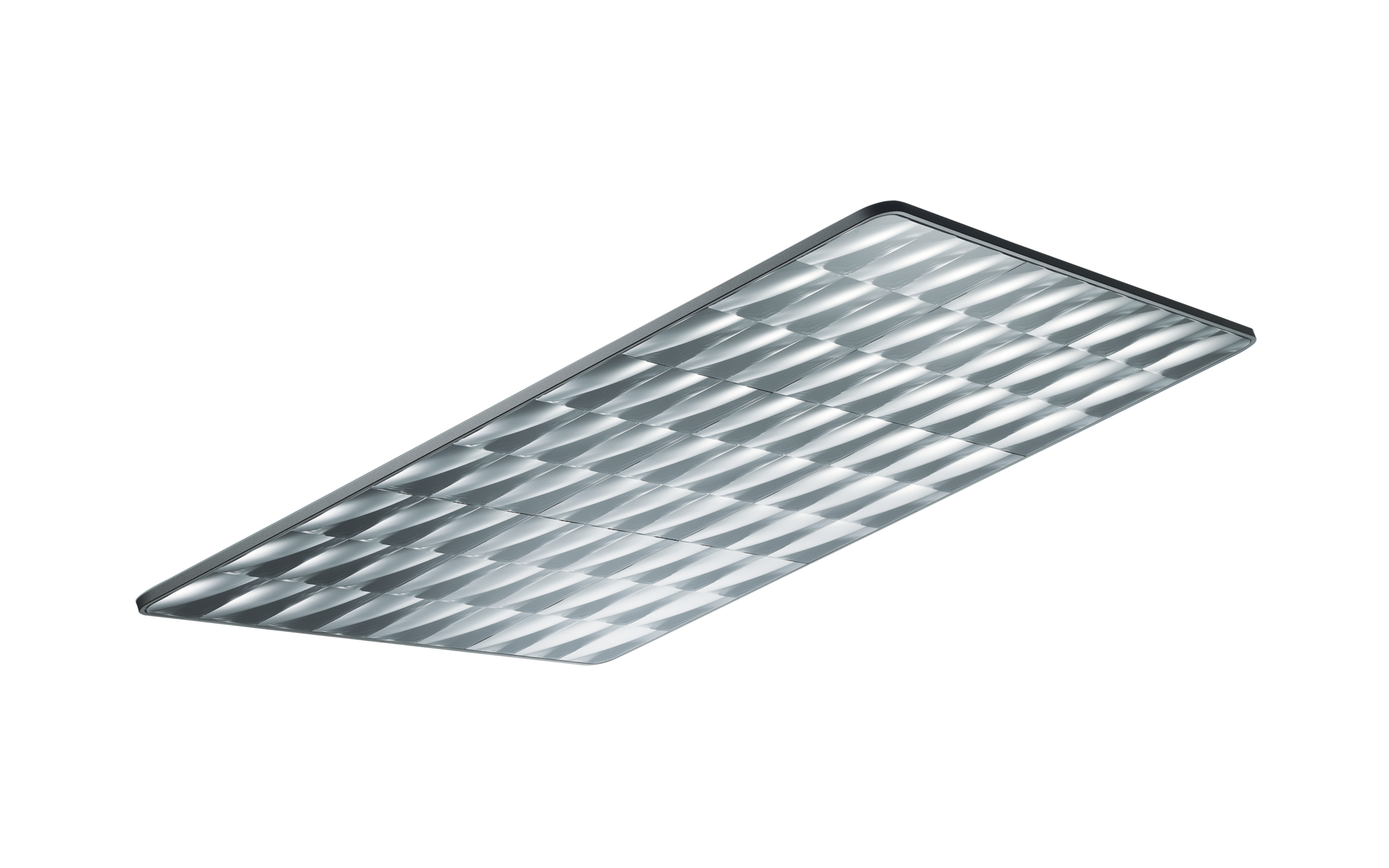

Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 900x900, with pendant suspension
Order No.: 5NW13991QB GTIN (EAN): 4039806449658
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 900x900 | 9.5 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW13991QC GTIN (EAN): 4039806449665
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 1200x1200 | 17.6 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, circular, Ø900, with wire suspension
Order No.: 5NW13993KB GTIN (EAN): 4039806449740
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | circular | Ø900 | 4.8 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 600x600, with wire suspension
Order No.: 5NW13993QA GTIN (EAN): 4039806449764
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 600x600 | 3.0 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 900x900, with wire suspension
Order No.: 5NW13993QB GTIN (EAN): 4039806449771
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 900x900 | 8.8 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 1200x1200, with wire suspension
Order No.: 5NW13993QC GTIN (EAN): 4039806449788
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | symmetric narrow distribution | square | 1200x1200 | 14.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 600x600, with pendant suspension
Order No.: 5NW14091QA GTIN (EAN): 4039806588555
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 600x600 | 5.9 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 900x900, with pendant suspension
Order No.: 5NW14091QB GTIN (EAN): 4039806588562
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 900x900 | 9.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW14091QC GTIN (EAN): 4039806588586
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 1200x1200 | 17.9 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 600x600, with wire suspension
Order No.: 5NW14093QA GTIN (EAN): 4039806568441
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 600x600 | 3.4 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 900x900, with wire suspension
Order No.: 5NW14093QB GTIN (EAN): 4039806568465
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 900x900 | 8.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 1200x1200, with wire suspension
Order No.: 5NW14093QC GTIN (EAN): 4039806568489
| Specular reflector | Lighting effect | Form | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|
| fresnel reflector 100 | asymmetric wide distribution | square | 1200x1200 | 8.6 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, circular, Ø900, with pendant suspension
Order No.: 5NW13991KBGTIN (EAN): 4039806449627
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | circular |
| Dimension (mm) | Ø900 |
| Wt. (kg) | 9.6 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 600x600, with pendant suspension
Order No.: 5NW13991QAGTIN (EAN): 4039806449641
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 6.0 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 900x900, with pendant suspension
Order No.: 5NW13991QBGTIN (EAN): 4039806449658
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 9.5 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW13991QCGTIN (EAN): 4039806449665
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 17.6 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, circular, Ø900, with wire suspension
Order No.: 5NW13993KBGTIN (EAN): 4039806449740
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | circular |
| Dimension (mm) | Ø900 |
| Wt. (kg) | 4.8 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 600x600, with wire suspension
Order No.: 5NW13993QAGTIN (EAN): 4039806449764
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 3.0 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 900x900, with wire suspension
Order No.: 5NW13993QBGTIN (EAN): 4039806449771
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 8.8 |
Siteco Mirrortec® Indoor, symmetric narrow distribution, square, 1200x1200, with wire suspension
Order No.: 5NW13993QCGTIN (EAN): 4039806449788
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | symmetric narrow distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 14.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 600x600, with pendant suspension
Order No.: 5NW14091QAGTIN (EAN): 4039806588555
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 5.9 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 900x900, with pendant suspension
Order No.: 5NW14091QBGTIN (EAN): 4039806588562
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 9.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 1200x1200, with pendant suspension
Order No.: 5NW14091QCGTIN (EAN): 4039806588586
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 17.9 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 600x600, with wire suspension
Order No.: 5NW14093QAGTIN (EAN): 4039806568441
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 600x600 |
| Wt. (kg) | 3.4 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 900x900, with wire suspension
Order No.: 5NW14093QBGTIN (EAN): 4039806568465
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 900x900 |
| Wt. (kg) | 8.5 |
Siteco Mirrortec® Indoor, asymmetric wide distribution, square, 1200x1200, with wire suspension
Order No.: 5NW14093QCGTIN (EAN): 4039806568489
| Specular reflector | fresnel reflector 100 |
|---|---|
| Lighting effect | asymmetric wide distribution |
| Form | square |
| Dimension (mm) | 1200x1200 |
| Wt. (kg) | 8.6 |
