Licross® 11
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 209lm/W or low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.
Our performance solution: Licross® 11 is our innovative trunking system with maximum efficiency (up to 209lm/W), service life (up to 100,000h) and flexibility

emergency lighting luminaire insert IP40
Introduksjon til produktfamilien
Hovedegenskaper
Varetekst armaturinnsats
Kapslingsklasse IP40
Netto lysfluks 300lm til 320lm
Fargetemperatur 4000K
Lyseffekt direkte asymmetrisk ekstremt bredstrålende; direkte asymmetrisk ellipsoid smalstrålende; direkte symmetrisk smalstrålende; direkte symmetrisk ekstremt bredstrålende
Spesielle egenskaper
Konfigurasjon og datablad
- Licross®-monteringsskinne og monteringskinnetilbehør må bestilles separat
- suitable for 9, 11 or 14-core wired trunking rail
- ved utenpåliggende montasje i tak: reduksjon av maksimalt tillatt omgivelsestemperatur med 5°C
- With AC/DC luminaire inserts, the power supply can be changed to either mains supply operation L1/L2/L3, emergency supply 1 L´/N´ or emergency supply 2 L´´/N´´ by moving the contacts on the connection block
Resultater
Licross®, symmetrisk smalstrålende, Bruksområde flate
Fargetemperatur | Fargegjengivelse | Netto lysfluks (lm) | Tilkoblingseffekt | Lysutbytte | Styring | ta | Kapslingsklasse | L (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 310 | 3,9W | 80lm/W | CEAG | -20..+40°C | IP40 | 500 | 0,5 |
Licross®, symmetrisk ekstremt bredstrålende, Bruksområde flate
Fargetemperatur | Fargegjengivelse | Netto lysfluks (lm) | Tilkoblingseffekt | Lysutbytte | Styring | ta | Kapslingsklasse | L (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 320 | 3,9W | 82lm/W | CEAG | -20..+40°C | IP40 | 500 | 0,5 |
Licross®, asymmetrisk ekstremt bredstrålende, Bruksområde rømnings- og redningsveier
Fargetemperatur | Fargegjengivelse | Netto lysfluks (lm) | Tilkoblingseffekt | Lysutbytte | Styring | ta | Kapslingsklasse | L (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 300 | 3,9W | 77lm/W | CEAG | -20..+40°C | IP40 | 500 | 0,5 |
Licross®, asymmetrisk ellipsoid smalstrålende, Bruksområde rømnings- og redningsveier
Fargetemperatur | Fargegjengivelse | Netto lysfluks (lm) | Tilkoblingseffekt | Lysutbytte | Styring | ta | Kapslingsklasse | L (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 320 | 3,9W | 82lm/W | CEAG | -20..+40°C | IP40 | 500 | 0,5 |
Licross®, symmetrisk smalstrålende, Bruksområde flate
Bestillingsnummer: 56TL117C4X31GTIN (EAN): 4058352862568
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 70 |
Netto lysfluks (lm) | 310 |
Tilkoblingseffekt | 3,9W |
Lysutbytte | 80lm/W |
Styring | CEAG |
ta | -20..+40°C |
Kapslingsklasse | IP40 |

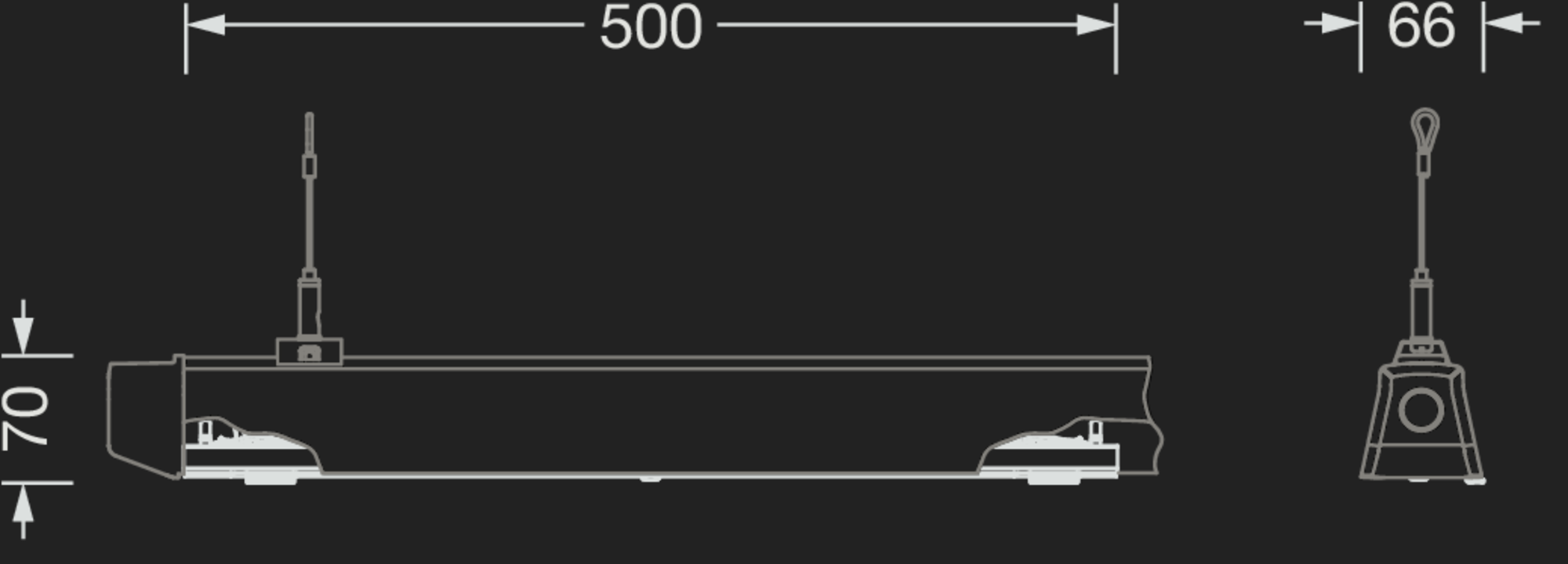

L (mm) | 500 |
Vekt (kg) | 0,5 |
Licross®, symmetrisk ekstremt bredstrålende, Bruksområde flate
Bestillingsnummer: 56TL157C4X31GTIN (EAN): 4058352862582
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 70 |
Netto lysfluks (lm) | 320 |
Tilkoblingseffekt | 3,9W |
Lysutbytte | 82lm/W |
Styring | CEAG |
ta | -20..+40°C |
Kapslingsklasse | IP40 |
L (mm) | 500 |
Vekt (kg) | 0,5 |
Licross®, asymmetrisk ekstremt bredstrålende, Bruksområde rømnings- og redningsveier
Bestillingsnummer: 56TL197C4X31GTIN (EAN): 4058352862605
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 70 |
Netto lysfluks (lm) | 300 |
Tilkoblingseffekt | 3,9W |
Lysutbytte | 77lm/W |
Styring | CEAG |
ta | -20..+40°C |
Kapslingsklasse | IP40 |
L (mm) | 500 |
Vekt (kg) | 0,5 |
Licross®, asymmetrisk ellipsoid smalstrålende, Bruksområde rømnings- og redningsveier
Bestillingsnummer: 56TL1E7C4X31GTIN (EAN): 4058352862629
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 70 |
Netto lysfluks (lm) | 320 |
Tilkoblingseffekt | 3,9W |
Lysutbytte | 82lm/W |
Styring | CEAG |
ta | -20..+40°C |
Kapslingsklasse | IP40 |
L (mm) | 500 |
Vekt (kg) | 0,5 |
