Licross® 11

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

14 cores and full flexibility are a must-have for tomorrow.

Performance luminaire insert IP40/IP50

Intro to Productfamily

Data

Article luminaire insert
Protection rating IP40; IP50
Net luminous flux 4520lm to 14250lm
Colour temperature 2700…6500K; 4000K; 5000K; 6500K
Lighting effect direct/indirect symmetric wide distribution

Specials

Special optics technology for very high visual comfort with up to UGR ≤ 19 and suitability for VDU workstations
Attractive interior design with up to 23% indirect light component – ideal for SITECO HCLlive
Reliable in the long run with service life up to 100,000h
Depending on version switchable with multilumen and constant luminous flux control (CLO) or light control via DALI

Configuration & Datasheets

Colour temperature

Control

Rated luminous flux (lm)

UGR

Protection rating

Operating ambient temperature

Emergency light

  • please order Licross® trunking rail or trunking rail accessories separately
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
  • luminaire inserts (AC/DC) suiatble for group and central battery systems according to EN60598-2-22 (even at AC operation)
  • with luminaire inserts (AC/DC), the power supply can be changed from mains supply L1/L2/L3 to emergency supply 1 or emergency supply 2 on the connection block (no changeover switch)
  • with luminaire inserts (AC/DC), luminaires use reduced luminous flux with DC operation (see photometric report for DC operation)

Results

Licross® 11 Performance TW, symmetric wide distribution, AC

Order No.: 51TS16TNT8XWGTIN (EAN): 4058352210796
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
2700..6500KCRI > 80819057W143lm/WDALI DT8 -25..+40°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16DN4EXLGTIN (EAN): 4058352265086
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425086W166lm/WDALI 2 -25..+35°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16CN4DXLGTIN (EAN): 4058352265130
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801344079W171lm/WON/OFF Multilumen, CLOi -35..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN49XFGTIN (EAN): 4058352265093
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914056W163lm/WDALI 2 -25..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16CN48XFGTIN (EAN): 4058352210857
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80828049W169lm/WON/OFF Multilumen, CLOi -35..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS167N48XFGTIN (EAN): 4058352210338
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80821048W173lm/WON/OFF -35..+45°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16DN4EXLDGTIN (EAN): 4058352418734
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425086W166lm/WDALI 2 -25..+35°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16CN4DXLDGTIN (EAN): 4058352418680
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801344079W171lm/WON/OFF Multilumen, CLOi -35..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16DN49XFDGTIN (EAN): 4058352418703
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914056W163lm/WDALI 2 -25..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16CN48XFDGTIN (EAN): 4058352418666
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80828049W169lm/WON/OFF Multilumen, CLOi -35..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN59XFGTIN (EAN): 4058352340493
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
5000KCRI > 80915056W163lm/WDALI 2 -25..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16CN68XFGTIN (EAN): 4058352360774
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
6500KCRI > 80808049W165lm/WON/OFF Multilumen, CLOi -35..+40°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN69XFGTIN (EAN): 4058352340516
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
6500KCRI > 80903057W159lm/WDALI 2 -25..+40°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16DN6EXLGTIN (EAN): 4058352389881
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
6500KCRI > 801418088W161lm/WDALI 2 -25..+30°CIP5015003.5

Licross® 11 Performance extreme HO, symmetric wide distribution, AC

Order No.: 51TS16DN4EXLEGTIN (EAN): 4058352447437
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425086W166lm/WDALI 2 -25..+45°CIP5015003.5

Licross® 11 Performance extreme MO, symmetric wide distribution, AC

Order No.: 51TS16DN49XFEGTIN (EAN): 4058352447413
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914056W163lm/WDALI 2 -25..+50°CIP5015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN4EXL3SGTIN (EAN): 4058352485828
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425090W159lm/WDALI 23h+5..+30°CIP5015004.0

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN49XF3SGTIN (EAN): 4058352485798
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914060W153lm/WDALI 23h+5..+35°CIP5015004.0

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN4EXL3CGTIN (EAN): 4058352485804
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425090W159lm/WDALI 23h+5..+30°CIP5015004.0

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN49XF3CGTIN (EAN): 4058352485767
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914060W153lm/WDALI 23h+5..+35°CIP5015004.0

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN445FGTIN (EAN): 4058352513651
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80452026W171lm/WDALI 2 -25..+45°CIP5015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM167N48XFGTIN (EAN): 4058352491928
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80821048W173lm/WON/OFF -35..+45°CIP4015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM16CN48XFGTIN (EAN): 4058352491980
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80828049W169lm/WON/OFF Multilumen, CLOi -35..+40°CIP4015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TM16CN4DXLGTIN (EAN): 4058352492000
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801344079W171lm/WON/OFF Multilumen, CLOi -35..+40°CIP4015003.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM16DN49XFGTIN (EAN): 4058352492086
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80914056W163lm/WDALI 2 -25..+40°CIP4015003.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TM16DN4EXLGTIN (EAN): 4058352492109
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControlBattery durationtaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801425086W166lm/WDALI 2 -25..+35°CIP4015003.5

Licross® 11 Performance TW, symmetric wide distribution, AC

Order No.: 51TS16TNT8XWGTIN (EAN): 4058352210796

Colour temperature2700..6500K
Colour renderingCRI > 80
Net luminous flux (lm)8190
Connected load57W
Luminous efficacy143lm/W
ControlDALI DT8
Battery duration
ta-25..+40°C
Protection ratingIP50

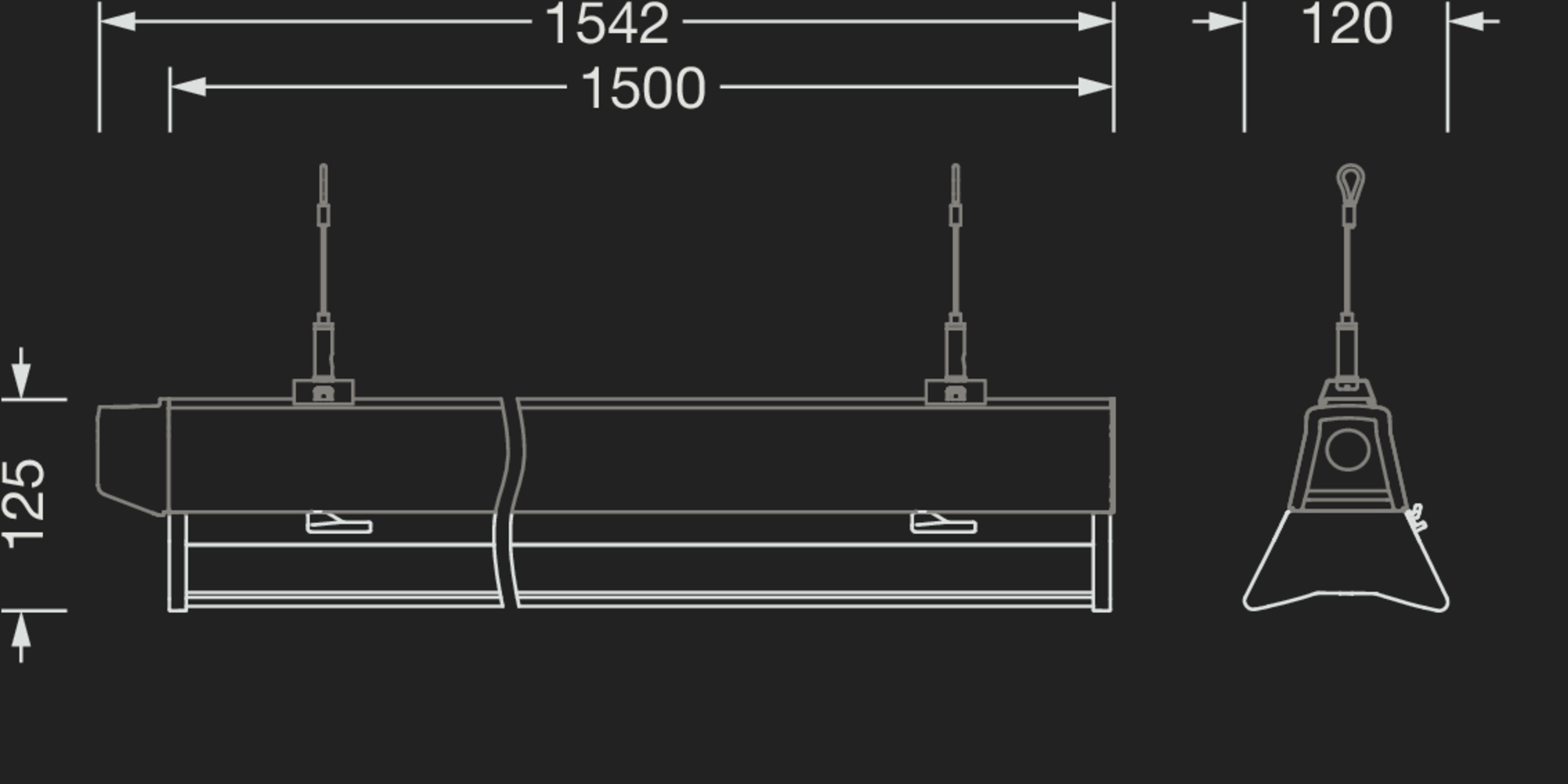

L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16DN4EXLGTIN (EAN): 4058352265086

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load86W
Luminous efficacy166lm/W
ControlDALI 2
Battery duration
ta-25..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16CN4DXLGTIN (EAN): 4058352265130

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)13440
Connected load79W
Luminous efficacy171lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN49XFGTIN (EAN): 4058352265093

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load56W
Luminous efficacy163lm/W
ControlDALI 2
Battery duration
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16CN48XFGTIN (EAN): 4058352210857

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8280
Connected load49W
Luminous efficacy169lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS167N48XFGTIN (EAN): 4058352210338

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8210
Connected load48W
Luminous efficacy173lm/W
ControlON/OFF
Battery duration
ta-35..+45°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16DN4EXLDGTIN (EAN): 4058352418734

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load86W
Luminous efficacy166lm/W
ControlDALI 2
Battery duration
ta-25..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16CN4DXLDGTIN (EAN): 4058352418680

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)13440
Connected load79W
Luminous efficacy171lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16DN49XFDGTIN (EAN): 4058352418703

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load56W
Luminous efficacy163lm/W
ControlDALI 2
Battery duration
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, operation on group/central battery

Order No.: 51TS16CN48XFDGTIN (EAN): 4058352418666

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8280
Connected load49W
Luminous efficacy169lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN59XFGTIN (EAN): 4058352340493

Colour temperature5000K
Colour renderingCRI > 80
Net luminous flux (lm)9150
Connected load56W
Luminous efficacy163lm/W
ControlDALI 2
Battery duration
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16CN68XFGTIN (EAN): 4058352360774

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)8080
Connected load49W
Luminous efficacy165lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN69XFGTIN (EAN): 4058352340516

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)9030
Connected load57W
Luminous efficacy159lm/W
ControlDALI 2
Battery duration
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TS16DN6EXLGTIN (EAN): 4058352389881

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)14180
Connected load88W
Luminous efficacy161lm/W
ControlDALI 2
Battery duration
ta-25..+30°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance extreme HO, symmetric wide distribution, AC

Order No.: 51TS16DN4EXLEGTIN (EAN): 4058352447437

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load86W
Luminous efficacy166lm/W
ControlDALI 2
Battery duration
ta-25..+45°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance extreme MO, symmetric wide distribution, AC

Order No.: 51TS16DN49XFEGTIN (EAN): 4058352447413

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load56W
Luminous efficacy163lm/W
ControlDALI 2
Battery duration
ta-25..+50°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN4EXL3SGTIN (EAN): 4058352485828

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load90W
Luminous efficacy159lm/W
ControlDALI 2
Battery duration3h
ta+5..+30°C
Protection ratingIP50
L (mm)1500
Wt. (kg)4.0

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN49XF3SGTIN (EAN): 4058352485798

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load60W
Luminous efficacy153lm/W
ControlDALI 2
Battery duration3h
ta+5..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)4.0

Licross® 11 Performance HO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN4EXL3CGTIN (EAN): 4058352485804

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load90W
Luminous efficacy159lm/W
ControlDALI 2
Battery duration3h
ta+5..+30°C
Protection ratingIP50
L (mm)1500
Wt. (kg)4.0

Licross® 11 Performance MO, symmetric wide distribution, AC/DC, with self-contained supply

Order No.: 51TS16DN49XF3CGTIN (EAN): 4058352485767

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load60W
Luminous efficacy153lm/W
ControlDALI 2
Battery duration3h
ta+5..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)4.0

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TS16DN445FGTIN (EAN): 4058352513651

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)4520
Connected load26W
Luminous efficacy171lm/W
ControlDALI 2
Battery duration
ta-25..+45°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM167N48XFGTIN (EAN): 4058352491928

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8210
Connected load48W
Luminous efficacy173lm/W
ControlON/OFF
Battery duration
ta-35..+45°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM16CN48XFGTIN (EAN): 4058352491980

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8280
Connected load49W
Luminous efficacy169lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TM16CN4DXLGTIN (EAN): 4058352492000

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)13440
Connected load79W
Luminous efficacy171lm/W
ControlON/OFF Multilumen, CLOi
Battery duration
ta-35..+40°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance MO, symmetric wide distribution, AC

Order No.: 51TM16DN49XFGTIN (EAN): 4058352492086

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9140
Connected load56W
Luminous efficacy163lm/W
ControlDALI 2
Battery duration
ta-25..+40°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.5

Licross® 11 Performance HO, symmetric wide distribution, AC

Order No.: 51TM16DN4EXLGTIN (EAN): 4058352492109

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14250
Connected load86W
Luminous efficacy166lm/W
ControlDALI 2
Battery duration
ta-25..+35°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.5
