45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 203lm/W or low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.

Our performance solution: Licross® 11 is our innovative trunking system with maximum efficiency (up to 203lm/W), service life (up to 100,000h) and flexibility

Performance luminaire insert IP40/IP54

Intro to Productfamily

Data

Article luminaire insert
Protection rating IP40; IP54
Net luminous flux 4520lm to 16020lm
Colour temperature 2700…6500K; 3000K; 4000K; 6500K
Lighting effect direct/indirect symmetric wide distribution

Specials

Special optics technology for very high visual comfort with up to UGR ≤ 19 and suitability for VDU workstations
Attractive interior design with up to 23% indirect light component – ideal for SITECO HCLlive
Reliable in the long run with service life up to 100,000h
Depending on version switchable with multilumen and constant luminous flux control (CLO) or light control via DALI

Configuration & Datasheets

Colour temperature

Control

UGR

Protection rating

Operating ambient temperature

Rated luminous flux (lm)

  • please order Licross® trunking rail or trunking rail accessories separately
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
  • luminaire inserts (AC/DC) suiatble for group and central battery systems according to EN60598-2-22 (even at AC operation)
  • With AC/DC luminaire inserts, the power supply can be changed to either mains supply operation L1/L2/L3, emergency supply 1 L´/N´ or emergency supply 2 L´´/N´´ by moving the contacts on the connection block
  • with luminaire inserts (AC/DC), luminaires use reduced luminous flux with DC operation (see photometric report for DC operation)

Results

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD167N485G GTIN (EAN): 4058352928820
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80884049W 182lm/WON/OFF-25..+35°CIP5415003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16CN49XG GTIN (EAN): 4058352928844
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 809190 4955186lm/WON/OFF Multilumen, CLOi-35..+40°CIP5415003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16CN4EXM GTIN (EAN): 4058352928868
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 8014420 7887186lm/WON/OFF Multilumen, CLOi-35..+35°CIP5415003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN4AXG GTIN (EAN): 4058352928882
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801011057W 177lm/WDALI 2-25..+35°CIP5415003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN4FXM GTIN (EAN): 4058352928905
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801546087W 177lm/WDALI 2-25..+30°CIP5415003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16MN4AXG GTIN (EAN): 4058352928929
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801016055W 184lm/WON/OFF Multilumen-35..+40°CIP5415003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16MN4GXM GTIN (EAN): 4058352928950
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801602087W 183lm/WON/OFF Multilumen-35..+35°CIP5415003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM167N485G GTIN (EAN): 4058352929940
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80884049W 182lm/WON/OFF-25..+35°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16CN49XG GTIN (EAN): 4058352929964
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 809190 4955186lm/WON/OFF Multilumen, CLOi-35..+40°CIP4015003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16CN4EXM GTIN (EAN): 4058352929988
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 8014420 7887186lm/WON/OFF Multilumen, CLOi-35..+35°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN4AXG GTIN (EAN): 4058352930014
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801011057W 177lm/WDALI 2-25..+35°CIP4015003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN4FXM GTIN (EAN): 4058352930021
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801546087W 177lm/WDALI 2-25..+30°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16MN4AXG GTIN (EAN): 4058352930045
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801016055W 184lm/WON/OFF Multilumen-35..+40°CIP4015003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16MN4GXM GTIN (EAN): 4058352930069
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801602087W 183lm/WON/OFF Multilumen-35..+35°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN445G GTIN (EAN): 4058352965139
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80452024W 186lm/WDALI 2-25..+45°CIP5415003.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN6EXM GTIN (EAN): 4058352032268
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
6500KCRI > 801418081W 174lm/WDALI 2-25..+35°CIP5415003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN35XG GTIN (EAN): 4058352054352
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
3000KCRI > 80510028.3W 180lm/WDALI 2-25..+45°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN445G GTIN (EAN): 4058352054376
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80460024.8W 186lm/WDALI 2-25..+45°CIP4015003.1

Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16TNT45X GTIN (EAN): 4058352054406
Colour temperatureColour renderingNet luminous flux (lm)Connected loadPnom (W) begin service lifePnom (W) end service lifeLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
2700..6500KCRI > 80470028.9W 163lm/WDALI DT8-25..+45°CIP4015003.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD167N485GGTIN (EAN): 4058352928820

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8840
Connected load49W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy182lm/W
ControlON/OFF
ta-25..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16CN49XGGTIN (EAN): 4058352928844

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9190
Connected load
Pnom (W) begin service life49
Pnom (W) end service life55
Luminous efficacy186lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16CN4EXMGTIN (EAN): 4058352928868

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14420
Connected load
Pnom (W) begin service life78
Pnom (W) end service life87
Luminous efficacy186lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN4AXGGTIN (EAN): 4058352928882

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10110
Connected load57W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy177lm/W
ControlDALI 2
ta-25..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN4FXMGTIN (EAN): 4058352928905

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)15460
Connected load87W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy177lm/W
ControlDALI 2
ta-25..+30°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16MN4AXGGTIN (EAN): 4058352928929

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10160
Connected load55W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy184lm/W
ControlON/OFF Multilumen
ta-35..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16MN4GXMGTIN (EAN): 4058352928950

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)16020
Connected load87W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy183lm/W
ControlON/OFF Multilumen
ta-35..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM167N485GGTIN (EAN): 4058352929940

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8840
Connected load49W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy182lm/W
ControlON/OFF
ta-25..+35°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16CN49XGGTIN (EAN): 4058352929964

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9190
Connected load
Pnom (W) begin service life49
Pnom (W) end service life55
Luminous efficacy186lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+40°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16CN4EXMGTIN (EAN): 4058352929988

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14420
Connected load
Pnom (W) begin service life78
Pnom (W) end service life87
Luminous efficacy186lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+35°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN4AXGGTIN (EAN): 4058352930014

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10110
Connected load57W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy177lm/W
ControlDALI 2
ta-25..+35°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN4FXMGTIN (EAN): 4058352930021

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)15460
Connected load87W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy177lm/W
ControlDALI 2
ta-25..+30°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16MN4AXGGTIN (EAN): 4058352930045

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10160
Connected load55W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy184lm/W
ControlON/OFF Multilumen
ta-35..+40°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16MN4GXMGTIN (EAN): 4058352930069

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)16020
Connected load87W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy183lm/W
ControlON/OFF Multilumen
ta-35..+35°C
Protection ratingIP40

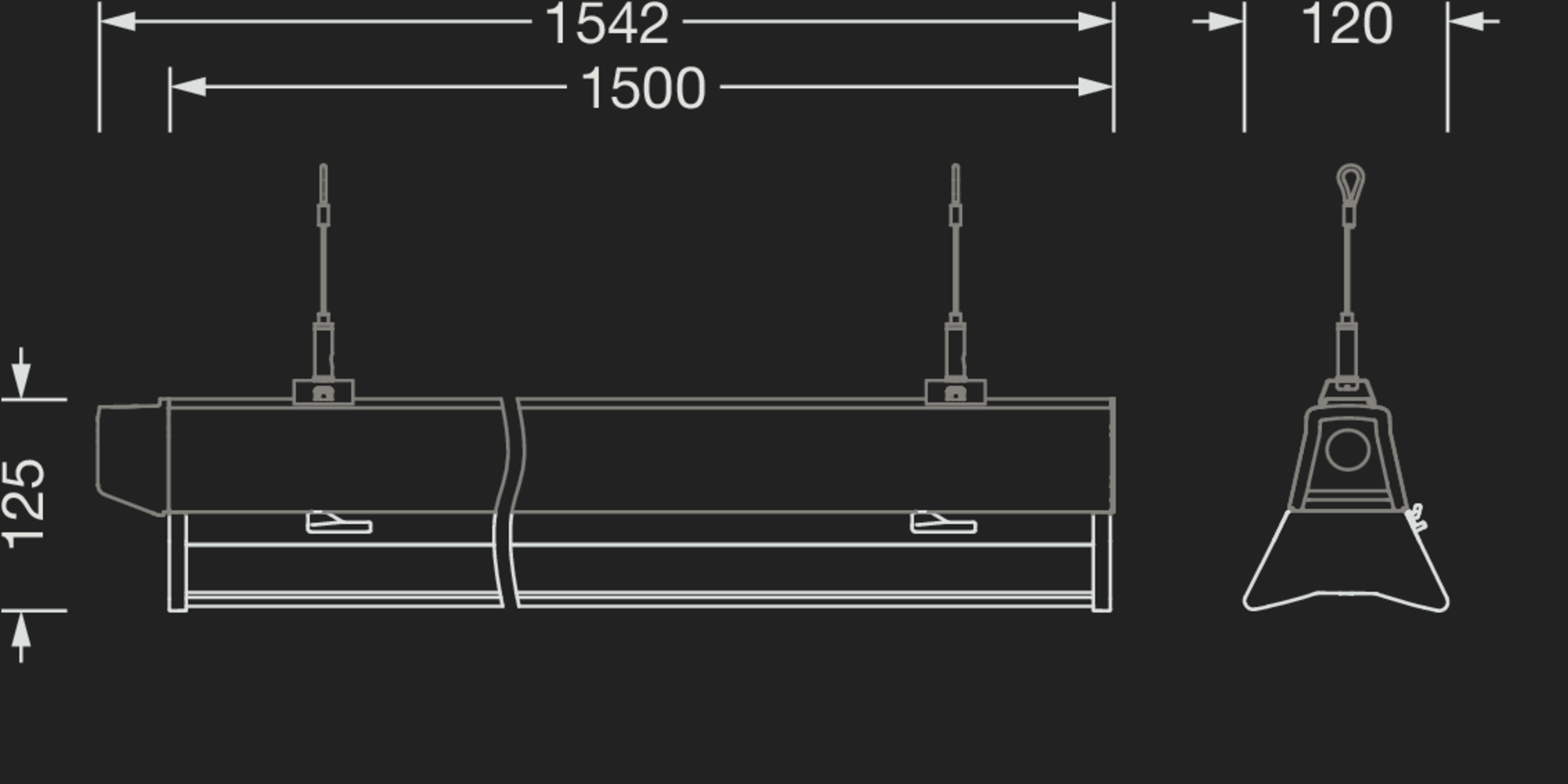

L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN445GGTIN (EAN): 4058352965139

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)4520
Connected load24W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy186lm/W
ControlDALI 2
ta-25..+45°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC

Order No.: 51TD16DN6EXMGTIN (EAN): 4058352032268

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)14180
Connected load81W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy174lm/W
ControlDALI 2
ta-25..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN35XGGTIN (EAN): 4058352054352

Colour temperature3000K
Colour renderingCRI > 80
Net luminous flux (lm)5100
Connected load28.3W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy180lm/W
ControlDALI 2
ta-25..+45°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16DN445GGTIN (EAN): 4058352054376

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)4600
Connected load24.8W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy186lm/W
ControlDALI 2
ta-25..+45°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1

Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC

Order No.: 51TM16TNT45XGTIN (EAN): 4058352054406

Colour temperature2700..6500K
Colour renderingCRI > 80
Net luminous flux (lm)4700
Connected load28.9W
Pnom (W) begin service life
Pnom (W) end service life
Luminous efficacy163lm/W
ControlDALI DT8
ta-25..+45°C
Protection ratingIP40
L (mm)1500
Wt. (kg)3.1
