SITECO

Siluette

Family Configuration & data sheets

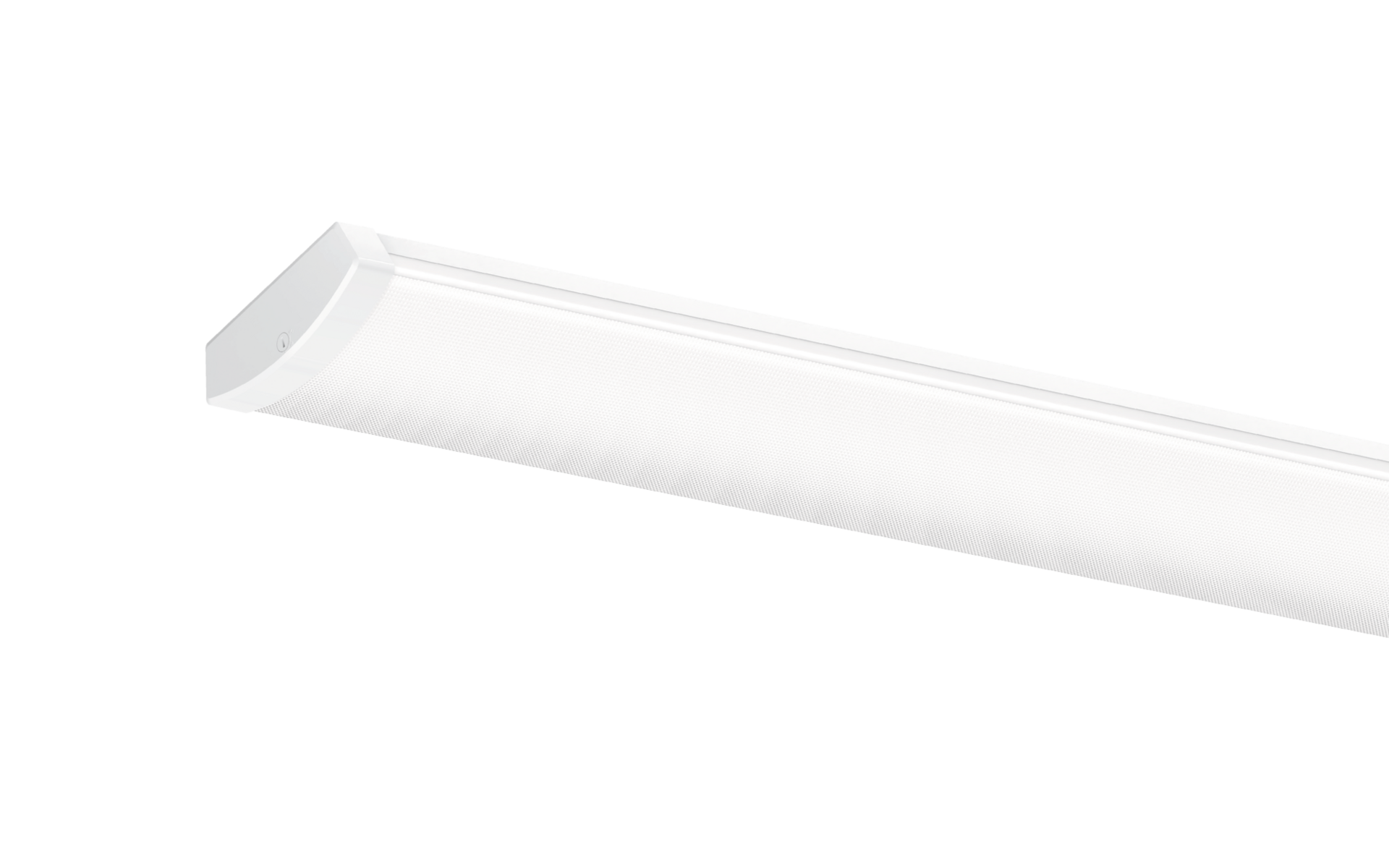

Siluette 21

Key data

Article wall and ceiling luminaire
Light emission direct distribution
Beam angle wide distribution
Net luminous flux 2630lm to 7150lm
Colour temperature 3000/4000/5000K
Control ON/OFF Multilumen; DALI 2, Multilumen
Emergency light with self-contained supply
Protection rating IP44
Insulation class insulation class I (protective earthing)

Special features

Attractive enclosure luminaire in 3 different lengths
Four different light packages can be easily adjusted using a DIP switch
Light colour selectable between 3000/4000/5000K
HF sensor for easy motion detection as an easily retrofittable accessory

Configuration & data sheets

Rated luminous flux (lm)

Control

Emergency light operating time

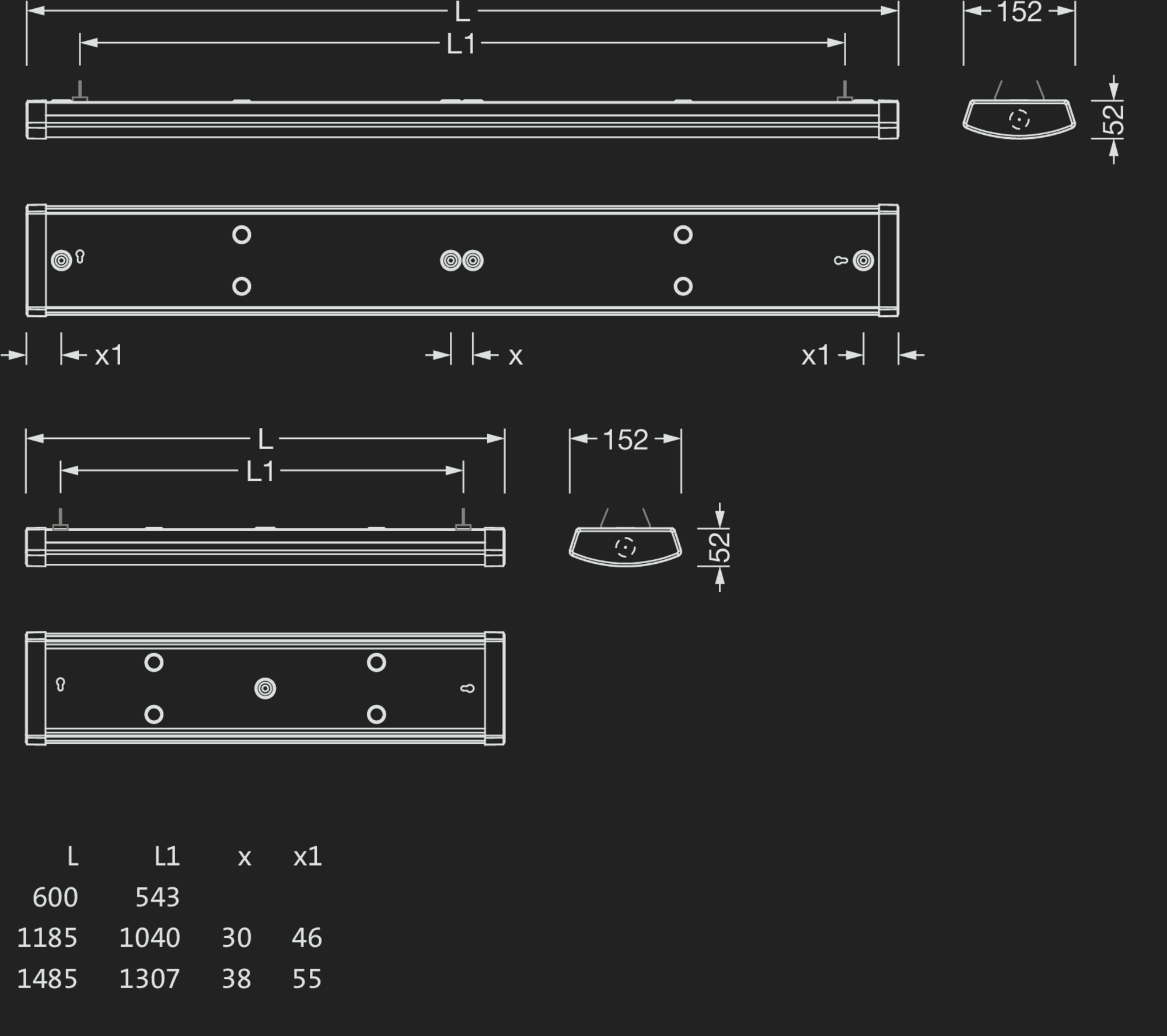

Length (mm)

Results

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MDM20A GTIN (EAN): 4058352011508
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 802630lm20W135lm/WON/OFF Multilumen 6001.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MKM40A GTIN (EAN): 4058352011546
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 805010lm35W144lm/WON/OFF Multilumen 12002.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MNM70A GTIN (EAN): 4058352011607
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 807150lm49W147lm/WON/OFF Multilumen 15003.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MKM40A3G GTIN (EAN): 4058352011584
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 805010lm37W136lm/WON/OFF Multilumen3h12003.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MNM70A3G GTIN (EAN): 4058352011645
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 807150lm51W142lm/WON/OFF Multilumen3h15003.9
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Siluette 21, wide distribution, enclosure, frosted, DALI 2, Multilumen, white

Order No.: 51LN12NKM40A GTIN (EAN): 4069025398239
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 804830lm34W142lm/WDALI 2, Multilumen 12002.8
Show all details
Tender textData sheet (PDF, full)Complete download list

Siluette 21, wide distribution, enclosure, frosted, DALI 2, Multilumen, white

Order No.: 51LN12NNM70A GTIN (EAN): 4069025398246
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 807150lm50W143lm/WDALI 2, Multilumen 15003.5
Show all details
Tender textData sheet (PDF, full)Complete download list

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MDM20AGTIN (EAN): 4058352011508

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux2630lm
Connected load20W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)600
Wt. (kg)1.6
Show all details

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MKM40AGTIN (EAN): 4058352011546

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux5010lm
Connected load35W
Luminous efficacy144lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1200
Wt. (kg)2.8
Show all details

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MNM70AGTIN (EAN): 4058352011607

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7150lm
Connected load49W
Luminous efficacy147lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1500
Wt. (kg)3.5
Show all details

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MKM40A3GGTIN (EAN): 4058352011584

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux5010lm
Connected load37W
Luminous efficacy136lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1200
Wt. (kg)3.0
Show all details

Siluette 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MNM70A3GGTIN (EAN): 4058352011645

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7150lm
Connected load51W
Luminous efficacy142lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1500
Wt. (kg)3.9
Show all details

Siluette 21, wide distribution, enclosure, frosted, DALI 2, Multilumen, white

Order No.: 51LN12NKM40AGTIN (EAN): 4069025398239

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4830lm
Connected load34W
Luminous efficacy142lm/W
ControlDALI 2, Multilumen
Battery duration
L (mm)1200
Wt. (kg)2.8
Show all details

Siluette 21, wide distribution, enclosure, frosted, DALI 2, Multilumen, white

Order No.: 51LN12NNM70AGTIN (EAN): 4069025398246

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7150lm
Connected load50W
Luminous efficacy143lm/W
ControlDALI 2, Multilumen
Battery duration
L (mm)1500
Wt. (kg)3.5
Show all details

Optional accessories

ArticleY-wire suspension with ceiling canopy, white, roundPU1 pc.Wt. (kg)0.3Order No.: 59LN101GTIN (EAN): 4069025006714Show all details
Articlemulti-sensorPU1 pc.Wt. (kg)0.1Order No.: 59LN201GTIN (EAN): 4058352062234Show all details
