Licross® 21

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

14 cores and full flexibility are a must-have for tomorrow.

Performance luminaire insert IP50

Intro to Productfamily

Data

Article luminaire insert
Protection rating IP50
Net luminous flux 7790lm to 12970lm
Colour temperature 4000K; 5000K
Lighting effect direct/indirect symmetric wide distribution

Specials

Special optics technology for very high visual comfort with up to UGR ≤ 19 and suitability for VDU workstations
Attractive interior design with up to 23% indirect light component – ideal for SITECO HCLlive
Reliable in the long run with service life up to 50,000h
Depending on version switchable with multilumen and constant luminous flux control (CLO) or light control via DALI

Configuration & Datasheets

Colour temperature

Colour rendering

Control

Rated luminous flux (lm)

Operating ambient temperature

UGR

  • please order Licross® trunking rail or trunking rail accessories separately
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C

Results

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS167N475FGTIN (EAN): 4058352454510
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80779049W160lm/WON/OFF-35..+45°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16CN48XFGTIN (EAN): 4058352454534
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80826051W164lm/WON/OFF Multilumen, CLOi-35..+45°CIP5015003.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16CN4BXLGTIN (EAN): 4058352454558
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801140069W166lm/WON/OFF Multilumen, CLOi-35..+40°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DN49XFGTIN (EAN): 4058352455135
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80934061W153lm/WDALI-2-25..+40°CIP5015003.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16DN4C5LGTIN (EAN): 4058352455159
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801297083W157lm/WDALI-2-25..+35°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DN59XFGTIN (EAN): 4058352455173
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 80923061W152lm/WDALI-2-25..+40°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DND75FGTIN (EAN): 4058352455197
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 90781061W128lm/WDALI-2-25..+40°CIP5015003.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16DNDA5LGTIN (EAN): 4058352455210
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 901083082W131lm/WDALI-2-25..+35°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DNE75FGTIN (EAN): 4058352455241
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 90782061W128lm/WDALI-2-25..+40°CIP5015003.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS167N475FGTIN (EAN): 4058352454510

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7790
Connected load49W
Luminous efficacy160lm/W
ControlON/OFF
ta-35..+45°C
Protection ratingIP50

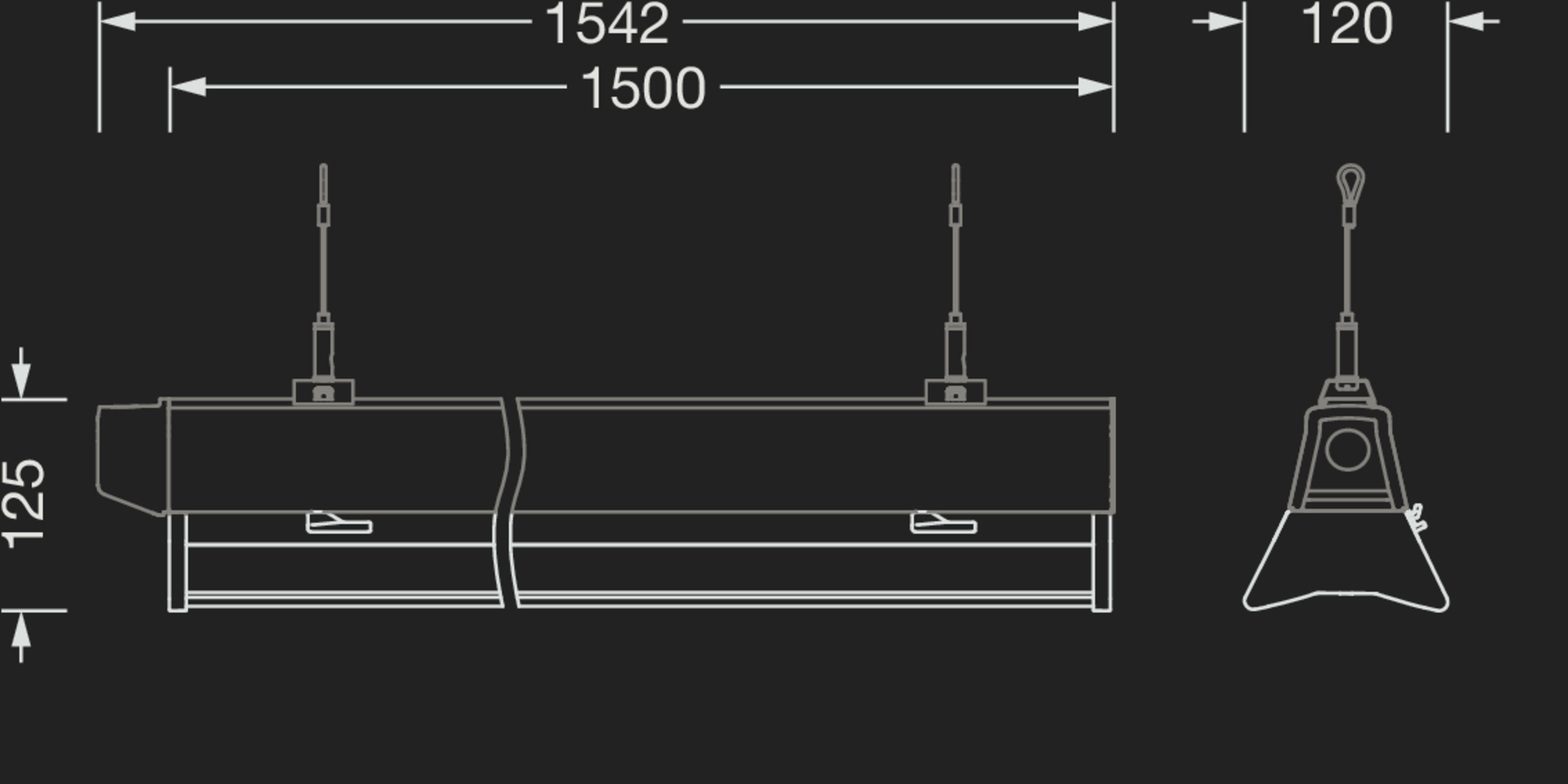

L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16CN48XFGTIN (EAN): 4058352454534

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8260
Connected load51W
Luminous efficacy164lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+45°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16CN4BXLGTIN (EAN): 4058352454558

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)11400
Connected load69W
Luminous efficacy166lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DN49XFGTIN (EAN): 4058352455135

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9340
Connected load61W
Luminous efficacy153lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16DN4C5LGTIN (EAN): 4058352455159

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12970
Connected load83W
Luminous efficacy157lm/W
ControlDALI-2
ta-25..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DN59XFGTIN (EAN): 4058352455173

Colour temperature5000K
Colour renderingCRI > 80
Net luminous flux (lm)9230
Connected load61W
Luminous efficacy152lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DND75FGTIN (EAN): 4058352455197

Colour temperature4000K
Colour renderingCRI > 90
Net luminous flux (lm)7810
Connected load61W
Luminous efficacy128lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance HO, symmetric wide distribution, AC

Order No.: 52TS16DNDA5LGTIN (EAN): 4058352455210

Colour temperature4000K
Colour renderingCRI > 90
Net luminous flux (lm)10830
Connected load82W
Luminous efficacy131lm/W
ControlDALI-2
ta-25..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5

Licross® 21 Performance MO, symmetric wide distribution, AC

Order No.: 52TS16DNE75FGTIN (EAN): 4058352455241

Colour temperature5000K
Colour renderingCRI > 90
Net luminous flux (lm)7820
Connected load61W
Luminous efficacy128lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.5
