Licross® 21

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

14 cores and full flexibility are a must-have for tomorrow.

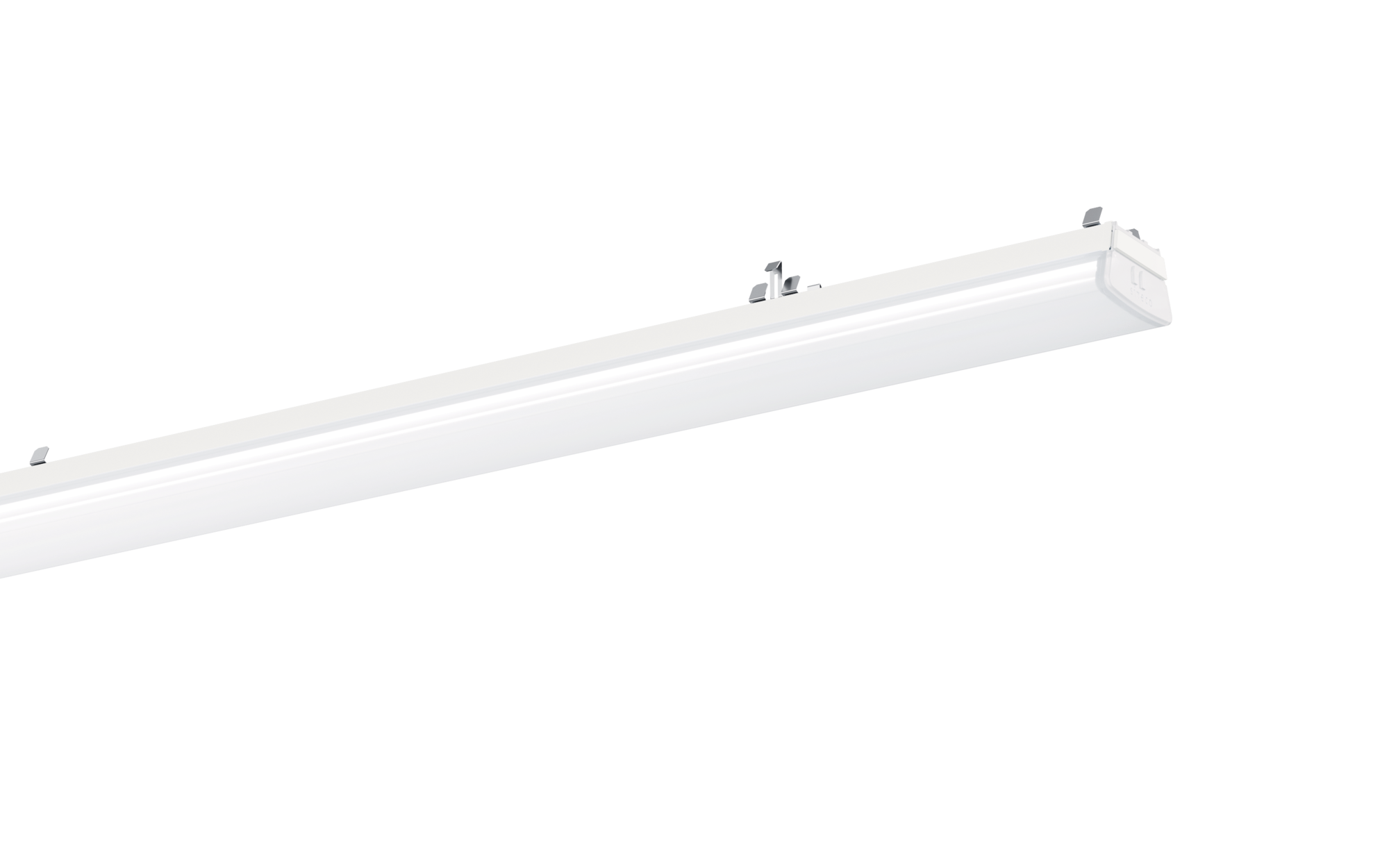

Protected luminaire insert IP50/IP54

Intro to Productfamily

Data

Article luminaire insert
Protection rating IP50; IP54
Net luminous flux 7240lm to 14710lm
Colour temperature 4000K; 5000K
ta -25…+35°C; 0…+30°C; -35…+40°C; -35…+45°C; -25…+40°C; 0…+40°C
Lighting effect direct symmetric narrow distribution, with ceiling illumination; direct symmetric wide distribution, with ceiling illumination

Specials

High robustness due to chemical resistance and suitability for ambient temperatures up to 40°C over complete service life
Very robust system with protection ratings up to IP50/IK06 whilst high service life of up to 50,000 hours
High luminous flux of up to 15,000lm for demand-oriented illumination of rough environments

Configuration & Datasheets

Lighting effect

Rated luminous flux (lm)

Colour temperature

Colour rendering

Protection rating

Control

  • Please order Licross® Trunking trunking rail and trunking rail accessories separately.
  • Versions with colour temperature 3000K, 5000K or 6500K on request.
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C

Results

Licross® 21 Protected MO, symmetric narrow distribution

Order No.: 52TD11DN49XFGTIN (EAN): 4058352454893
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80918061W150lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected HO, symmetric narrow distribution

Order No.: 52TD11DN4DXRGTIN (EAN): 4058352454923
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801301083W158lm/WDALI-2-25..+35°CIP5415003.2

Licross® 21 Protected MO, symmetric narrow distribution

Order No.: 52TD11DN59XFGTIN (EAN): 4058352454930
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 80907061W149lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD127N475FGTIN (EAN): 4058352453643
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80769049W158lm/WON/OFF-35..+45°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12CN48XFGTIN (EAN): 4058352453667
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80815051W161lm/WON/OFF Multilumen, CLOi-35..+45°CIP5415003.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TD12CN4BXLGTIN (EAN): 4058352453681
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801126069W164lm/WON/OFF Multilumen, CLOi-35..+40°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DN49XFGTIN (EAN): 4058352454954
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80922061W151lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TD12DN4C5LGTIN (EAN): 4058352454978
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801281083W155lm/WDALI-2-25..+35°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DN59XFGTIN (EAN): 4058352454992
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 80911061W150lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DND75FGTIN (EAN): 4058352455012
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 90771061W126lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DNE75FGTIN (EAN): 4058352455036
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 90772061W127lm/WDALI-2-25..+40°CIP5415003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12CN475FGTIN (EAN): 4058352454473
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80765051W151lm/WON/OFF Multilumen, CLOi-35..+45°CIP5015003.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TS12CN4A5LGTIN (EAN): 4058352454497
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801069069W156lm/WON/OFF Multilumen, CLOi-35..+40°CIP5015002.9

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DN485FGTIN (EAN): 4058352455050
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80867061W142lm/WDALI-2-25..+40°CIP5015003.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TS12DN4CXLGTIN (EAN): 4058352455081
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801216083W147lm/WDALI-2-25..+35°CIP5015003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DND7XFGTIN (EAN): 4058352455098
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 90724061W119lm/WDALI-2-25..+40°CIP5015003.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DNE7XFGTIN (EAN): 4058352455111
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
5000KCRI > 90725061W119lm/WDALI-2-25..+40°CIP5015003.2

Licross® 21 Protected ECO, symmetric wide distribution

Order No.: 51TS12DN47XAGTIN (EAN): 4058352409411
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80745060W124lm/WDALI-20..+40°CIP5015002.9

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 51TS12DN495FGTIN (EAN): 4058352409435
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 80950061W156lm/WDALI-20..+40°CIP5015003.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 51TS12DN4E5LGTIN (EAN): 4058352409459
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaProtection ratingL (mm)Wt. (kg)
4000KCRI > 801471092W161lm/WDALI-20..+30°CIP5015003.2

Licross® 21 Protected MO, symmetric narrow distribution

Order No.: 52TD11DN49XFGTIN (EAN): 4058352454893

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9180
Connected load61W
Luminous efficacy150lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric narrow distribution

Order No.: 52TD11DN4DXRGTIN (EAN): 4058352454923

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)13010
Connected load83W
Luminous efficacy158lm/W
ControlDALI-2
ta-25..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric narrow distribution

Order No.: 52TD11DN59XFGTIN (EAN): 4058352454930

Colour temperature5000K
Colour renderingCRI > 80
Net luminous flux (lm)9070
Connected load61W
Luminous efficacy149lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD127N475FGTIN (EAN): 4058352453643

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7690
Connected load49W
Luminous efficacy158lm/W
ControlON/OFF
ta-35..+45°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12CN48XFGTIN (EAN): 4058352453667

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8150
Connected load51W
Luminous efficacy161lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+45°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TD12CN4BXLGTIN (EAN): 4058352453681

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)11260
Connected load69W
Luminous efficacy164lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DN49XFGTIN (EAN): 4058352454954

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9220
Connected load61W
Luminous efficacy151lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TD12DN4C5LGTIN (EAN): 4058352454978

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12810
Connected load83W
Luminous efficacy155lm/W
ControlDALI-2
ta-25..+35°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DN59XFGTIN (EAN): 4058352454992

Colour temperature5000K
Colour renderingCRI > 80
Net luminous flux (lm)9110
Connected load61W
Luminous efficacy150lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DND75FGTIN (EAN): 4058352455012

Colour temperature4000K
Colour renderingCRI > 90
Net luminous flux (lm)7710
Connected load61W
Luminous efficacy126lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TD12DNE75FGTIN (EAN): 4058352455036

Colour temperature5000K
Colour renderingCRI > 90
Net luminous flux (lm)7720
Connected load61W
Luminous efficacy127lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP54
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12CN475FGTIN (EAN): 4058352454473

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7650
Connected load51W
Luminous efficacy151lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+45°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TS12CN4A5LGTIN (EAN): 4058352454497

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10690
Connected load69W
Luminous efficacy156lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)2.9

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DN485FGTIN (EAN): 4058352455050

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8670
Connected load61W
Luminous efficacy142lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 52TS12DN4CXLGTIN (EAN): 4058352455081

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12160
Connected load83W
Luminous efficacy147lm/W
ControlDALI-2
ta-25..+35°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DND7XFGTIN (EAN): 4058352455098

Colour temperature4000K
Colour renderingCRI > 90
Net luminous flux (lm)7240
Connected load61W
Luminous efficacy119lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 52TS12DNE7XFGTIN (EAN): 4058352455111

Colour temperature5000K
Colour renderingCRI > 90
Net luminous flux (lm)7250
Connected load61W
Luminous efficacy119lm/W
ControlDALI-2
ta-25..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected ECO, symmetric wide distribution

Order No.: 51TS12DN47XAGTIN (EAN): 4058352409411

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7450
Connected load60W
Luminous efficacy124lm/W
ControlDALI-2
ta0..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)2.9

Licross® 21 Protected MO, symmetric wide distribution

Order No.: 51TS12DN495FGTIN (EAN): 4058352409435

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)9500
Connected load61W
Luminous efficacy156lm/W
ControlDALI-2
ta0..+40°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2

Licross® 21 Protected HO, symmetric wide distribution

Order No.: 51TS12DN4E5LGTIN (EAN): 4058352409459

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)14710
Connected load92W
Luminous efficacy161lm/W
ControlDALI-2
ta0..+30°C
Protection ratingIP50
L (mm)1500
Wt. (kg)3.2
