Licross® 11/21 for local control
Stay flexible: The modular system of Licross® enables any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: with daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs. 45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to UVC air disinfection device open up a broad horizon of applications far from lighting, which create additional added value.
Simple standalone solution
Producttypes

Siteco Connect 31 Logistic - for magazines and corridors

Siteco Connect 31 Logistic - for rack and high-bay warehouses

Siteco Connect 31 Logistic - for shipping areas (2…4m)

Siteco Connect 31 Logistic - for shipping areas (5...14m)

repeater for expanding the DALI system sizes in shipping areas and production halls
Siteco Connect 31 Logistic - for shipping areas (2…4m)
Intro to Productfamily
Data
Utstyr master; slave
Varetekst Sensor-Head PC1-M; Sensor-Head PC1-S; Interface MS; Interface MD; Interface S
Specials
Configuration & Datasheets
- ved kontakt med DALI-linje 1 velegnet fra 7-tråds kabling
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- adaption to on-site conditions via 90° rotatable sensor interface
- for hver utvidelsessensor reduseres antall kontrollerbare HF-er med 3 stykk
- en sensorenhet består av et sensorhode og et grensesnitt
Results
Licross® Interface, master, koblingsbar
Varetekst | Bruksområde | Styring | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta |
---|---|---|---|---|---|---|
Interface MS | produksjon/fremstilling, for smale rom, f.eks. korridorer, for lave rom, f.eks. parkeringshus, for trapperom | PÅ/AV | 500x96 | -20..+50°C |
Licross® Interface, master, dimbar
Varetekst | Bruksområde | Styring | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta |
---|---|---|---|---|---|---|
Interface MD | produksjon/fremstilling, for smale rom, f.eks. korridorer, for lave rom, f.eks. parkeringshus, for trapperom | DALI | 500x96 | -20..+50°C |
Licross® Interface, slave, dimbar
Varetekst | Bruksområde | Styring | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta |
---|---|---|---|---|---|---|
Interface S | for smale rom, f.eks. korridorer, for reol- og høyhyllelager, for lave rom, f.eks. parkeringshus, for høye rom, f.eks. logistikksoner, for trapperom | DALI 2 | 500x96 | -20..+50°C |

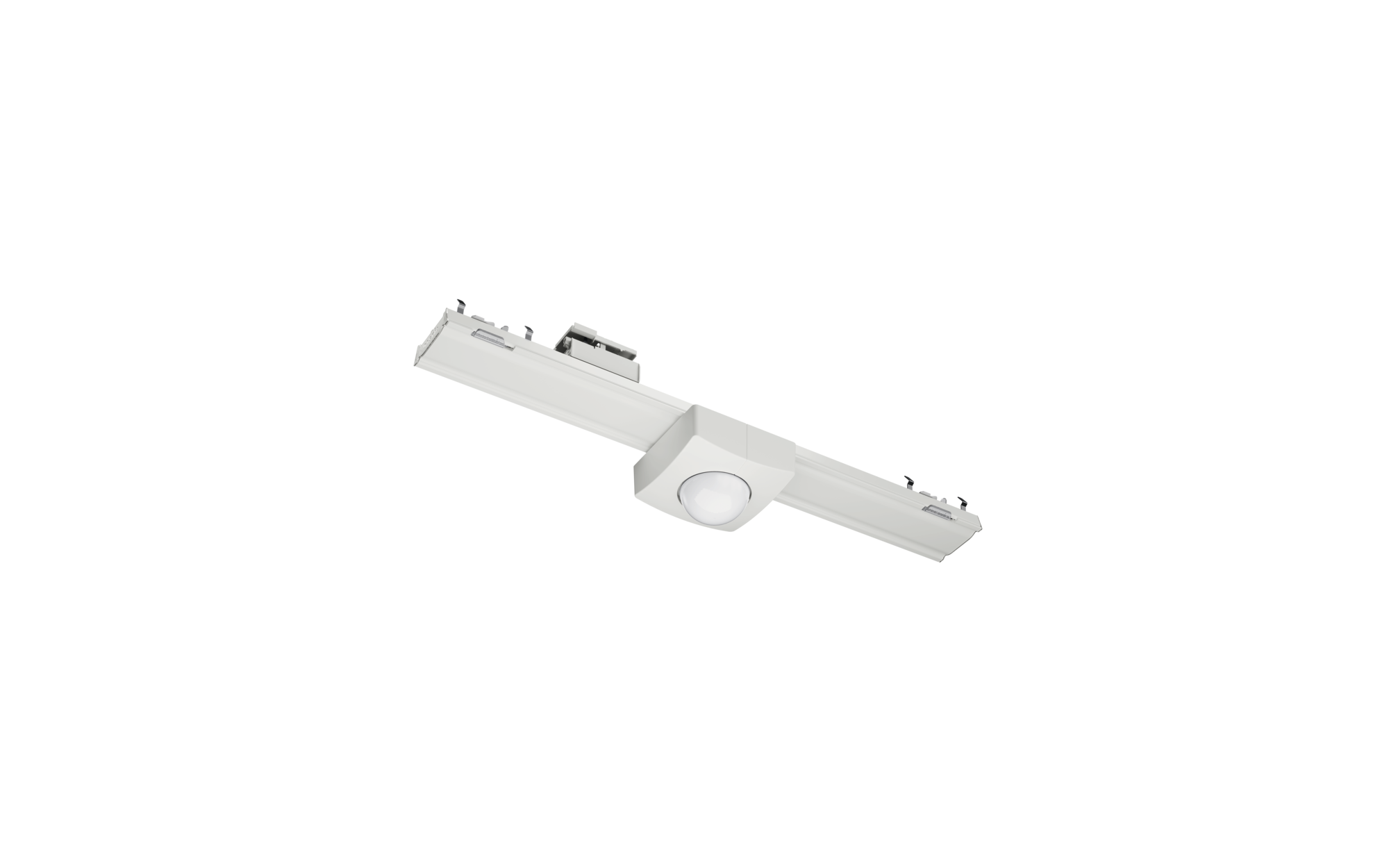

Siteco Connect Sensor-Head, master, koblingsbar, dimbar
Varetekst | Bruksområde | Styring | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta |
---|---|---|---|---|---|---|
Sensor-Head PC1-M | for lave rom, f.eks. parkeringshus | 2,5..4m | D maks. 40m | 95x95 | -20..+50°C |
Siteco Connect Sensor-Head, slave, dimbar
Varetekst | Bruksområde | Styring | Montasjehøyde | Bevegelsens deteksjonsområde | Dimensjon (mm) | ta |
---|---|---|---|---|---|---|
Sensor-Head PC1-S | for lave rom, f.eks. parkeringshus | DALI 2 | 2,5..4m | D maks. 40m | 95x95 | -20..+50°C |
Licross® Interface, master, koblingsbar
Bestillingsnummer: 56TL1FAMAGTIN (EAN): 4058352400524
Varetekst | Interface MS |
---|---|
Bruksområde | produksjon/fremstilling, for smale rom, f.eks. korridorer, for lave rom, f.eks. parkeringshus, for trapperom |
Styring | PÅ/AV |
Montasjehøyde | |
Bevegelsens deteksjonsområde | |

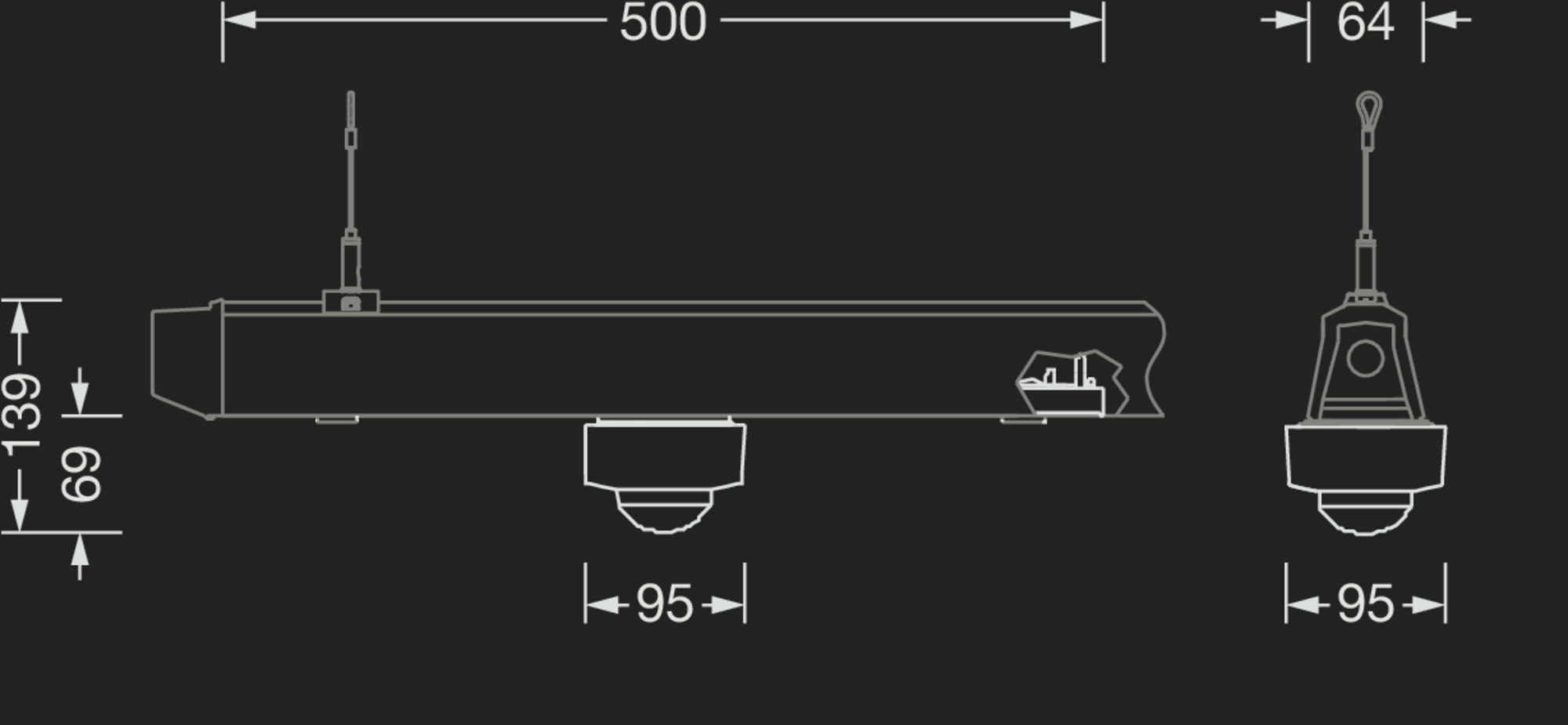

Dimensjon (mm) | 500x96 |
ta | -20..+50°C |
Licross® Interface, master, dimbar
Bestillingsnummer: 56TL1FCMAGTIN (EAN): 4058352373873
Varetekst | Interface MD |
---|---|
Bruksområde | produksjon/fremstilling, for smale rom, f.eks. korridorer, for lave rom, f.eks. parkeringshus, for trapperom |
Styring | DALI |
Montasjehøyde | |
Bevegelsens deteksjonsområde | |
Dimensjon (mm) | 500x96 |
ta | -20..+50°C |
Licross® Interface, slave, dimbar
Bestillingsnummer: 56TL1FCSAGTIN (EAN): 4058352373880
Varetekst | Interface S |
---|---|
Bruksområde | for smale rom, f.eks. korridorer, for reol- og høyhyllelager, for lave rom, f.eks. parkeringshus, for høye rom, f.eks. logistikksoner, for trapperom |
Styring | DALI 2 |
Montasjehøyde | |
Bevegelsens deteksjonsområde | |
Dimensjon (mm) | 500x96 |
ta | -20..+50°C |
Siteco Connect Sensor-Head, master, koblingsbar, dimbar
Bestillingsnummer: 59US1HXMPC1AGTIN (EAN): 4058352363799
Varetekst | Sensor-Head PC1-M |
---|---|
Bruksområde | for lave rom, f.eks. parkeringshus |
Styring | |
Montasjehøyde | 2,5..4m |
Bevegelsens deteksjonsområde | D maks. 40m |
Dimensjon (mm) | 95x95 |
ta | -20..+50°C |
Siteco Connect Sensor-Head, slave, dimbar
Bestillingsnummer: 59US1HXSPC1AGTIN (EAN): 4058352363911
Varetekst | Sensor-Head PC1-S |
---|---|
Bruksområde | for lave rom, f.eks. parkeringshus |
Styring | DALI 2 |
Montasjehøyde | 2,5..4m |
Bevegelsens deteksjonsområde | D maks. 40m |
Dimensjon (mm) | 95x95 |
ta | -20..+50°C |
Mandatory accessory
Bestillingsnummer: 59UC3RCAGTIN (EAN): 4058352363713 | Show details |
Optional accessory
Bestillingsnummer: 56TL1CRM0BGTIN (EAN): 4058352595497 | Show details |
