Licross® 11/21 sensors for local control (locally switchable or dimmable)
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.
for high rooms, e.g. logistics zones
Intro to Productfamily
Data
Equipment master; slave
Article Sensor-Head PC5-M; Sensor-Head PC5-S; Interface MS; Interface MD; Interface S
Configuration & Datasheets
- when contacting DALI line 1, suitable from 7-core wiring upwards
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- adaption to on-site conditions via 90° rotatable sensor interface
- each expansion sensor reduces the number of controllable ECGs by 3 pieces
- a sensor unit consists of sensor head and interface
Results
Licross® Interface, master, switchable
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
|---|---|---|---|---|---|
| Interface MS | production/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways | 500x96 |
Licross® Interface, master, dimmable
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
|---|---|---|---|---|---|
| Interface MD | production/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways | 500x96 |
Licross® Interface, master, slave, dimmable
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
|---|---|---|---|---|---|
| Interface S | for narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairways | 500x96 |
Licross® Sensor Head, master, switchable, dimmable
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
|---|---|---|---|---|---|

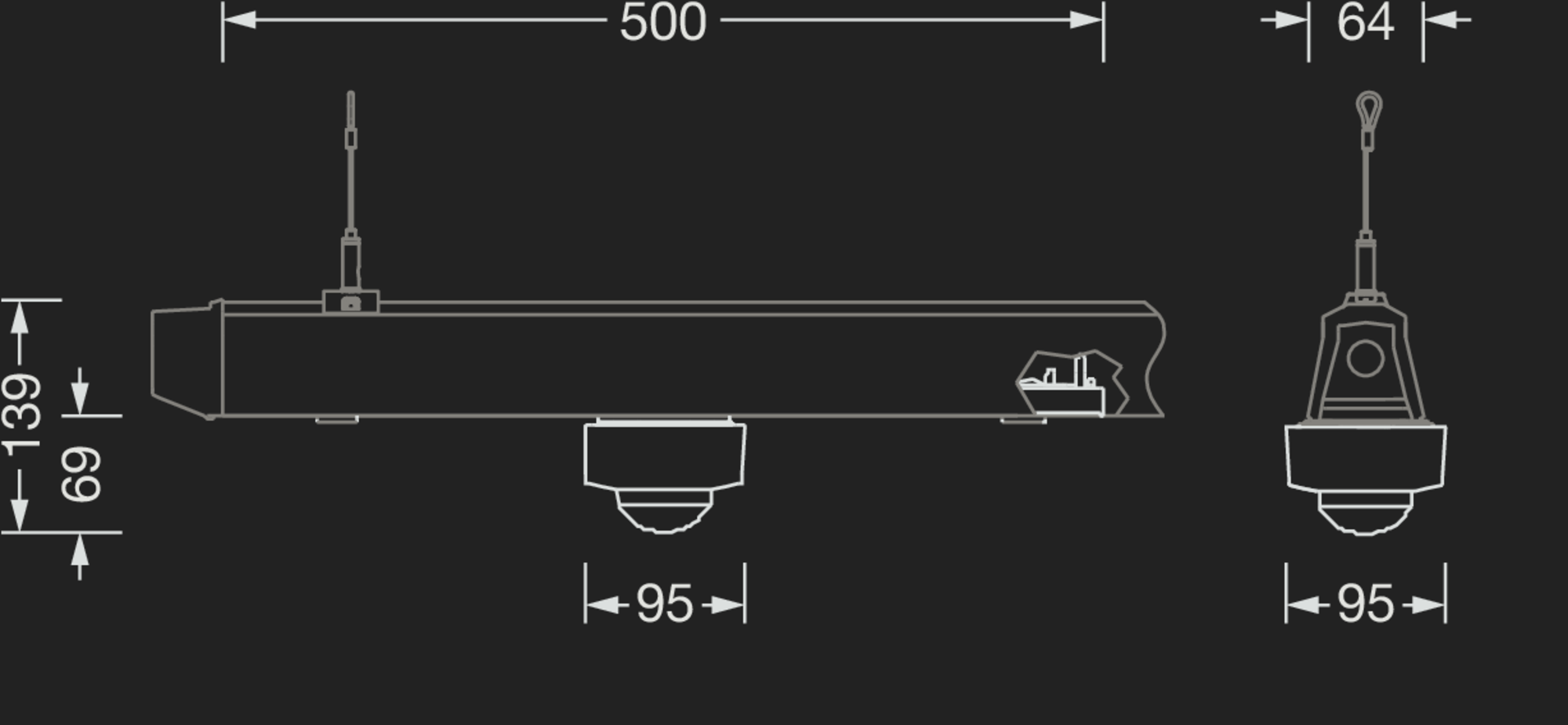

| Sensor-Head PC5-M | for high rooms, e.g. logistics zones | 4..14m | D max. 36m | 95x95 | -20..+50°C |
Licross® Sensor Head, slave, dimmable
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
|---|---|---|---|---|---|
| Sensor-Head PC5-S | for high rooms, e.g. logistics zones | 4..14m | D max. 36m | 95x95 | -20..+50°C |
Licross® Interface, master, switchable
Order No.: 56TL1FAMAGTIN (EAN): 4058352400524
| Article | Interface MS |
|---|---|
| Application area | production/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways |
| Mounting height | |
| Detection range movement | |
| Dimension (mm) | 500x96 |
| ta |
Licross® Interface, master, dimmable
Order No.: 56TL1FCMAGTIN (EAN): 4058352373873
| Article | Interface MD |
|---|---|
| Application area | production/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways |
| Mounting height | |
| Detection range movement | |
| Dimension (mm) | 500x96 |
| ta |
Licross® Interface, master, slave, dimmable
Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
| Article | Interface S |
|---|---|
| Application area | for narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairways |
| Mounting height | |
| Detection range movement | |
| Dimension (mm) | 500x96 |
| ta |
Licross® Sensor Head, master, switchable, dimmable
Order No.: 59US1HXMPC5AGTIN (EAN): 4058352363843
| Article | Sensor-Head PC5-M |
|---|---|
| Application area | for high rooms, e.g. logistics zones |
| Mounting height | 4..14m |
| Detection range movement | D max. 36m |
| Dimension (mm) | 95x95 |
| ta | -20..+50°C |
Licross® Sensor Head, slave, dimmable
Order No.: 59US1HXSPC5AGTIN (EAN): 4058352363942
| Article | Sensor-Head PC5-S |
|---|---|
| Application area | for high rooms, e.g. logistics zones |
| Mounting height | 4..14m |
| Detection range movement | D max. 36m |
| Dimension (mm) | 95x95 |
| ta | -20..+50°C |
Mandatory accessory
| Order No.: 59UC3RCAGTIN (EAN): 4058352363713 | Show details |
