SITECO
City-Light
Application
Product selection

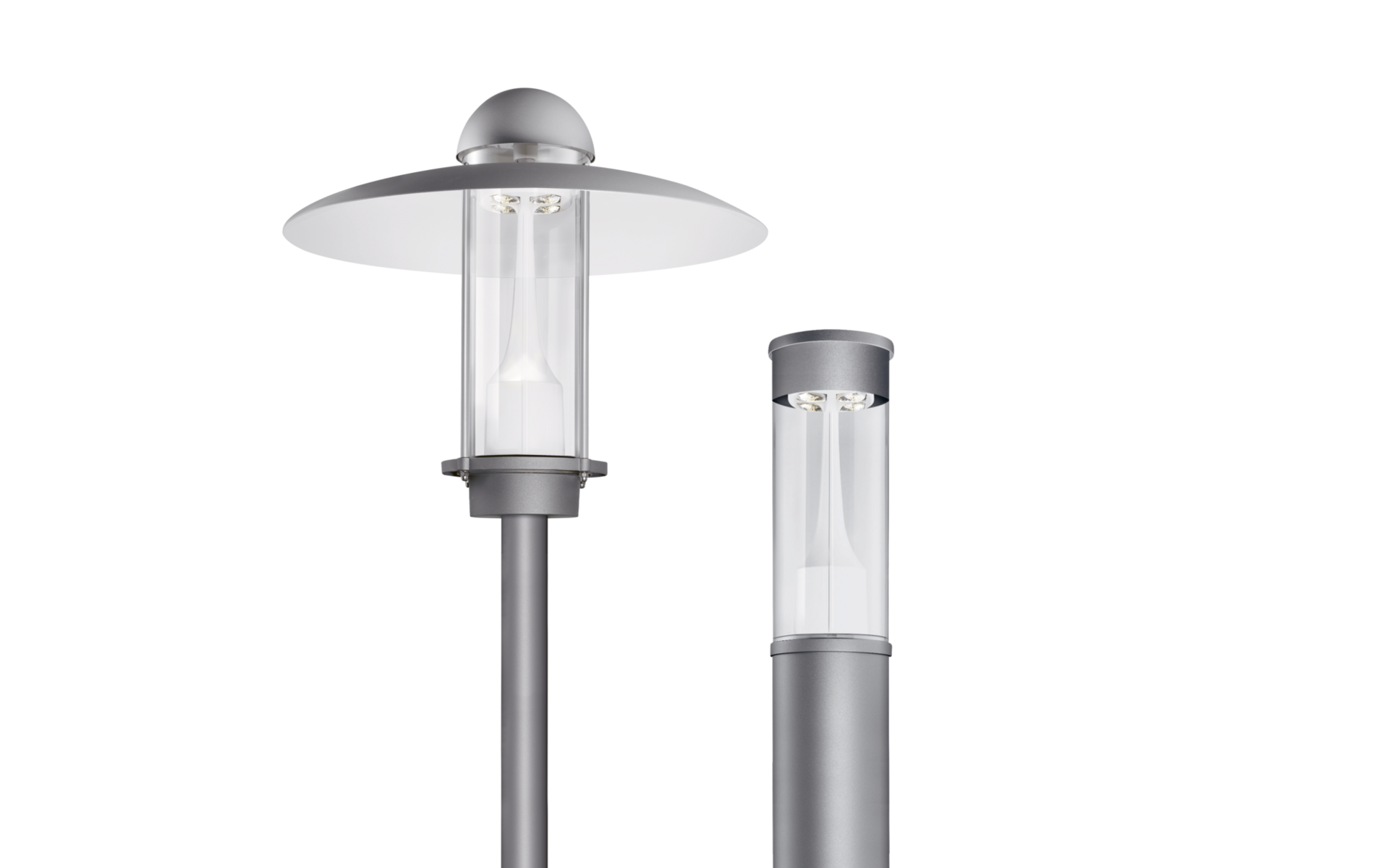

bollard City-Light 120 iQ
Key data
Article bollard luminaire
Luminous flux 1510lm to 2970lm
Colour temperature 2200K; 2700K; 3000K; 4000K
Lighting effect asymmetric wide distribution; asymmetric extremely wide distribution; symmetric wide distribution
Light distribution C120005; P100007; S120002
Control iQ Street-Remote
Protection rating IP54; IP65
Insulation class insulation class II (safety insulation)
Special features
Easy installation and low maintenance due to future-oriented modular design for exchangeable LED module and gear tray
Luminous module body as a visual guidance element with decorative day/night time effect
Low energy consumption due to high luminous efficacy and avoidance of overplanning thanks to the patented CLO 2.0 luminous flux tracking
High visual comfort due to uniform illumination and very good glare control – can be further improved with spreader element
Links
Configuration & data sheets
- please order cable junction box separately
- please order planted section separately if required
- Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR01) or your own smart phone
- Setting the luminaire with Desk-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR01) or your own smart phone (RFID dongle 5EA6ABR01 is also required for transferring smartphone/luminaire)
- SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
Results
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285BF14H GTIN (EAN): 4058352835470
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 1510lm | P100007 | iQ Street-Remote | 12.9W | 13.3W | 6.4W | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285AF14H GTIN (EAN): 4058352835456
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 1540lm | S120002 | iQ Street-Remote | 12.9W | 13.3W | 6.4W | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285CF14H GTIN (EAN): 4058352835500
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2200K | CRI > 70 | 2970lm | C120005 | iQ Street-Remote | 23.9W | 25.5W | 11.5W | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285NF14H GTIN (EAN): 4058352835579
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 1510lm | P100007 | iQ Street-Remote | 11.8W | 12.1W | 6W | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285MF14H GTIN (EAN): 4058352835555
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 1540lm | S120002 | iQ Street-Remote | 11.8W | 12.1W | 6W | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285OF14H GTIN (EAN): 4058352835593
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 2700K | CRI > 70 | 2970lm | C120005 | iQ Street-Remote | 21.8W | 23.2W | 10.7W | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, standard
Order No.: 5XA5285FF14H GTIN (EAN): 4058352636251
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 1510lm | P100007 | iQ Street-Remote | 10.5W | 10.8W | 5.4W | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, standard
Order No.: 5XA5285EF14H GTIN (EAN): 4058352636244
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 1540lm | S120002 | iQ Street-Remote | 10.5W | 10.8W | 5.4W | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, standard
Order No.: 5XA5285JF14H GTIN (EAN): 4058352636275
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 70 | 2970lm | C120005 | iQ Street-Remote | 19.3W | 20.6W | 9.6W | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285LF14H GTIN (EAN): 4058352835531
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1510lm | P100007 | iQ Street-Remote | 10W | 10.4W | 5.3W | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285KF14H GTIN (EAN): 4058352835517
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1540lm | S120002 | iQ Street-Remote | 10W | 10.4W | 5.3W | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285RF14H GTIN (EAN): 4058352835616
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2970lm | C120005 | iQ Street-Remote | 18.5W | 19.7W | 9.3W | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285BF14HGTIN (EAN): 4058352835470
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1510lm |
| Light distribution | P100007 |
| Control | iQ Street-Remote |
| Pnom | 12.9W |
| Pnom end service life | 13.3W |
| Pred at 50% lumin. flux | 6.4W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285AF14HGTIN (EAN): 4058352835456
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1540lm |
| Light distribution | S120002 |
| Control | iQ Street-Remote |
| Pnom | 12.9W |
| Pnom end service life | 13.3W |
| Pred at 50% lumin. flux | 6.4W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285CF14HGTIN (EAN): 4058352835500
| Colour temperature | 2200K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2970lm |
| Light distribution | C120005 |
| Control | iQ Street-Remote |
| Pnom | 23.9W |
| Pnom end service life | 25.5W |
| Pred at 50% lumin. flux | 11.5W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285NF14HGTIN (EAN): 4058352835579
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1510lm |
| Light distribution | P100007 |
| Control | iQ Street-Remote |
| Pnom | 11.8W |
| Pnom end service life | 12.1W |
| Pred at 50% lumin. flux | 6W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285MF14HGTIN (EAN): 4058352835555
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1540lm |
| Light distribution | S120002 |
| Control | iQ Street-Remote |
| Pnom | 11.8W |
| Pnom end service life | 12.1W |
| Pred at 50% lumin. flux | 6W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285OF14HGTIN (EAN): 4058352835593
| Colour temperature | 2700K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2970lm |
| Light distribution | C120005 |
| Control | iQ Street-Remote |
| Pnom | 21.8W |
| Pnom end service life | 23.2W |
| Pred at 50% lumin. flux | 10.7W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, standard
Order No.: 5XA5285FF14HGTIN (EAN): 4058352636251
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1510lm |
| Light distribution | P100007 |
| Control | iQ Street-Remote |
| Pnom | 10.5W |
| Pnom end service life | 10.8W |
| Pred at 50% lumin. flux | 5.4W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, standard
Order No.: 5XA5285EF14HGTIN (EAN): 4058352636244
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1540lm |
| Light distribution | S120002 |
| Control | iQ Street-Remote |
| Pnom | 10.5W |
| Pnom end service life | 10.8W |
| Pred at 50% lumin. flux | 5.4W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, standard
Order No.: 5XA5285JF14HGTIN (EAN): 4058352636275
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2970lm |
| Light distribution | C120005 |
| Control | iQ Street-Remote |
| Pnom | 19.3W |
| Pnom end service life | 20.6W |
| Pred at 50% lumin. flux | 9.6W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric extremely wide distribution, P100007, transparent, partly coated, standard
Order No.: 5XA5285LF14HGTIN (EAN): 4058352835531
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1510lm |
| Light distribution | P100007 |
| Control | iQ Street-Remote |
| Pnom | 10W |
| Pnom end service life | 10.4W |
| Pred at 50% lumin. flux | 5.3W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, asymmetric wide distribution, S120002, transparent, partly coated, standard
Order No.: 5XA5285KF14HGTIN (EAN): 4058352835517
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1540lm |
| Light distribution | S120002 |
| Control | iQ Street-Remote |
| Pnom | 10W |
| Pnom end service life | 10.4W |
| Pred at 50% lumin. flux | 5.3W |
| Wt. (kg) | 10.8 |
City-Light 120 iQ, symmetric wide distribution, C120005, transparent, partly coated, standard
Order No.: 5XA5285RF14HGTIN (EAN): 4058352835616
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2970lm |
| Light distribution | C120005 |
| Control | iQ Street-Remote |
| Pnom | 18.5W |
| Pnom end service life | 19.7W |
| Pred at 50% lumin. flux | 9.3W |
| Wt. (kg) | 10.8 |
Optional accessories
| Order No.: 5XA54000XSGTIN (EAN): 4050737730073 | Show all details |
| Order No.: 5XA54001XSGTIN (EAN): 4050737754895 | Show all details |
| Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show all details |
| Order No.: 5NA52800BFGTIN (EAN): 4039806059147 | Show all details |
| Order No.: 5NA54900XG08GTIN (EAN): 4050737794259 | Show all details |
