Licross® 11/21 sensors with DALI-2 interface

Product typesConfiguration & data sheets

Do you want a future-proof solution? Then sensors with a DALI-2 interface are the perfect solution thanks to open standards. Stay flexible at all times: The modular Licross® system allows you to configure the sensors as required, tailored to your individual requirements. Changes in use are also easily accommodated by Licross® sensors, so today's high-bay warehouse can become tomorrow's logistics hub. Regardless of the application, specialized sensors always provide you with the optimal, cost-effective solution. At the same time, Licross® sensors are true energy-saving miracles: With daylight-dependent control, you can save up to 20% on energy costs, and with motion-dependent control, you can save up to 80%.

Open interfaces enable modularity, flexibility and future safety

Product types

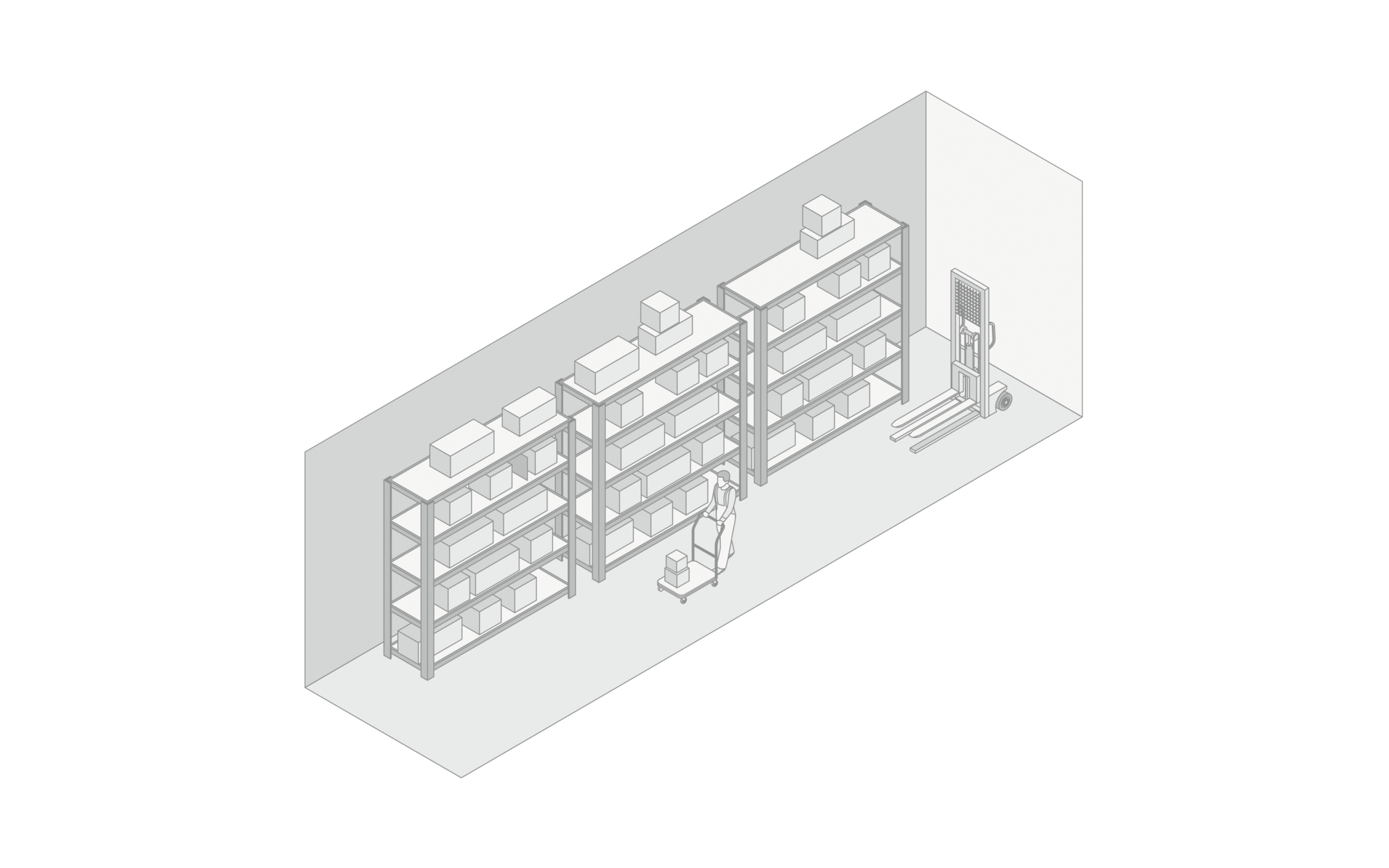

for narrow rooms, e.g. corridors

for rack and high-bay warehouses (4…14m)

for rack and high-bay warehouses (5...16m)

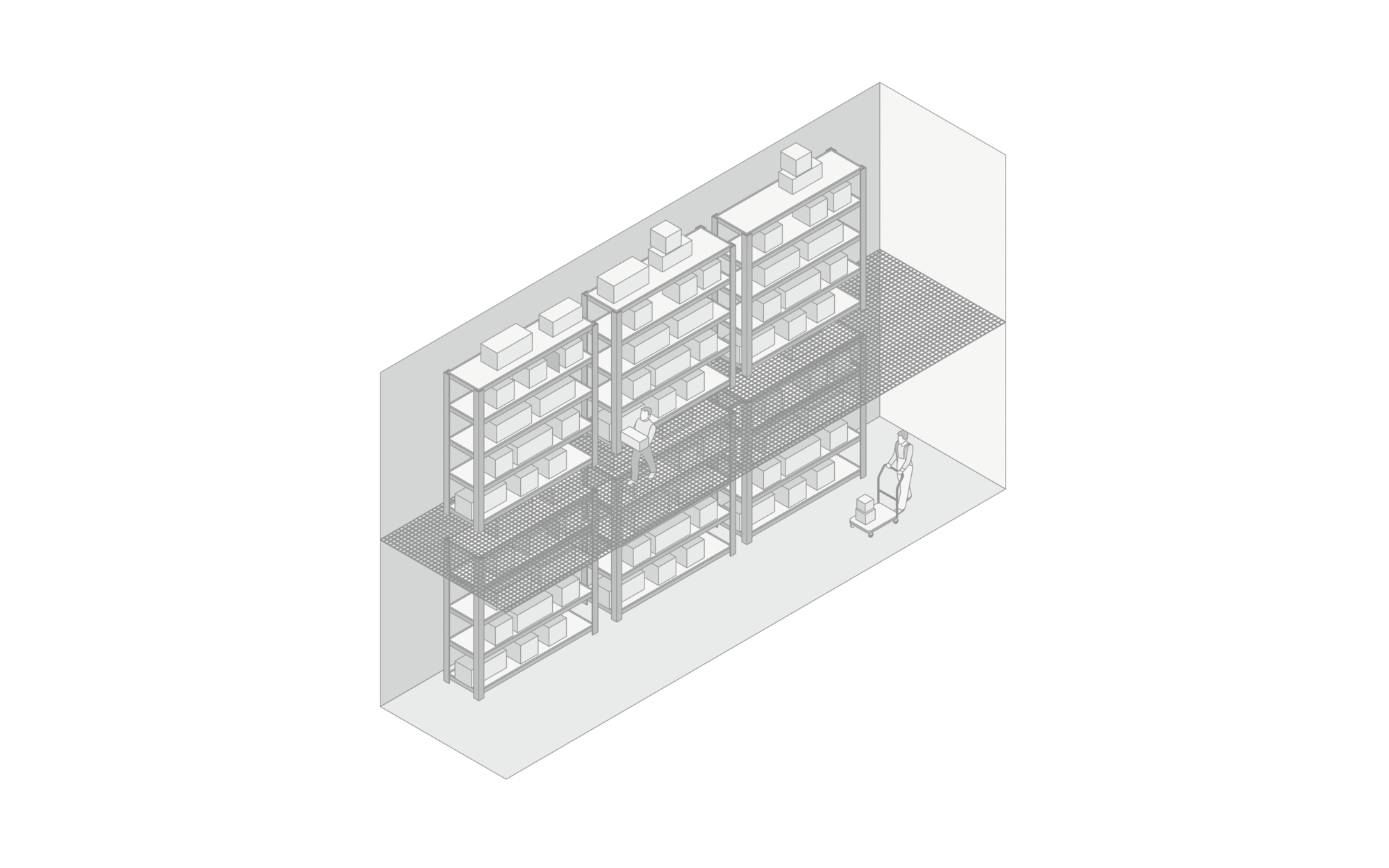

for shelving system with grid shelf

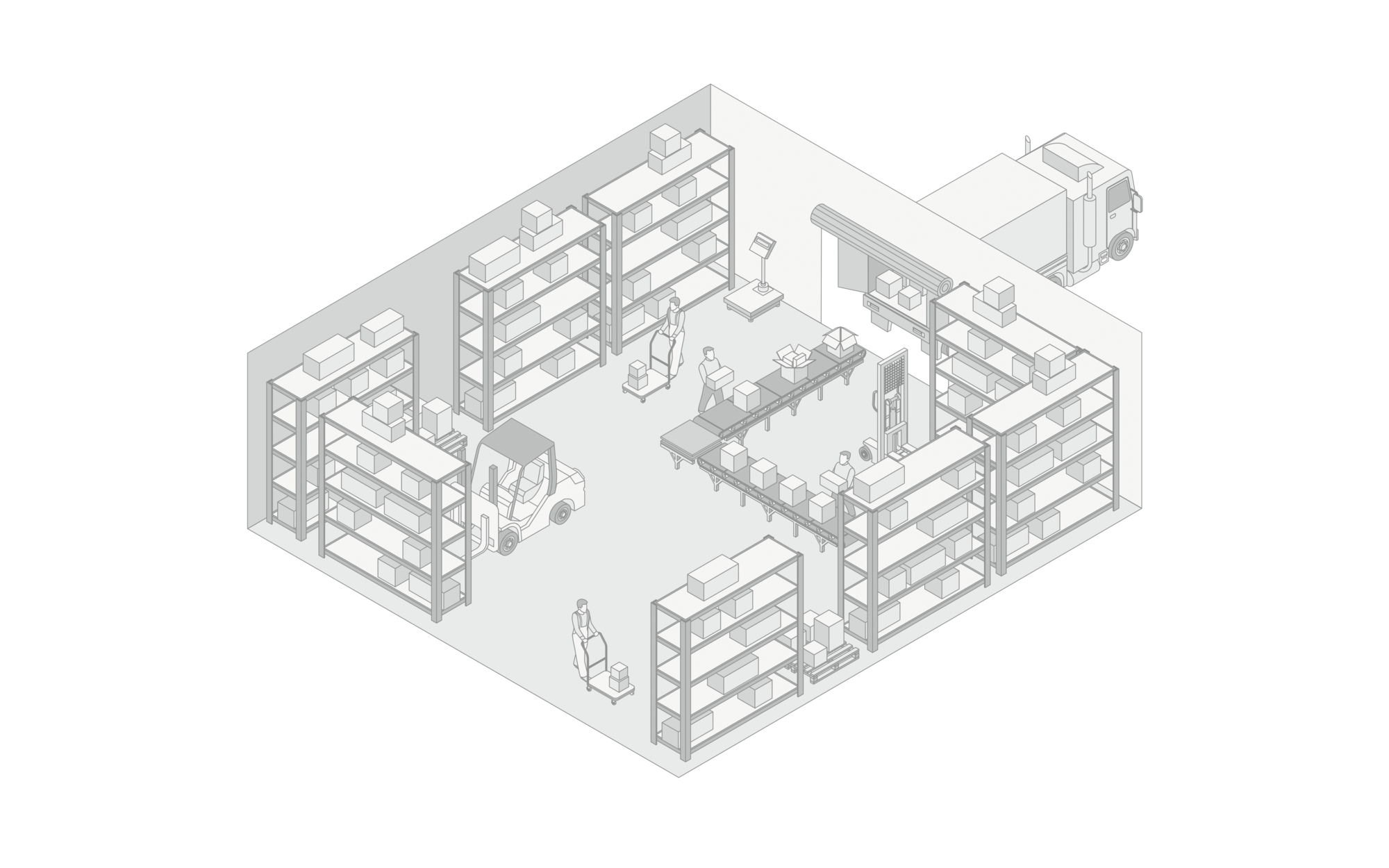

for shipping areas (2…4m)

for shipping areas (5…14m)

for office, classroom and training room

for office/classroom

light sensor for daylight detection for row rooms, tiltable

light sensor for production halls and shipping areas

for narrow rooms, e.g. corridors

Intro product family

Key data

Equipment slave
Article Sensor-Head PR1-S; Interface S

Special features

Multi-sensor for use in magazines and corridors
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Circular detection area
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly

Configuration & data sheets

  • when contacting DALI line 1, suitable from 7-core wiring upwards
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaption to on-site conditions via 90° rotatable sensor interface

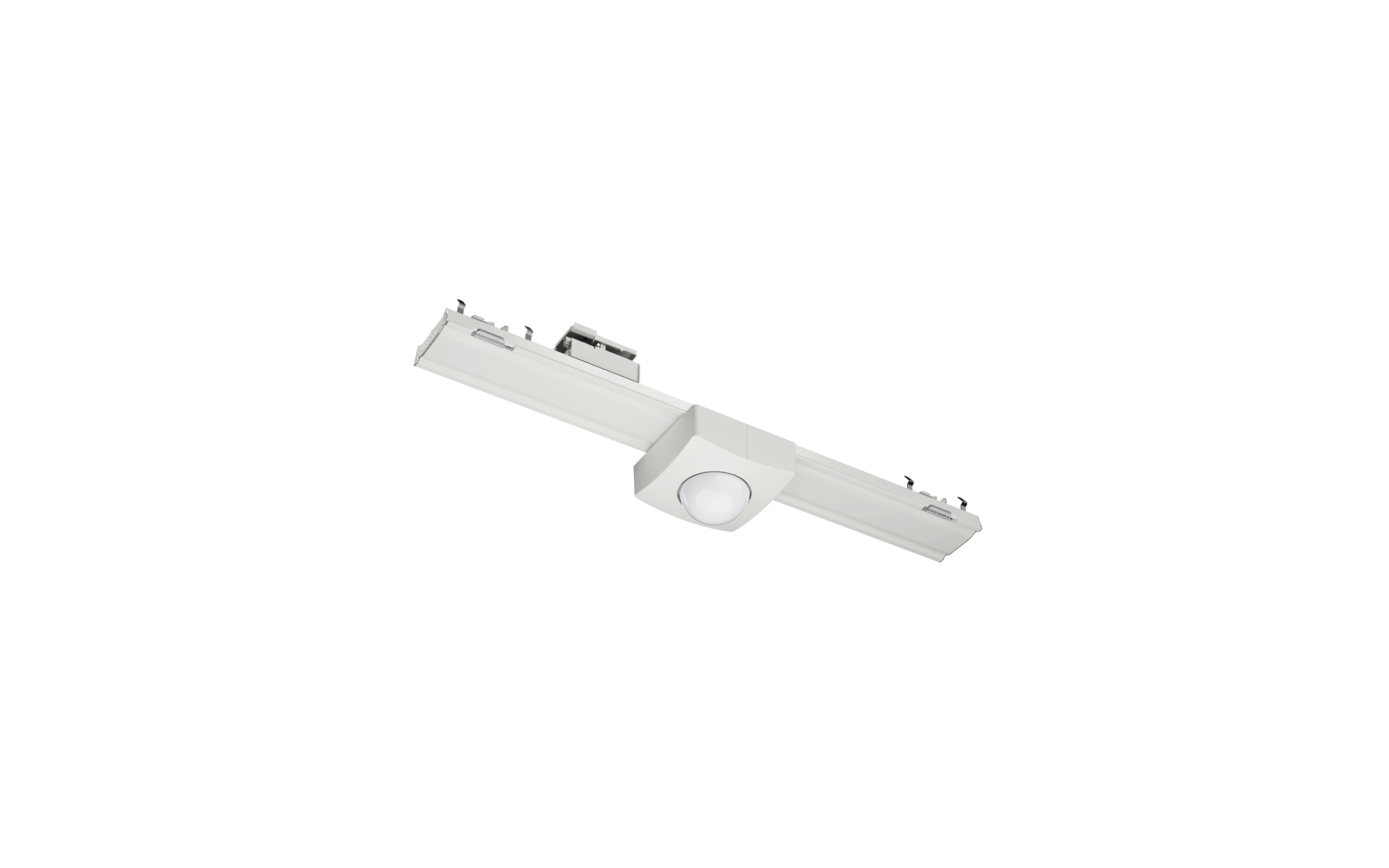

  • a sensor unit consists of sensor head and interface
  • DALI-2 certified according to parts 101,103,303,304
  • DALI current I= 6mA

Results

Licross® Interface, slave

Order No.: 56TL1FCSA GTIN (EAN): 4058352373880
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Interface Scorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms 500x96-20..+50°C
Show all details
Tender textData sheet (PDF, full)Complete download list

SITECO Connect, slave

Order No.: 59US1HXSPR1A GTIN (EAN): 4058352363997
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Sensor-Head PR1-Scorridor and magazine2.5..5mmax. 23x6m95x95-20..+50°C
Show all details
Tender textData sheet (PDF, full)Complete download list

Licross® Interface, slave

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880

ArticleInterface S
Application areacorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms
Mounting height
Detection range movement
Dimension (mm)500x96
ta-20..+50°C
Show all details

SITECO Connect, slave

Order No.: 59US1HXSPR1AGTIN (EAN): 4058352363997

ArticleSensor-Head PR1-S
Application areacorridor and magazine
Mounting height2.5..5m
Detection range movementmax. 23x6m
Dimension (mm)95x95
ta-20..+50°C
Show all details

Mandatory accessories

Articlecontroller, master, DALI 2, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.2Order No.: 5LZ904712AGTIN (EAN): 4058352548448Show all details
Articlebase package S/D, 1..15 DALI lines, DIN rail PC, DALI 2, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.6Order No.: 5LZ930100GTIN (EAN): 4058352385906Show all details
Articlebase package S/P, 1..15 DALI lines, touch panel PC, DALI 2, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.9Order No.: 5LZ930101GTIN (EAN): 4058352385913Show all details
Articlebase package M/D, 1..40 DALI lines, DIN rail PC, DALI 2, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.6Order No.: 5LZ930102GTIN (EAN): 4058352385920Show all details
Articlebase package M/P, 1..40 DALI lines, touch panel PC, DALI 2, central control - connection to lighting or building managementPU1 pc.Wt. (kg)0.9Order No.: 5LZ930103GTIN (EAN): 4058352385937Show all details
