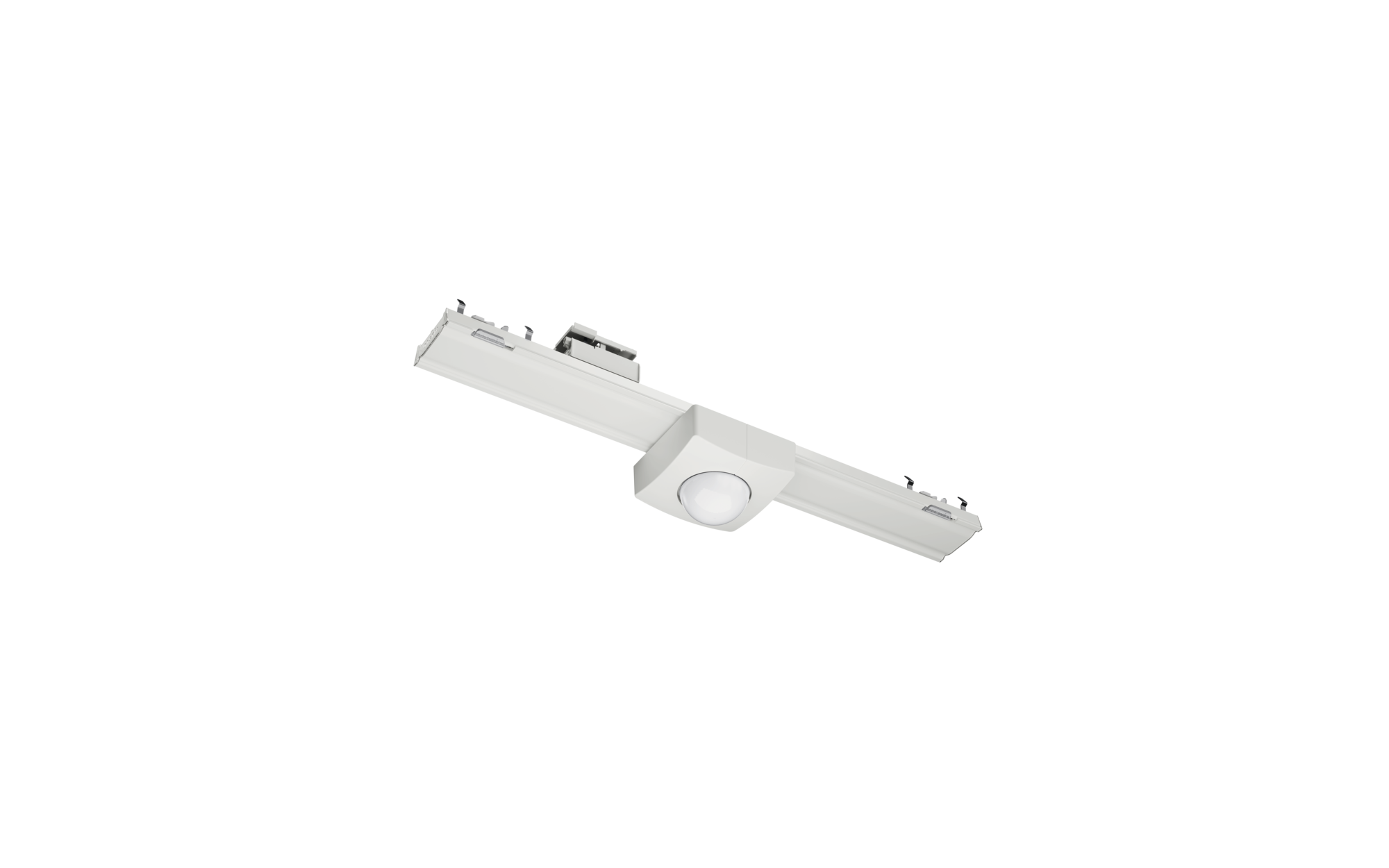

Licross® 11/21 sensors with DALI2 interface
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.
Producttypes

for narrow rooms, e.g. corridors

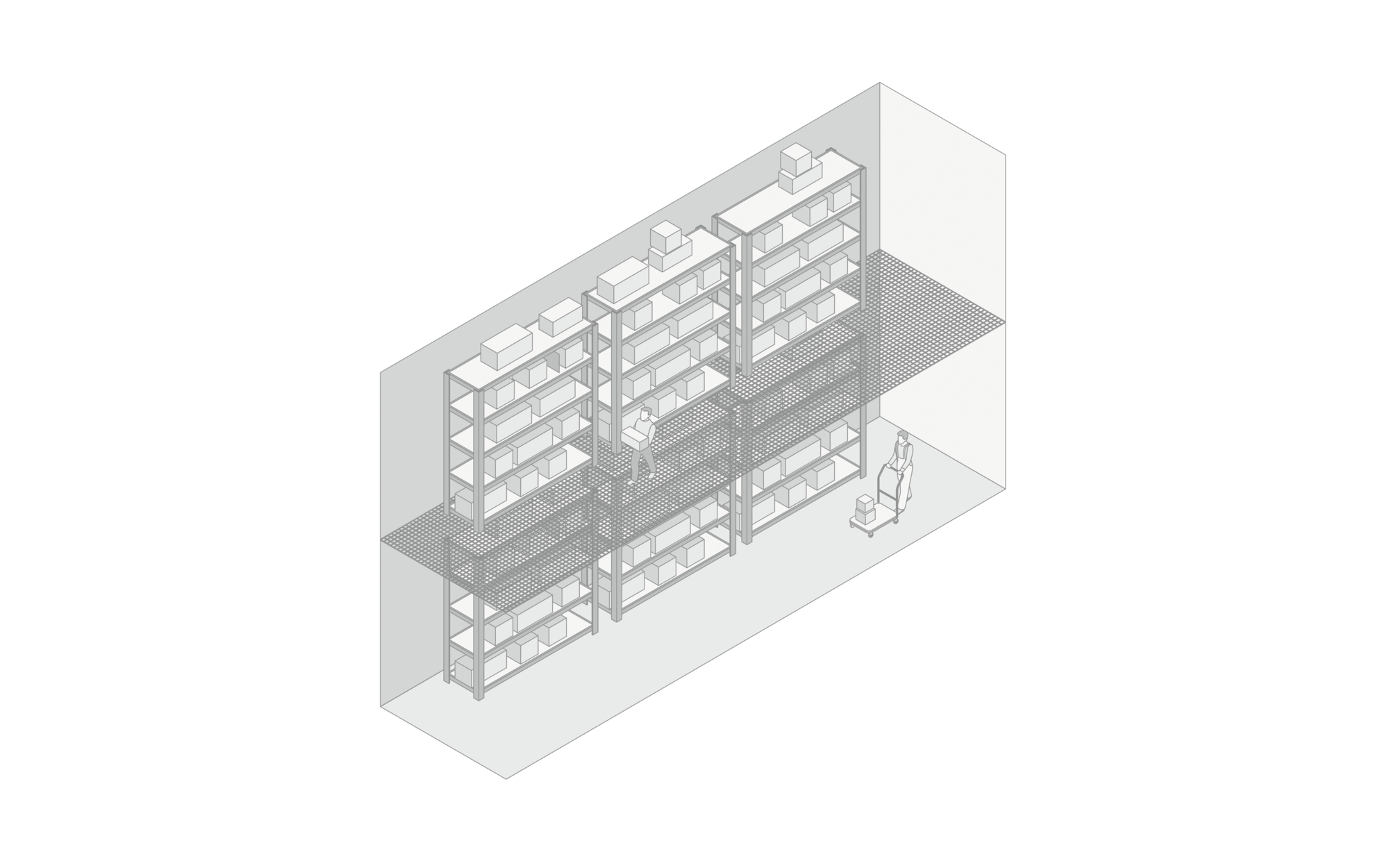

for rack and high-bay warehouses (4…14m)

for rack and high-bay warehouses (5...16m)

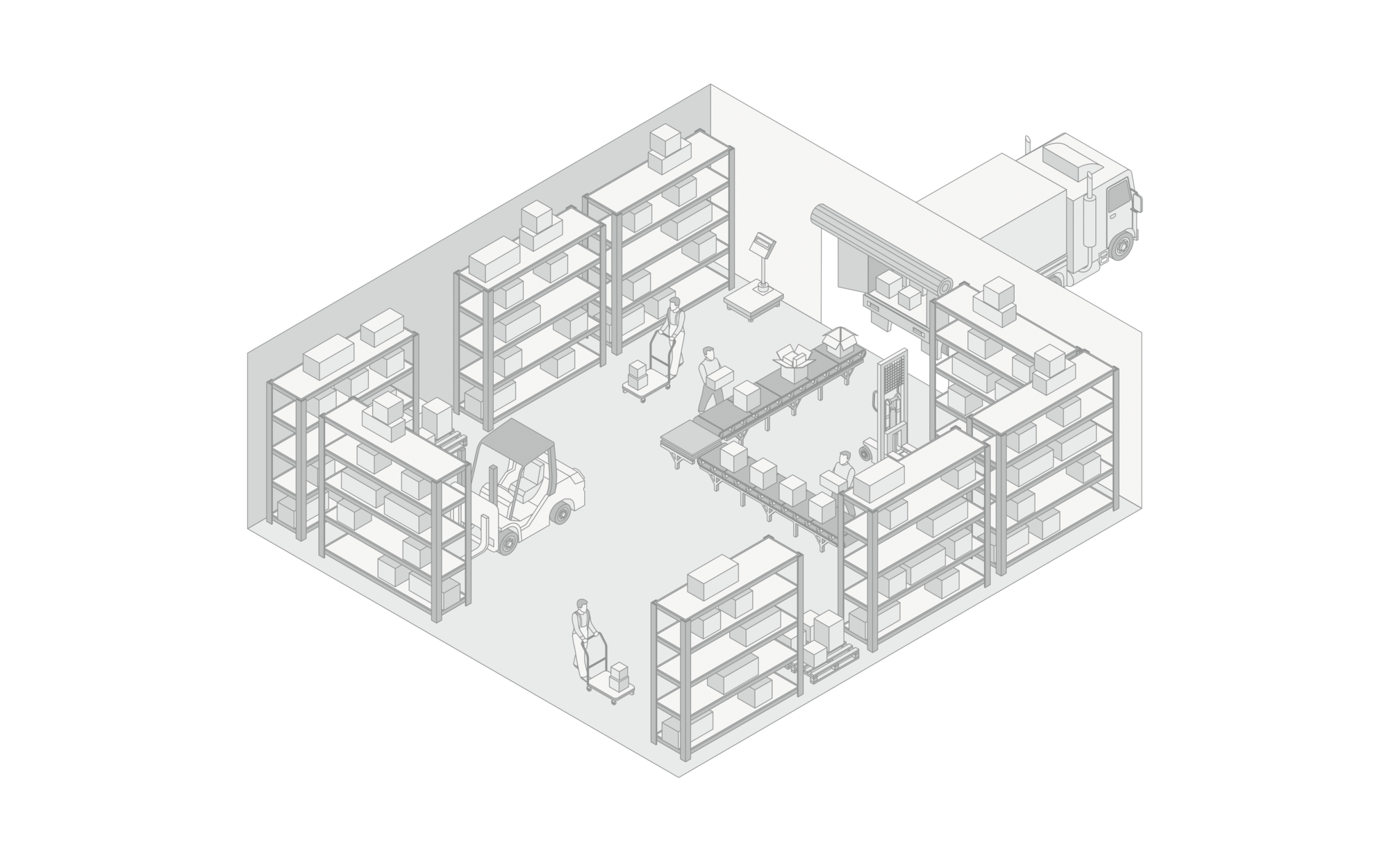

sensor for shipping areas (2…4m)

sensor for shipping areas (5…14m)

for office, classroom and training room

for office/classroom

light sensor for daylight detection for low rooms

light sensor for production halls and shipping areas
Configuration & Datasheets
- when contacting DALI line 1, suitable from 7-core wiring upwards
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- a sensor unit consists of multi-sensor, surface-mount housing, multifunctional unit ans adapter plate
- DALI2 certified according to part 101,103,303,304
- DALI current I= 4mA
Results
Licross® Trunking, slave
Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta |
---|---|---|---|---|---|
sensor module PS2-S | office rooms, corridor, class room, for stairways, for meeting rooms | 2.5..10m | radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m | 500x120 | 0..+40°C |
Licross® Trunking, slave
Order No.: 56TL1MDSPS2AGTIN (EAN): 4058352400685
Article | sensor module PS2-S |
---|---|
Application area | office rooms, corridor, class room, for stairways, for meeting rooms |
Mounting height | 2.5..10m |
Detection range movement | radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m |
Dimension (mm) | 500x120 |
ta | 0..+40°C |
Mandatory accessory
Order No.: 5LZ904712AGTIN (EAN): 4058352548448 | Show details |
Order No.: 5LZ930100GTIN (EAN): 4058352385906 | Show details |
Order No.: 5LZ930101GTIN (EAN): 4058352385913 | Show details |
Order No.: 5LZ930102GTIN (EAN): 4058352385920 | Show details |
Order No.: 5LZ930103GTIN (EAN): 4058352385937 | Show details |
