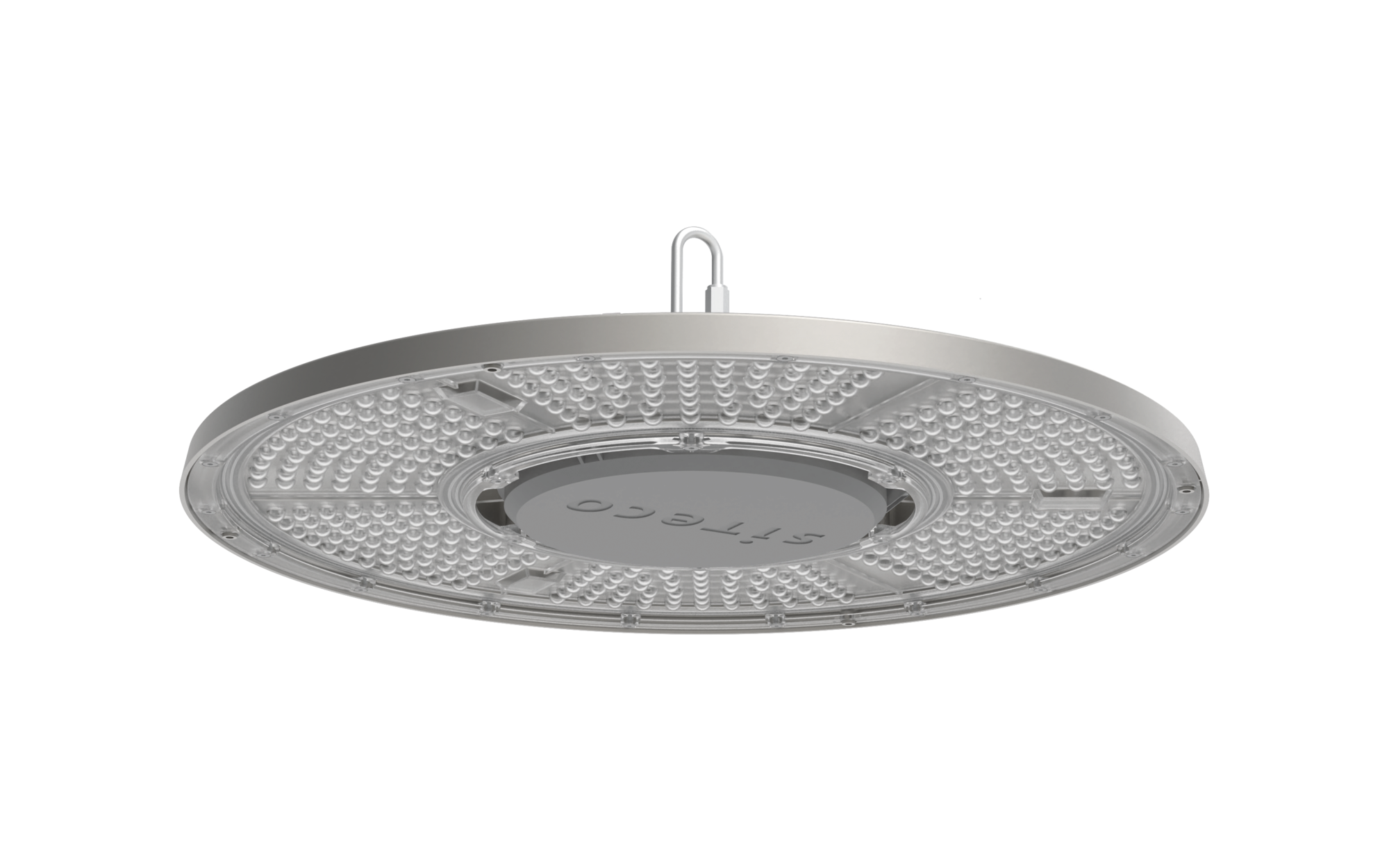

Highbay 31

ProducttypesConfiguration & Datasheets

Investments in sustainability pay off. Better light and savings at the same time - Highbay 31 makes your high bay lighting efficient and inexpensive, regardless of whether it is a 1:1 refurbishment of your old system or a new installation. The Highbay 31 stands for longevity and long-term reliability - even in harsh environmental conditions. High-quality electronic components, well thought-out thermal management and an optimized housing design that enables easy installation and prevents dirt deposits ensure low overall costs over the entire life cycle.

Our basic solution: Highbay 31 is our practical high bay luminaire as a perfect addition with high efficiency and quality

Producttypes

Highbay 31 S

Highbay 31 L

Highbay 31 S

Intro to Productfamily

Data

Article LED high bay luminaire
Lighting effect direct rotationally symmetric distribution, 60°; direct rotationally symmetric distribution, 90°
Net luminous flux 14000lm to 20000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Specials

Long service life (up to 100,000 hours) and use at elevated ambient temperatures up to 45°C thanks to excellent thermal management of the LEDs and drivers
Efficient light control and visual comfort in narrow and wide distribution design via lens optic of robust UV-stabilised PC
Reflectors of aluminium and PC avaliable as accessory for optimisation of glare reduction
Suitable for demanding ambient conditions (IP65/IK08) and for the food industry (IFS)

Configuration & Datasheets

Control

Beam angle

Lighting management

  • incl. connection cable (l= 1500mm) with free wire ends; please order system plug connection separately if required
  • includes suspension eyelet and screw carabiner of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
  • please order photometric accessories separately if required

Results

Highbay 31-S, 60°

Order No.: 51HC417A4FMB GTIN (EAN): 4058352700013
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WON/OFF2.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 60°

Order No.: 51HC41DA4FMB GTIN (EAN): 4058352700075
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WDALI 22.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 60°

Order No.: 51HC417A4JMB GTIN (EAN): 4058352700037
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 90°

Order No.: 51HC427A4FMB GTIN (EAN): 4058352700136
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WON/OFF2.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4FMB01 GTIN (EAN): 4058352700150
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WON/OFF2.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 90°

Order No.: 51HC42DA4FMB GTIN (EAN): 4058352700259
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WDALI 22.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 90°

Order No.: 51HC427A4JMB GTIN (EAN): 4058352700174
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4JMB01 GTIN (EAN): 4058352700204
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Highbay 31-S, 60°

Order No.: 51HC417A4FMBGTIN (EAN): 4058352700013

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.3
Show details

Highbay 31-S, 60°

Order No.: 51HC41DA4FMBGTIN (EAN): 4058352700075

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)2.9
Show details

Highbay 31-S, 60°

Order No.: 51HC417A4JMBGTIN (EAN): 4058352700037

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show details

Highbay 31-S, 90°

Order No.: 51HC427A4FMBGTIN (EAN): 4058352700136

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.3
Show details

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4FMB01GTIN (EAN): 4058352700150

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show details

Highbay 31-S, 90°

Order No.: 51HC42DA4FMBGTIN (EAN): 4058352700259

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)2.9
Show details

Highbay 31-S, 90°

Order No.: 51HC427A4JMBGTIN (EAN): 4058352700174

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show details

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4JMB01GTIN (EAN): 4058352700204

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.6
Show details

Optional accessory

Articlesystem connector: plug/socket, IP65, 3-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30003GTIN (EAN): 4058352143254Show details
Articlesystem connector: plug/socket, IP65, 5-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30005GTIN (EAN): 4058352143391Show details
Articlereflector, ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.4Order No.: 59HC91001GTIN (EAN): 4058352463192Show details
Articlereflector, ø= 433mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)0.3Order No.: 59HC91003GTIN (EAN): 4058352463215Show details
Articlemounting bracketPU1 pc.Wt. (kg)1.0Order No.: 59HC92001GTIN (EAN): 4058352463239Show details
