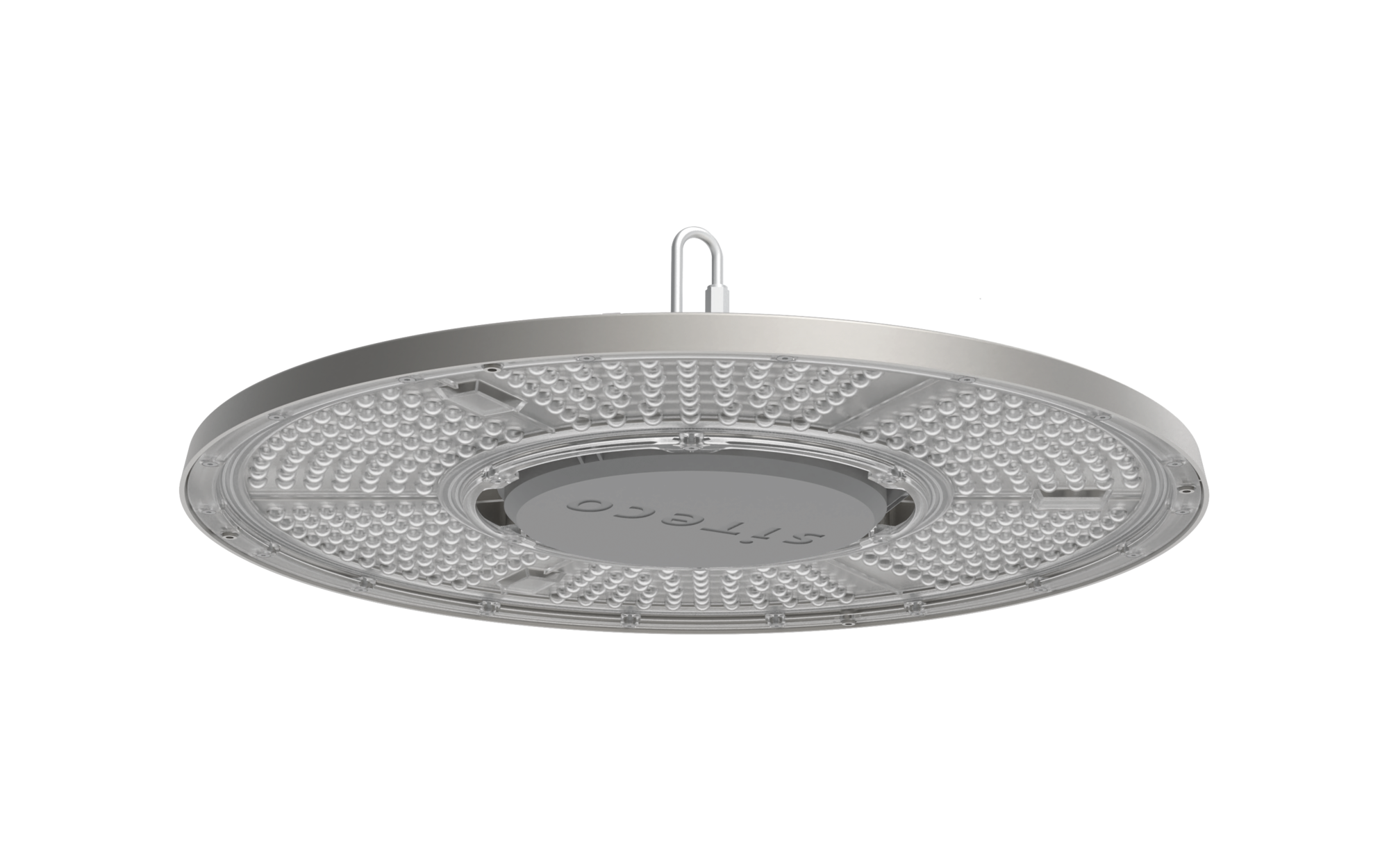

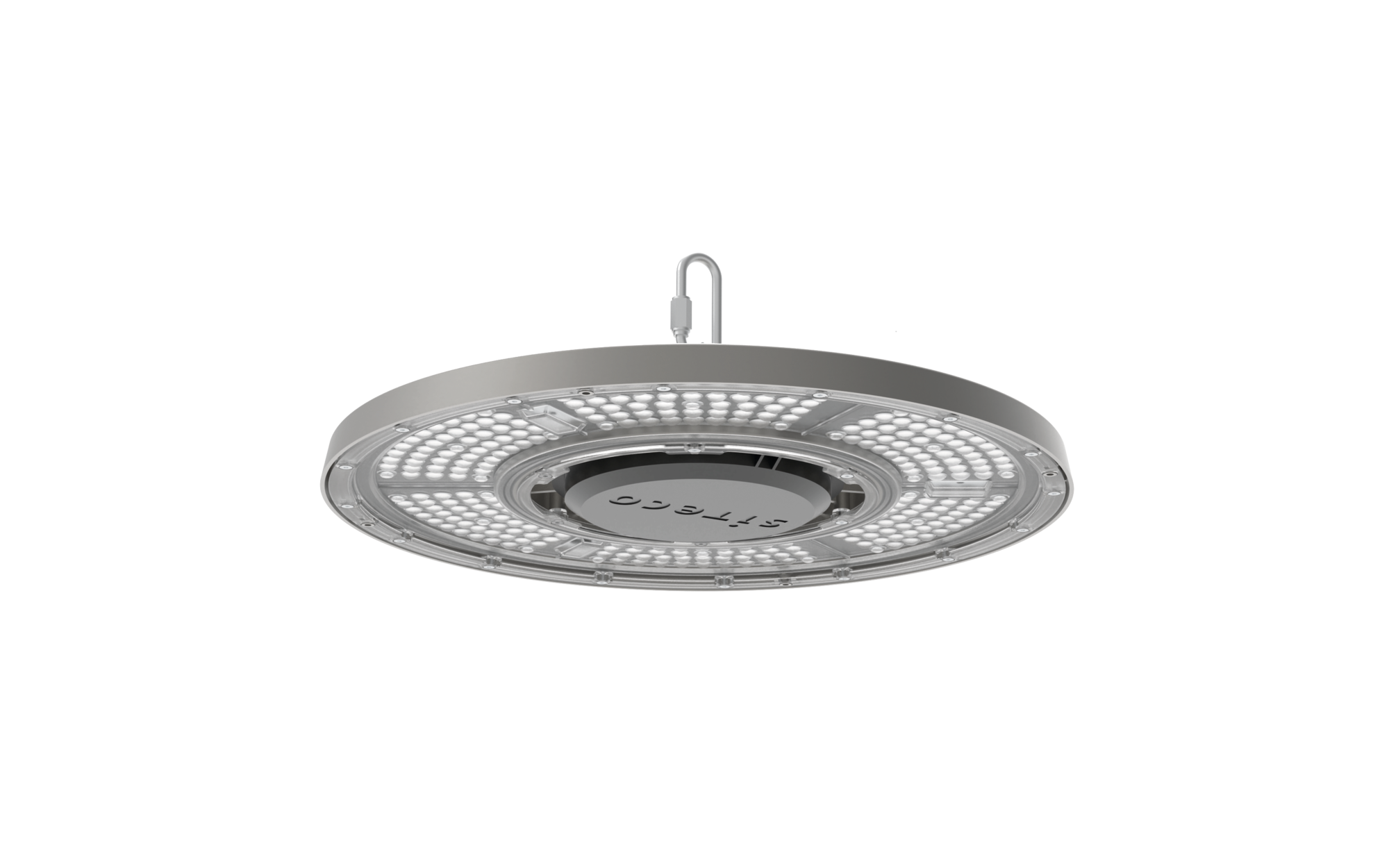

Highbay 31

ProducttypesConfiguration & Datasheets

Investments in sustainability pay off. Better light and savings at the same time - Highbay 31 makes your high bay lighting efficient and inexpensive, regardless of whether it is a 1:1 refurbishment of your old system or a new installation. The Highbay 31 stands for longevity and long-term reliability - even in harsh environmental conditions. High-quality electronic components, well thought-out thermal management and an optimized housing design that enables easy installation and prevents dirt deposits ensure low overall costs over the entire life cycle.

Our basic solution: Highbay® 31 is our practical high bay luminaire as a perfect addition with high efficiency and quality

Data

Article LED high bay luminaire
Lighting effect direct rotationally symmetric distribution, 60°; direct rotationally symmetric distribution, 90°
Net luminous flux 20000lm to 28000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Specials

Long service life (50,000h L85) and use with increased ambient temperatures up to 45°C by excellent thermal managament of LEDs and driver
Efficient light control and visual comfort in narrow and wide distribution design via lens optic of robust UV-stabilised PC
Reflectors of aluminium and PC avaliable as accessory for optimisation of glare reduction
Suitable for demanding ambient conditions (IP65/IK08) and for the food industry (IFS)

Configuration & Datasheets

Control

Beam angle

Lighting management

  • incl. connection cable (l= 1500mm) with free wire ends; please order system plug connection separately if required
  • includes suspension eyelet and screw carabiner of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
  • please order photometric accessories separately if required

Results

Highbay 31-L, 60°

Order No.: 51HC41DA4MMAGTIN (EAN): 4058352454817
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WDALI 24.7

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMA01GTIN (EAN): 4058352467077
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WON/OFF4.1

Highbay 31-L, 60°

Order No.: 51HC41DA4JMBGTIN (EAN): 4058352700099
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WDALI 23.7

Highbay 31-L, 60°

Order No.: 51HC417A4MMBGTIN (EAN): 4058352700051
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WON/OFF3.0

Highbay 31-L, 60°

Order No.: 51HC41DA4MMBGTIN (EAN): 4058352700112
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WDALI 23.8

Highbay 31-L, 90°

Order No.: 51HC42DA4JMBGTIN (EAN): 4058352700273
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WDALI 23.7

Highbay 31-L, 90°

Order No.: 51HC427A4MMBGTIN (EAN): 4058352700211
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WON/OFF3.0

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMB01GTIN (EAN): 4058352700235
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WON/OFF3.1

Highbay 31-L, 90°

Order No.: 51HC42DA4MMBGTIN (EAN): 4058352700297
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WDALI 23.8

Highbay 31-L, 60°

Order No.: 51HC41DA4MMAGTIN (EAN): 4058352454817

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)4.7

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMA01GTIN (EAN): 4058352467077

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)4.1

Highbay 31-L, 60°

Order No.: 51HC41DA4JMBGTIN (EAN): 4058352700099

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.7

Highbay 31-L, 60°

Order No.: 51HC417A4MMBGTIN (EAN): 4058352700051

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)3.0

Highbay 31-L, 60°

Order No.: 51HC41DA4MMBGTIN (EAN): 4058352700112

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.8

Highbay 31-L, 90°

Order No.: 51HC42DA4JMBGTIN (EAN): 4058352700273

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.7

Highbay 31-L, 90°

Order No.: 51HC427A4MMBGTIN (EAN): 4058352700211

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)3.0

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMB01GTIN (EAN): 4058352700235

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)3.1

Highbay 31-L, 90°

Order No.: 51HC42DA4MMBGTIN (EAN): 4058352700297

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.8

Optional accessory

Articlesystem connector: plug/socket, IP65, 3-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30003GTIN (EAN): 4058352143254Show details
Articlesystem connector: plug/socket, IP65, 5-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30005GTIN (EAN): 4058352143391Show details
Articlereflector, ø= 570mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.7Order No.: 59HC91002GTIN (EAN): 4058352463208Show details
Articlereflector, ø= 590mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.5Order No.: 59HC91004GTIN (EAN): 4058352463222Show details
Articlemounting bracketPU1 pc.Wt. (kg)1.2Order No.: 59HC92002GTIN (EAN): 4058352463260Show details
